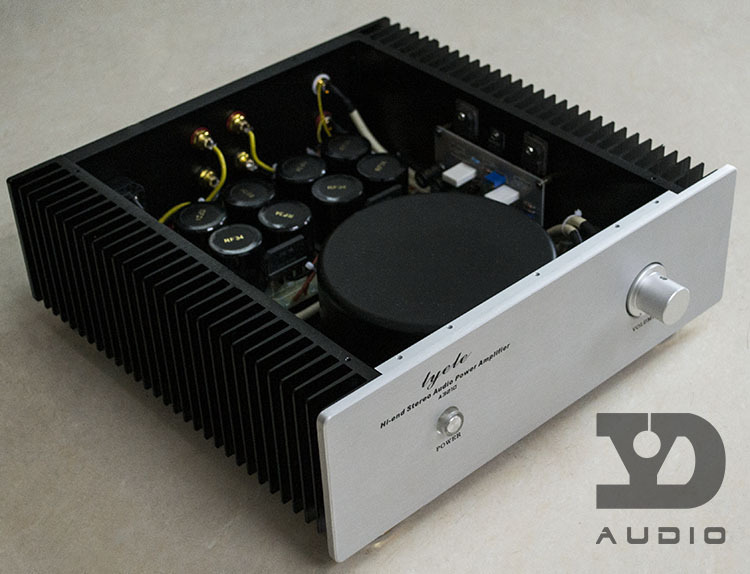

Finished A30 stereo FET Class A Power amplifier 30W*2 MOSFET HIFI AMP

Finished A30 stereo FET Class A Power amplifier 30W MOSFET HIFI AMP


Maximum output power: 30W / 8 Ohms  60W / 4 Ohms

Maximum CPI Power: 30W

Maximum supply voltage: +-33V

Harmonic distortion: <0.01% 10W / 8 Ohms

Frequency response: 0Hz-100KHz

Damping Factor:> 100

SNR:> 96dB

Conversion rate:> 30V/uS

Input Sensitivity: 0.5V (RMS)

Input impedance: 10K

Gain: 31dB (34 times)


size：320*305*110mm


work voltage：AC115 or AC230V


full aluminum chassis


weight：about 12kg


package included：

Finished A30 stereo  Class A Power amplifier    x  1
