Product details:

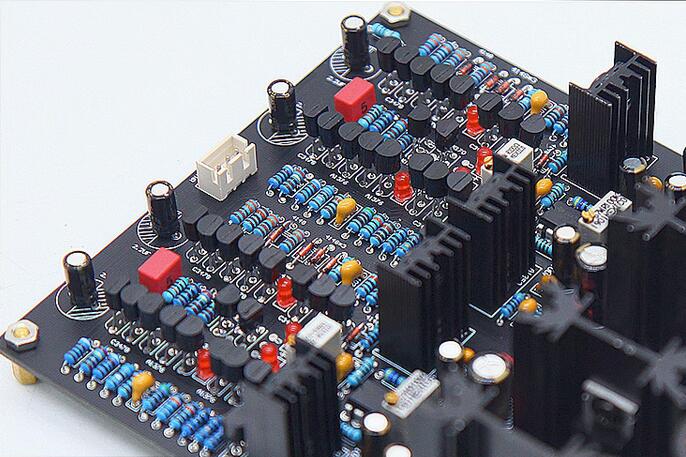

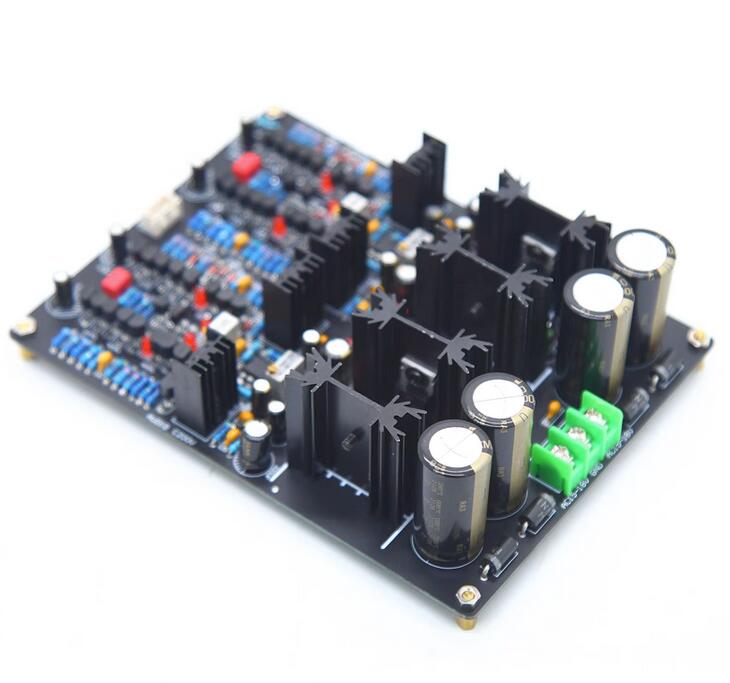

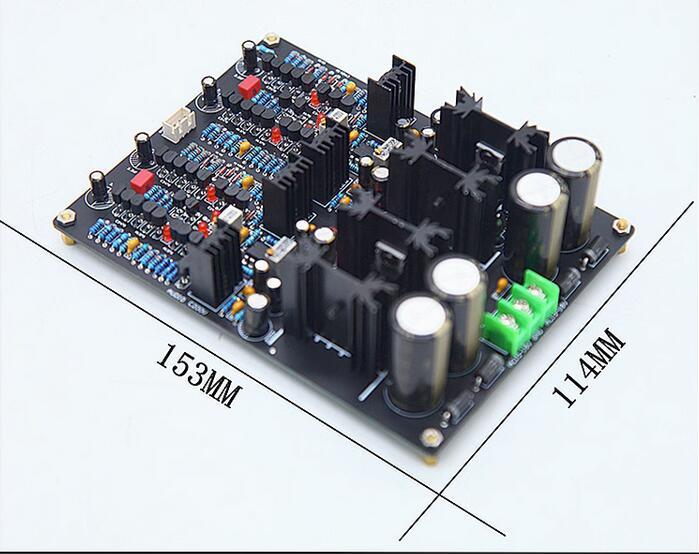

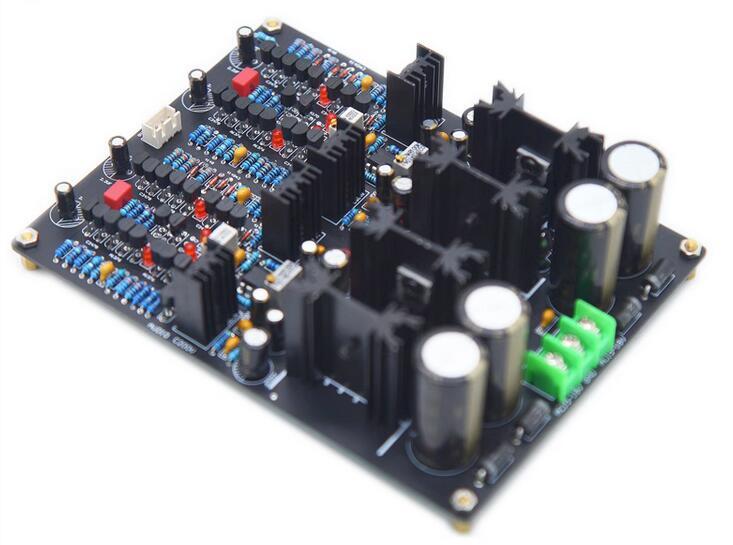

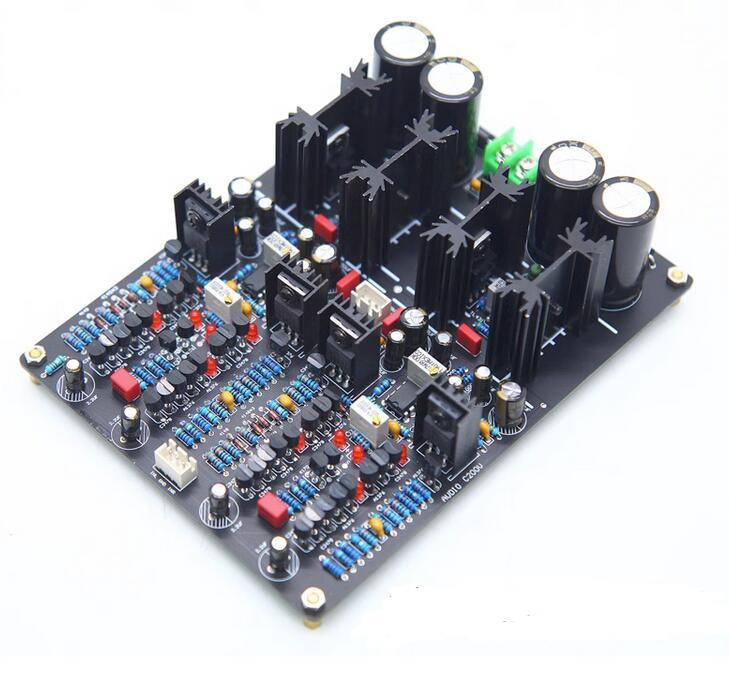

Referring to the Accuphase C200V circuit design, it features a pure DC amplification structure without input/output and feedback capacitors, thereby avoiding the modification and staining of sound by coupling and feedback capacitors. It preserves the original charm of the sound source as much as possible, achieving true high fidelity signal amplification
Adopting a left and right symmetrical input amplification circuit, accurately pairing fully discrete transistors

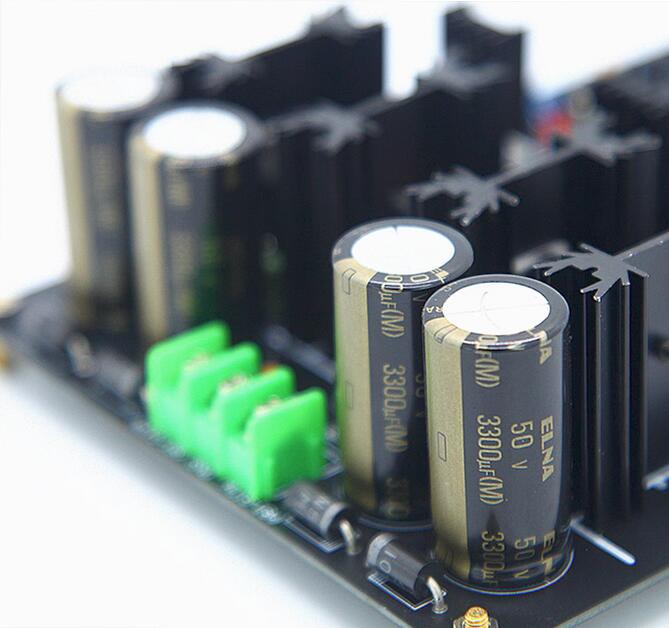

Metal five ring resistor, imported BI adjustable resistor, German WIMA capacitor and other well-known audio components.
Optimized PCB layout for more beautiful vocals
Parameters:
Input voltage: dual AC15-18V transformers above 20W
Signal to noise ratio: ≤ 105db
Distortion: ≤ 0.005%
Frequency response: 20Hz-30KHz
Magnification: 6x
Input impedance: 47K
Weight: about 0.25kg
