Product Details:
Completely identical to MBL6010D circuit, parameters, architecture, and materials, balanced input-output has been removed.This preamp has high resolution, straight curves, good tri frequency extension, ultra-low distortion, and ultra-low noise.
Fully DC coupled circuit.
Large all aluminum alloy chassis with surface oxidation and wire drawing treatment.
ALPS potentiometer, stable performance, good balance, (upgradable remote control function) .
50W NORATEL toroidal transformer.
4 brand new OPA828 main amplifiers.2 NE5534 AUX buffers
Having a comprehensive protection scheme (with delayed startup and instantaneous shutdown functions, avoiding power on/off shocks).

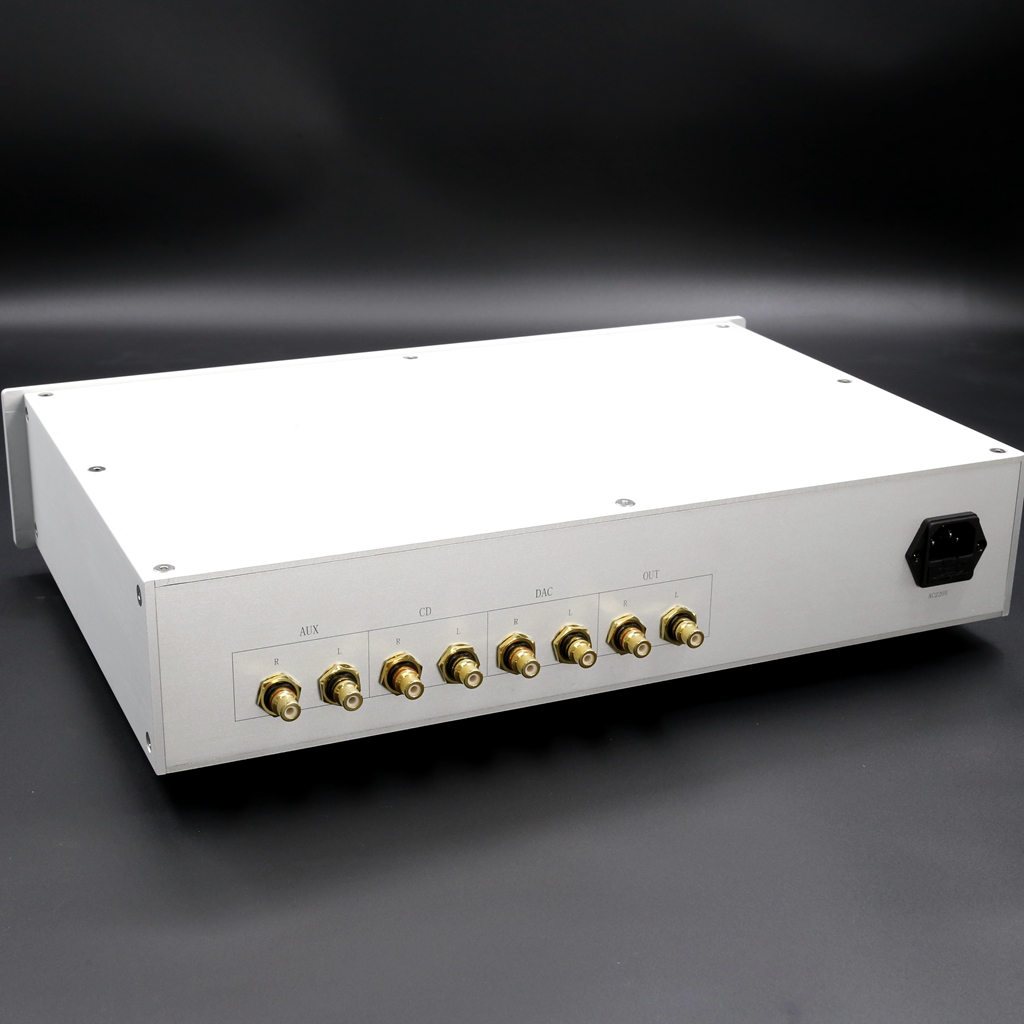

3 sets of single ended inputs, 1 set of single ended outputs.
Single crystal copper signal cable. SCHURTER power socket, SCHURTER gold-plated fuse.
Using American ALPHA tin wire for manual welding.
Parameters:
Input voltage: AC 220V/110V
Color:silver/black
Output effective value: 11.98Vrms
Channel gain: 17.95dB 7.8 times
Signal to noise ratio: 124dB
Dynamic range: 124dB
THD distortion: 0.00012%
THD+N distortion: 0.00037%
Frequency response bandwidth: ± 0.04dB
Weight: about 5KG
Package list:
1 × C7.2 preamplifier(For the safe transportation of the amplifier, a power cord is not provided by default）

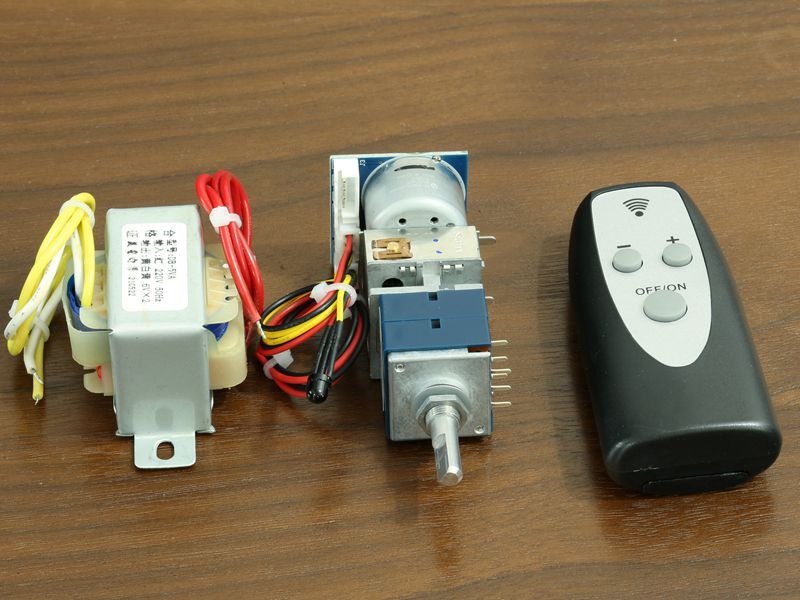

Upgrade remote control function, (an additional fee of 29 USD is required)
