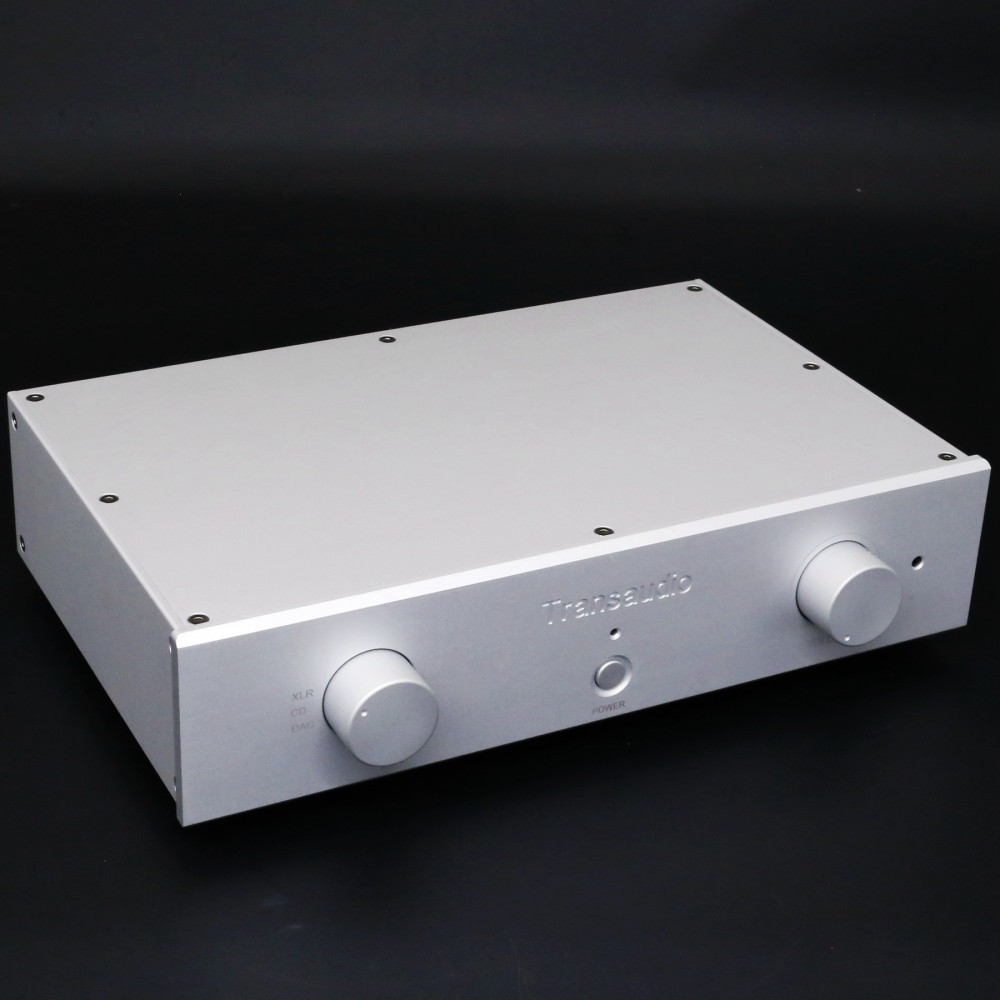

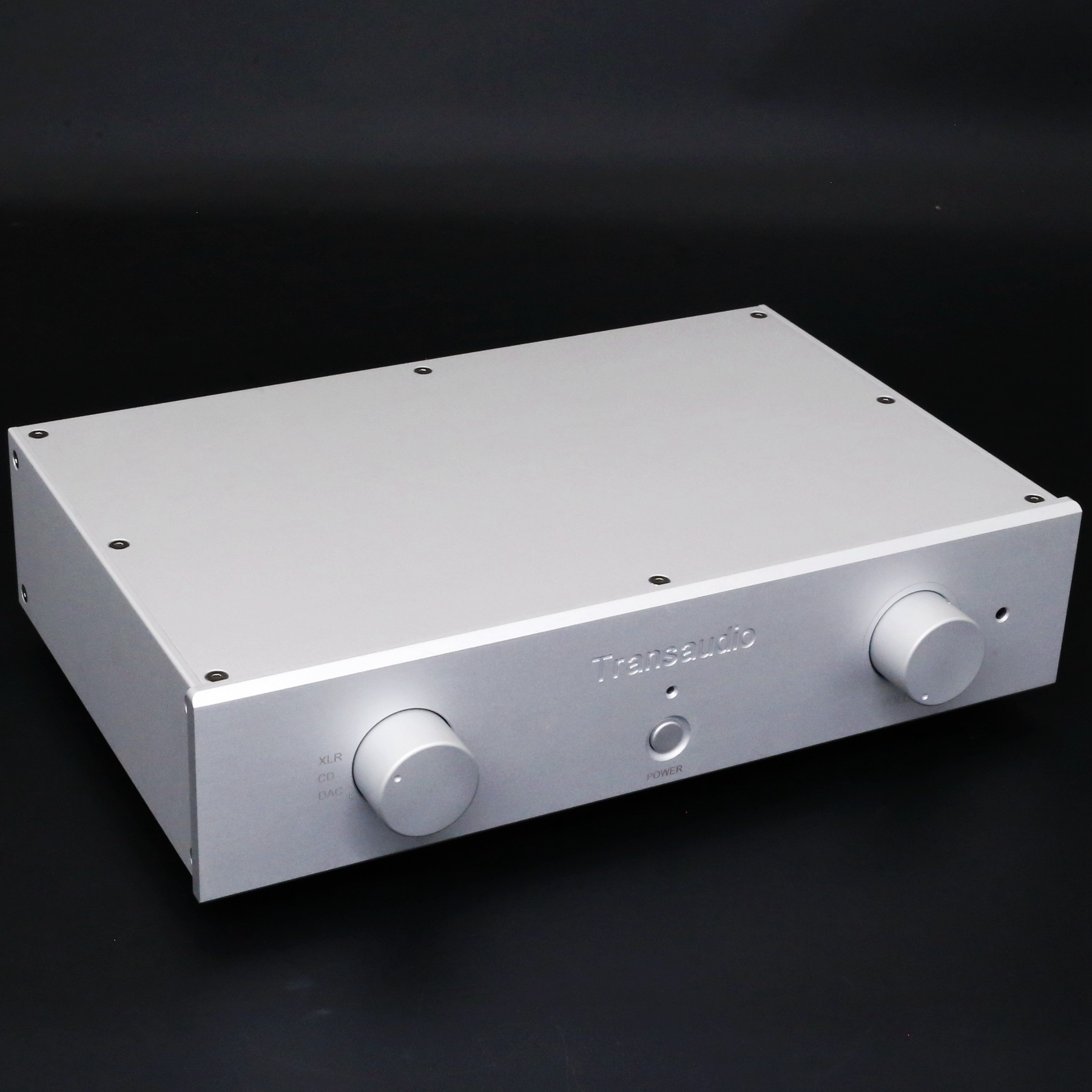

Finished C9.5 Audiophile balance preamplifier Reference TO MBL6010D Circuit (AP-aided design)

SKU:
Flash Sale
5.0 (1 Reviews)
2 Sold
$359.00 $330.28
-8%
GET $2.00 OFF ON ORDERS OVER $40.00
Get it
L18J8W12
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • color:
    silver
    black
  • input voltage:
    AC110V
    AC220V
Quantity:
-
+
Add to Favorites (8)
  • Finished C9.5 Audiophile balance preamplifier Reference TO MBL6010D Circuit (AP-aided design)
  • Finished C9.5 Audiophile balance preamplifier Reference TO MBL6010D Circuit (AP-aided design)
  • Finished C9.5 Audiophile balance preamplifier Reference TO MBL6010D Circuit (AP-aided design)
  • Finished C9.5 Audiophile balance preamplifier Reference TO MBL6010D Circuit (AP-aided design)
  • Finished C9.5 Audiophile balance preamplifier Reference TO MBL6010D Circuit (AP-aided design)
  • Finished C9.5 Audiophile balance preamplifier Reference TO MBL6010D Circuit (AP-aided design)
  • Finished C9.5 Audiophile balance preamplifier Reference TO MBL6010D Circuit (AP-aided design)
  • Finished C9.5 Audiophile balance preamplifier Reference TO MBL6010D Circuit (AP-aided design)
1/1
  • Finished C9.5 Audiophile balance preamplifier Reference TO MBL6010D Circuit (AP-aided design)
  • Finished C9.5 Audiophile balance preamplifier Reference TO MBL6010D Circuit (AP-aided design)
  • Finished C9.5 Audiophile balance preamplifier Reference TO MBL6010D Circuit (AP-aided design)
  • Finished C9.5 Audiophile balance preamplifier Reference TO MBL6010D Circuit (AP-aided design)
  • Description
Product Details:

It is identical to the MBL6010D preamp in terms of circuit design, parameters, architecture, and materials used. It features a dual-mono design with no electrical connection between the left and right channels. It is a fully DC-coupled circuit, offering high sound resolution, flat curves, good extension in all three frequency ranges, ultra-low distortion, and ultra-low noise.
.
● Precision CNC machined all-aluminum alloy chassis
● ALPS27 type remote control potentiometer allows for manual or remote adjustment of volume.

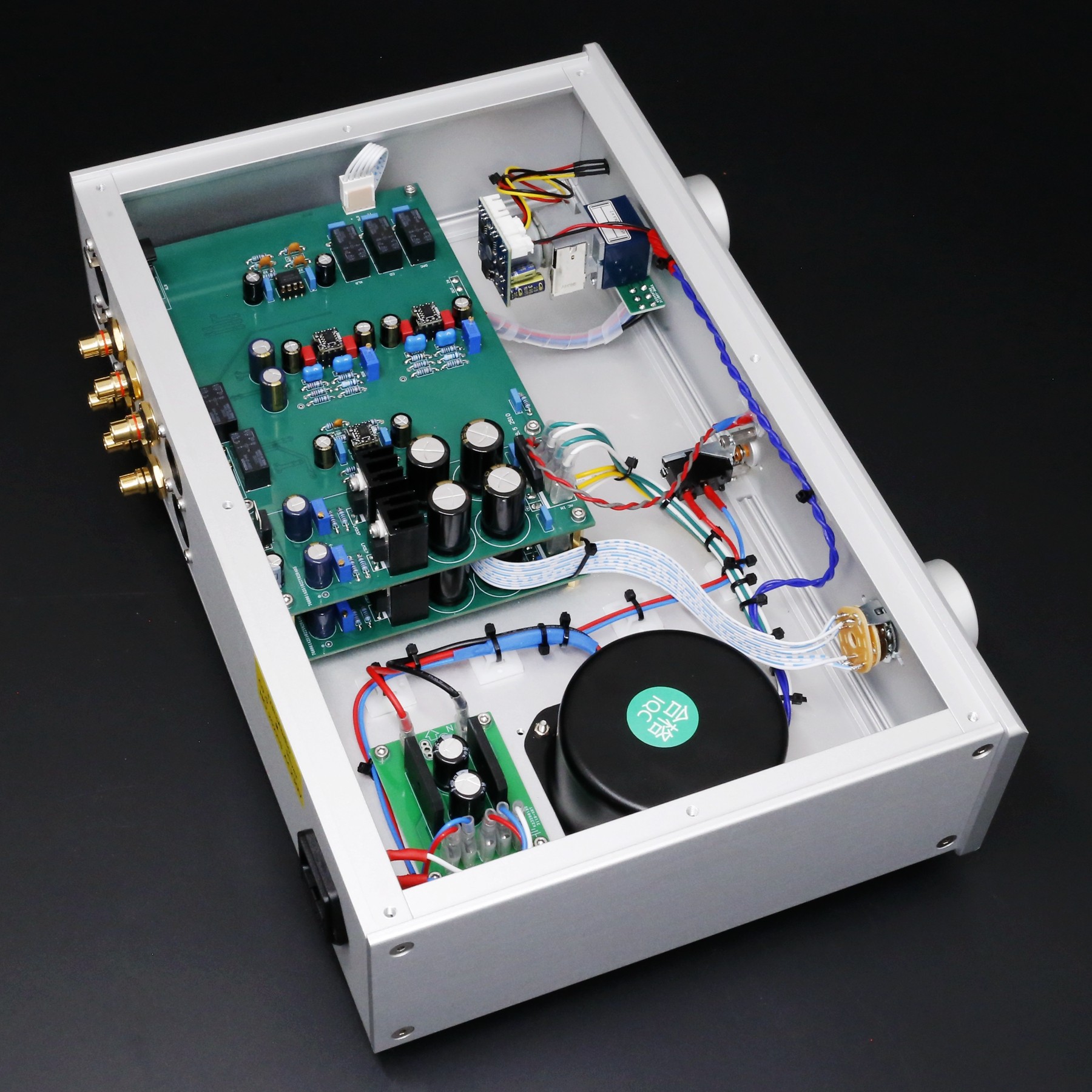

● Using a 60W encapsulated shielded transformer, separate power supply for left and right channels.
● Brand new super operational amplifier OPA828 amplification.

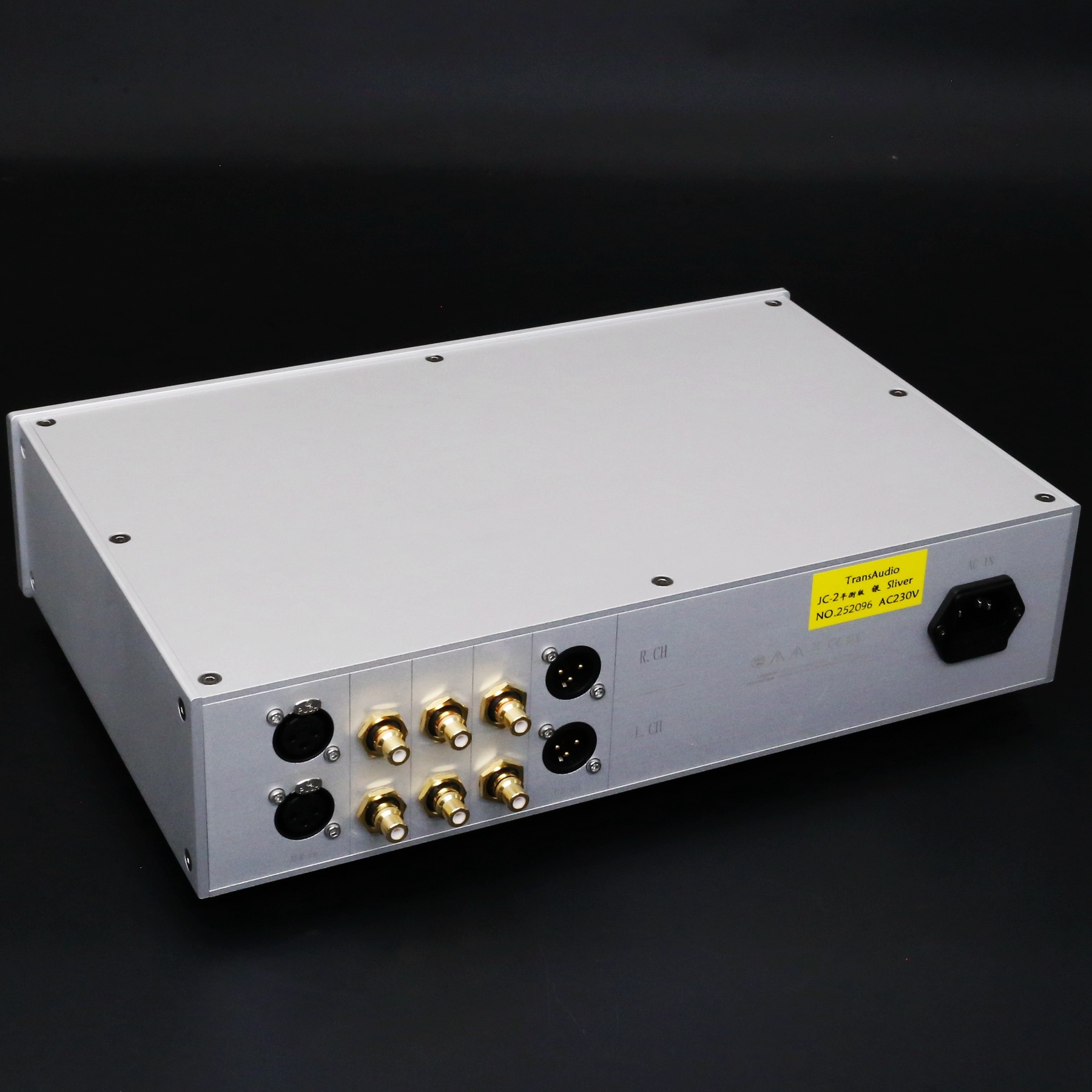

● 2 sets of single-ended inputs, 1 set of balanced inputs.（Both the balanced input and output ports are wired according to the American standard）
● 1 set of RCA single-ended output and 1 set of XLR balanced output. Both RCA and balanced outputs can be used simultaneously, allowing for the connection of two power amplifiers at the same time.
● Equipped with soft start protection, it effectively avoids the impact of switching on and off.

Parameters:

● Size: 360*240*80mm
● Weight: about 6kg
● Input voltage: AC110V or AC220V
● Output effective value: 11.85Vrms
● Channel gain: 18.1dB, 8.05 times
● Signal-to-noise ratio: 124.9dB
● Dynamic range: 125.5dB
● Channel crosstalk: -99.1dB, thanks to the mono design
● THD distortion: 0.000062% - Ultra high fidelity
● THD+N distortion: 0.000234%
● Intermodulation distortion: 0.0002%
● Frequency response bandwidth: ±0.050dB, completely flat from 20-20kHz

List:

1 x C9.5 Preamplifier（To ensure transportation safety, no power input cable is provided by default）

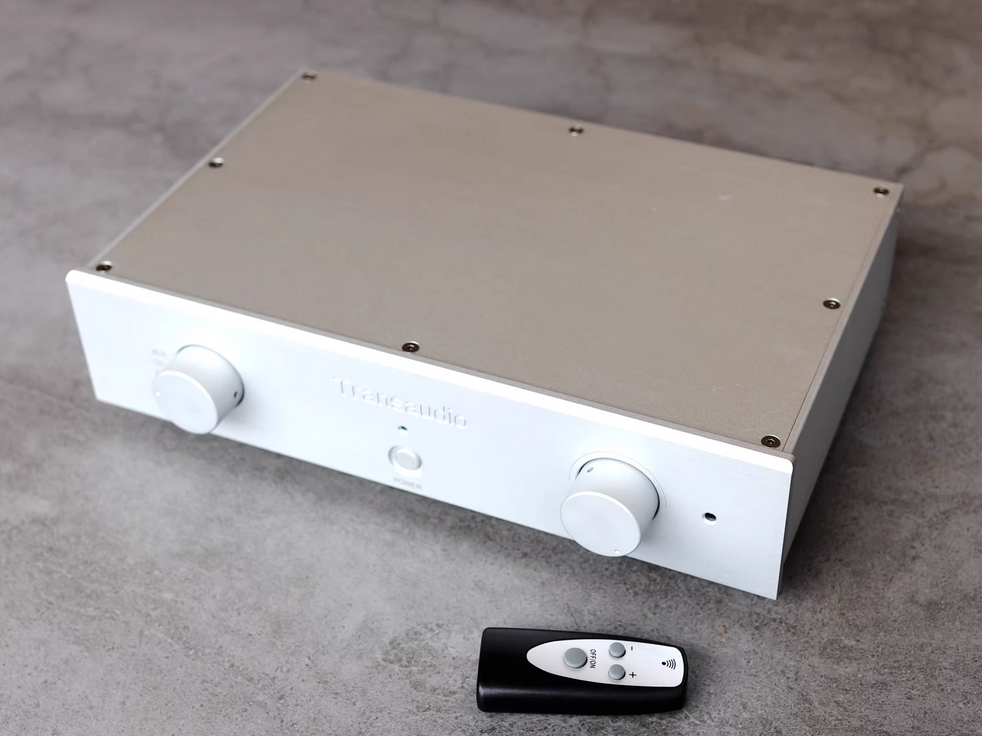

1 x Remote control（Battery not included）
