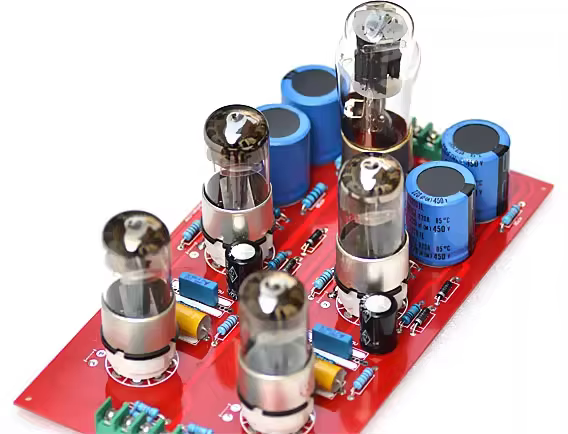

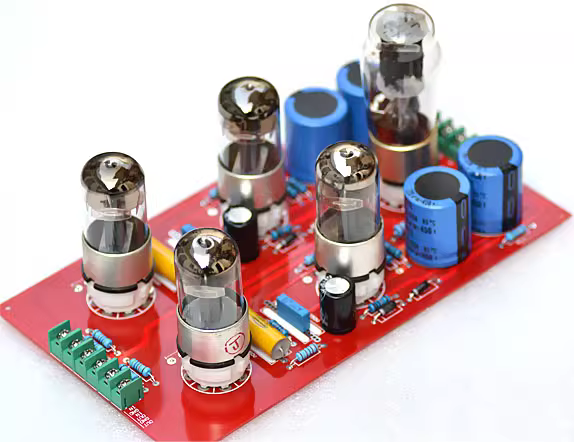

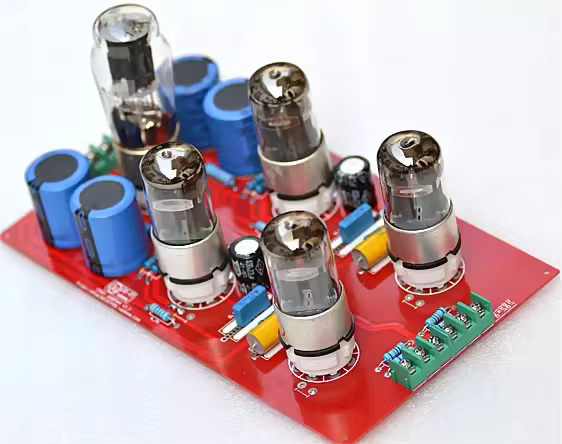

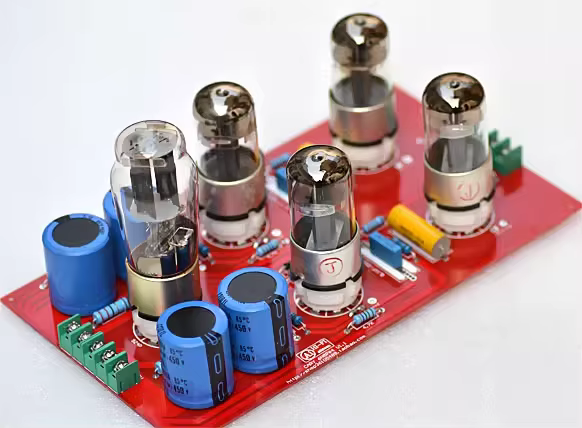

Finished CARY 6N8P*4 HIFI DIY stereo tube preamplifier 5Z4P electronic tube rectifier

Product Details:

6N8P electronic tube has impressive performance in terms of charm, musical atmosphere, and dynamics Give people a mellow, warm, and sweet sound of music.

Specifications:

PCB size: 133*234MM

Power supply: OUT: AC250V-0-250V /100MA AC0-5V/3A AC0-6.3V/2A AC3.15-0-3.15V/2A

Four 6N8P filaments are independent.

Mark f - f places. Requires twisted pair connection

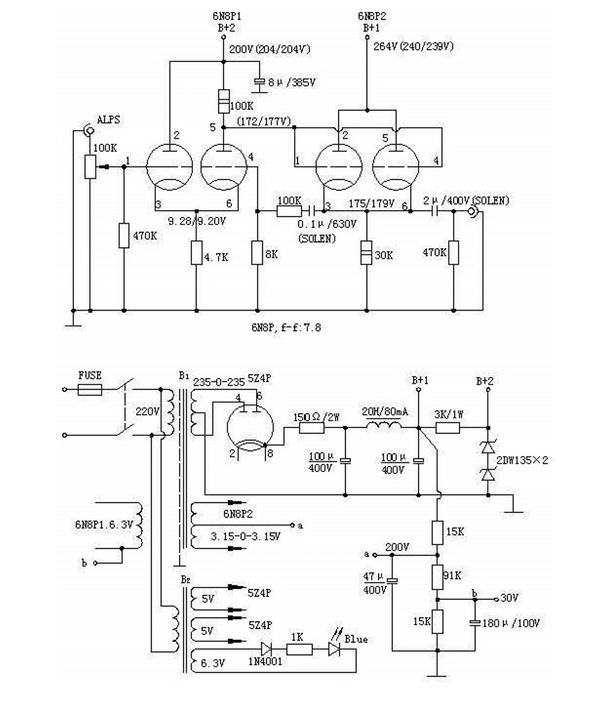

The filament needs to be processed according to the circuit diagram, and the filament potential can be raised according to one's preference, using either AC or DC

Package List:

1 × 6N8P tube preamp board （include tuebes ）
