Introduction:
PA3-30W pure Class A power amplifier, based on PASS A3 circuit design,

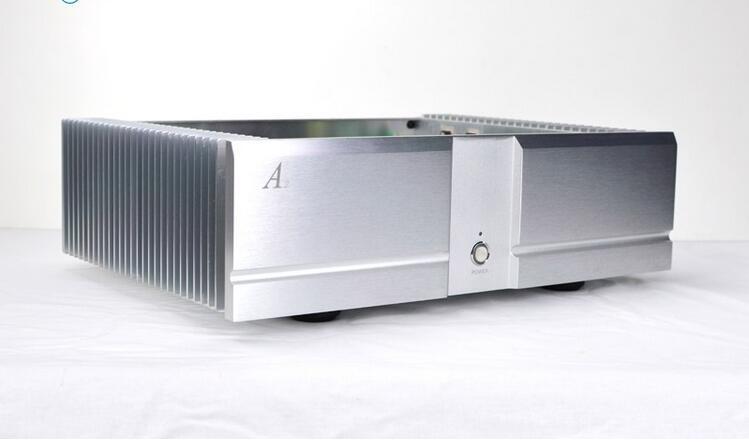

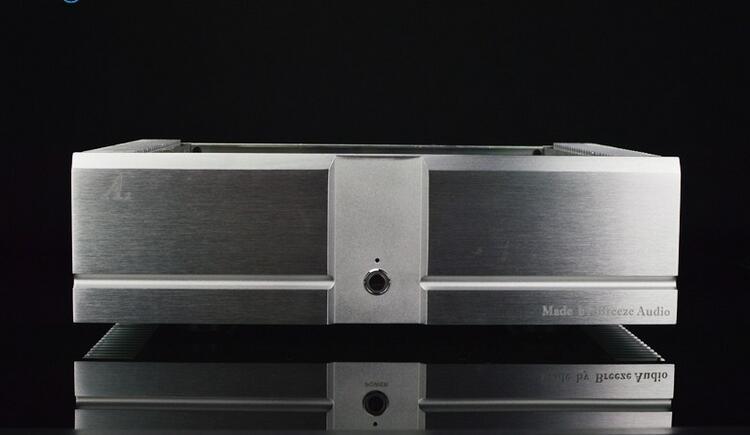

Simple and stylish appearance of style modeling, Full aluminum high-grade drawing-blasting process panel, stainless steel power switch, solid aluminum knob. Very reasonable layout within the machine, giving a sense of stability.
Sound sweet and mellow, music taste very good, transparent.sound will be better than most of General amplifier.

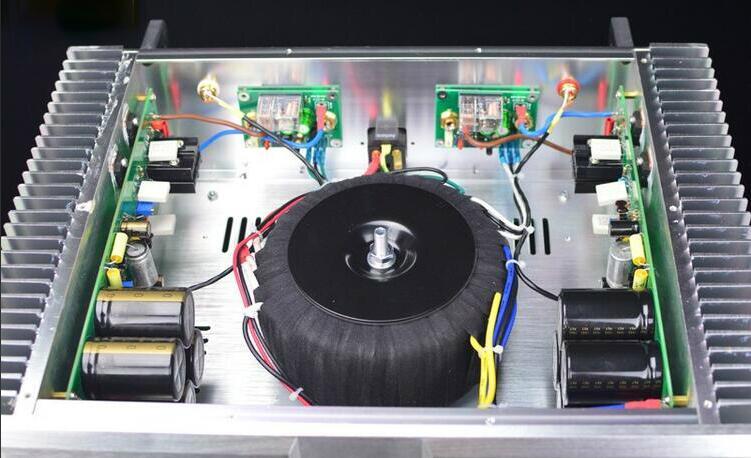

1, Using custom 500W Full copper A core black cloth filling transformer, Optimize low-frequency design.
2, Double single channel design, physical separation of 100%, not crosstalk.
3, A-level PCB, filling the high-end quality, excellent design, zero noise at the end.

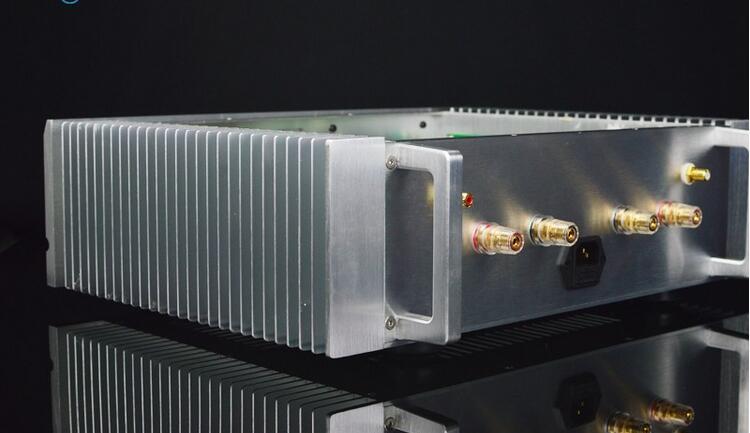

4, 300mm*118mm*50mm heat sink, the best heat dissipation.
5, high-speed rectifier bridge + CLC filter design, the background is quiet.
6, the application of filter capacitor array, Low impedance, long life high temperature type (105 degrees Celsius), Per channel up to
8.96W uF filtering amount, The effect is amazing.
7, 0.5% accuracy matching FET tube, using the new US FU9210, the power Transistors using the origianl N-channel IRFP250，Meet the demanding listening needs.

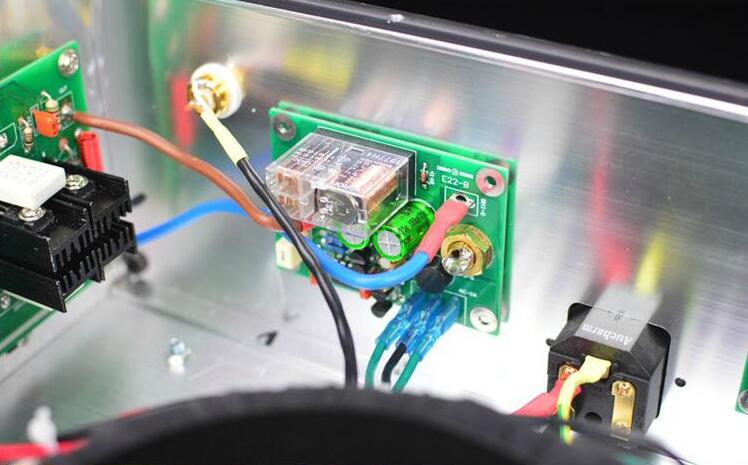

8, 0.3V high sensitivity protection circuit, to ensure that each channel will not be harmed.
9, using Nichicon KZ + VISHAY-SFERNICE output resistance, Sound noble, silky smooth.
Size: 430mm*150mm*315mm (W*H*D)
Weight: 15 KG
Input voltage: 115V or 230V (optional) , Please tell us what voltage version you need.
NOTE: This is a complete machine, we have tested OK.
Package includes:
PA3 complete machine X1
We do not include the AC power input cable, You need to have your own.
