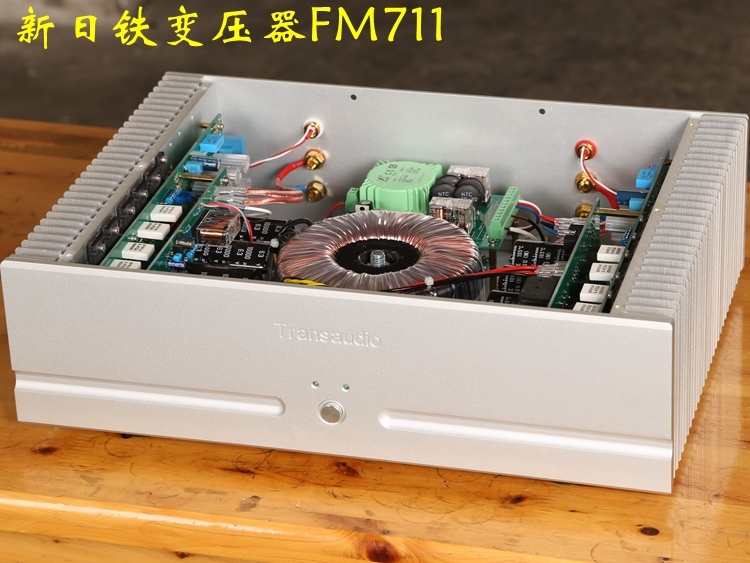

FM711 original parameter core circuit.
1. Beyond the layout of the original machine, the whole machine is super stable

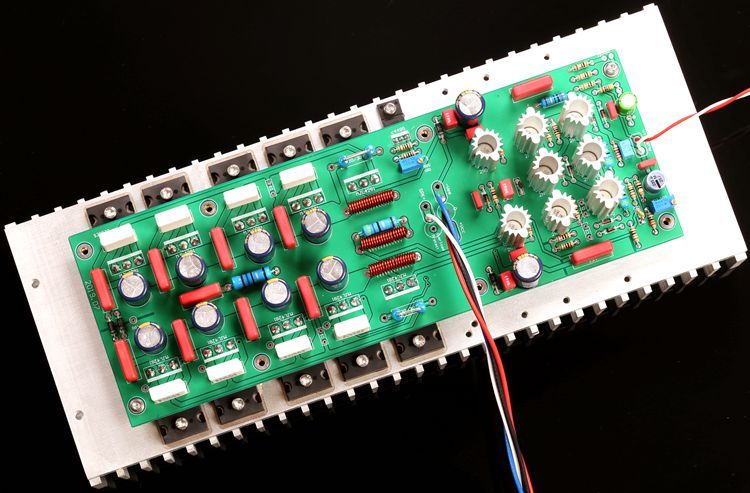

2. 16 new test pairs MOTO Metal encapsulated transistor 2N3440/5416
3. test pairing 20 sets of output large transistor original brand new Toshiba 5200
4. each big pipe is connected in parallel with Wima capacitor and decoupling capacitor. 5800w high quality black cloth cow, left and right channel independent winding

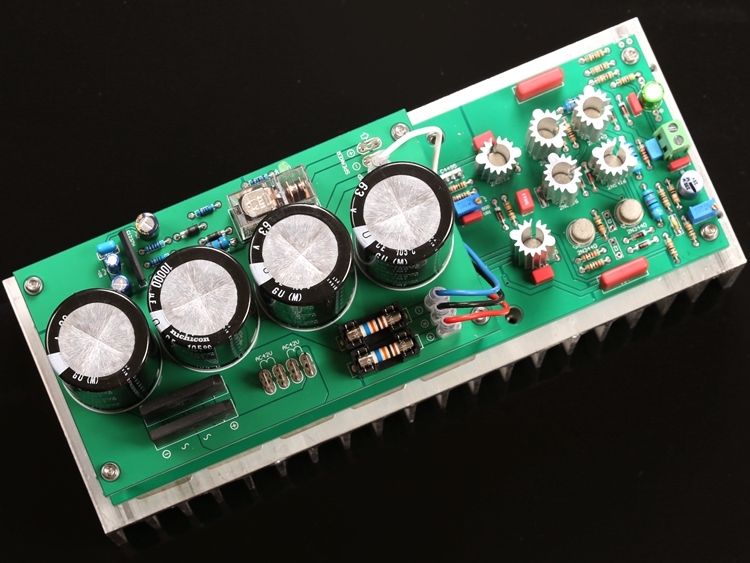

5. 80000uF nichicon GU (105 degrees) high reliability capacitor (FM common brand)
6. boot soft start and perfect speaker protection circuit

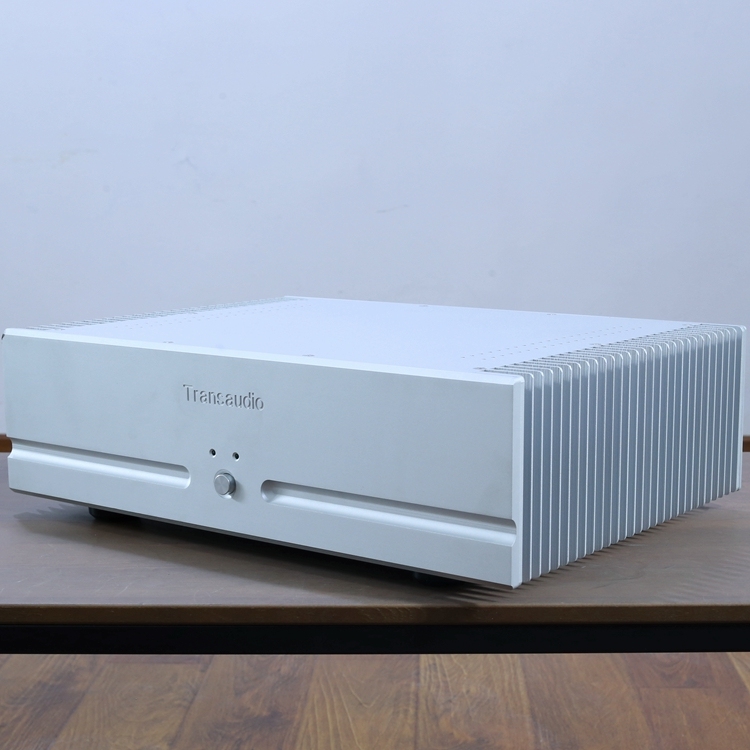

7. CNC precision CNC machine tools for processing all aluminum chassis (430*120*315mm)
8. AC110V or AC220V, black or silver
9. weight: 16KG
10. output power: 160w / 8 ohms, 320W / 4 ohms (RMS power, full power long-term stable output)
11. output midpoint: 1mV
12. output noise: 0.05mV
13.Signal to noise ratio: 120dB
14.Dynamic range: 121dB

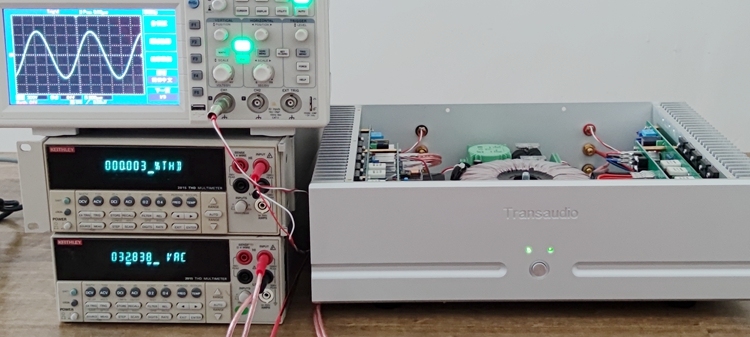

15.Distortion: 0.005%
16.Channel separation: 100dB
17. Band width: 5-50kHz
