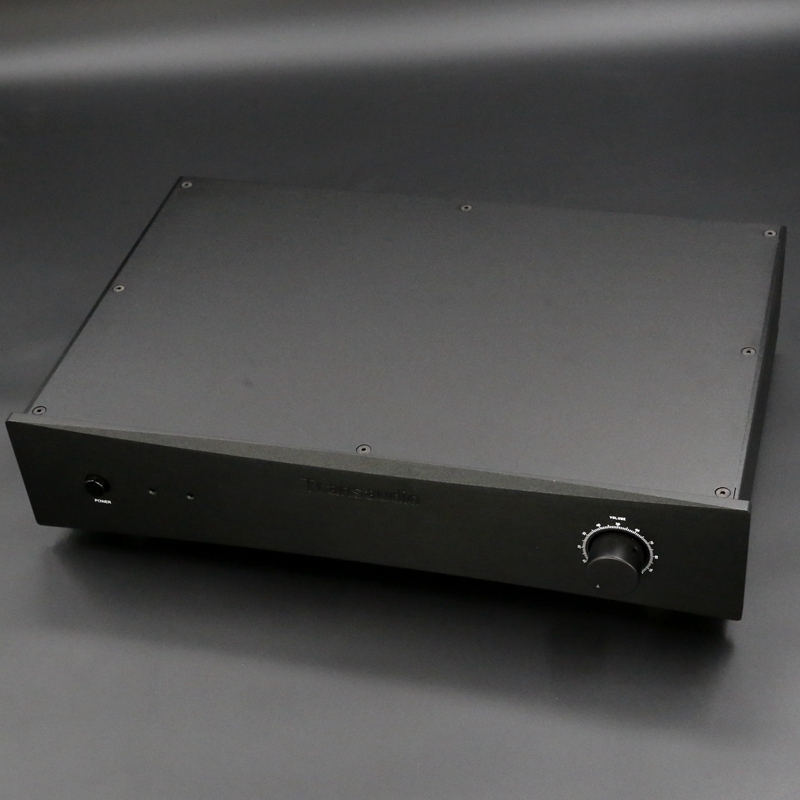

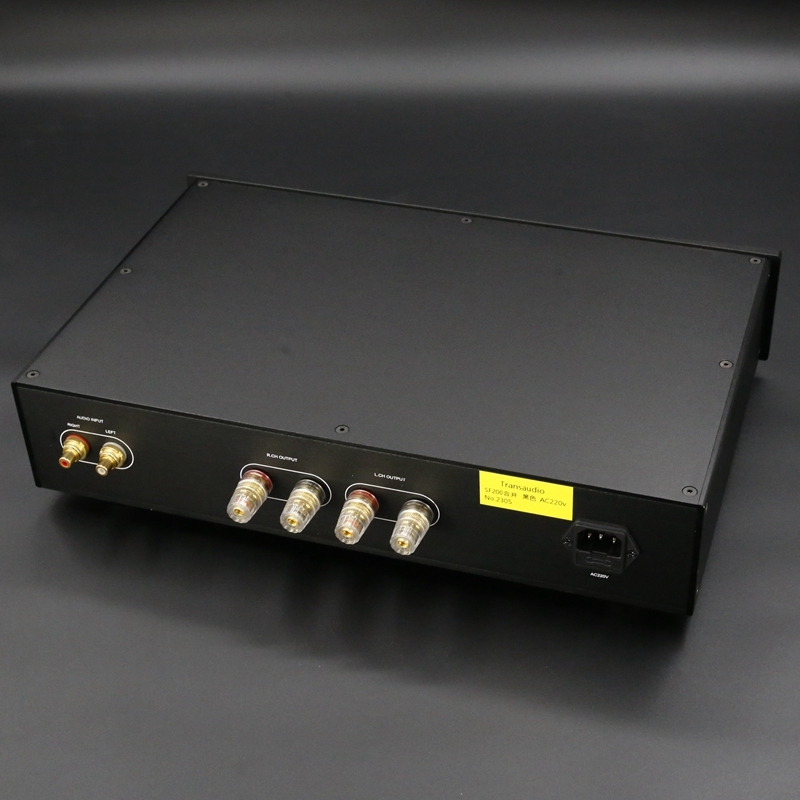

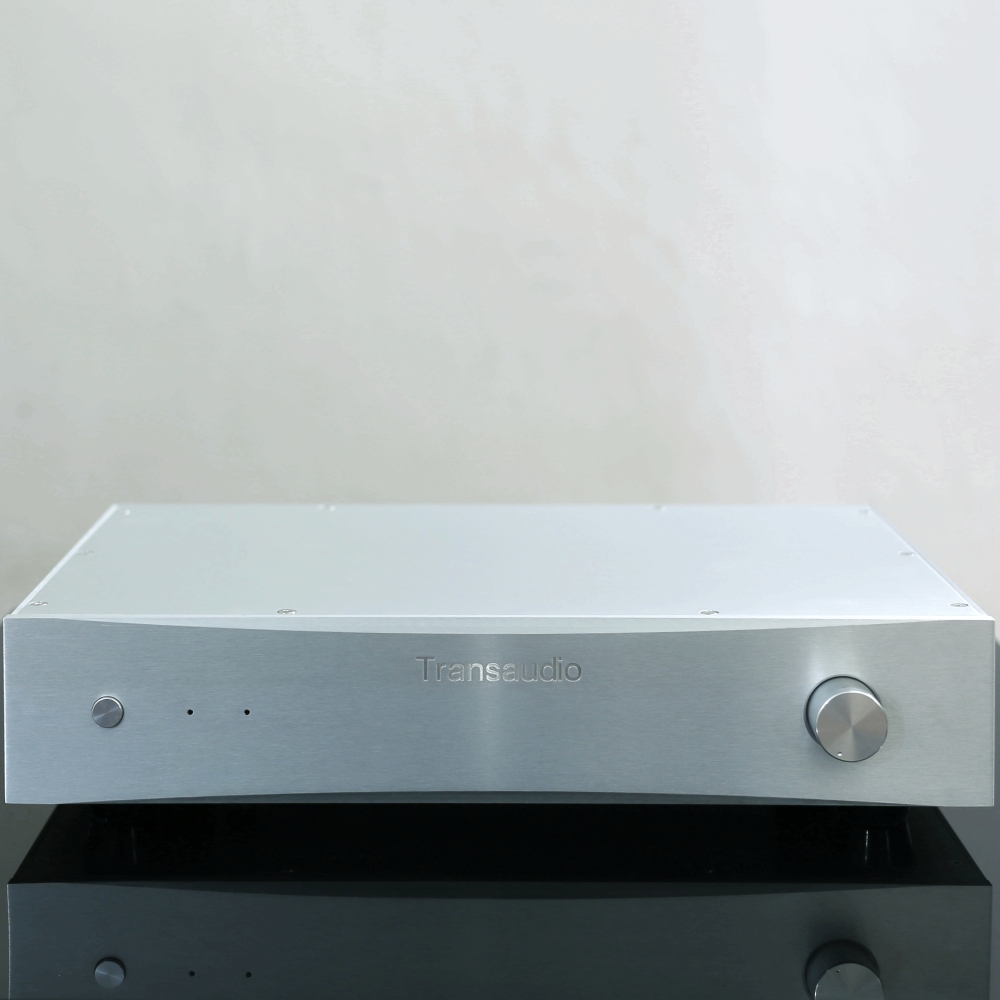

Finished FM300A circuit Stereo Amplifier HiFi Desktop Audio Power Amp 100W

Details:

Precision CNC machining aluminum chassis, 5mm thick aluminum bottom plate

350W Nippon iron core transformer

ELNA FOR AUDIO 63v10000uF AUDIO specific electrolysis

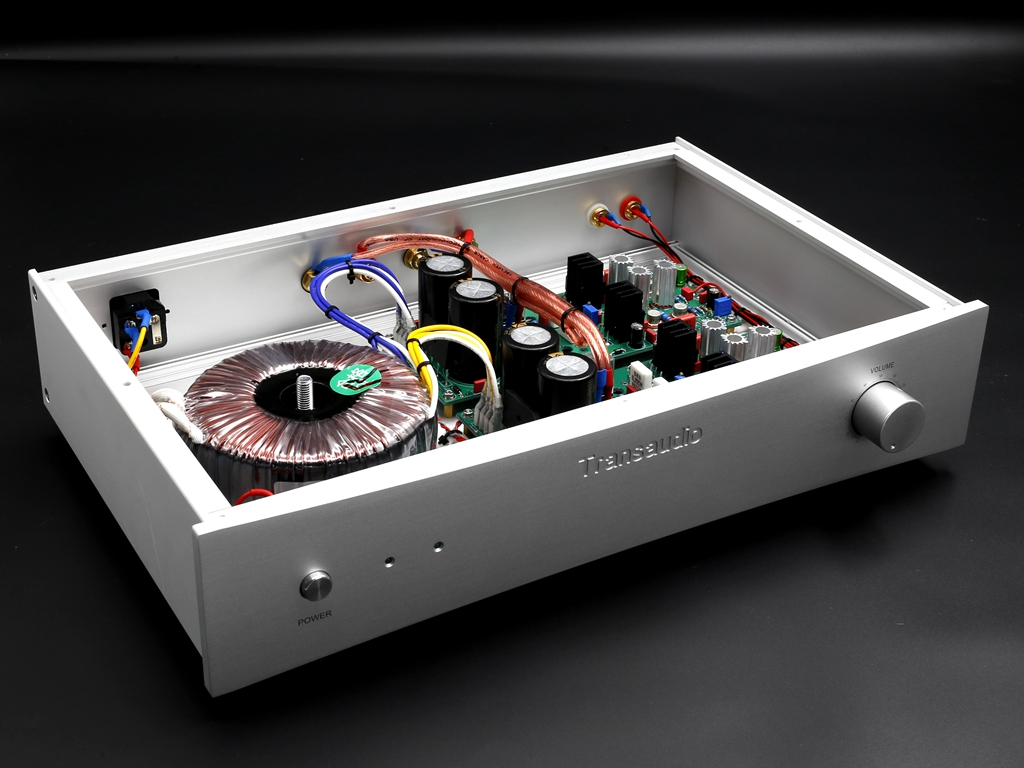

The left and right channels are completely independent of each other. The amplifier board, power supply board and protection board are completely separated from each other

2pcs ON transistor for each sound channel, super static current

ALPS27 potentiometer is used

Perfect speaker protection for effective protection of your expensive speakers

Super control, super analytical power, super SNR

Parameters:

Work voltage: AC115V and  AC230V optional

SNR: 120dB output noise is only 0.2mV

Static power consumption: 60w

Output power: 100W *2/8 Ohm 150W *2/4 Ohm

Static current: 200mA

Input impedance: 18K

Measured frequency response: 20-20khz± 0.2dB

Full frequency distortion: less than 0.001% full power

Size: 430 * 280 * 100 mm

Color: Default Black ，also can provide silver

Weight: 9kg

Package List:

Finished FM300A Power Amplifier  x1

Not included any cables ！
