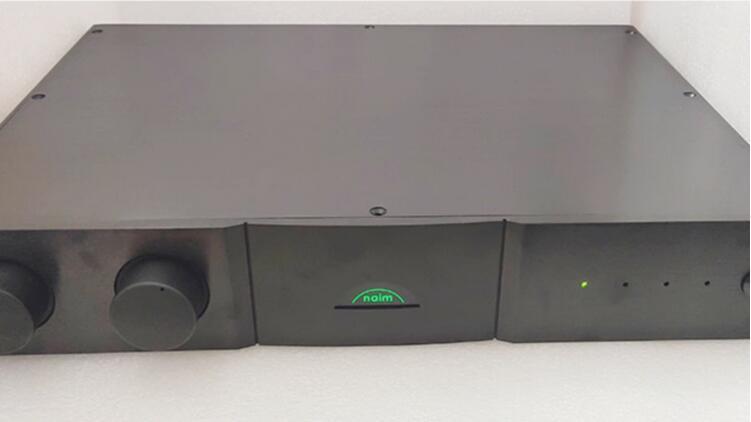

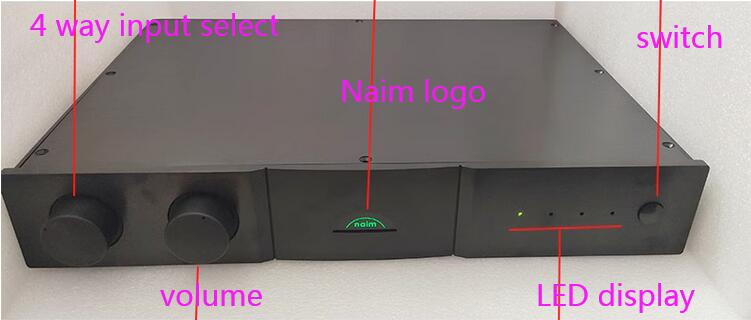

Finished NAC52 classics hifi stereo balance Preamplifier Refer to the UK NaimNAC52 circuit Better than Accuphase C245 preamp

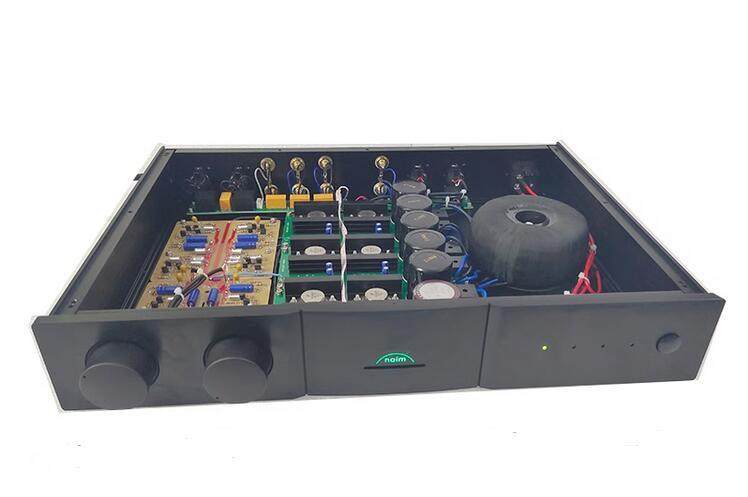

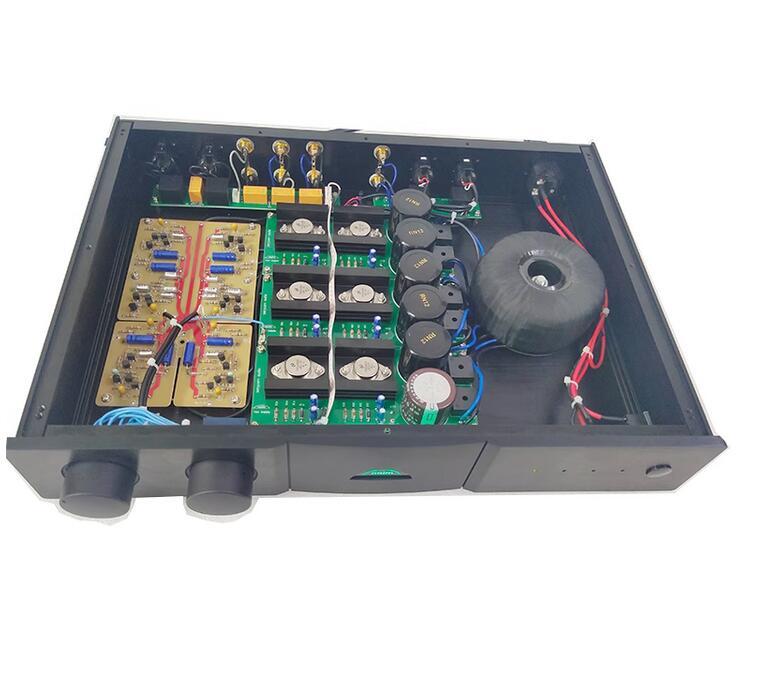

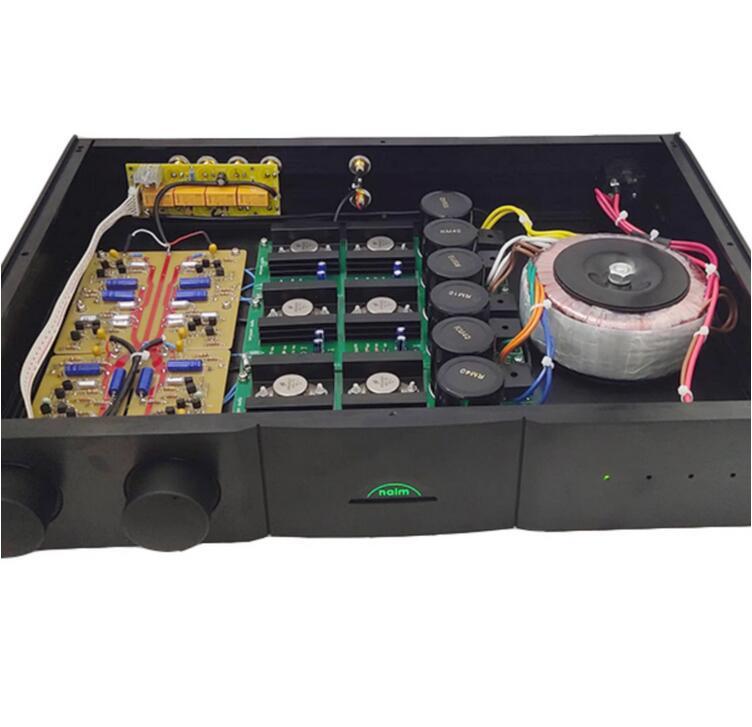

Product details:

• Fairchild audio transistor.

• Polypropylene polar capacitor

• Solid state tantalum capacitor

• Six way metal encapsulated transistor linear regulator

• NOVER capacitors in the UK

• 718 High temperature low drift resistance

• Japanese ELNA capacitorPhilips BC axial capacitance

• All aluminum alloy oxidation wire drawing case

• Customized pure copper black cloth Toroidal transformer

Parameters:

Model: NAC52

Size: W430mm * L 308mm * H 80mm (including machine foot height)

Input voltage: AC220V/50HZ or AC110V, 60HZ

Standby power consumption: about 26W

Gain: 8x

Signal to noise ratio: 93DB

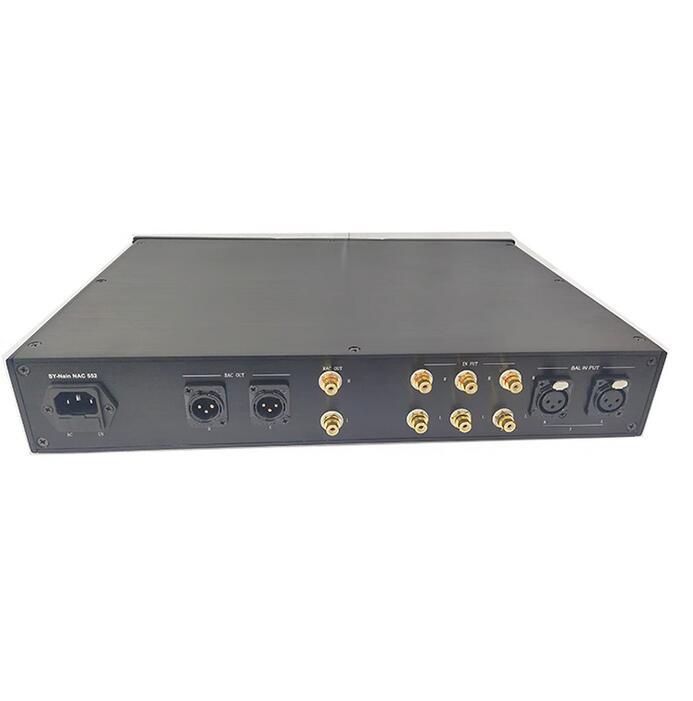

Signal input: 1 group fully balanced inputs+3 group RAC inputs selectable

Output amplifier: 1 group fully balanced outputs and 1 group RAC outputs
