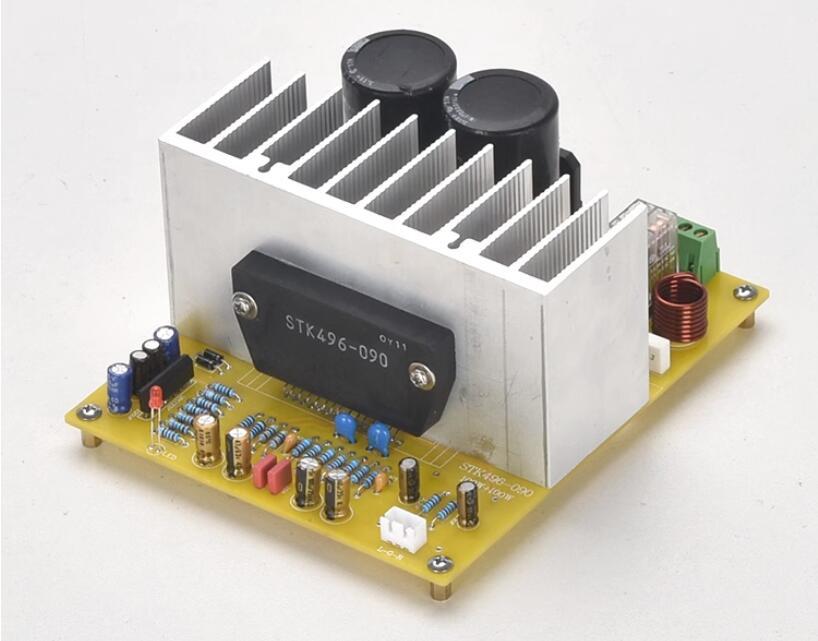

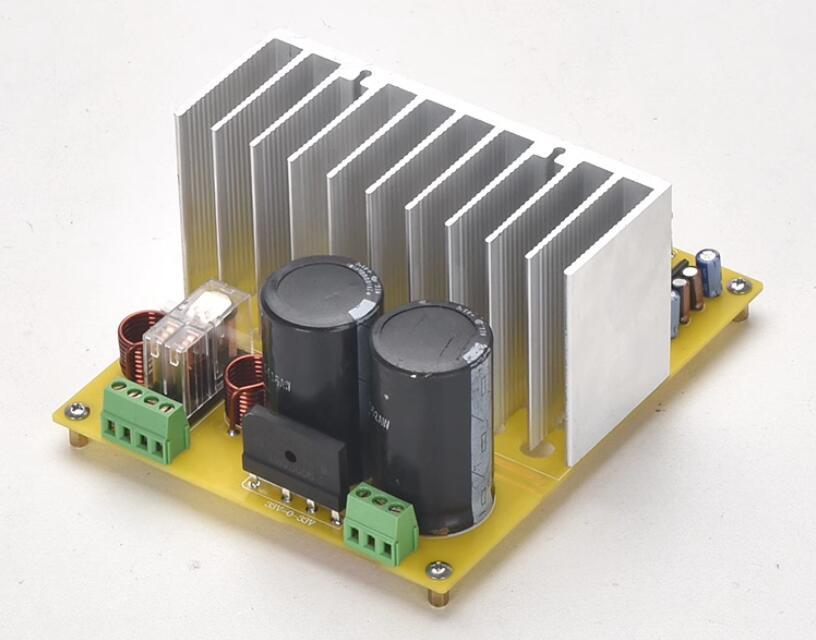

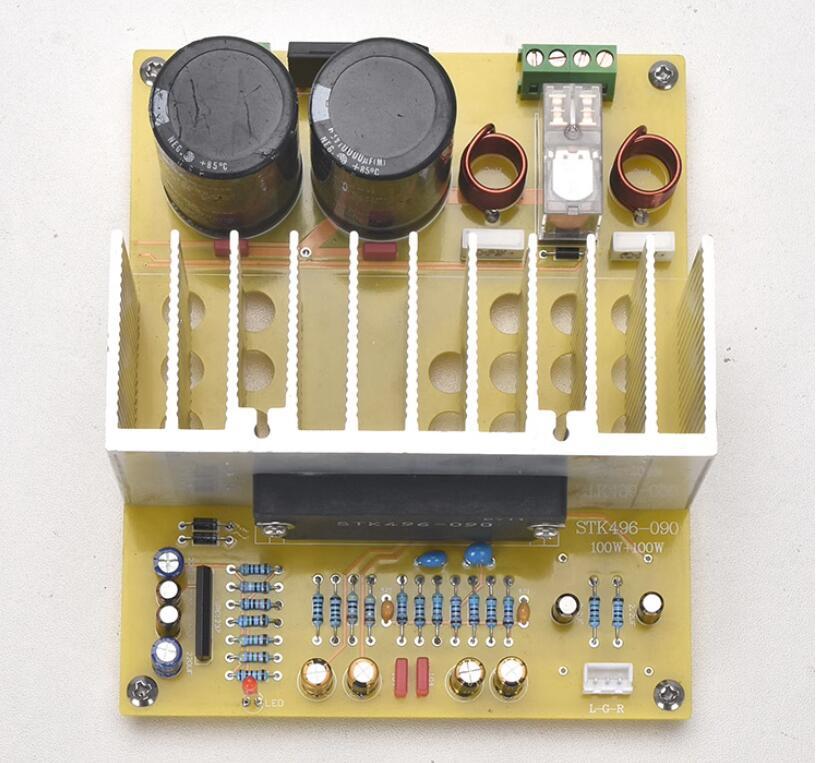

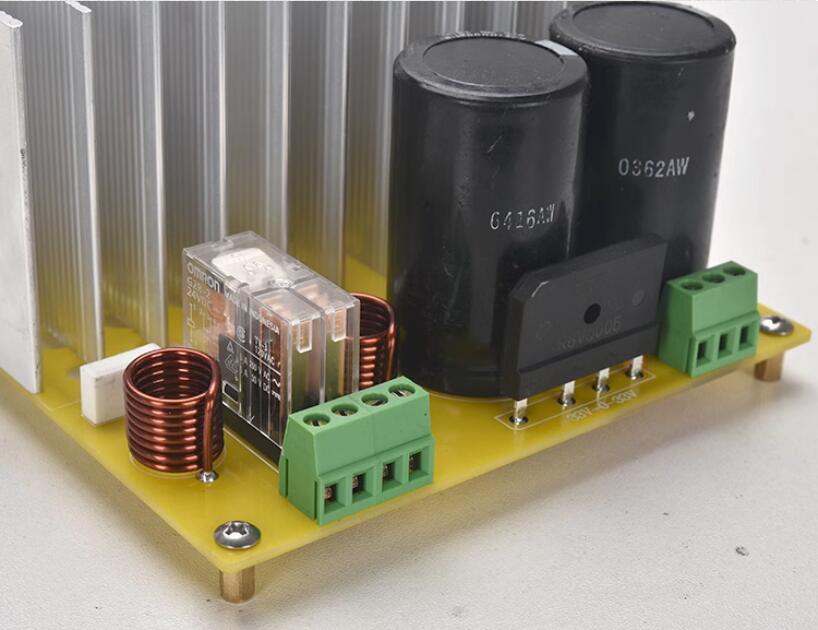

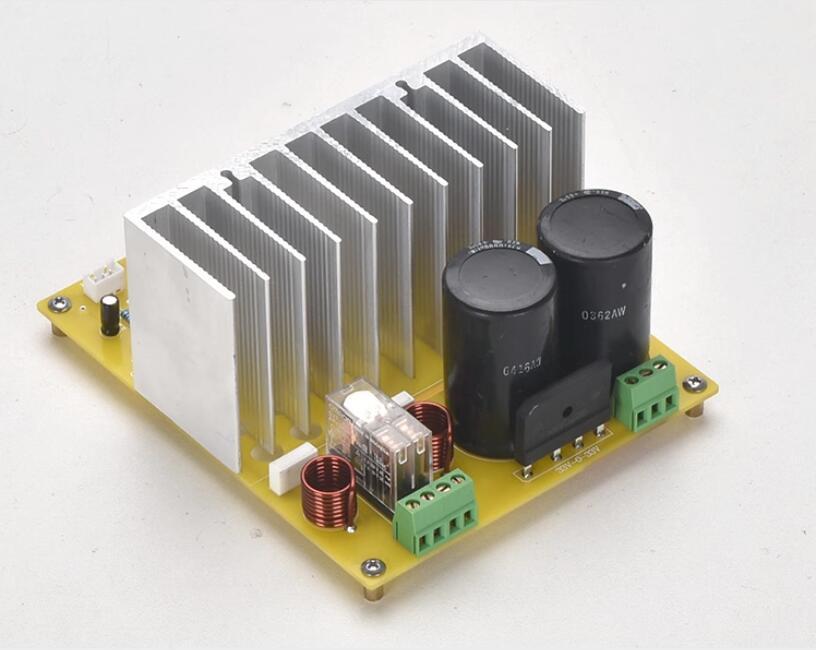

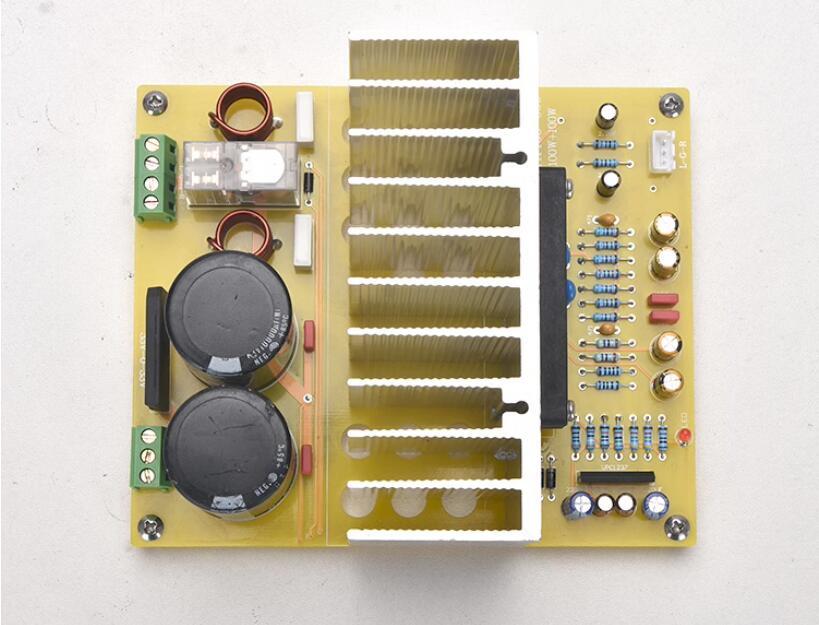

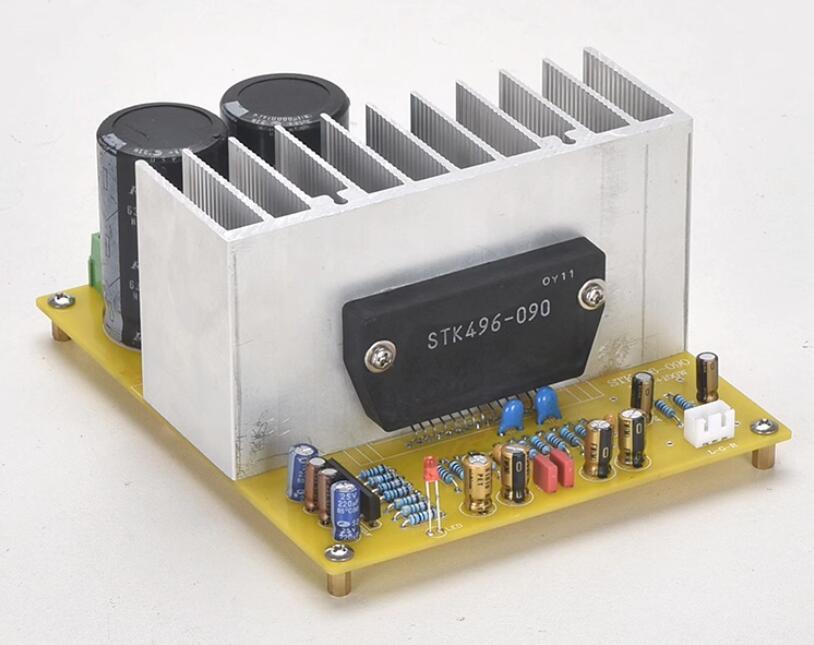

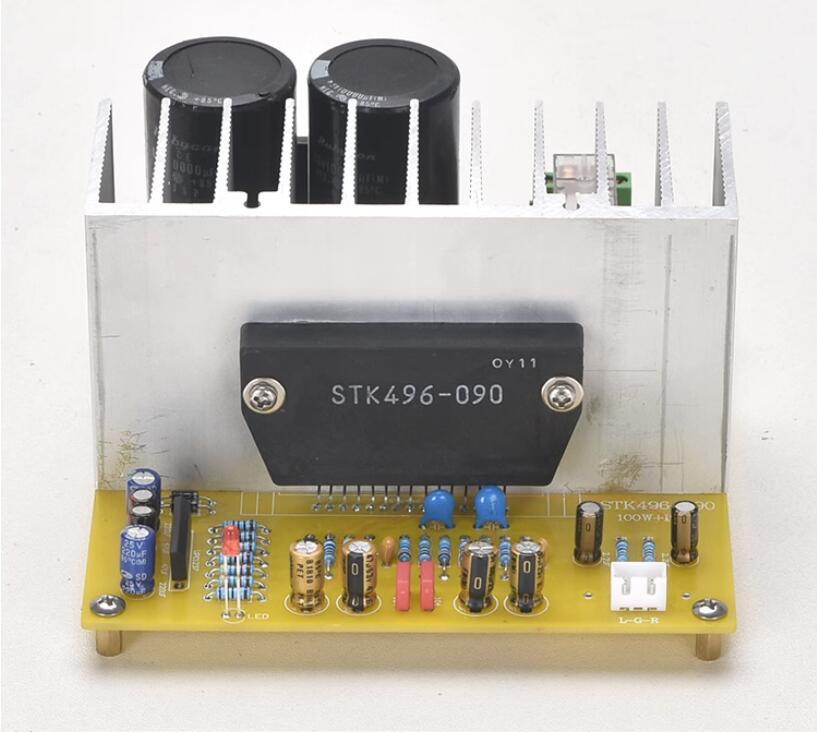

Finished STK High Power STK496-090 HIFI stereo 2X100W Low Distortion Power Amplifier Board

Product details:


Its output power at the recommended operating voltage AC double 35V is 100WX2@6 whits (THD=0.05%).

The working voltage is recommended to be plus or minus 45V, and the maximum working voltage should not exceed plus or minus 52V. (according to official data)

This product is a test version, are installed and tested before shipping. The radiator as shown in the finished plate and belt diagram will be relatively hot in the actual use of high power, so it is necessary to maintain good ventilation in the actual use.

Product Parameters


Power supply voltage: AC double 24-36V,

Dimensions: width 120 height 65 depth 135mm

Radiator specification : 120X45X60mm

Weight:About 0.45 KG


Packing list


1 Piece STK496-090 Amplifier Board
