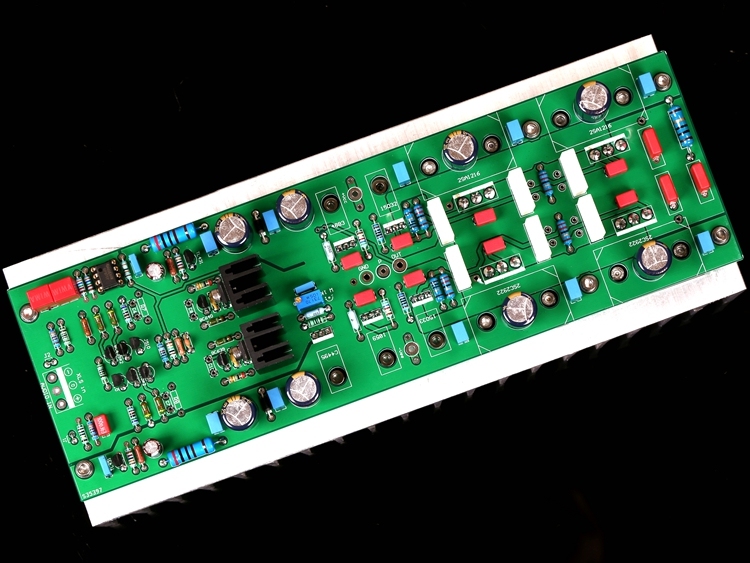

Product Details: Adopting a fully symmetrical X-Amp Burmester 956 ultra fast power amplifier circuit, with no audio input capacitor/decoupling capacitor, pure DC design, and wide extension of high and low frequencies Excellent control High resolution, balanced and transparent sound across three frequencies.
800W Nippon Steel transformer, pure copper wire winding with low voltage drop rate (no vibration, no noise)
Equipped with soft startup and comprehensive speaker protection
4 pairs of precision paired Sanken C2922/A1216 transistors with strong thrust
Each channel uses 6 audio specific electrolyzers, with a total capacity of 120000 uF and abundant energy
The left and right channels are designed completely independently to reduce crosstalk interference
CNC machining of all aluminum chassis Surface oxidation drawing treatment.
Using American ALPHA soldering wire for welding.
The final stage adopts Class A high static current design, with warm and comfortable sound
Specifications: Input sensitivity: 1.27Vrms
Input impedance: 33K Ω
Damping coefficient: 500
Output power: 150W/8 Ω, 300W/4 Ω RMS power, stable output at full power for a long time
Static power consumption: 120W
Supply voltage: AC110V or AC220V
Color: All silver or all black
Weight: 19kg with packaging weight
Size: 430 * 330 * 130mm
Package List: 1 × T5Pro amplifier
