Details:
T7 adopts the 909 flagship power amplifier circuit of the Burmester
Ultra-fast power amplifier circuit with fully symmetric X-AMP design
DC cross - connected, audio channel without capacitor
High damping coefficient, can control any speaker freely

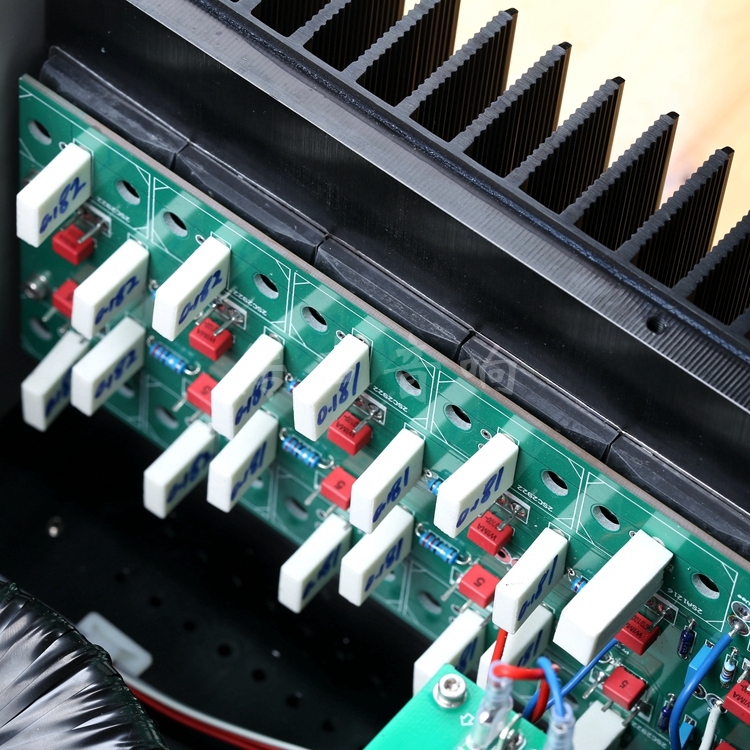

10 precision test pairs (5 pairs per channel) three Ken king C2922/A1216, high current capacity
Small signal lines and large current lines are all made of Taiwan Teflon oxygen free copper wires

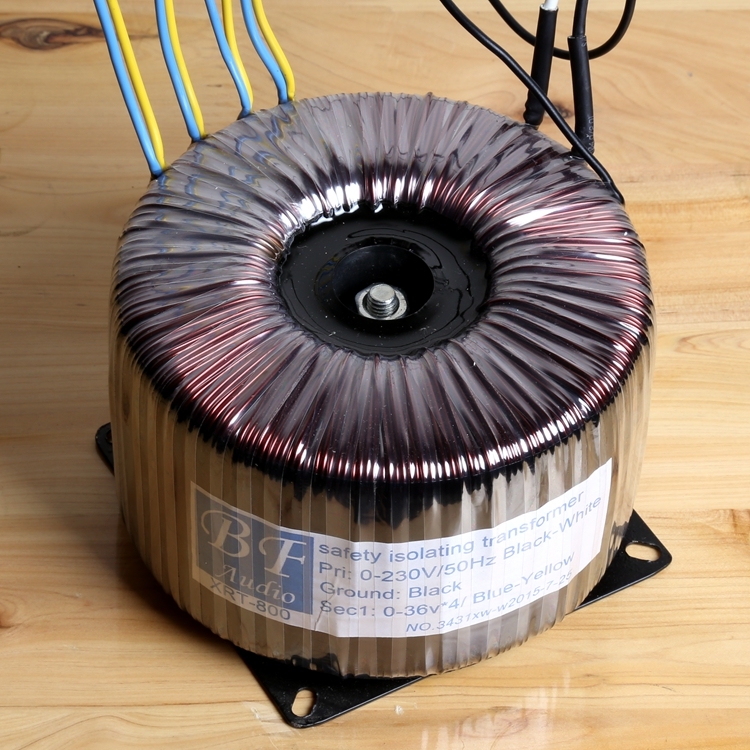

Using 800W Nippon Steel transformer

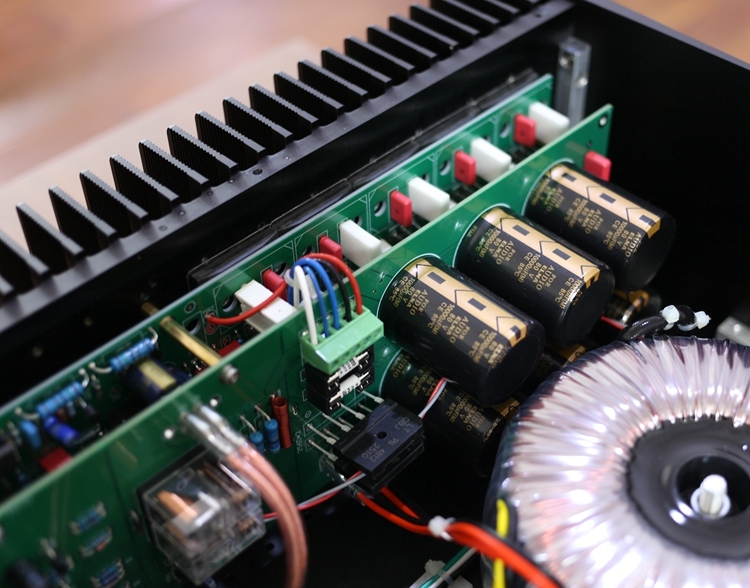

12 PCS 10000uF firing stage large electrolysis (ELNA FOR AUDIO)
Double - mono - channel design, high separation of left and right channels
It has soft starting and perfect speaker protection circuit

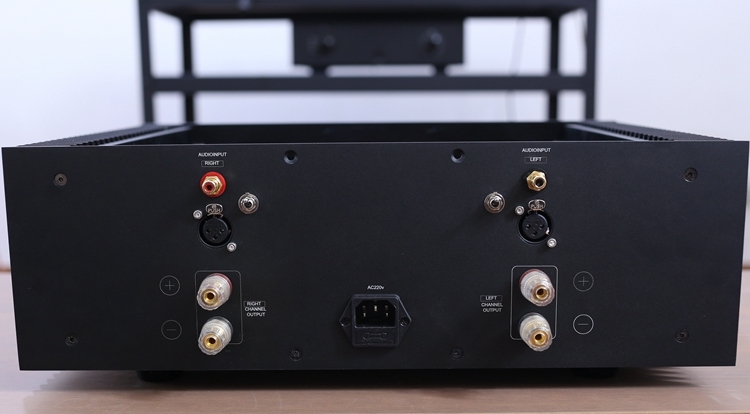

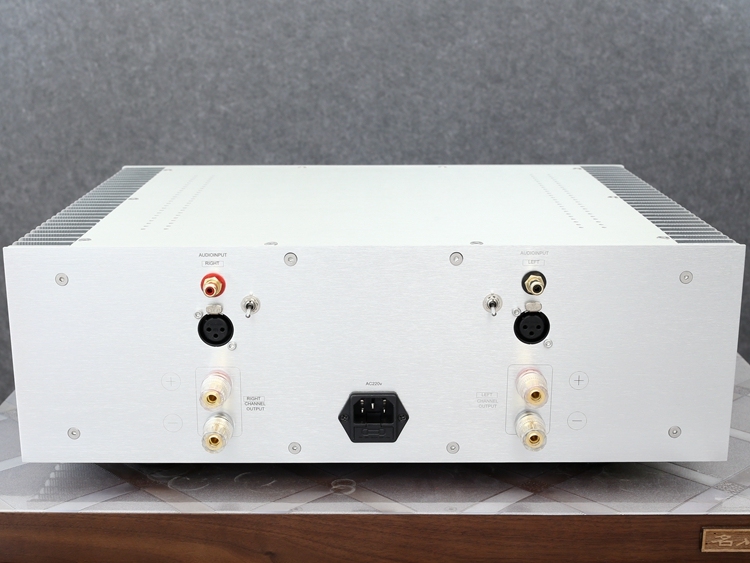

Support RCA single-ended input, balanced input: Note that only one group of input, when RCA input, switch up; Balance input, switch down. (Do not mix or match.)
Product Parameters
Input voltage: 115V or 230V
SNR: 120dB
Full load distortion: 0.001%
Output power: 150W *2/8 ohms; 300 w * 2/4
Static power consumption: 120W Class A b
weight: about 19kg
Size: 430*320* 140mm
Packing list
Finished T7 Amplifier x1
