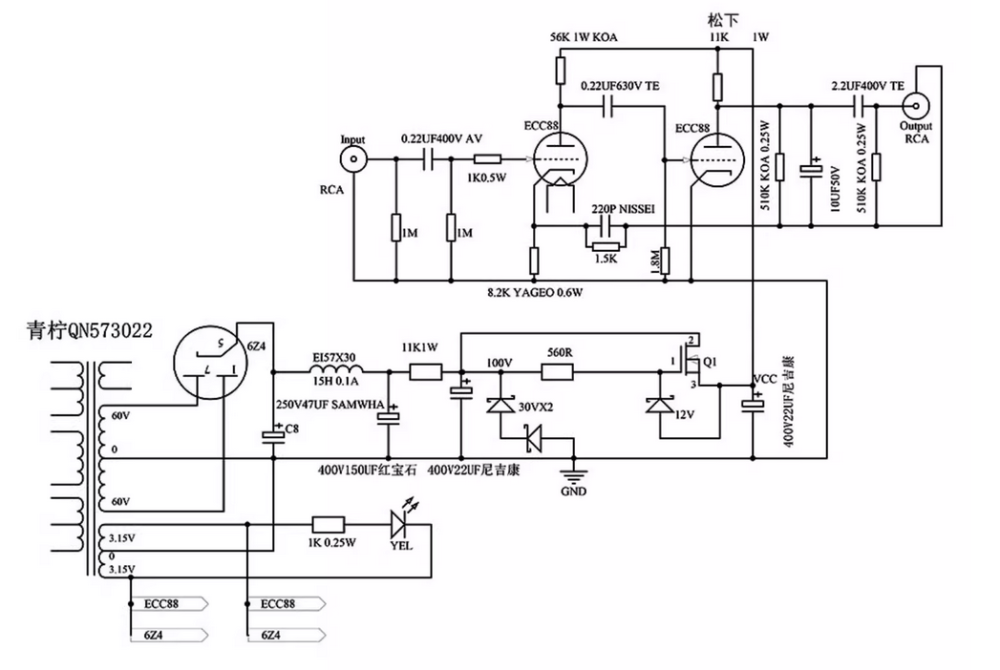

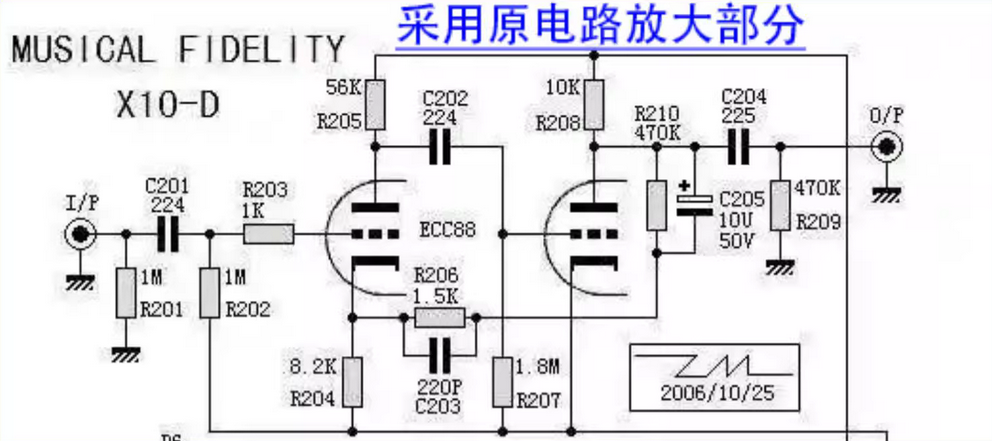

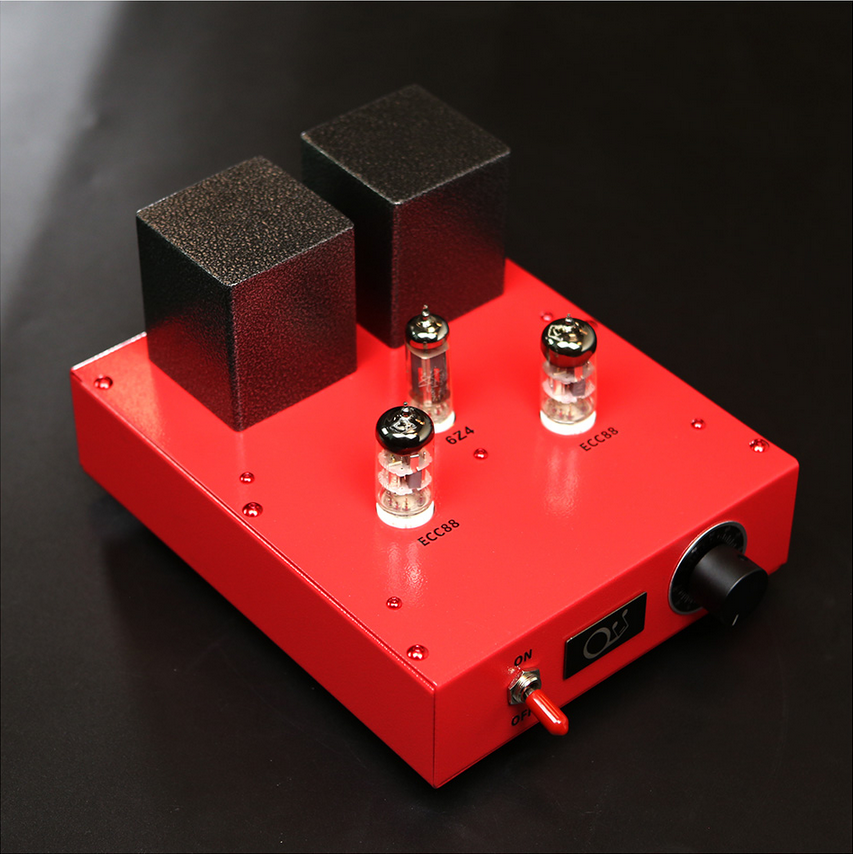

Product Details: Referring to the X10D electronic tube preamp circuit in the UK and making improvements.The effect is excellent and caused a sensation as soon as it was launched.
1:) Hong Kong TEMKP copper foot thin film capacitor+copper foot carbon film precision metal film resistor.

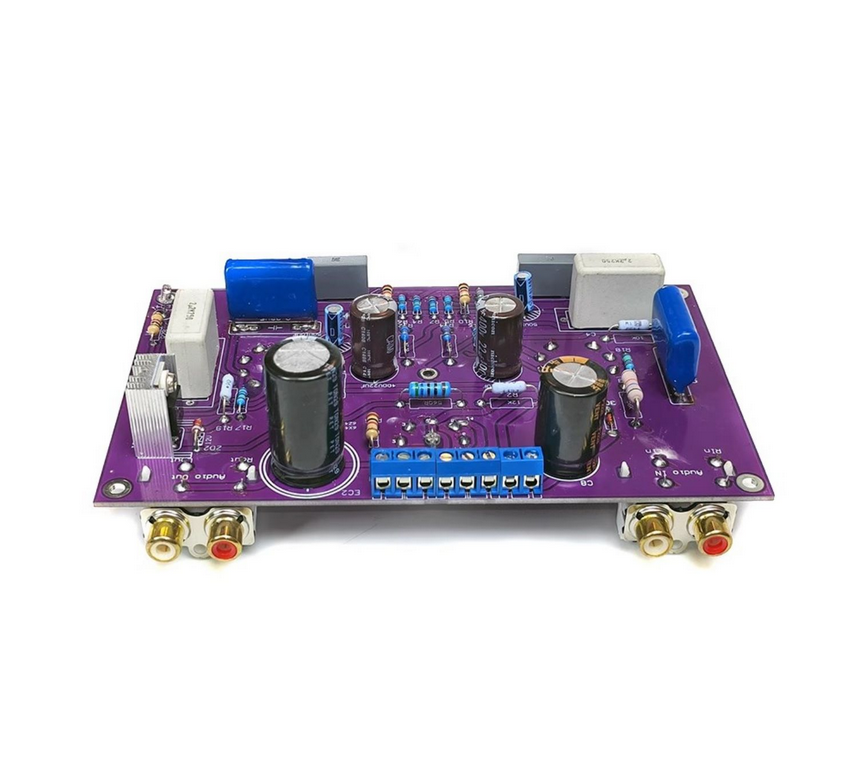

2:) Double sided PCB, convenient for electronic tube installation.
3:) High quality all copper 22WE transformer with painted shielding cover Low magnetic leakage and minimal interference.
4:) 1.2mm thick iron chassis, sturdy and durable.

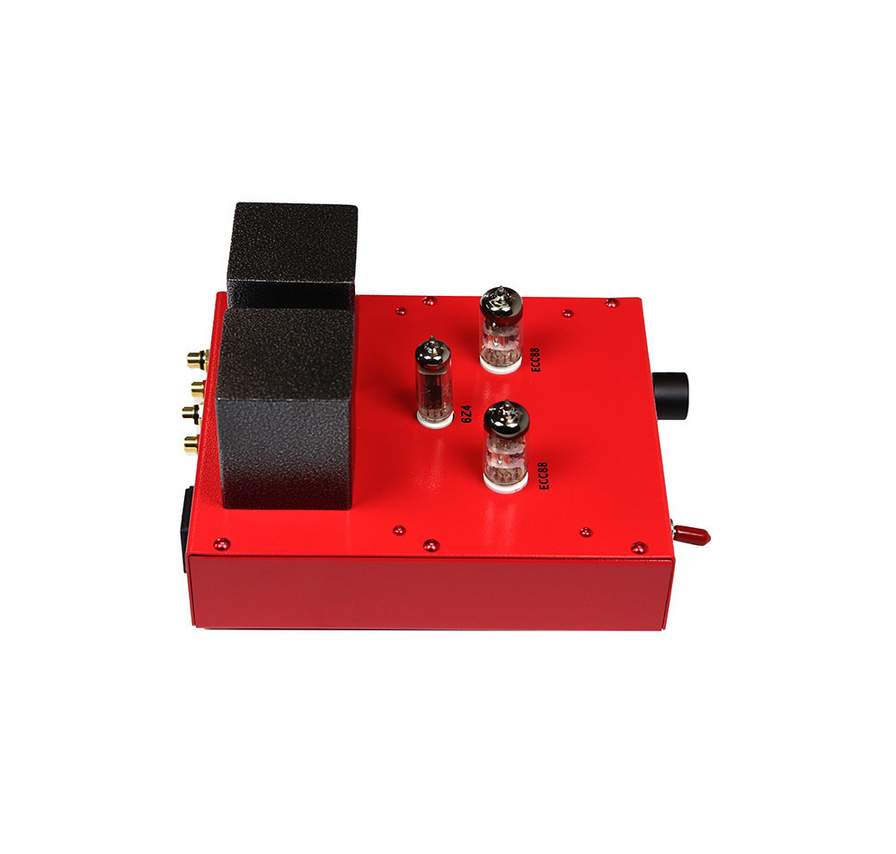

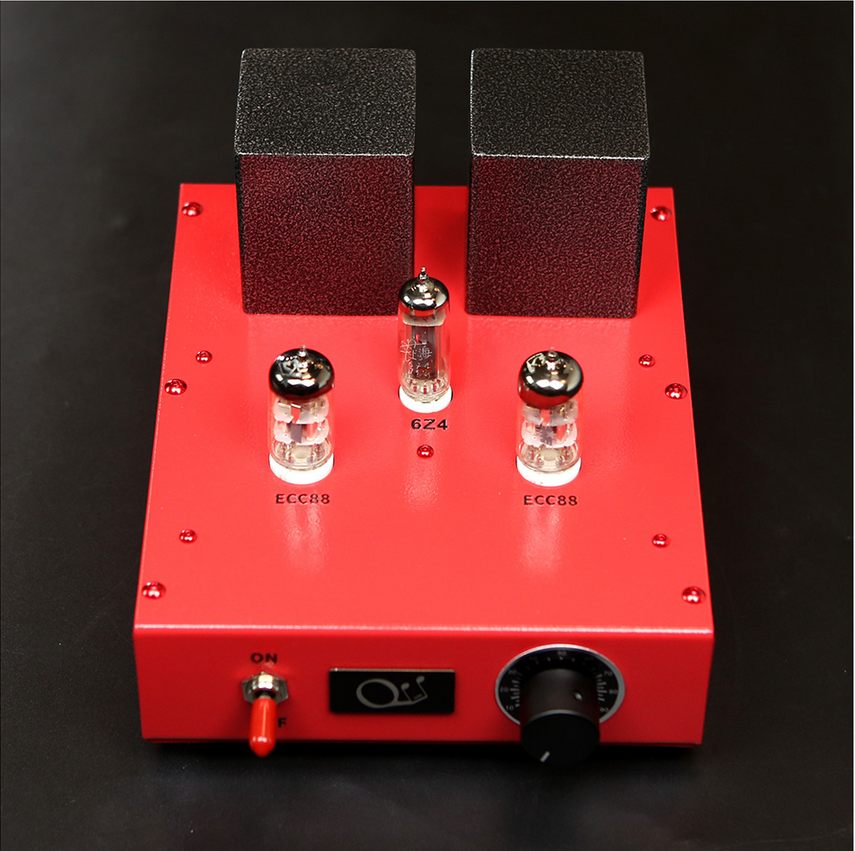

5:) Beijing 6N11-J * 2+6Z4 * 1 electronic tube.
6:) Ceramic copper silver plated electronic tube socket.
7:) High quality gold-plated RCA.
Specifications: Input voltage: AC115V/230V
Distortion: 0.008%

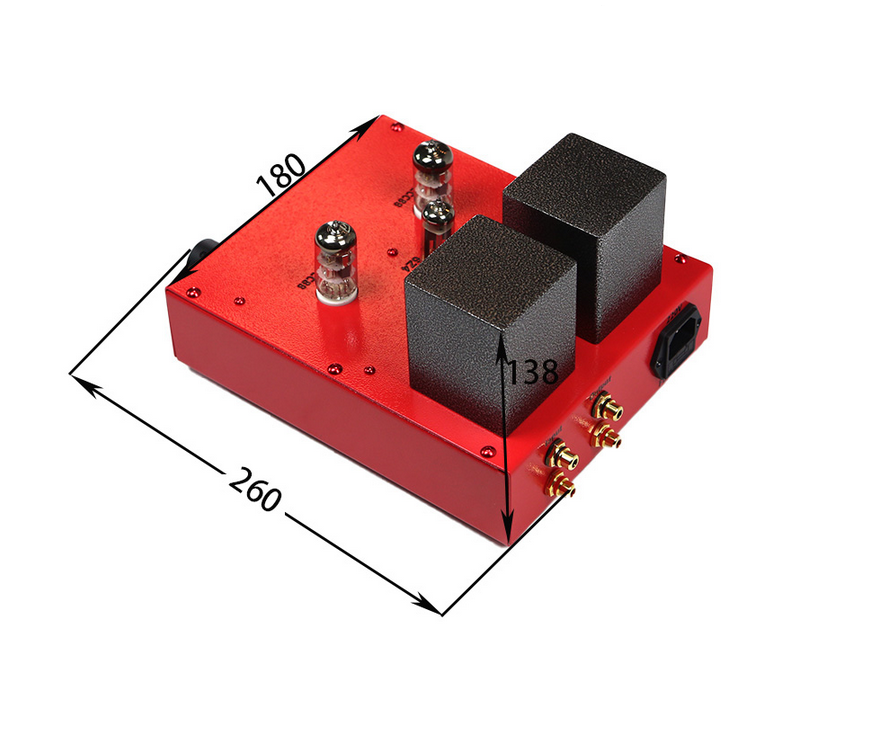

Size: 180 * 260 * 138mm
Weight: 3.35kg
Magnification factor: 1.05 times
Frequency response: 10Hz-100KHz ±0.2db
Output impedance: 200 Ω

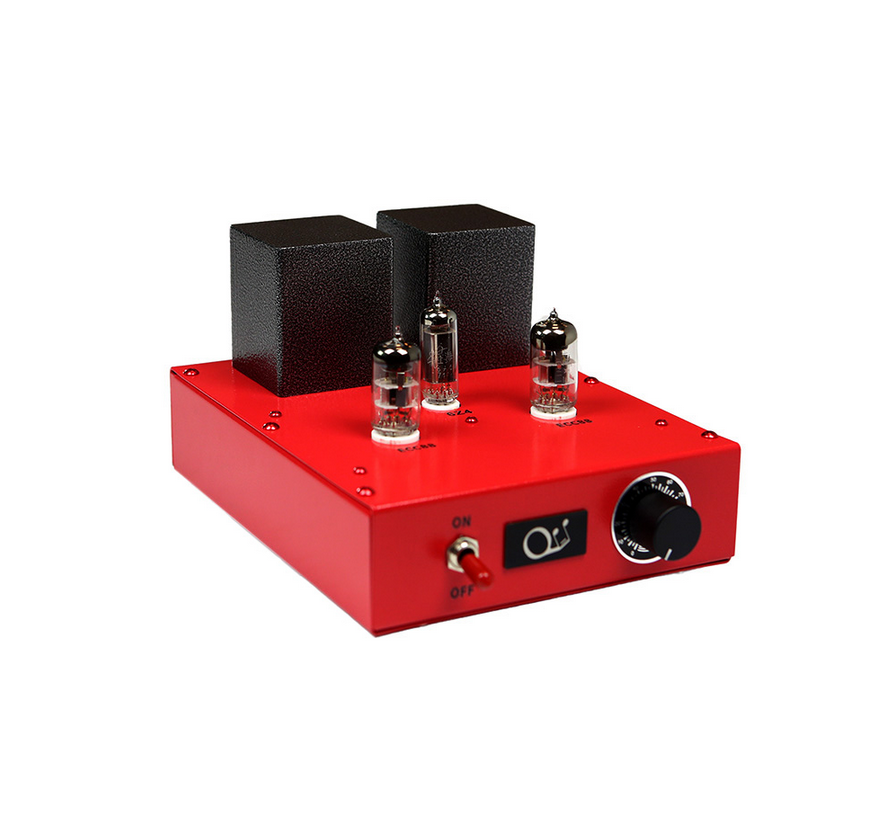

Package list: 1 × Finished X10D Preamplifier
