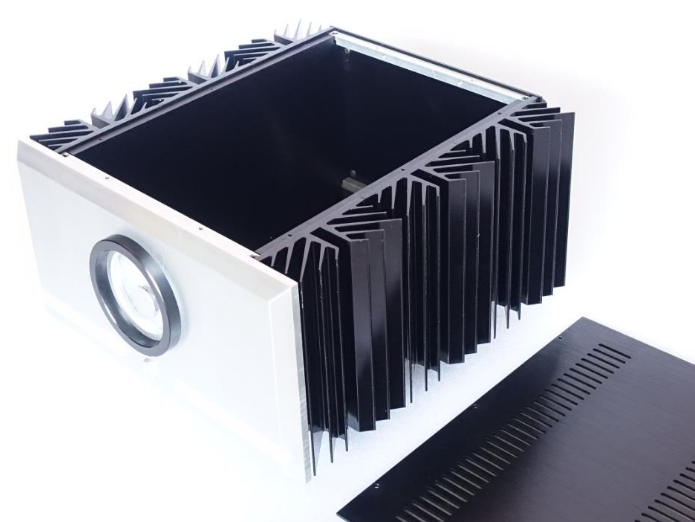

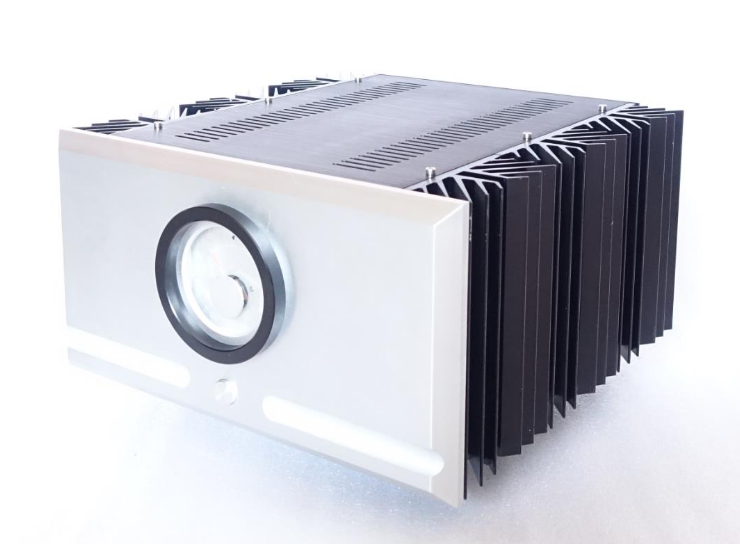

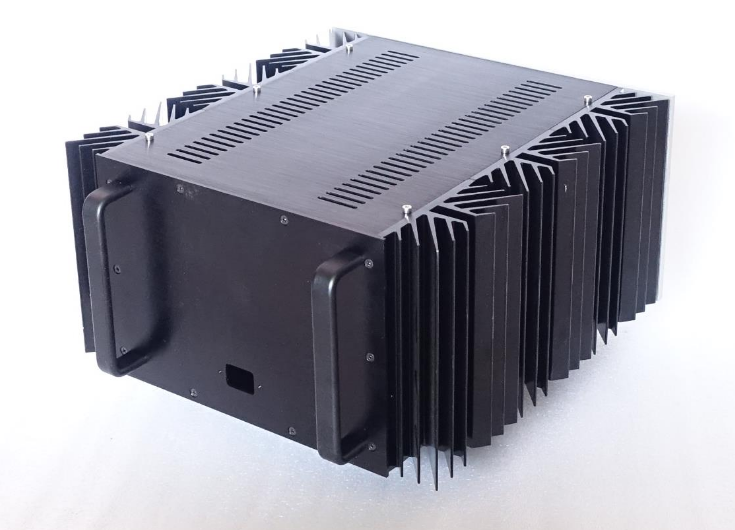

Full aluminum PASS XS150 class A power Amplifier Enclosure HIFI DIY amp chassis with VU meter

Product Details:

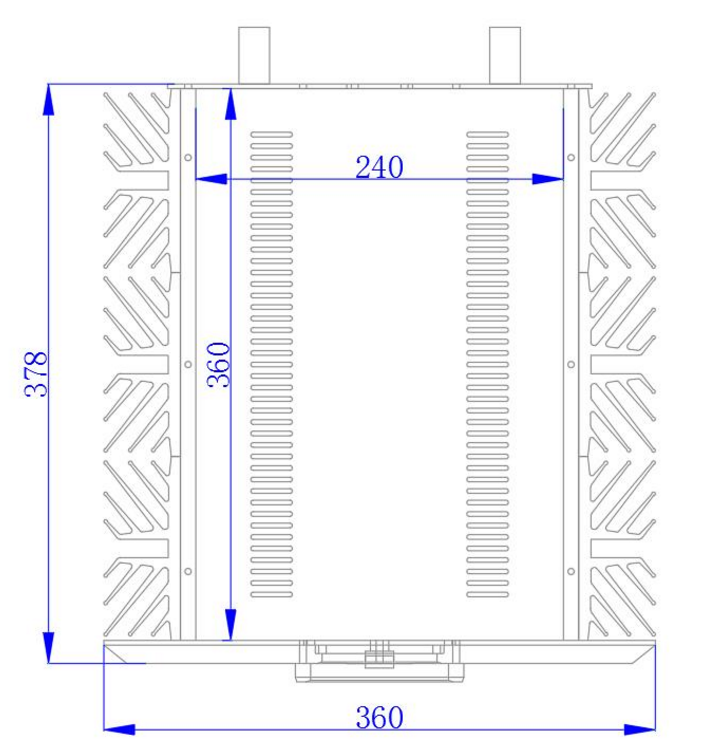

External dimensions: Width 360MM * Height 195MM * Depth 378MM

Internal dimensions: Width 240MM * Height 188MM * Depth 360MM

Heatsink size: 120mm * 50mm * 194mm Net weight about 1.1KG. 3 pieces on each side

Unilateral uniform heating plate weight: approximately 1.78KG chassis weight :about16.5kg

Front panel material thickness: 20MM

Back panel material thickness: 3MM

Upper cover material thickness: 3MM

Lower cover material thickness: 3MM

Switch button: 16MM

Package List:

1 × Aluminum case

1 × Power switch

1 × Power outlet

1 × VU meter

1 set × Aluminum machine feet
