Description

Product Details:

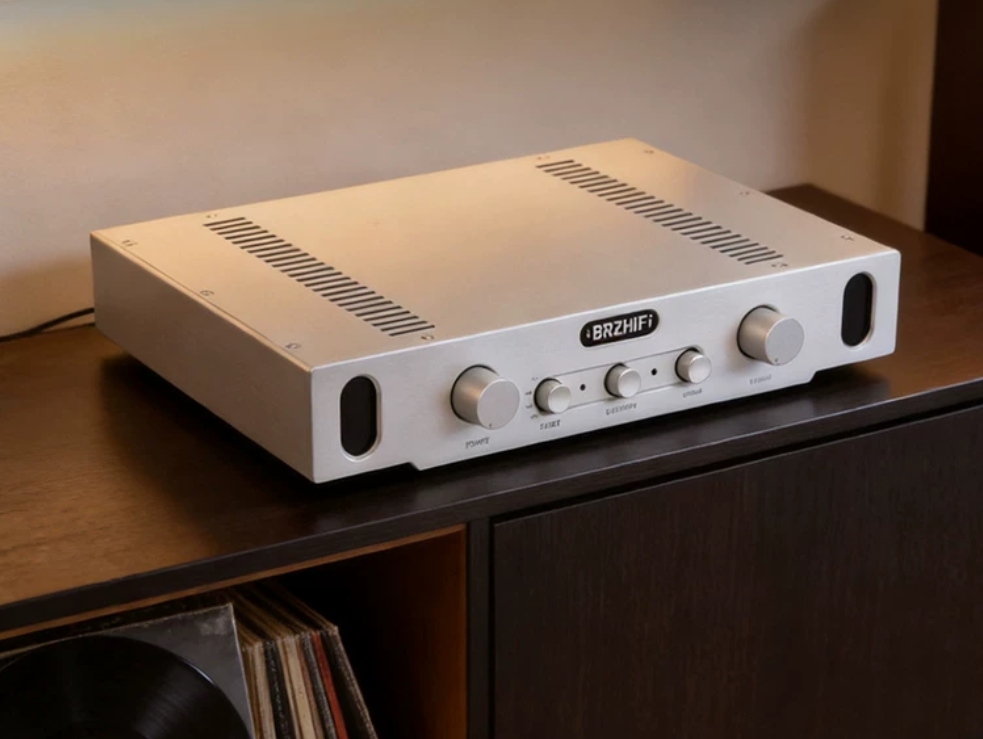

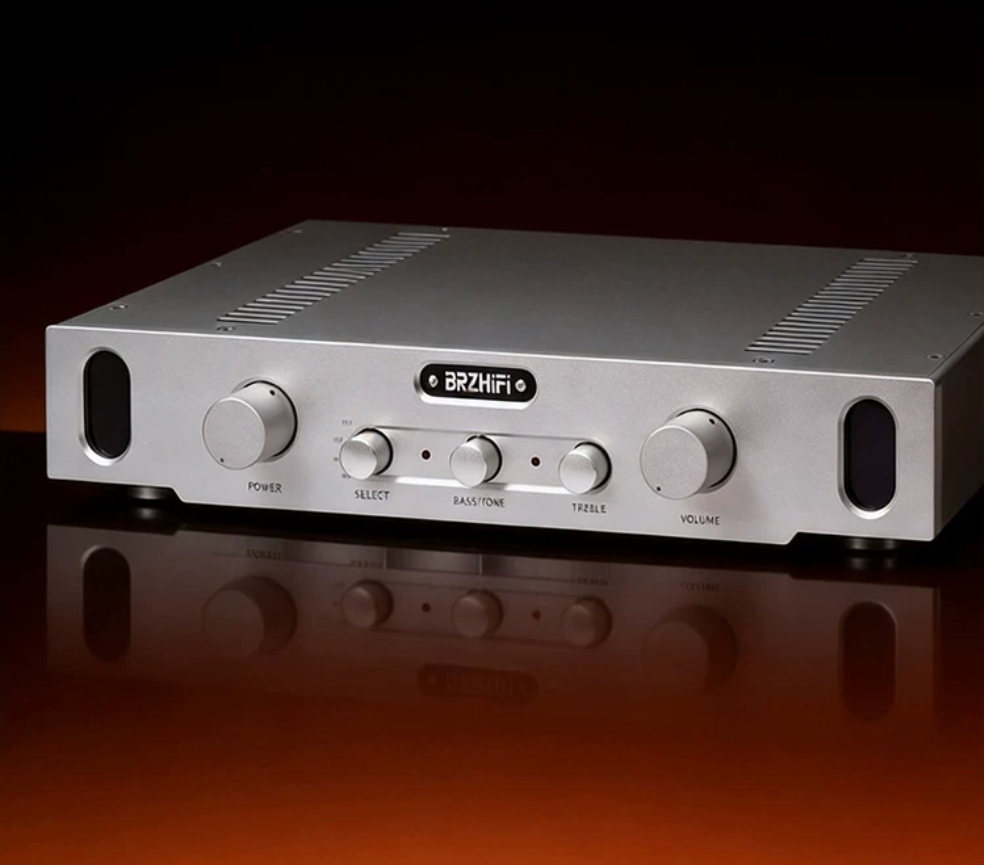

FV-2026 is an upgraded version of FV-2020, suitable for pairing with 933 amplifiers Support DIY tuning.The sound is mellow and durable, with a full and warm mid frequency, crystal clear high frequency, and solid and elastic low frequency; The sound field is spacious, the image is precise and three-dimensional, and the details are well restored, making it easy to listen for a long time without getting tired.

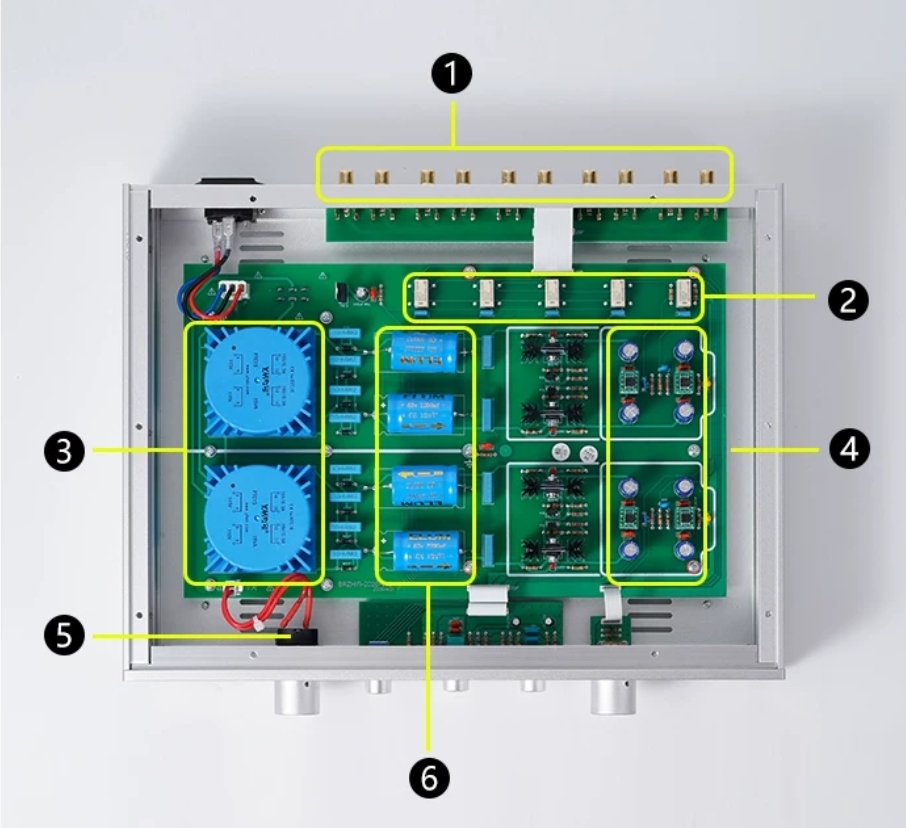

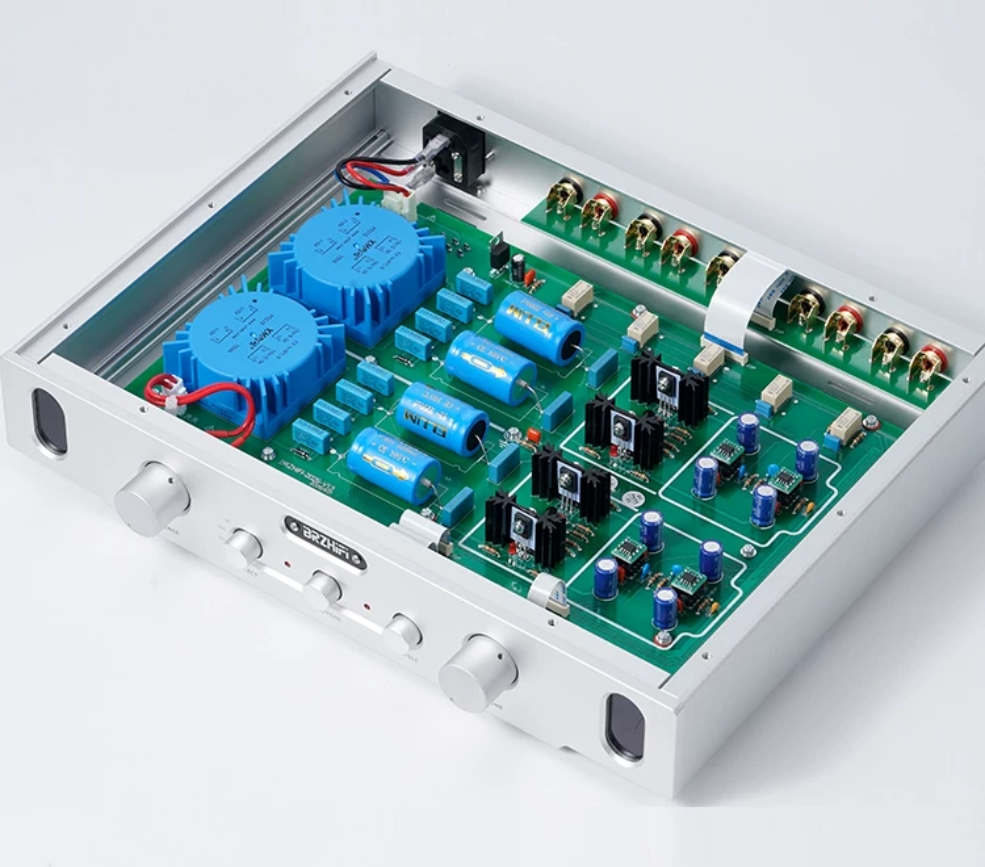

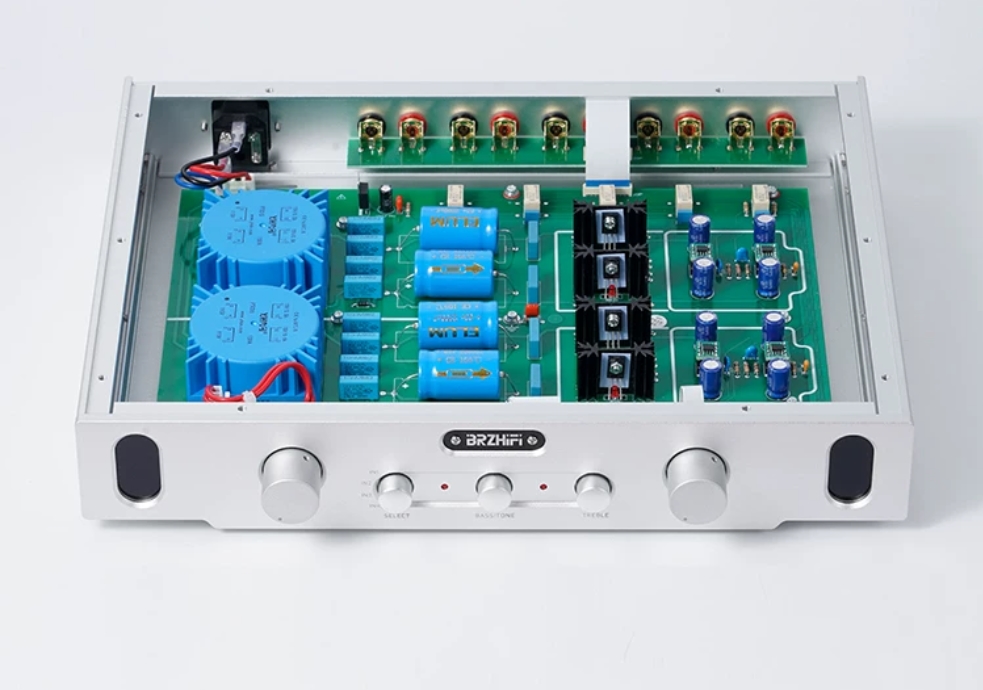

* 4 OPA1611 operational amplifiers (DIY replaceable)
* Sealed shielded toroidal transformer+linear voltage regulator+4 * 2200uf 63V axial capacitor
* Omron G6S-2 relay non-destructive switching

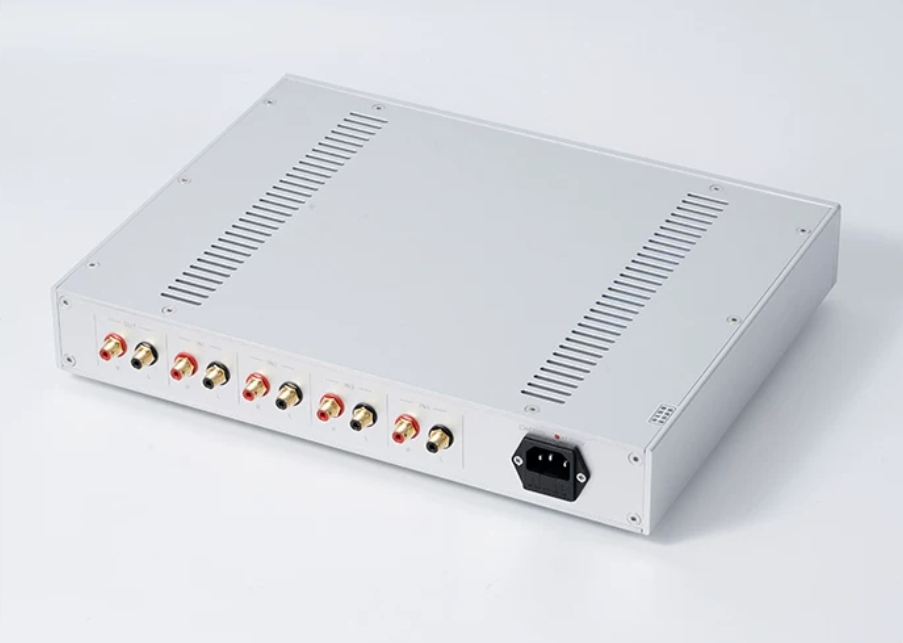

* 4 sets of RCA inputs, 1 set of RCA outputs.
* ALPS volume potentiometer, accurate positioning, durable.
* CNC machined aluminum alloy knob with good texture High grade.
* All aluminum alloy chassis with heat dissipation slots Work is more stable.
* Pure copper gold-plated RCA.

Parameters:

Model: FV2026
Color: Silver
Frequency response: 20Hz-20KHz
Input sensitivity: 0.6V-2.2V
Magnification factor: 4x
Input impedance: 50K
Signal to noise ratio: 107db
Pitch adjustment range: ± 10db
Input voltage: AC110V/220V (manual)
Power consumption: 7W

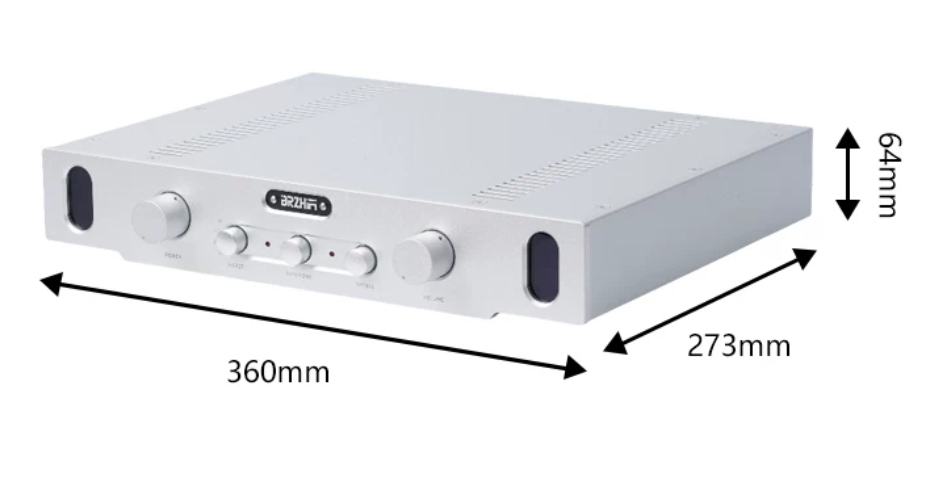

Size: 360 * 273 * 64mm
Weight: 3.66kg

Package list:

1 × FV2026 Preamplifier
