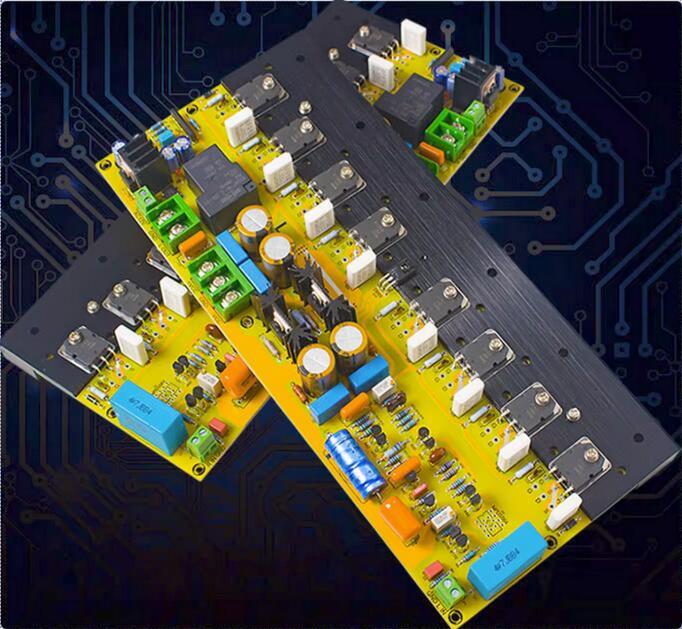

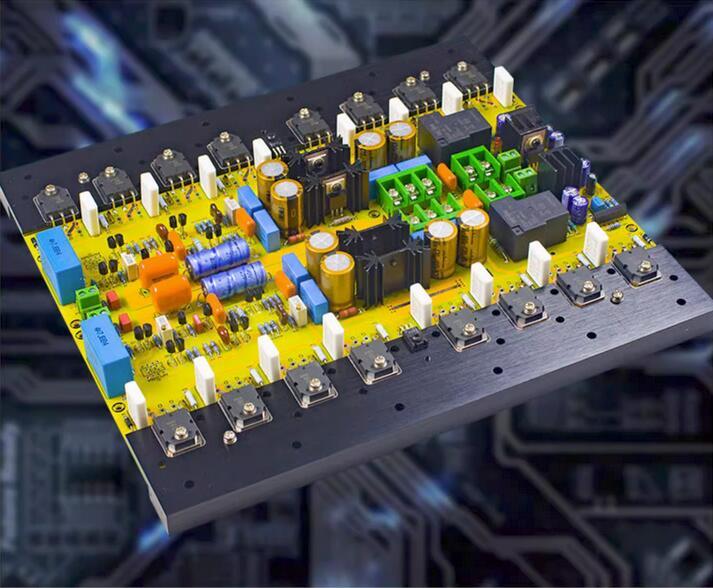

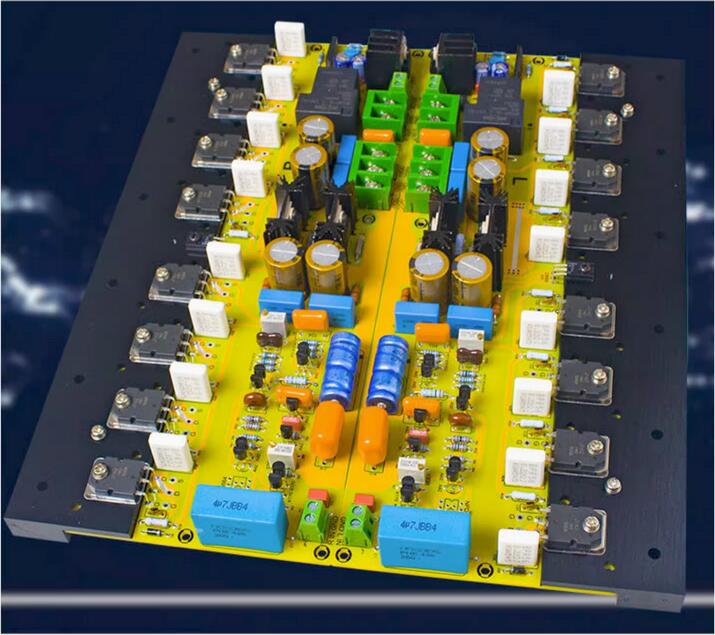

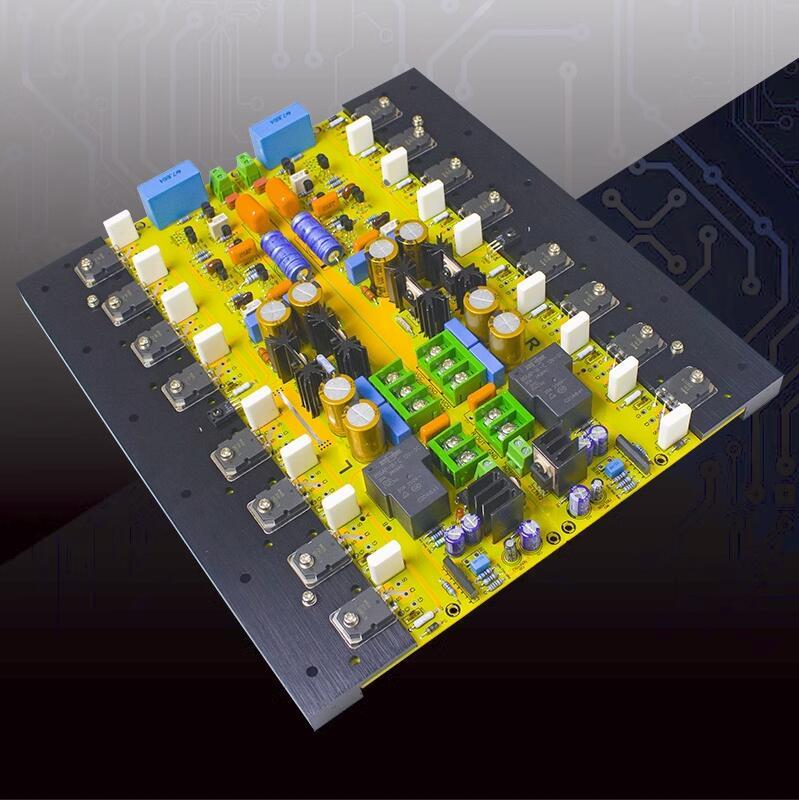

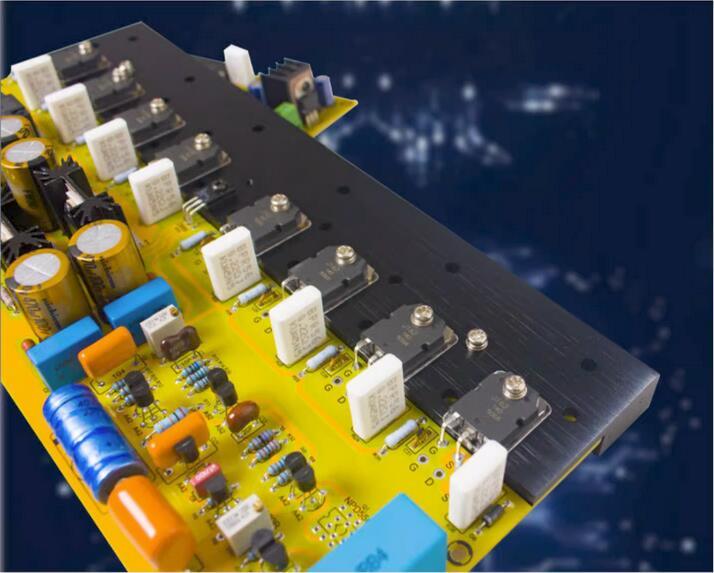

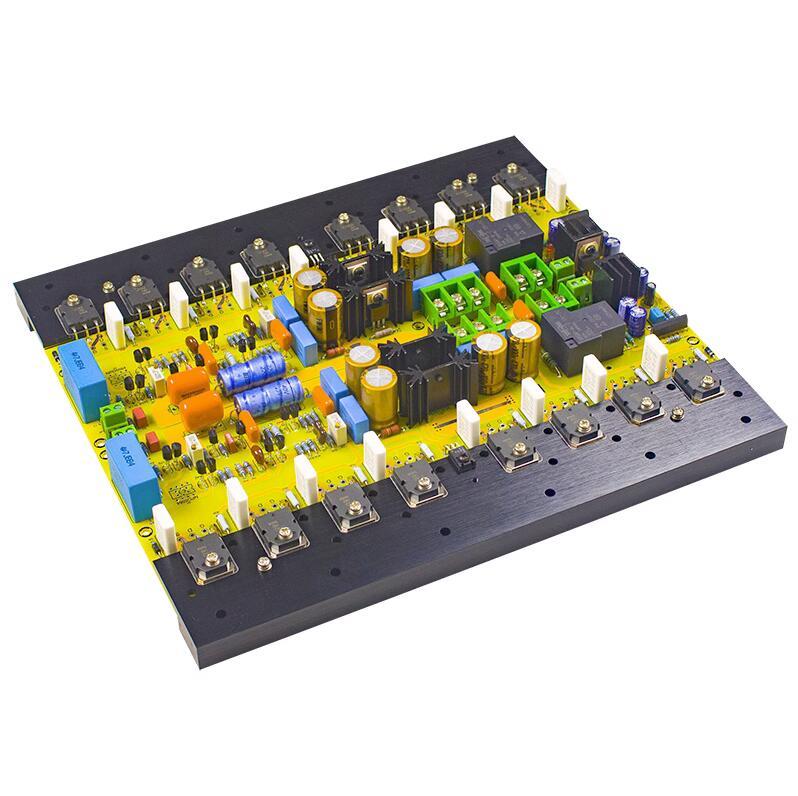

Product details:
Toshiba 2SK170BL Field-effect transistor is selected as input.
MPS A42/92 paired transistor for voltage amplification.
Push ON MJ15034/15035.
4 pairs of 2K1508/SJ162 Field-effect transistor parallel output per channel.
There is a complete horn protection circuit on the board.Easy to install.
Technical parameters:
Frequency response: 20-25KHz
Signal to noise ratio: 110db
Output power: Class A 95W+95W/4 ohms Class A and Class B 420W+420W/4 ohms
Input voltage: dual DC50-70V+AC12V Recommended dual DC60V+AC12V
Power requirements: Two transformers with a capacity of 500W or above, and a single side capacity of no less than 60000 microfactors for the rectifier board
Weight: approximately 2.5kg packaged
Input sensitivity: 1.3V/RMS
Total harmonic distortion: ≤ 0.008%
Size: 280 * 125 * 38mm
Radiator: Unilateral heat dissipation not less than 2.5kg
List:
G10 amplifier board X 1pair
