G100 Imitation of Switzerland HIFI Goldmund circuit amplifier board Input and output of field-effect transistor

Name: G100 Imitation of Switzerland HIFI Goldmund circuit amplifier board Input and output of field-effect transistor
Brand: BRZ-hifi-audio
SKU: G100
Price: 52.64 USD
Availability: InStock

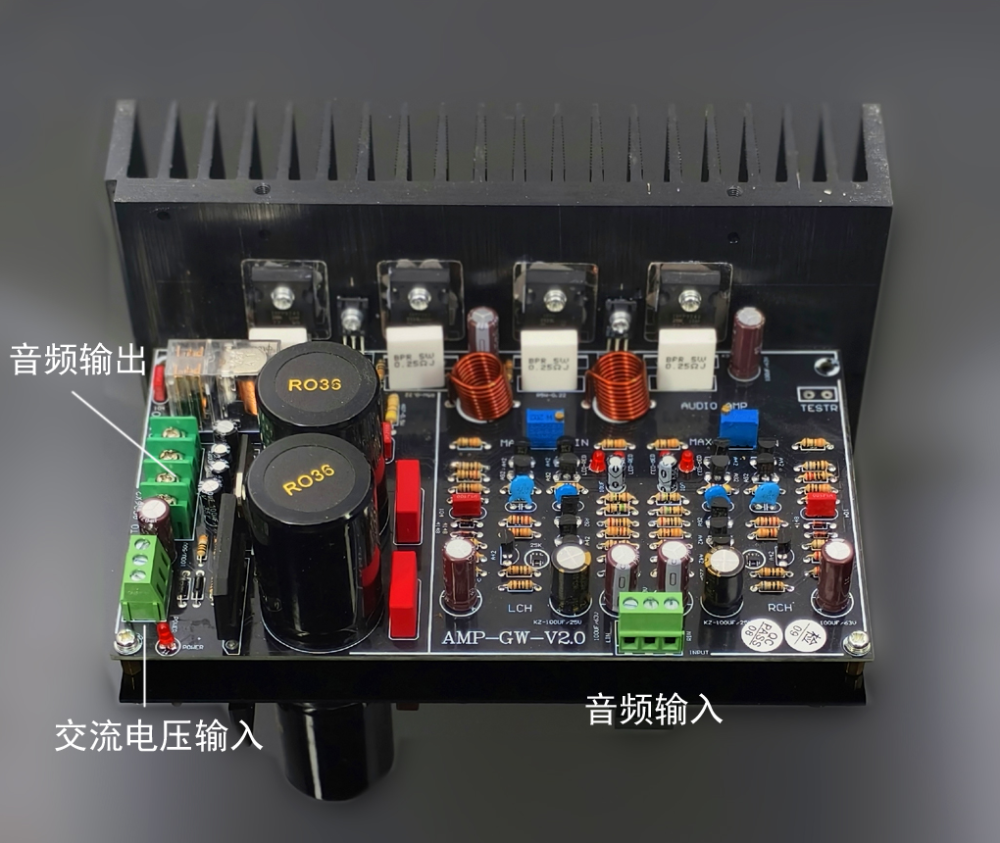

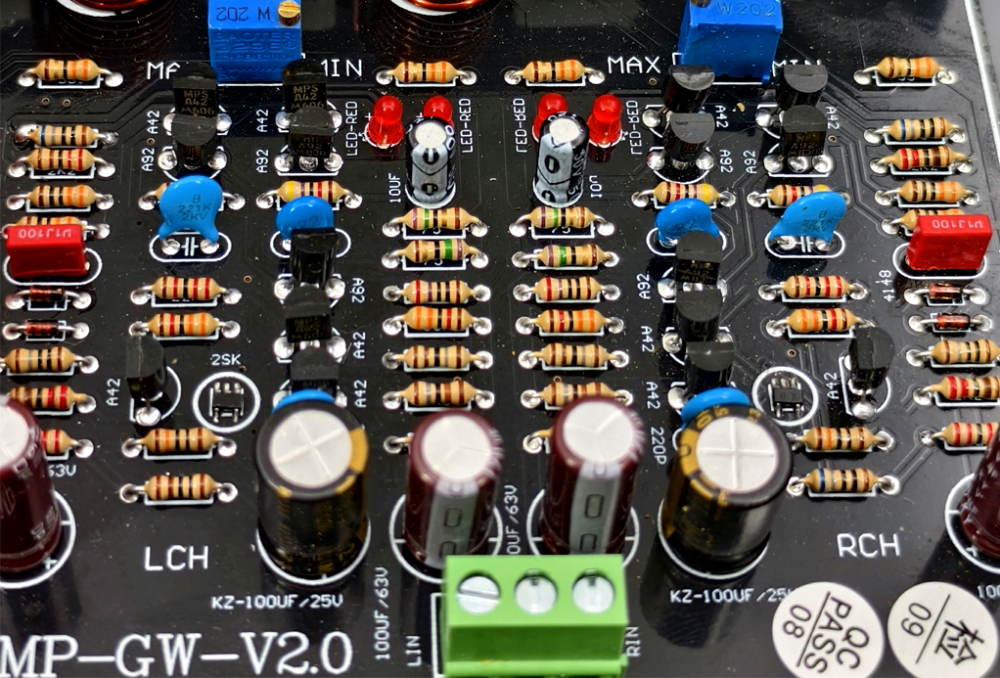

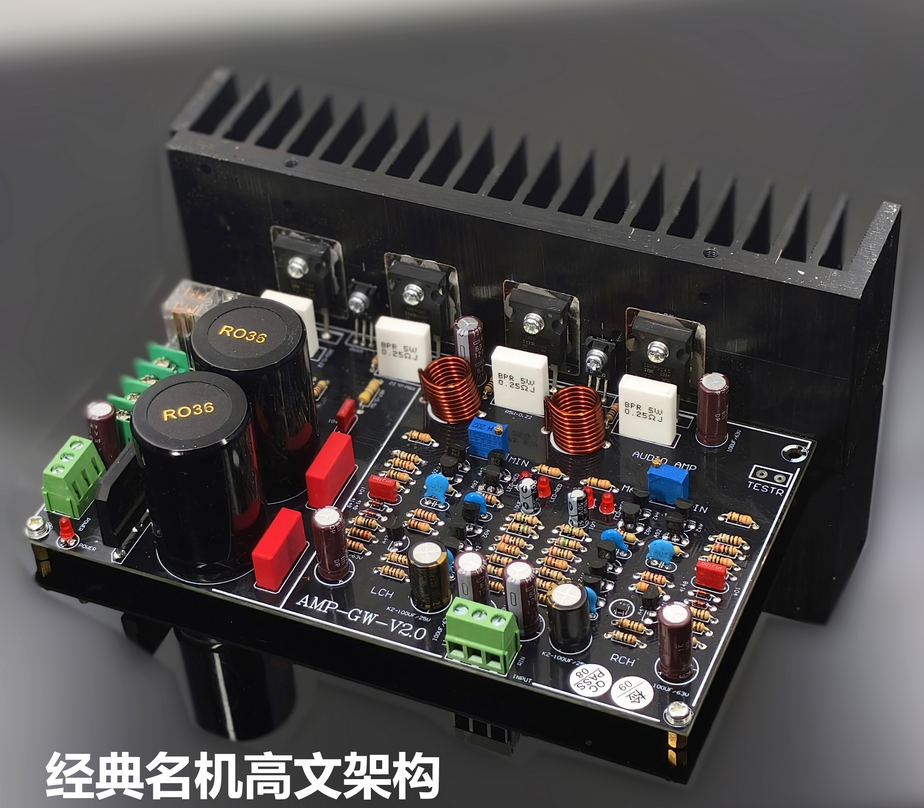

G100 HIFI Goldmund circuit amplifier board

Limited Offer!

0.0 (0 Reviews)

4 Sold

$52.64

-6%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Product details:

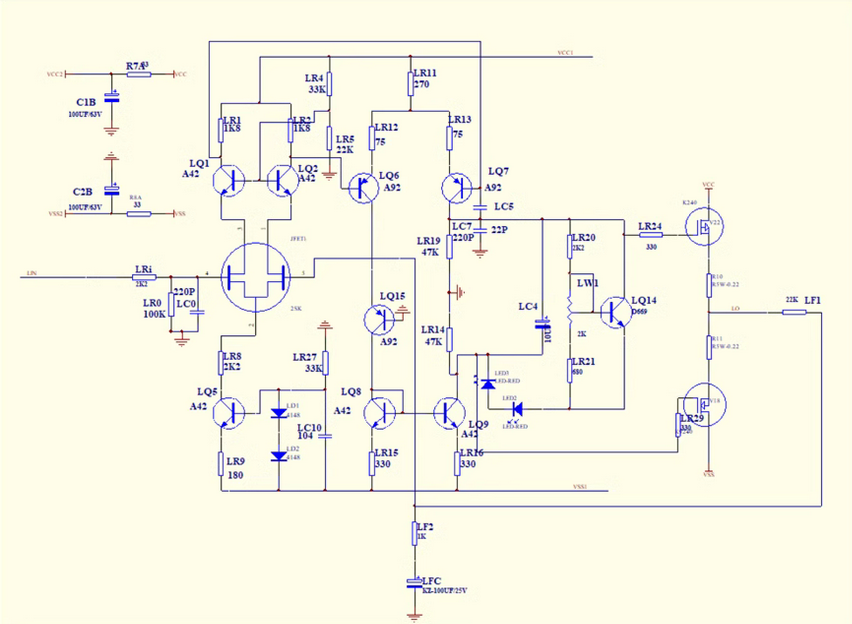

Goldmund is an excellent amplifier circuit. Excellent analytical skills and attention to detail, with a differential input structure The sound is delicate

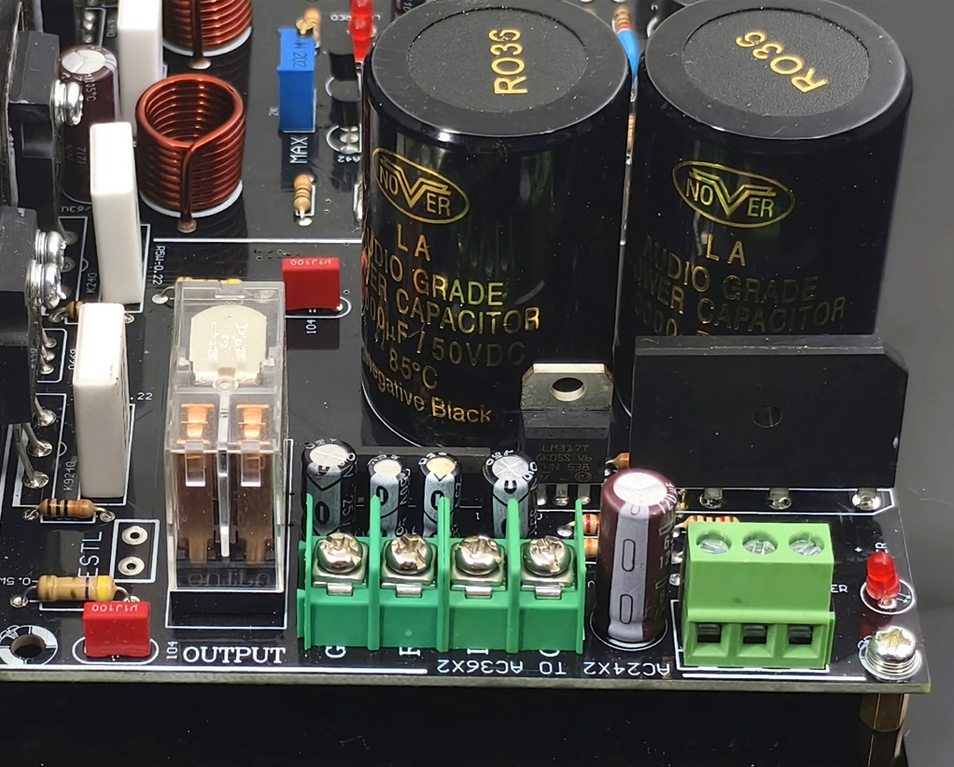

NOVER audio capacitor.
Beijing 718 copper pin resistor.
Original imported transistor.
Japanese ELNA series feedback capacitor.

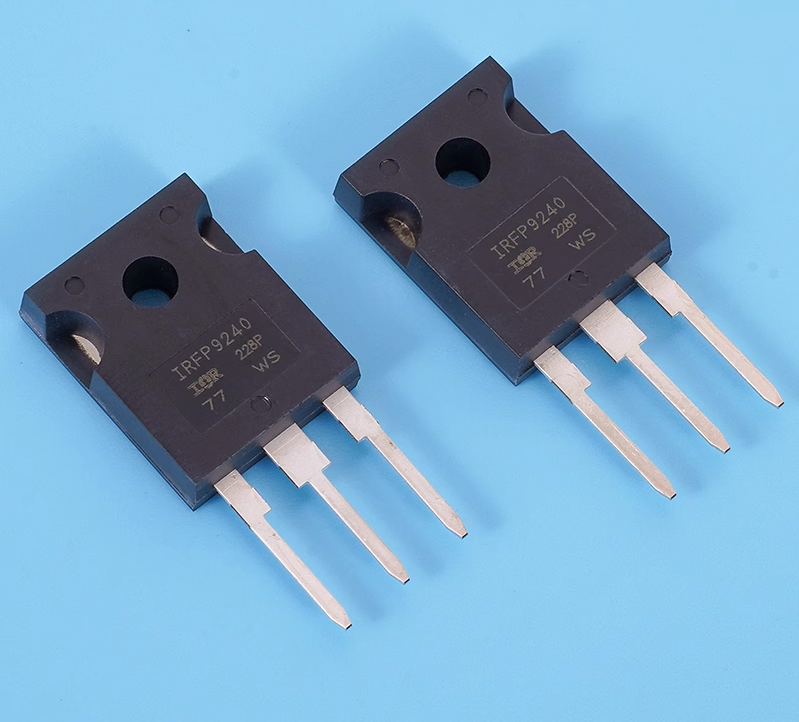

K9240 K240 classic transistor.

Parameters:

PCB size: 185 * 105mm
Input voltage: AC22V * 2-AC36V * 2
Output power: 100W 8 ohms, 120W 4 ohms
Frequency response: 10Hz-30KHz

List:

G100 amplifier board x 1

Purchase link for matching transformer

https://brz-hifi-audio.com/products/300w-hifi-audio-power-transformer-pure-copper-toroidal-transformer?VariantsId=11289
