G5 Pure Post 150W*2 HIFI DIY stereo power Amplifier ECX 10N20/10P20 mos Version Ultra Low Distortion

Name: G5 Pure Post 150W*2 HIFI DIY stereo power Amplifier ECX 10N20/10P20 mos Version Ultra Low Distortion
Brand: BRZ-hifi-audio
SKU: G5 mos
Price: 422.28 USD
Availability: InStock

Flash Sale

5.0 (1 Reviews)

3 Sold

~~$459.00~~ $422.28

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (10)

1/1

Description

Features:

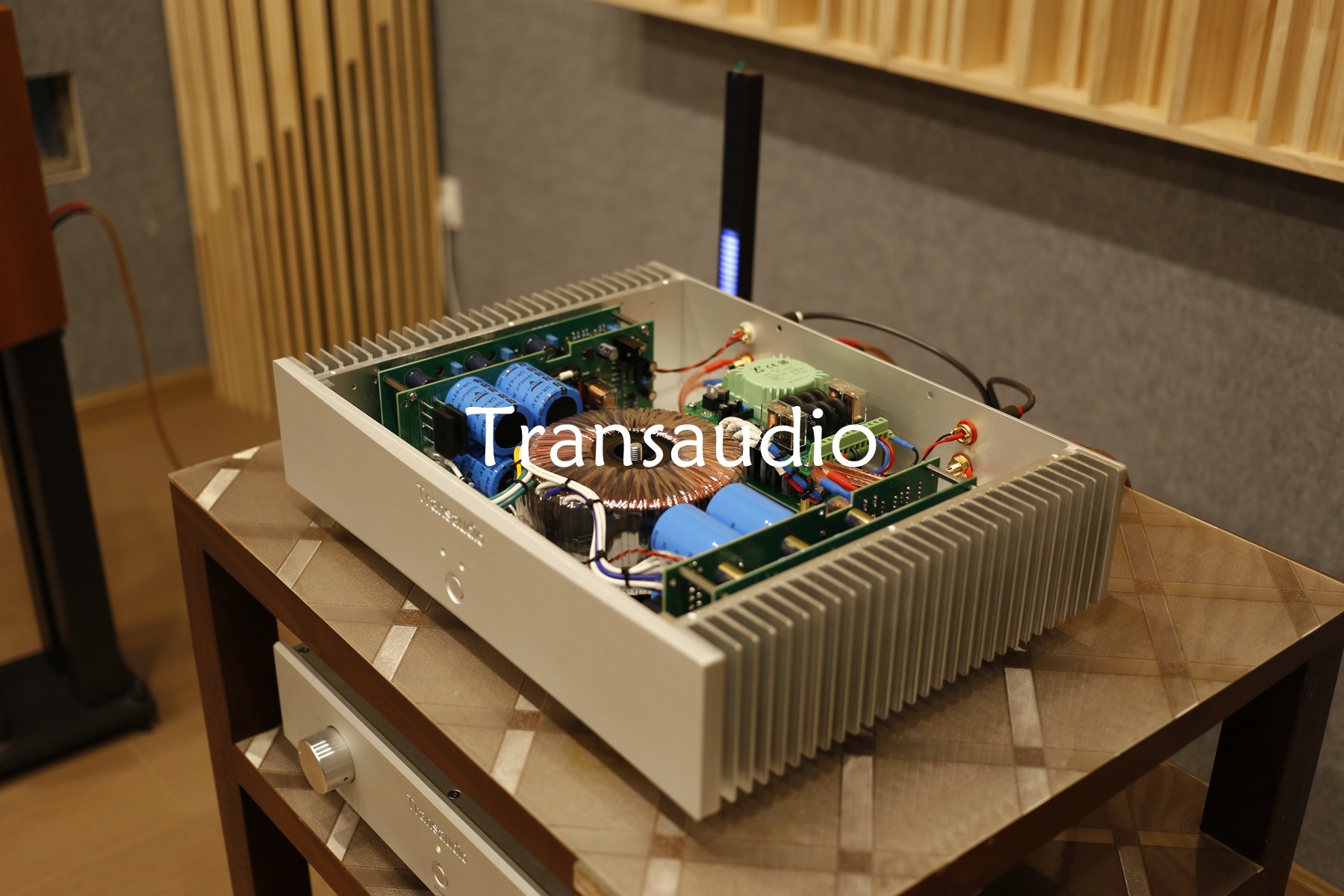

This G5 is designed based on the Goldmund 29 Circuit, utilizing 4 pairs of British ECX field effect transistors. It boasts high resolution and a warm mid-frequency response.
.

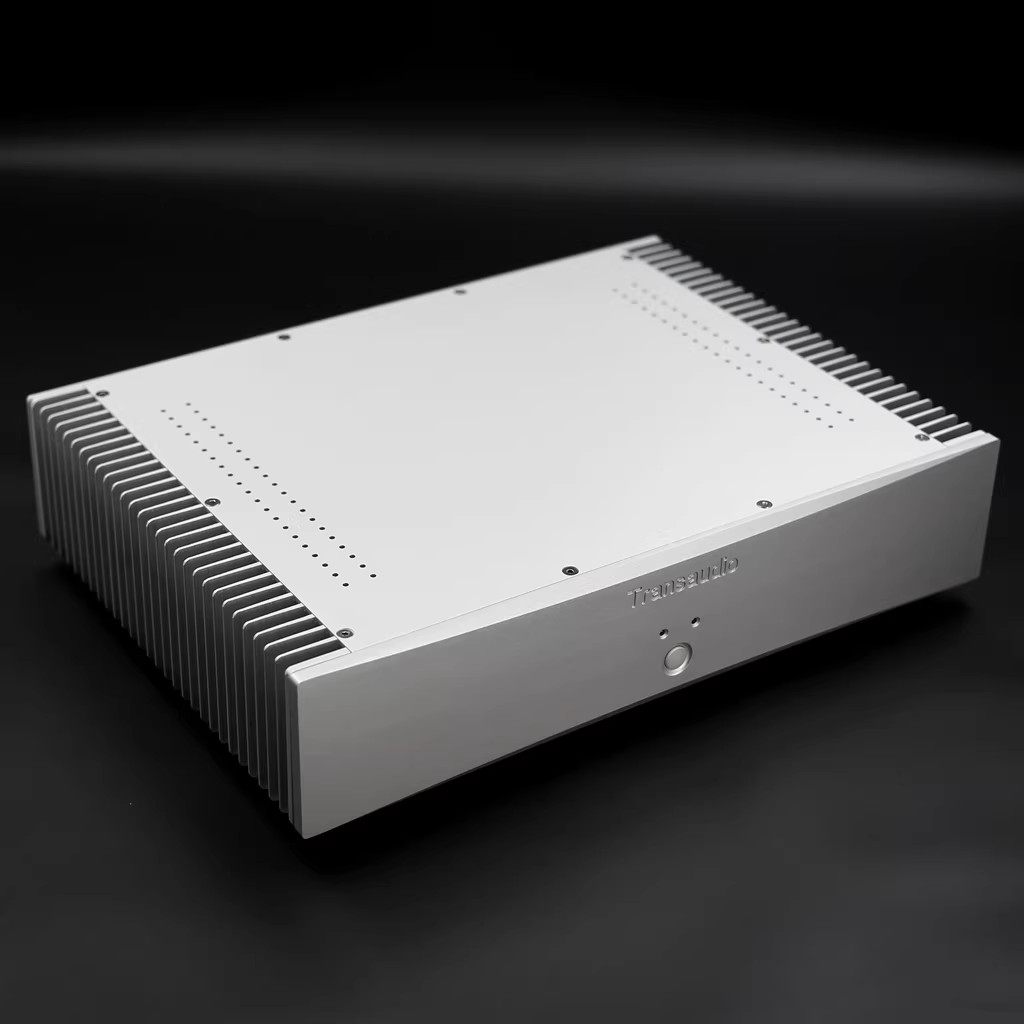

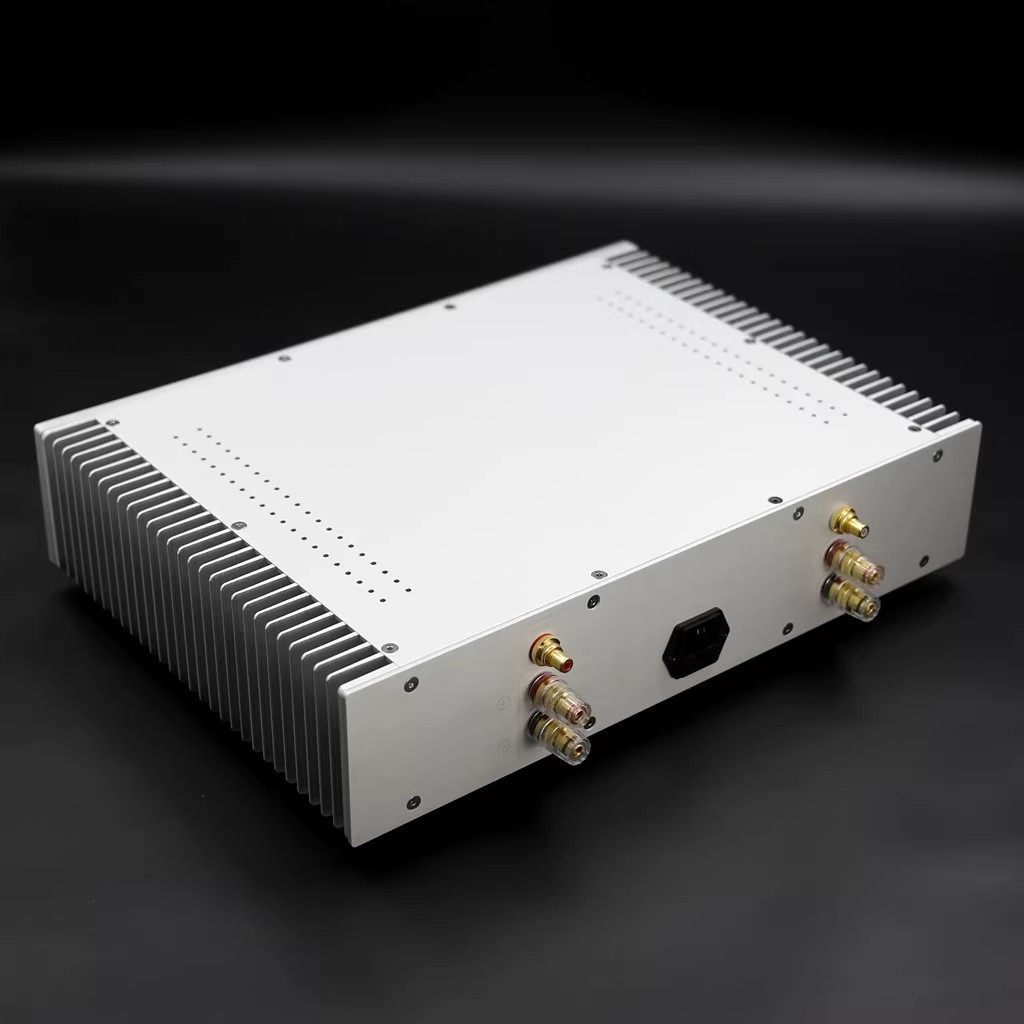

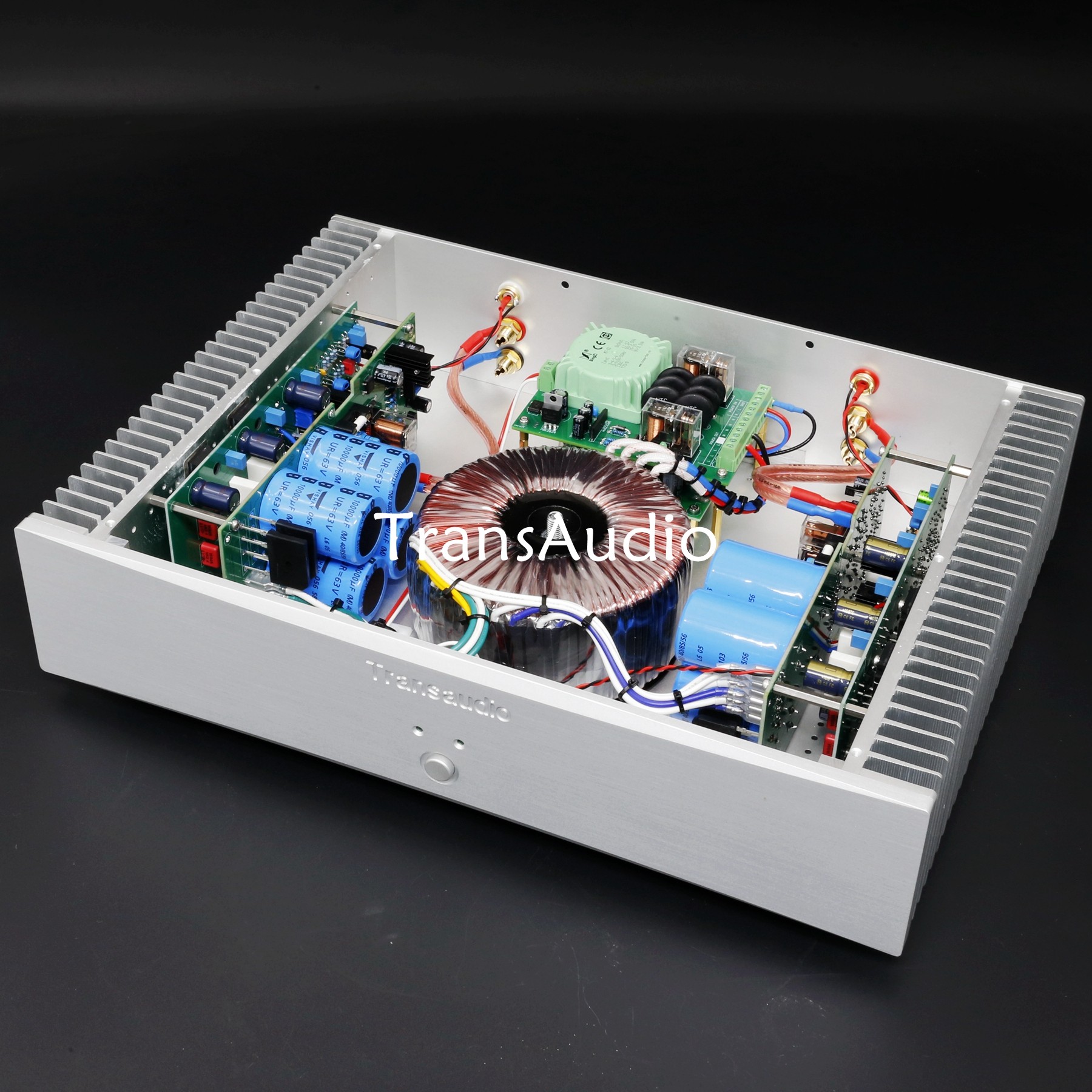

● Precision CNC machined all-aluminum alloy chassis
● 500w Nippon Steel core pure copper wire wound transformer.

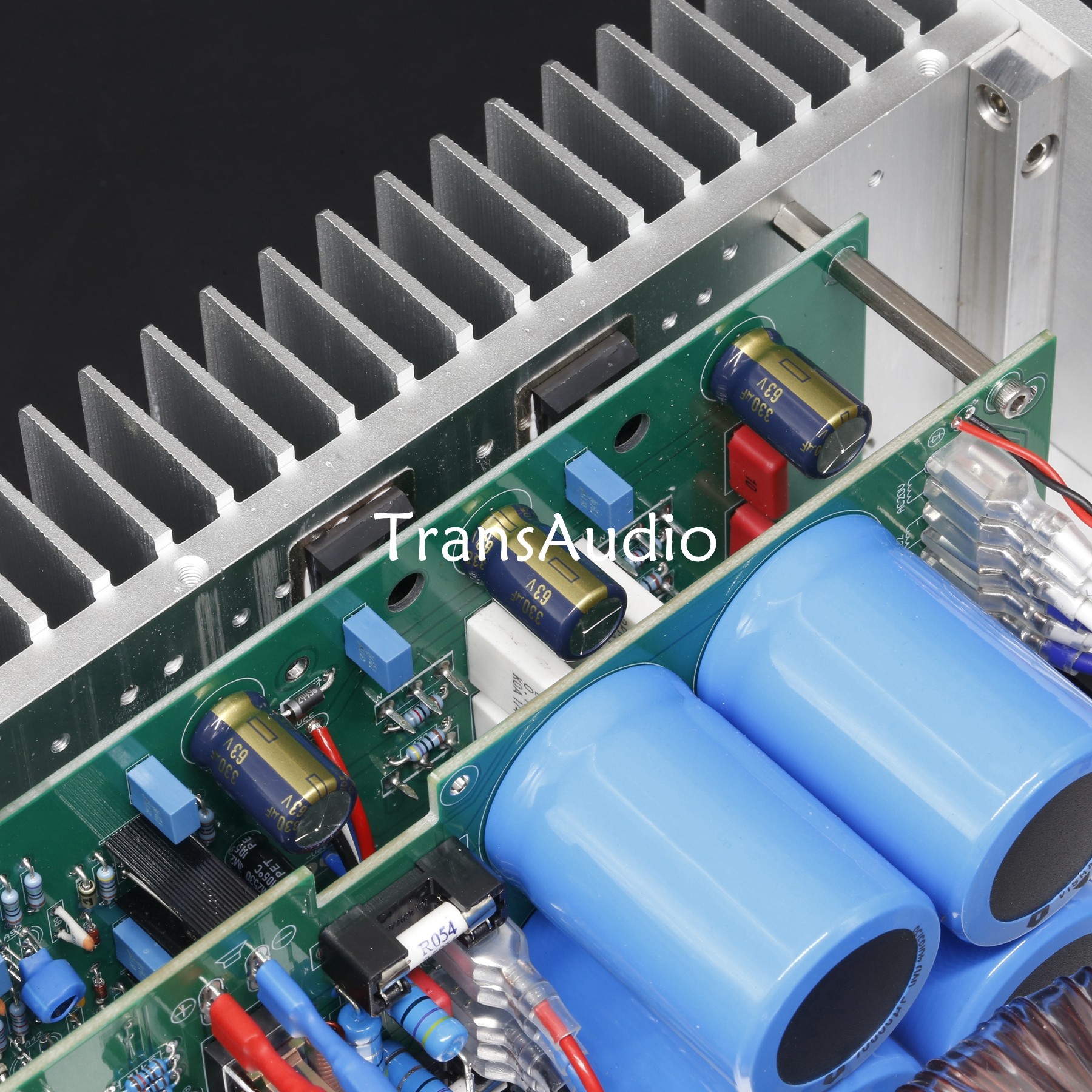

● 8 Vishay BC Audiophile-grade audio filter electrolytic capacitors.

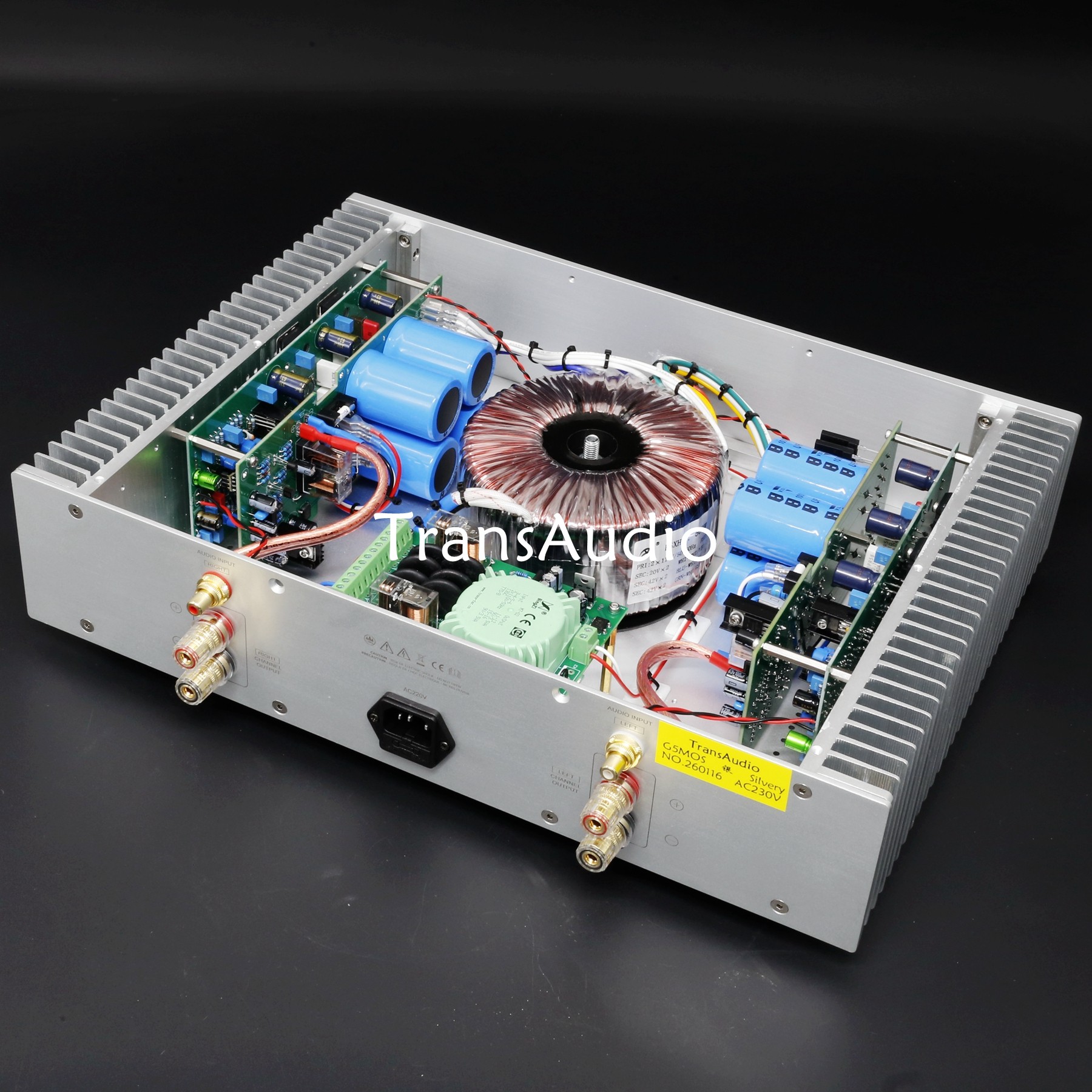

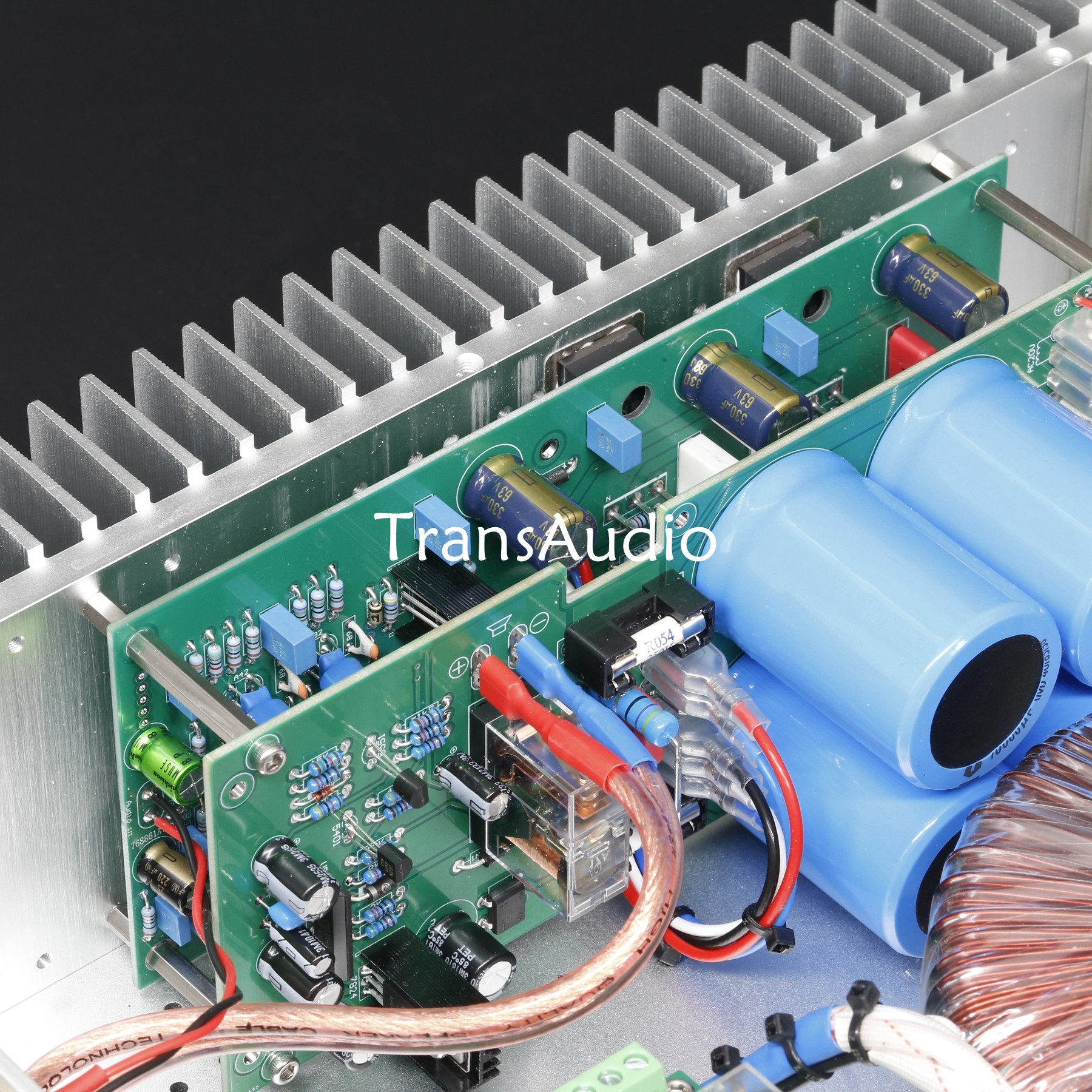

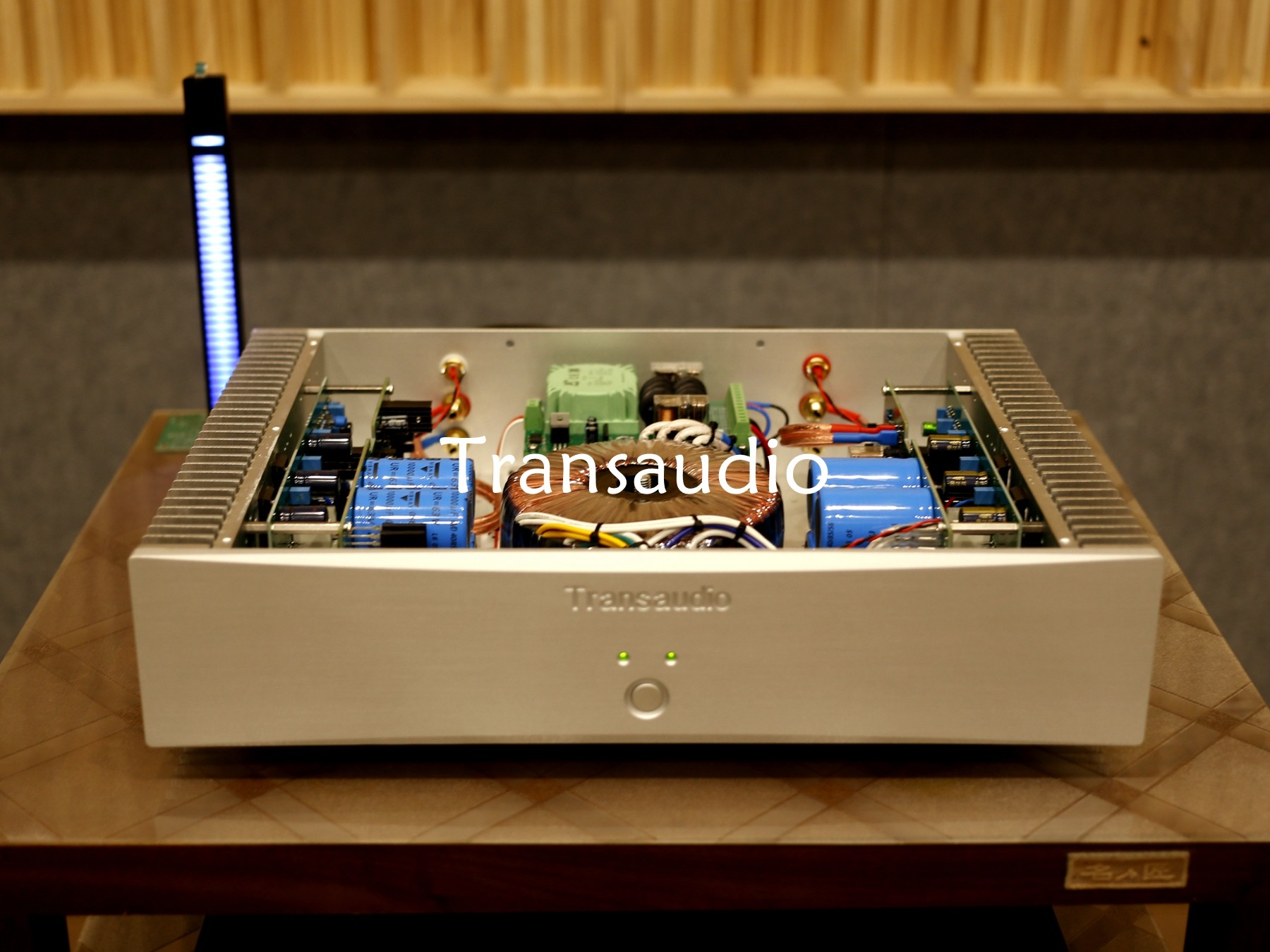

● The design features completely independent left and right sound channels. The amplifier board, power board, and protection board are all completely separated for left and right channels.

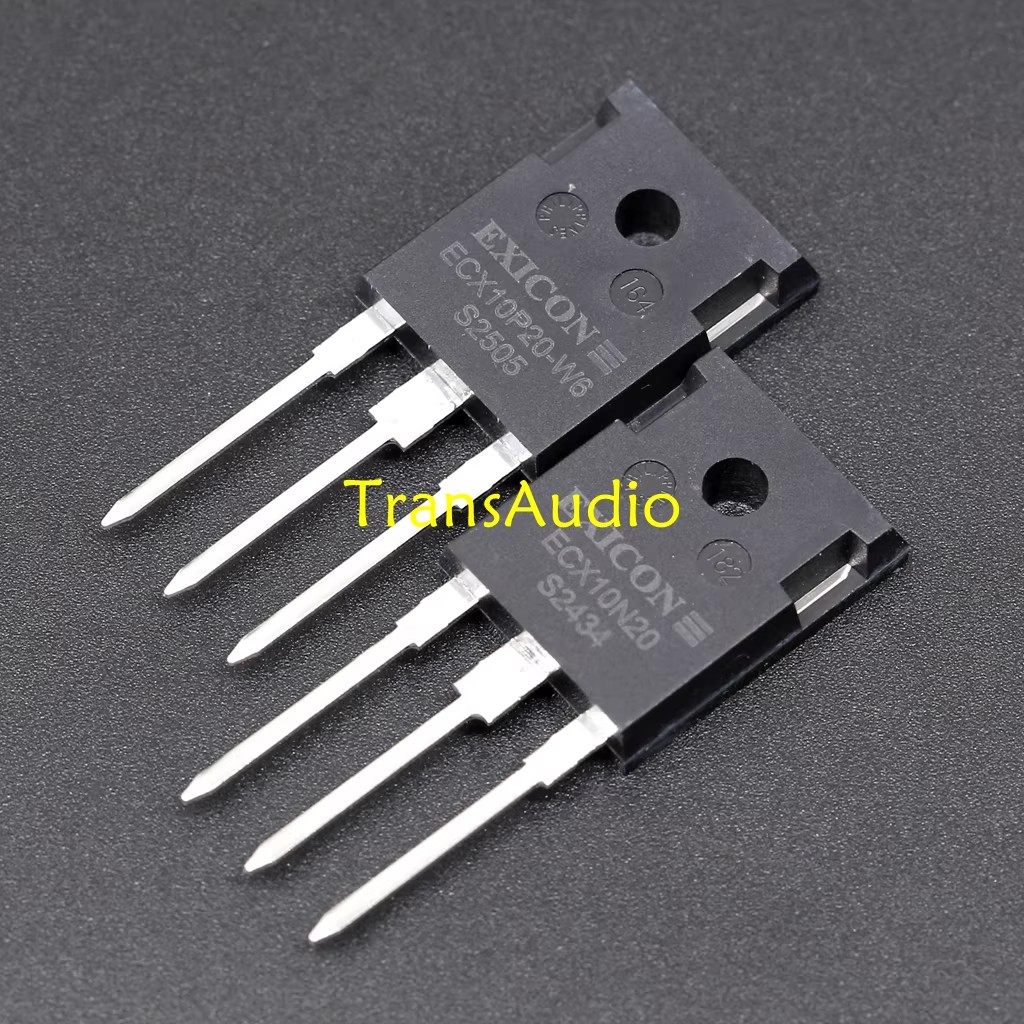

● 4 pairs of precision-matched 1% UK ECX field effect transistors 10N20/10P20 (same model as Goldmund original machine).

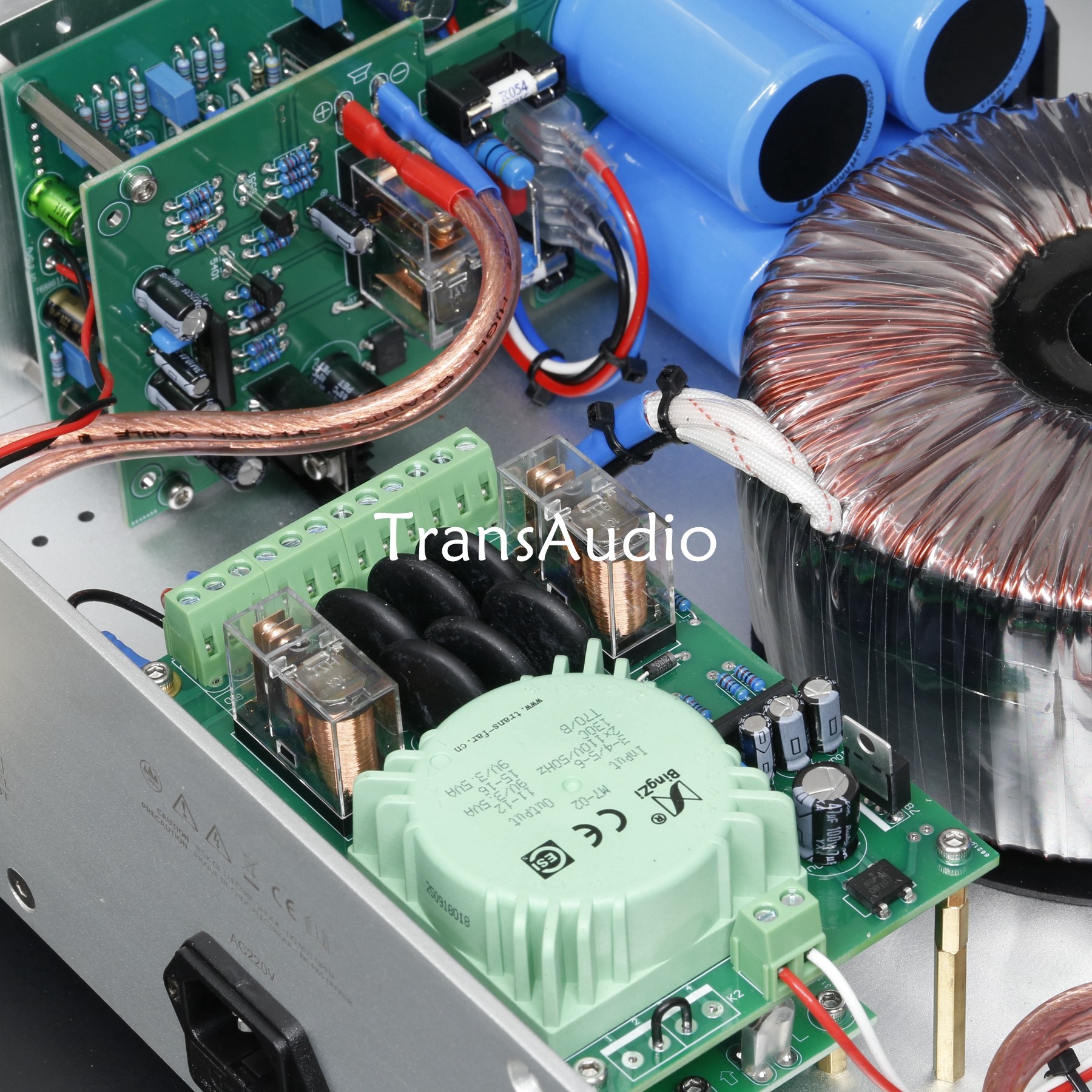

● Sophisticated speaker protection effectively shields your sound system.
● Equipped with soft start protection, it effectively avoids the impact of switching on and off.

Parameters:

● Input sensitivity: 1.2Vrms
● Input voltage: AC110/220V.
●Input impedance: 47K ohmsDamping coefficient: 500
●Output power: 150W*2/8 ohms, 200W*2/4 ohms RMS power, capable of stable output at full power for extended periods
●Static power consumption: 80w, 100mA per transistor
●Input voltage: AC110V or AC220V
●Color: Silver or Black
●Weight: 12kg
●Size: 430*350*100mm
●Output effective value: 32.4Vrms
●Channel gain: 29.6dB, 30.3 times
●Residual noise: 23.16uV, which is very low
●Signal-to-noise ratio: 121.5dB
●Dynamic range: 121.6dB
●THD distortion: 0.00064%
●THD+N distortion: 0.0020%
●Frequency response bandwidth: ±0.054dB
●Channel crosstalk: -110dB, dual mono structure, excellent data

List:

1 x G5 mos Version Amplifier（To ensure transportation safety, no power input cable is provided by default）
