GDX-3 hand made hifi audio power processor power supply purifier power filter US/EU/UK out sockets for choose

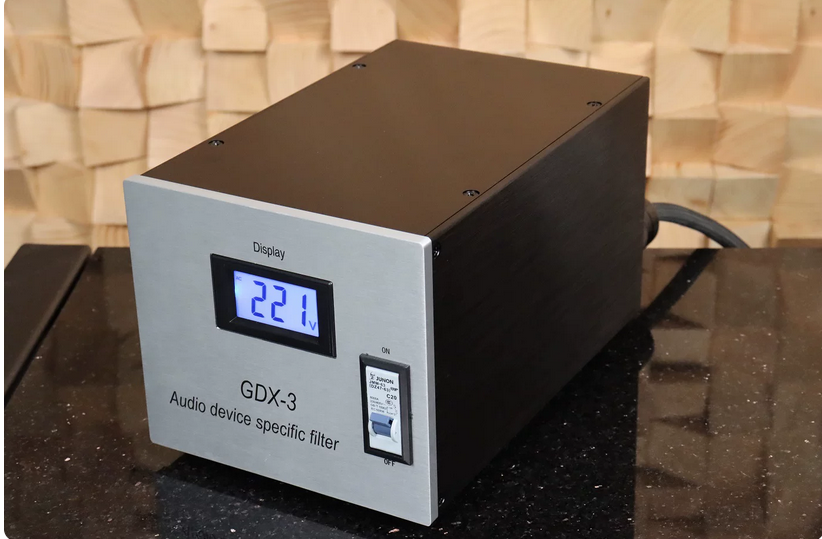

All-aluminum chassis, 170 wide by 150 high by 258 deep, with a front panel of 8MM, 5KG in weight, and 6KG in packaging;

The effect can be seen, the noise of the mains is 100, and the output noise test is 0.7;

The current is large and unobstructed. Our approach is two points:

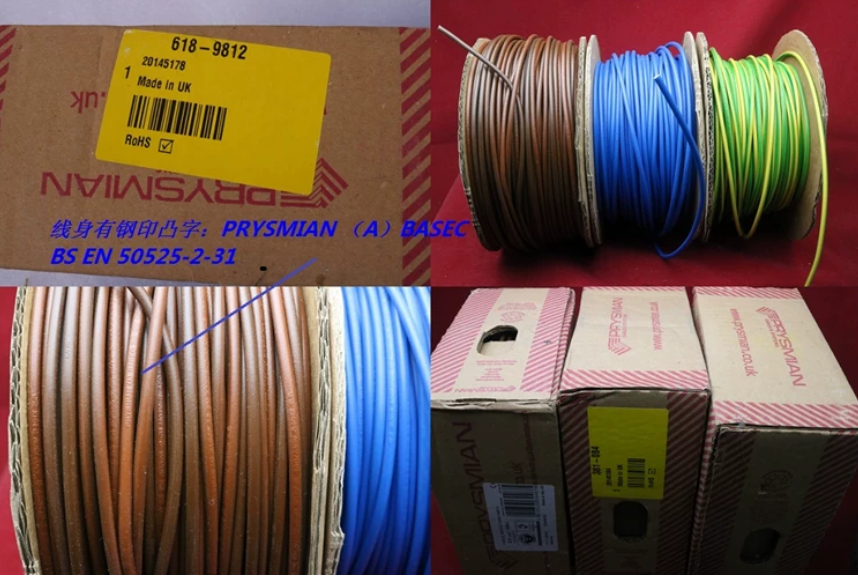

1. A 2.5 square wire is used to pass the current inside, that is, it is directly 1.78MM, without going through the circuit board at all. The thickness of the copper clad circuit board is generally 0.035MM, and it is twice as thick as 0.07MM, which is the same as ours. 1.78MM, not a level at all! Who is big and who is small, at a glance!

2. We make the wire, there is no break point in the middle, so that there is no internal resistance of the solder joint, poor welding, and the influence on the current, so that it is completely unobstructed!

Implementation details:

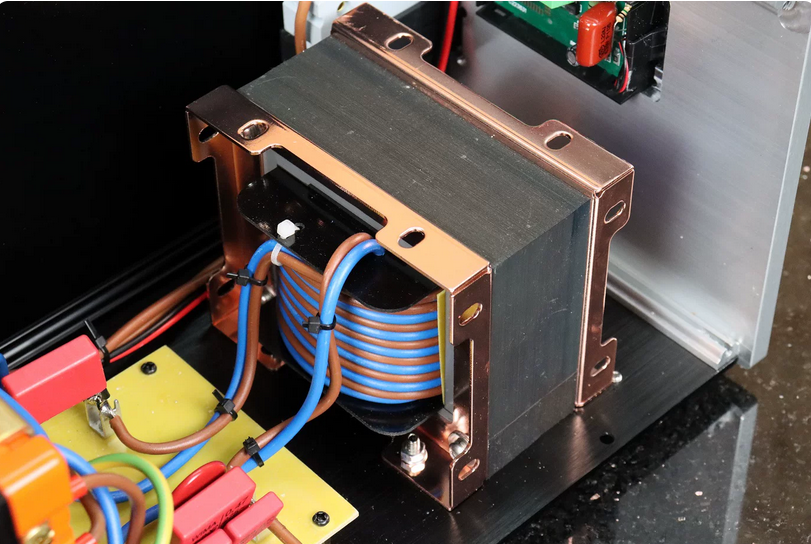

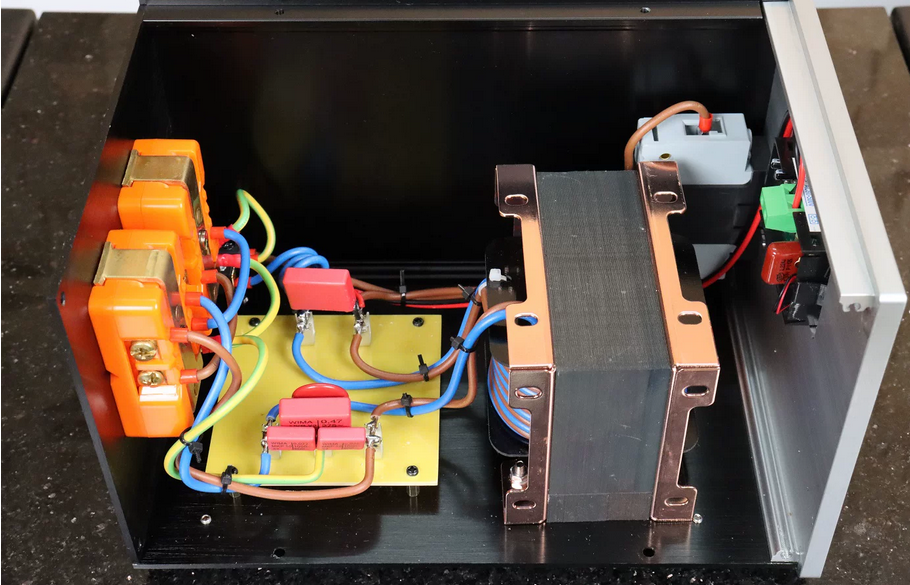

. 1. The EI105 iron core with imported iron square inductor is wound into a common mode choke coil, which has strong anti-saturation ability and can withstand excessive current; the difference from the general power supply lies in this detail. In the general environment, everyone is different. Big, but when there is strong interference from the mains power, such as surges, thousands of volt bursts, or when your audio system is dynamic, the current of the coil will instantly increase at this time. If it is a small magnetic ring , the magnetic permeability is high, it enters magnetic saturation, loses the inductance effect, lets the interference come over, enters your system, the sound becomes blurred, and the sound field cannot be expressed. The inductance made of our iron core is completely resistant to various surges and high voltages. Pulse group, when the system has a large current, it can also suppress interference!

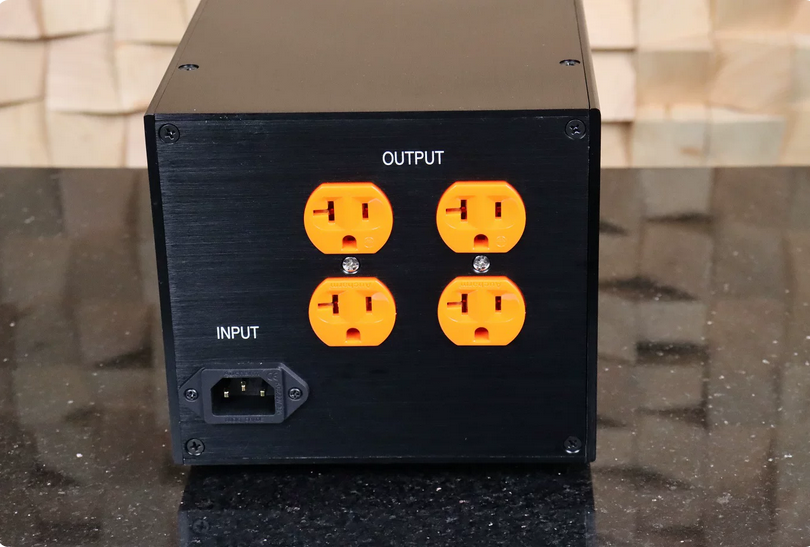

the follow is US sockets shown ， we also have EU，UK  sockets for choose ，thanks
