A cost-effective and high-performance circuit for singing and playing, with delicate and natural sound quality, accurate sound field positioning, and a very full low-frequency vocal head,

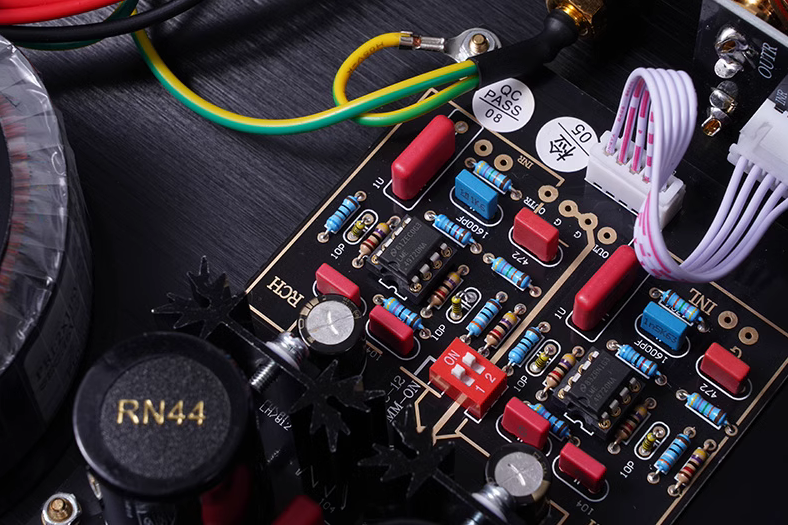

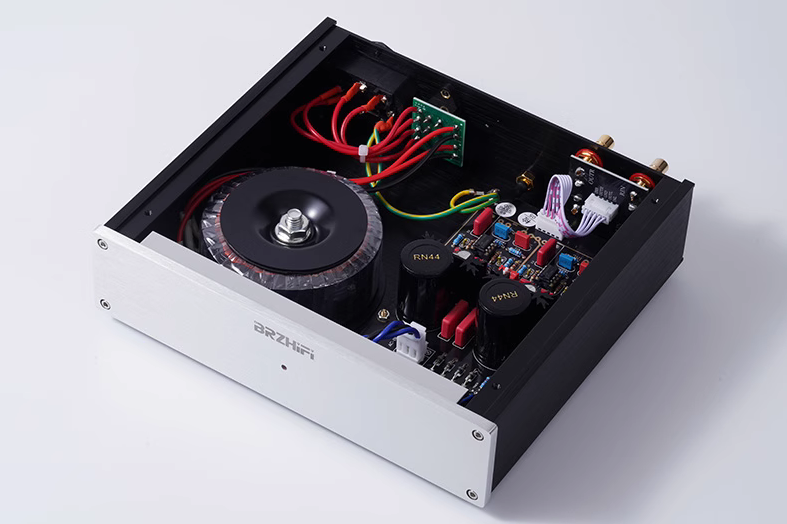

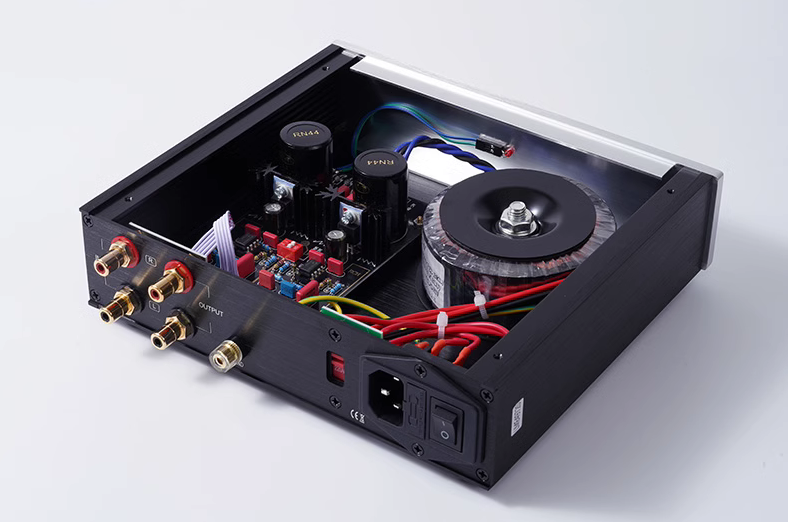

*The latest version currently available. Open the top cover, the internal board of the machine has MC MM switching, and basically defaults to MM cartridge,
*Some customers have reported that the low sound is due to the low sensitivity of some singing heads. When placing an order, it can be noted that the amplification factor needs to be increased, so that the output gain can be increased by three times compared to the default.
Product Material:
Using NOVER audio specific capacitors for filtering, the vocals are very good and the effect is excellent
2 resistors are American DALE or VIS resistors, output capacitors are German ERO, and decoupling uses advanced resistors such as Red WIMA and ELNA Brown God

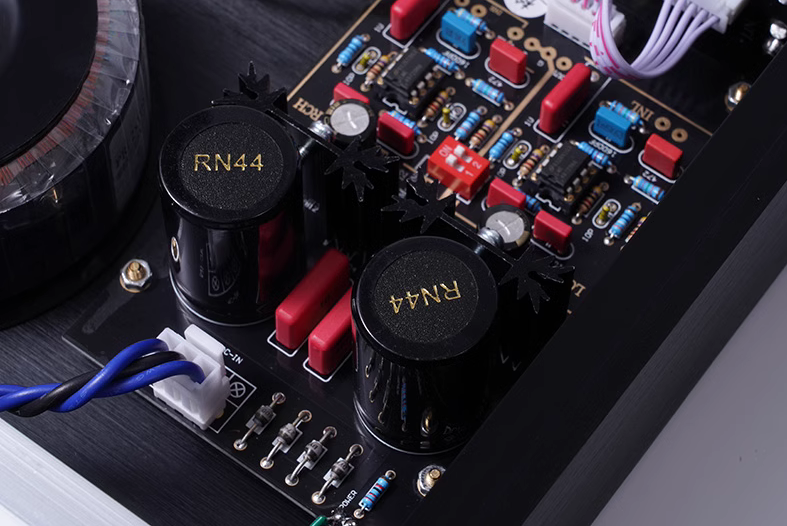

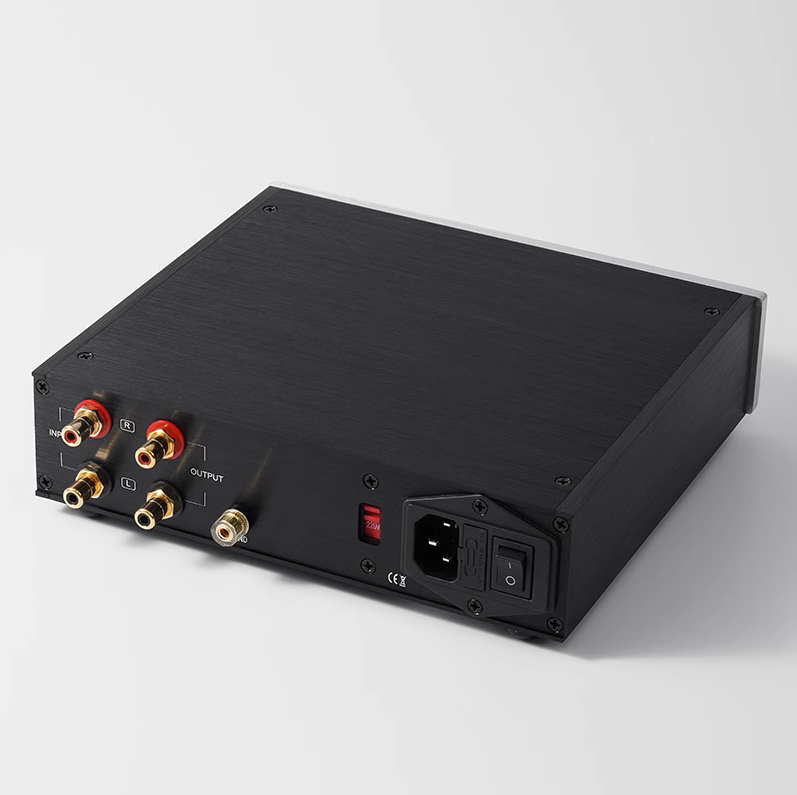

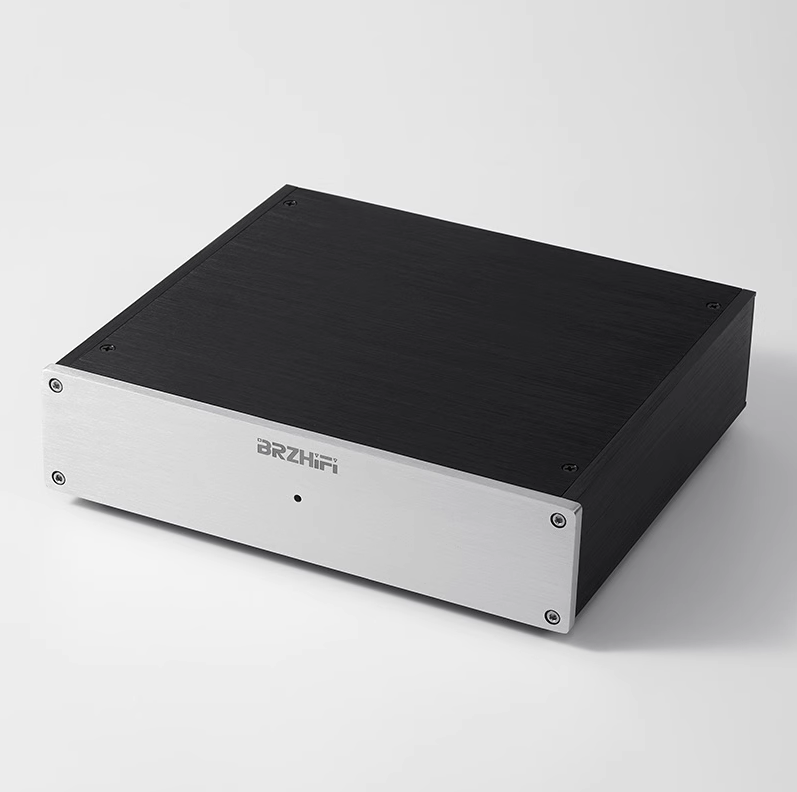

The PCB adopts double-sided gold plating technology, and the wiring is grounded at one point. The chassis is made of all aluminum alloy architecture, and the output and input terminals are 24K gold-plated CMC816
Input impedance: 47kohms/100pF
Capture MM: 40dB
Output voltage: 200mV/1kHz, 3mV/1kHz (MM input)
Capture MC: 60dB
Output voltage: 200mV/1kHz, 3mV/1kHz (MC input) THD: 0.002%
Dimensions: Width 220, Height 52, Depth 191
Weight: 2KG
Common sense: MM cartridge has a high output, approximately between 1mv and 5mv
And the MC cartridge has a lower output level, about 0.1mv to 0.5mv
