Product Details:
External dimensions: Width 320MM * Height 200MM * Depth 411MM（This is the size of a computer case Symmetrical design of left and right channels）
Internal dimensions: Width 262MM * Height 194MM * Depth 400MM
Unilateral radiator size: Width 200MM * Thickness 50MM * Depth 400MM, Net weight about 4KG Substrate thickness: 10 mm
Front panel material thickness: 8MM
Back panel material thickness: 3MM
Side panel material thickness: 8MM
Upper and lower cover material thickness: 3MM
Surface anodizing and wire drawing treatment
The back panel is default blank without holes. If you need to make holes, please contact us.
Package list:

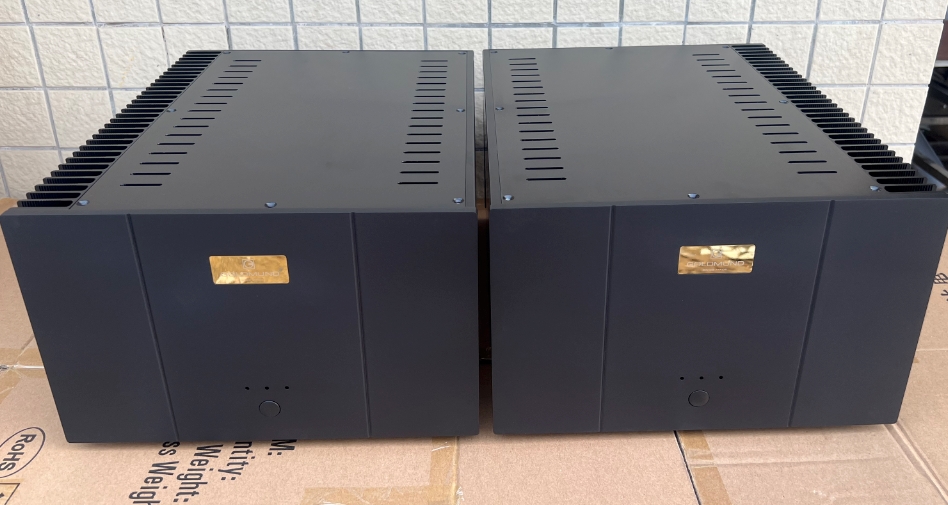

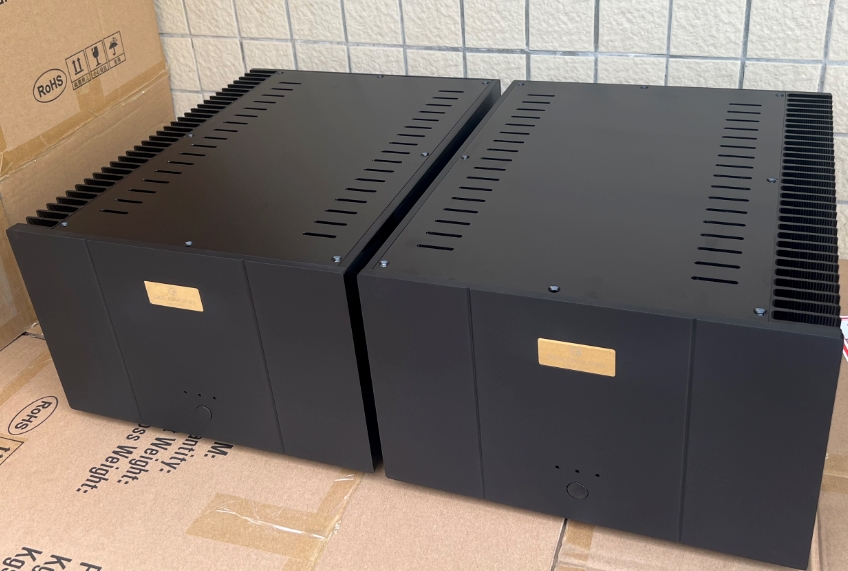

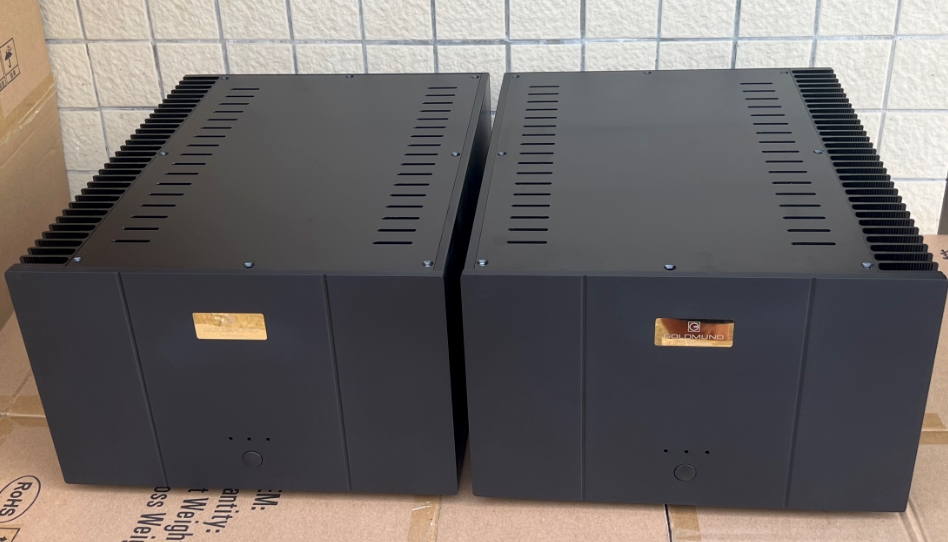

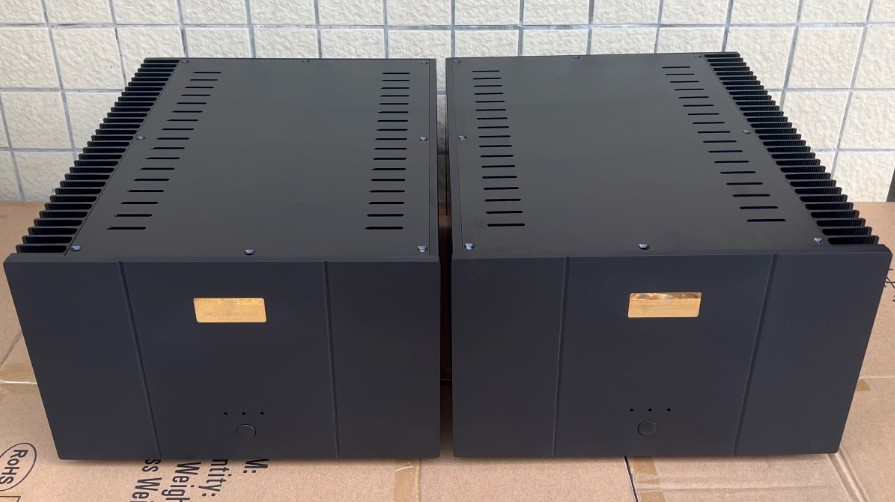

2 × Aluminum case
2 × Power switch
2 × Nameplate
2 set × machine feet
