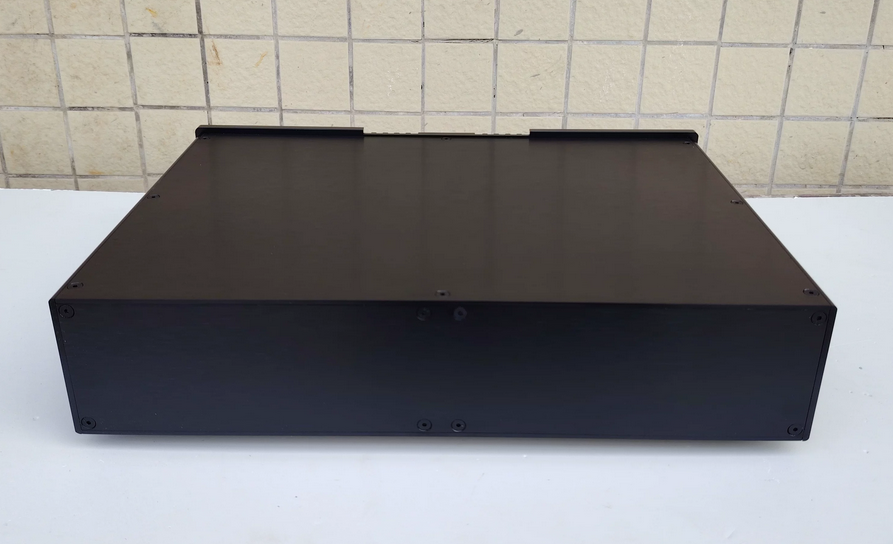

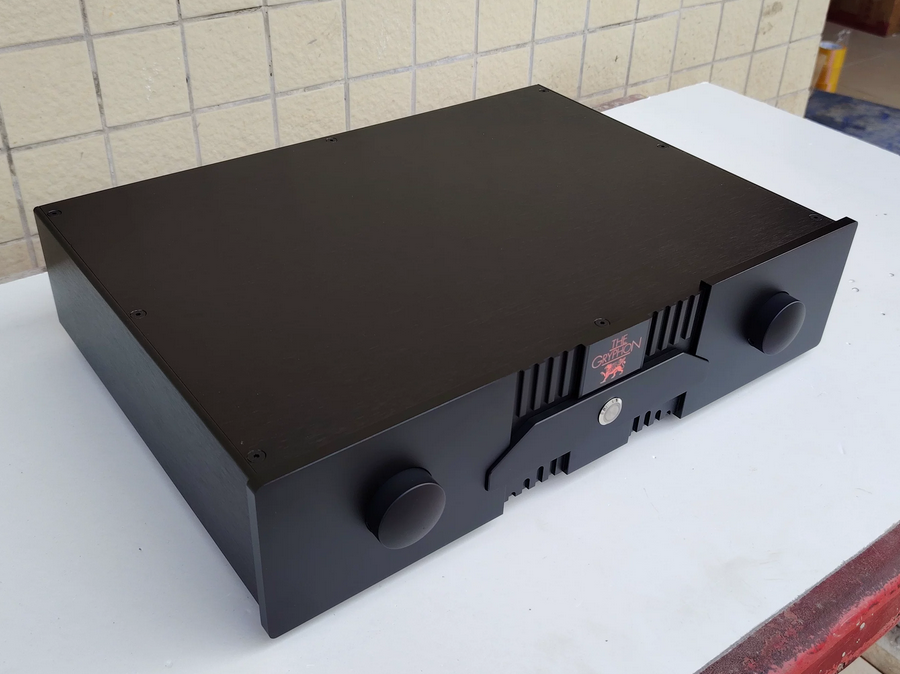

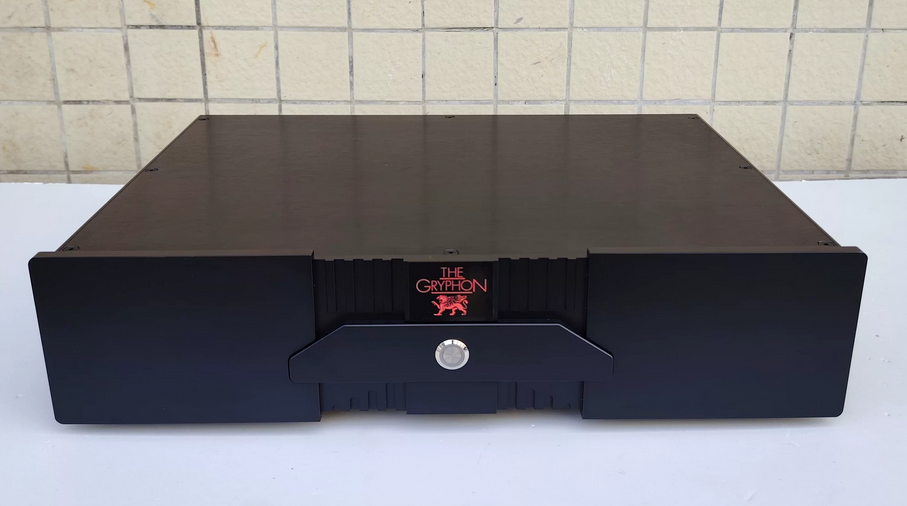

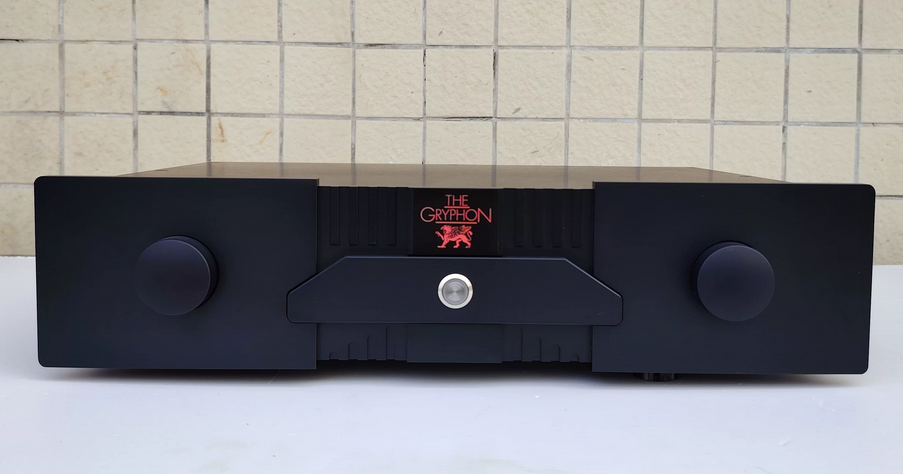

Gryphon preamplifier DIY Aluminum box chassis Power amplifier cabinet 435*90*310
List:
Enclosure X1
Supporting screw
switch*1
Pre-amp chassis Size:
External dimensions: width= 435mm Height= 90mm Depth = 310mm
Internal dimensions: Width= 420mm Height= 84mm Depth = 297mm
Amplifier chassis Size:
External dimensions: width= 430mm Height= 143mm Depth = 413mm
Internal dimensions: Width= 330mm Height= 132mm DeDpth = 400mm
Each part of the material thickness:
The front panel: Thickness = 8mm
The rear panel: Thickness = 3mm
Cover and floor: Thickness = 4mm
Side panels: Thickness = 4mm
