Free ship GUSTARD C16 10M Clock Audio Clock OCXO 10MHz High Performance Low Phase Noise Clock Generator A True Low Jitter Design Crystal

Name: Free ship GUSTARD C16 10M Clock Audio Clock OCXO 10MHz High Performance Low Phase Noise Clock Generator A True Low Jitter Design Crystal
Brand: BRZ-hifi-audio
SKU: C16
Price: 587.88 USD
Availability: OutOfStock

GUSTARD C16 10M audio clock constant temperature crystal oscillator OCXO

Flash Sale

5.0 (0 Reviews)

2 Sold

~~$639.00~~ $587.88

-8%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (12)

1/1

Description

C16 clock technical characteristics:
• C16 is a 10M high-precision low-noise clock generator;
• Adopting the brand new customized model SC cut OCXO from the mature product line of major crystal oscillator industry
manufacturers, with stable quality;
• True low jitter design with low near-end phase noise. In fact, the measured performance is more than two orders of magnitude
higher than the traditional SPXO femtosecond crystal oscillator;

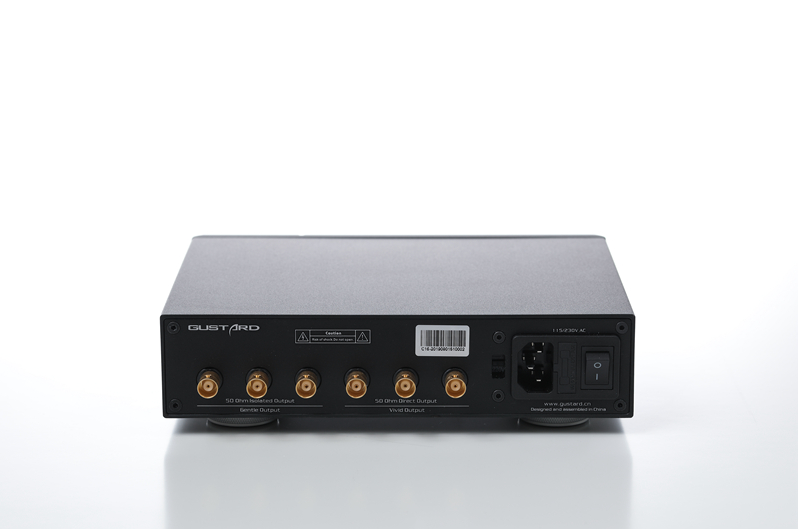

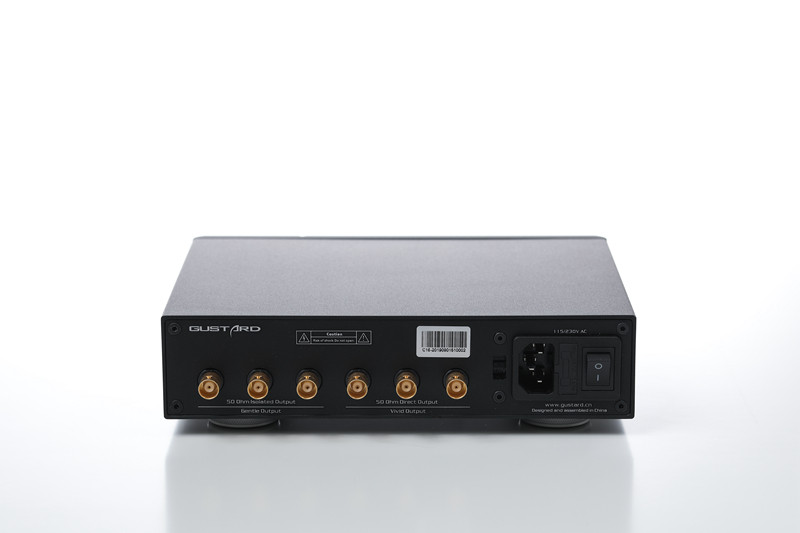

• Equipped with six BNC interface outputs (3+3), divided into two output types: direct output and isolated output;
• Using square wave output mode, the compatibility of back-end equipment is better than using sine wave output;
• In the research and development process, objective performance and subjective listening are optimized specifically for Goshen
U16 and future audio digital source equipment;
• Extreme performance design, select OCXO with good cost performance,

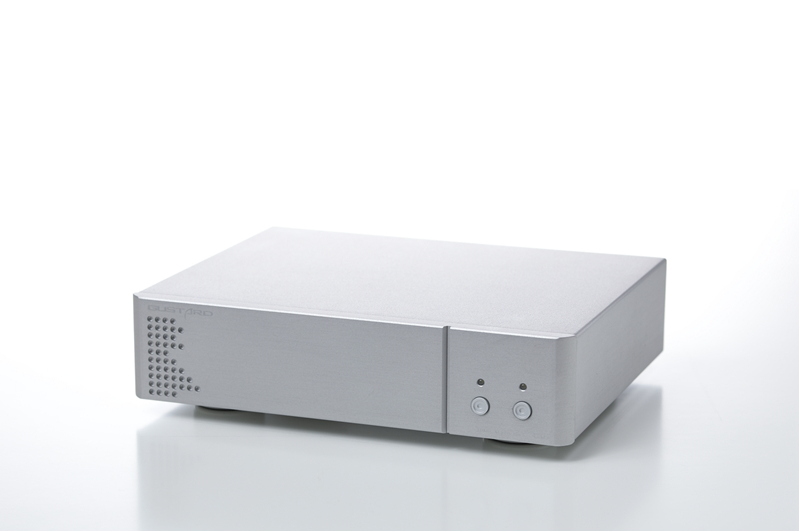

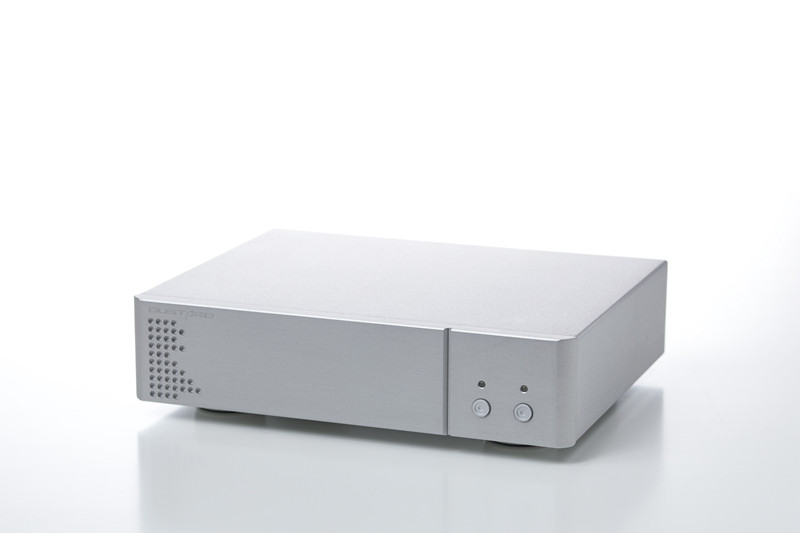

silver

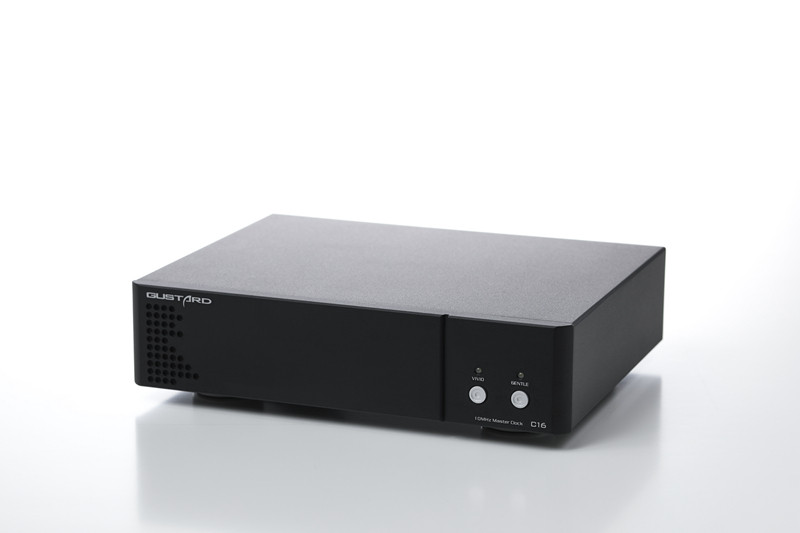

black

Two styles of output: Vivid and Gentle (Vivid is recommended)

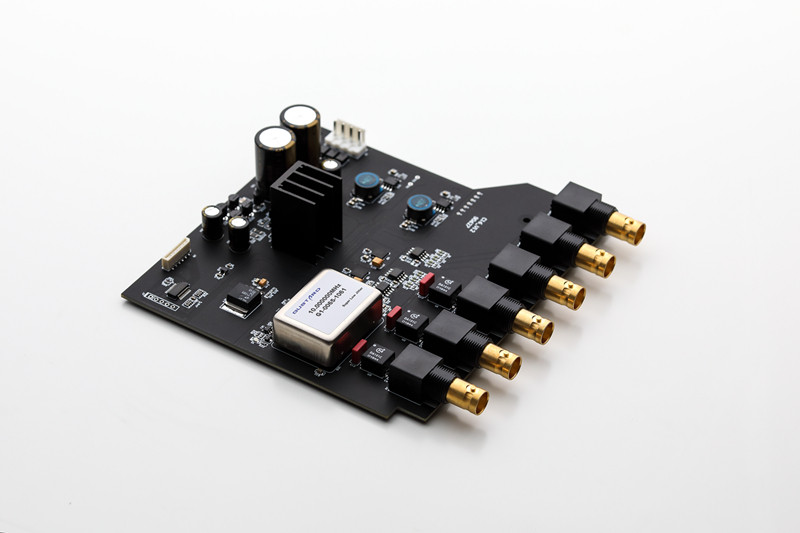

Rigorous design, reasonable layout, neat workmanship, and solid materials used.

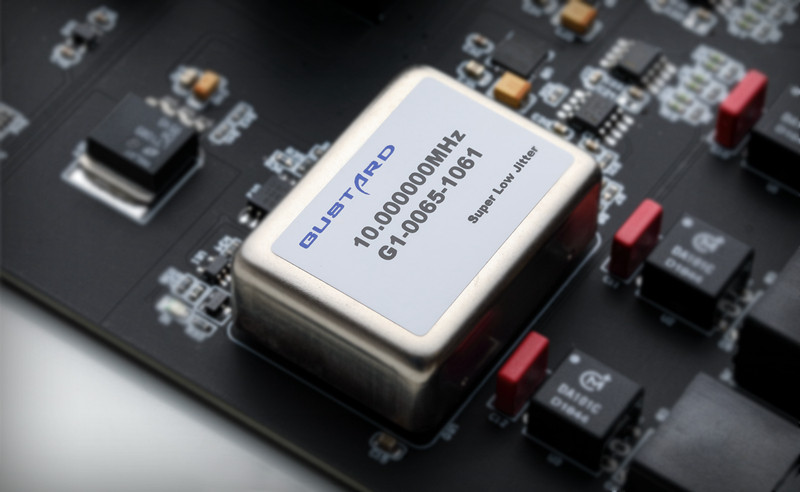

A new customized model SC cut OCXO using the mature product line of a major manufacturer in the crystal oscillator industry

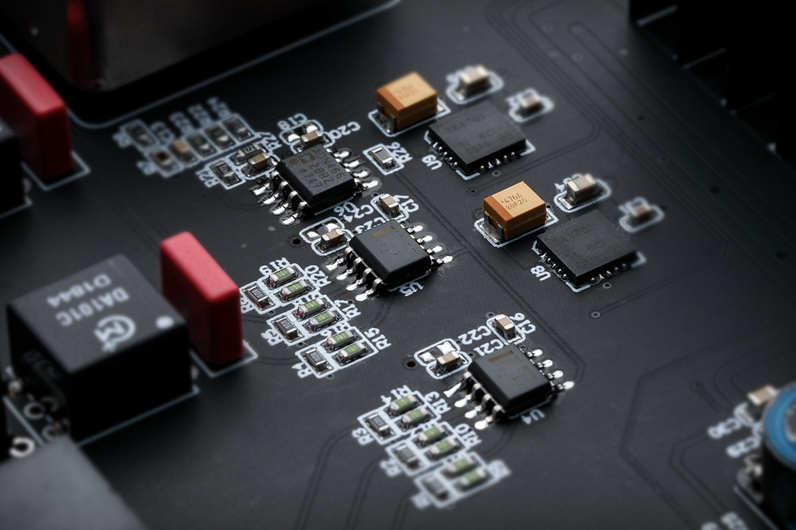

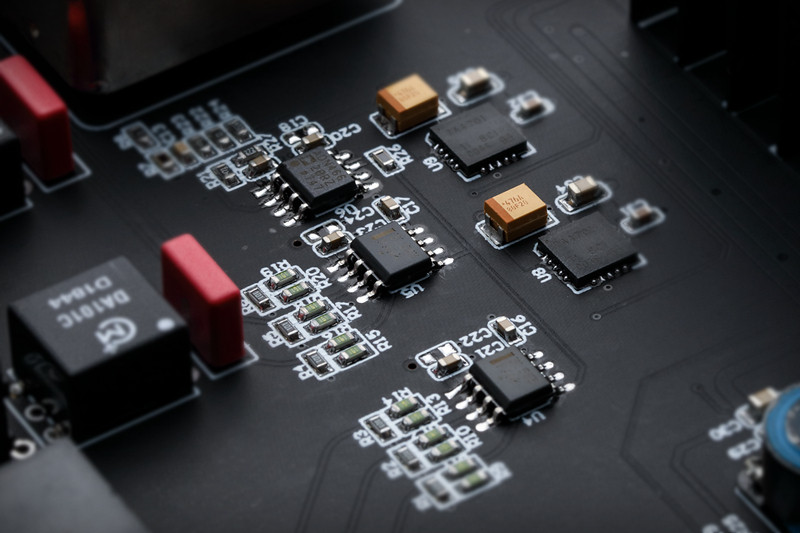

Shaping/Buffering/Output

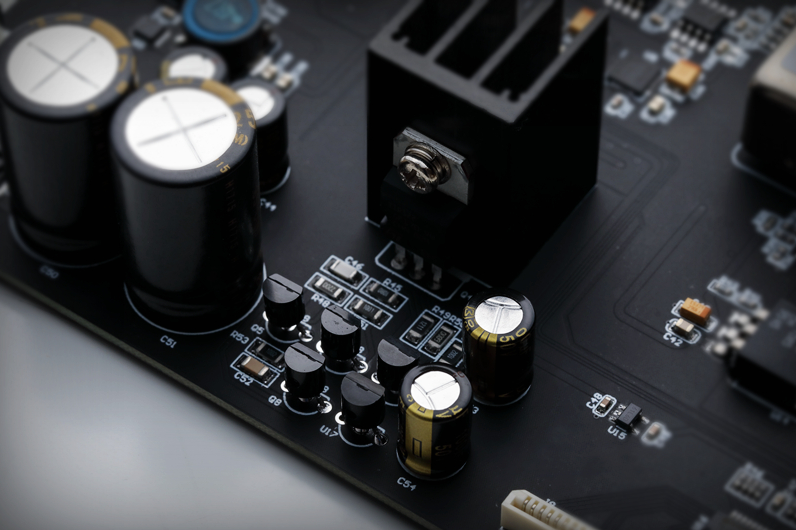

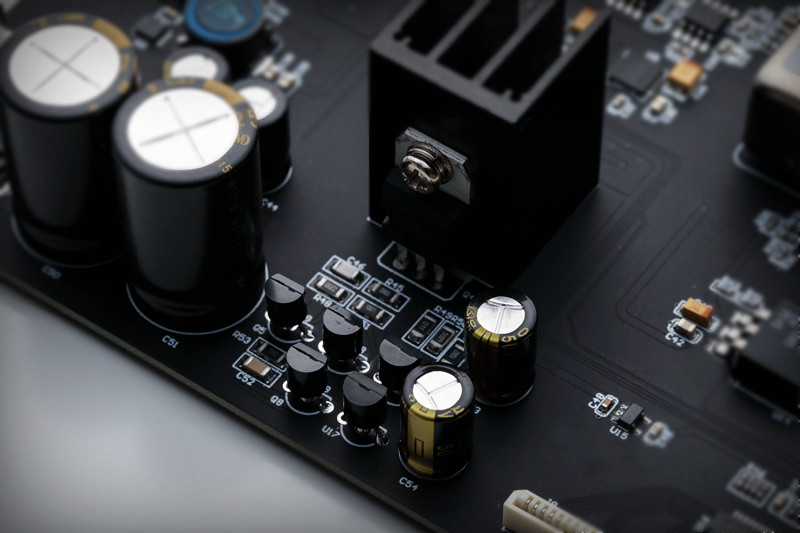

Discrete power supply / low ripple / low temperature drift / fast response speed

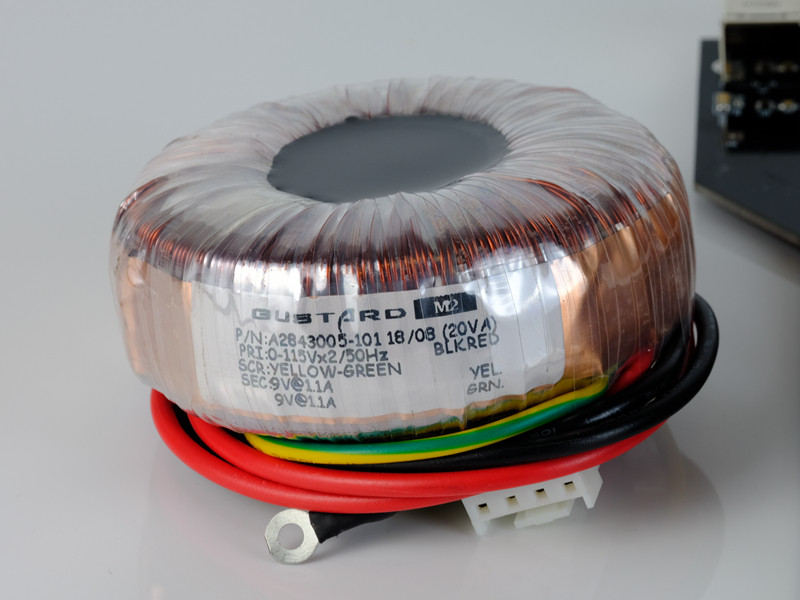

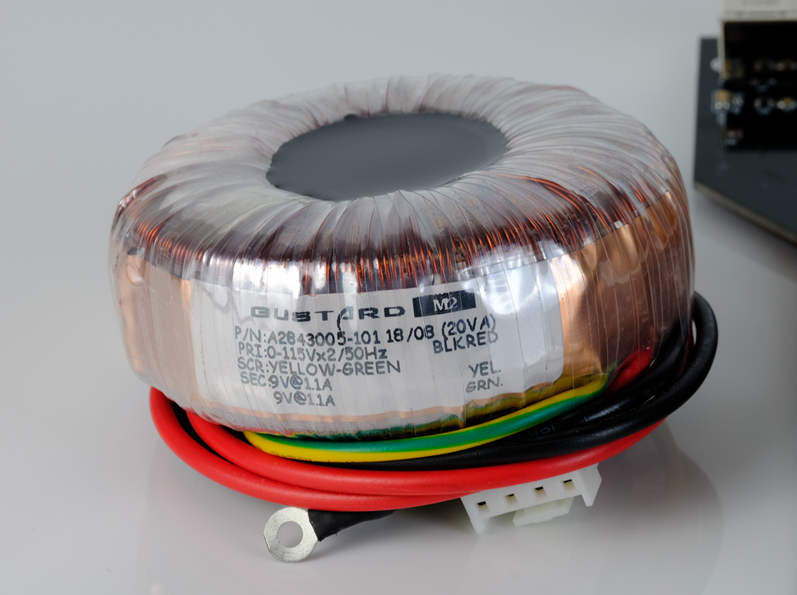

Built-in audio dedicated toroidal transformer

parameters
Model: C16 thermostatic clock
Output frequency: 10 MHZ
Frequency accuracy: <±300ppb
Frequency stability: <±50ppb
Output amplitude: ≥7dbm @50Rz
Output waveform: square wave
Output impedance: 50Ω
Near-end phase sound @1Hz(TYP): 100dBc
Short-stable (Arlen variance) (TYP): 2E-12

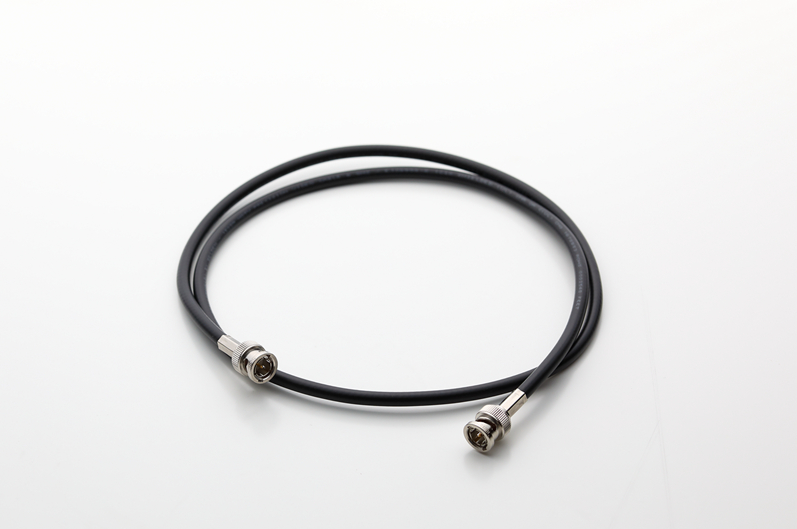

Standard clock cable

Other parameters.
-output amplitude: 7dBm @50 Ohm
-AC power supply: AC 115V/230V 50/60Hz
-Complete machine power consumption: <15W
-Body size: width 220mm * height 50mm * depth 170mm (excluding the protruding part)
-Package size: width 285mm * height 85mm * depth 270mm
-Weight: 2.5Kg (including packaging)
