Attention when placing an order: S26 does not have an English menu yet
S26 Music Server Specifications:
Serial: S26;

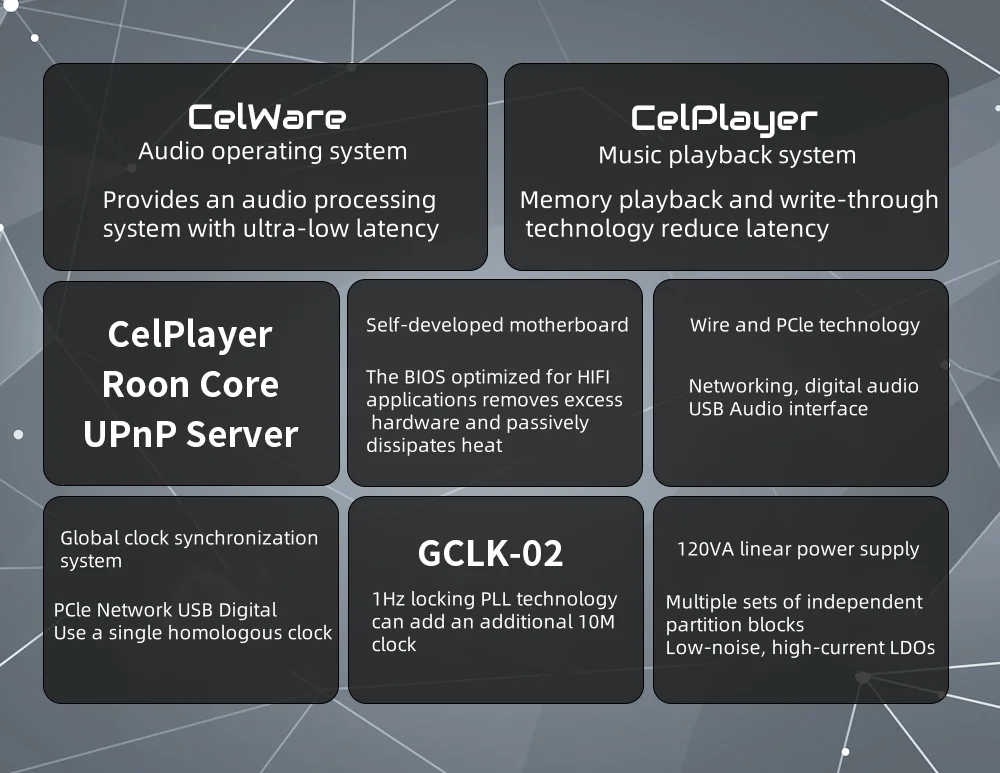

System: CelWare Audio Operating System,

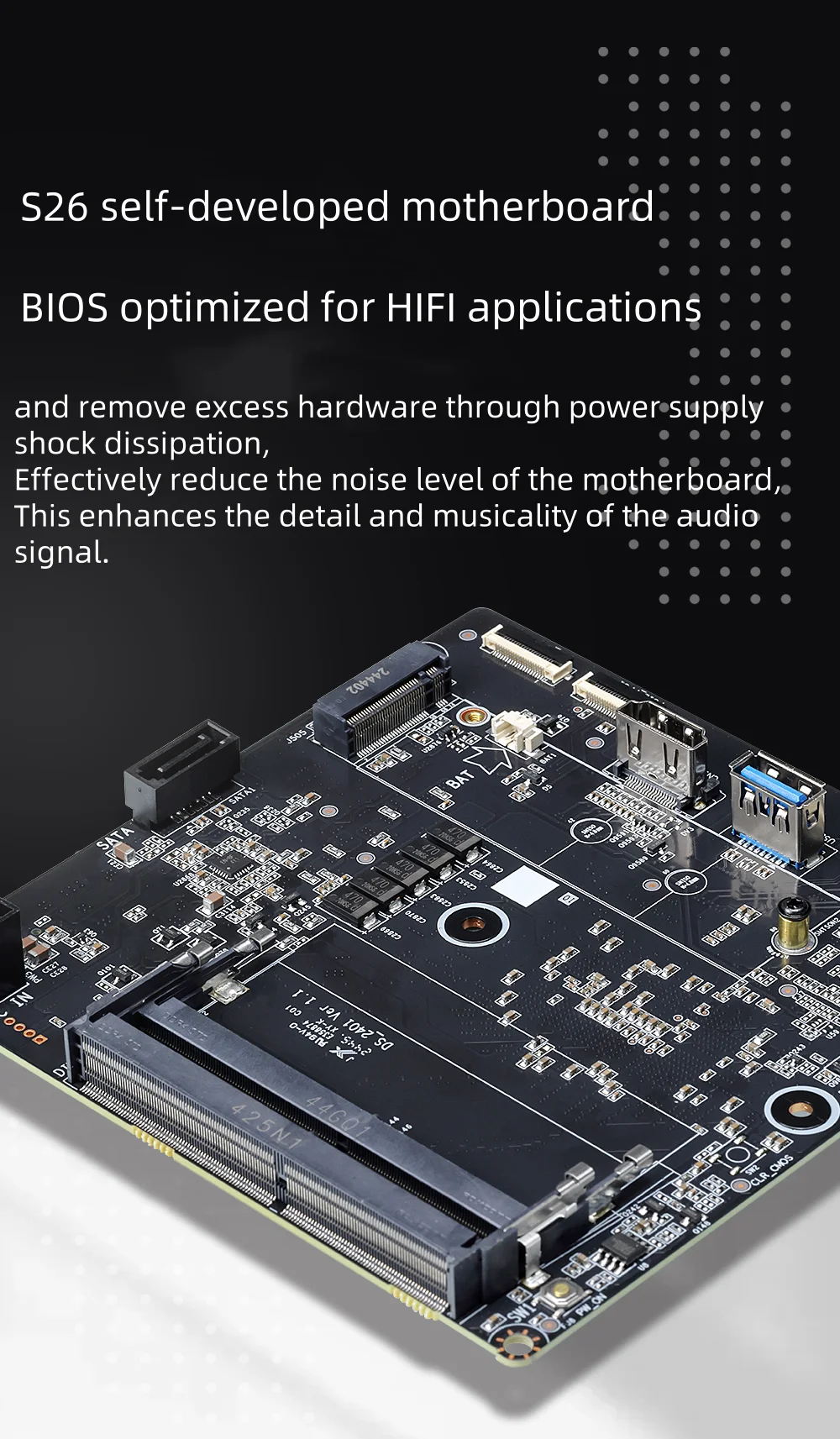

Motherboard: X86 self-developed motherboard;

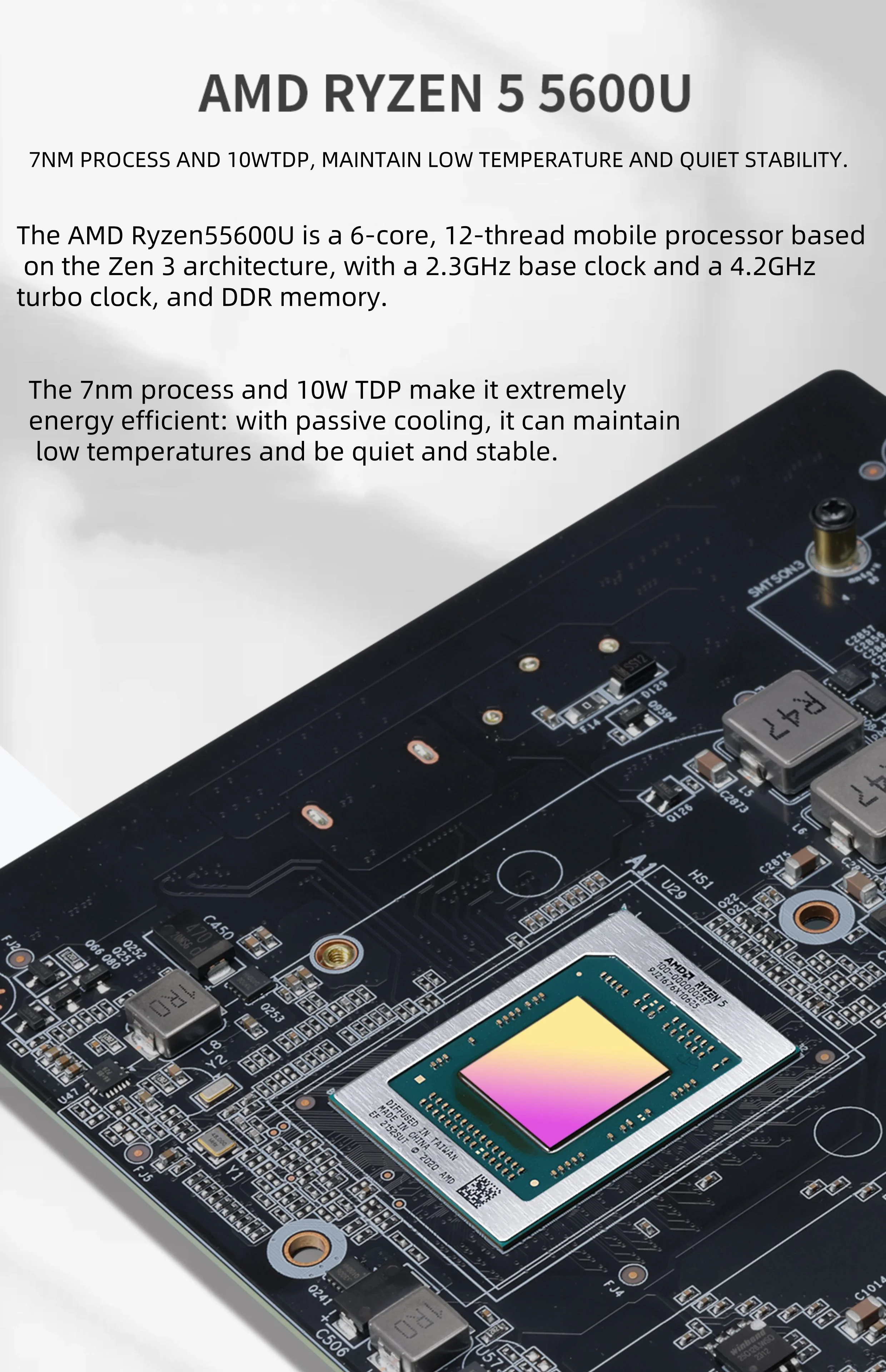

CPU: AMD5600U, 6 cores and 12 threads, base frequency 2.3GHz, turbo frequency up to 4.2GHz;
Memory: DDR4 8GB;

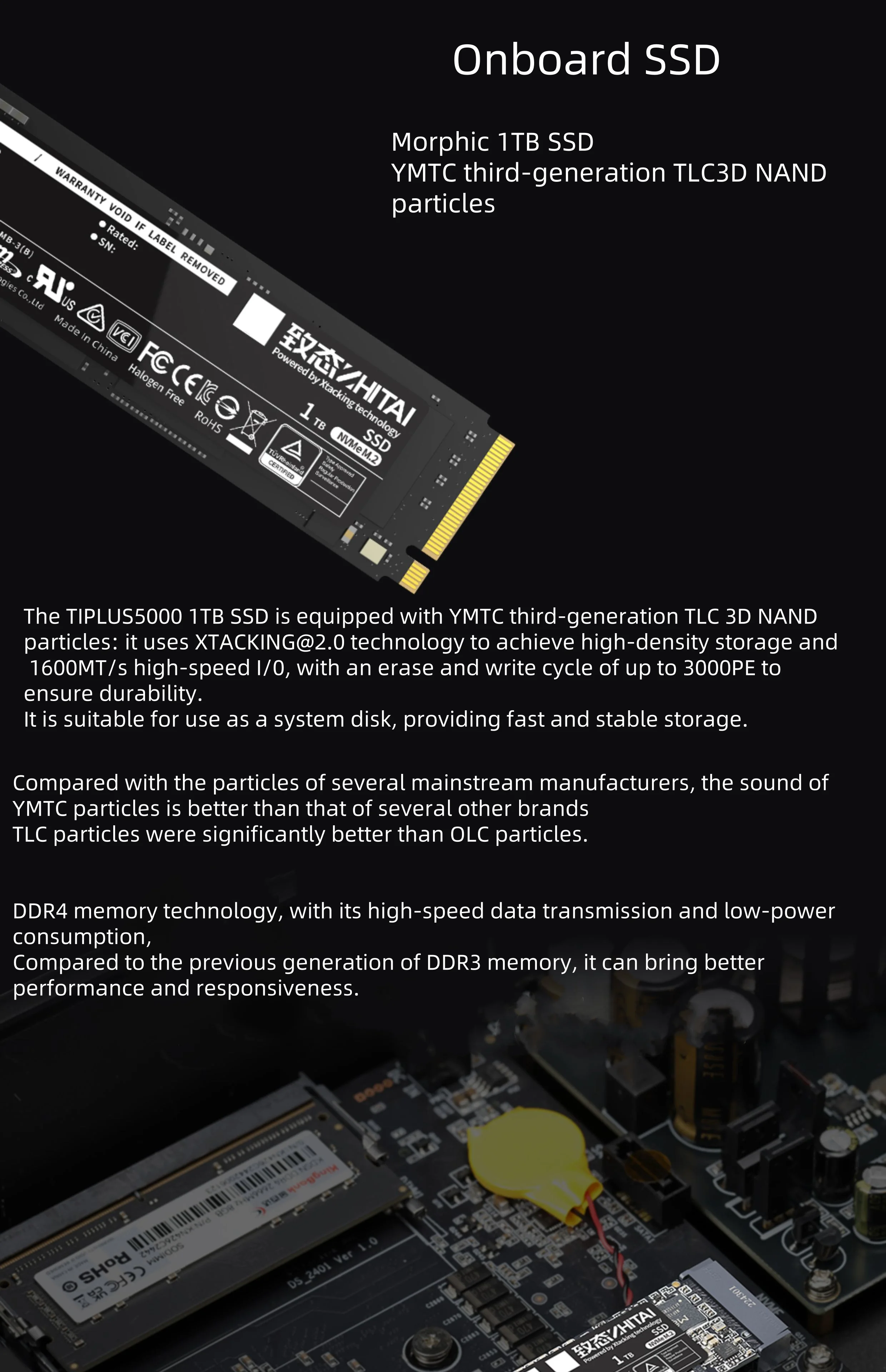

Storage: Built-in 1TB SSD hard drive;
Extended hard disk bay: 1 M.2NVMe interface, supporting PCle3.0x42280SSD, with a maximum measured capacity of 4TB;

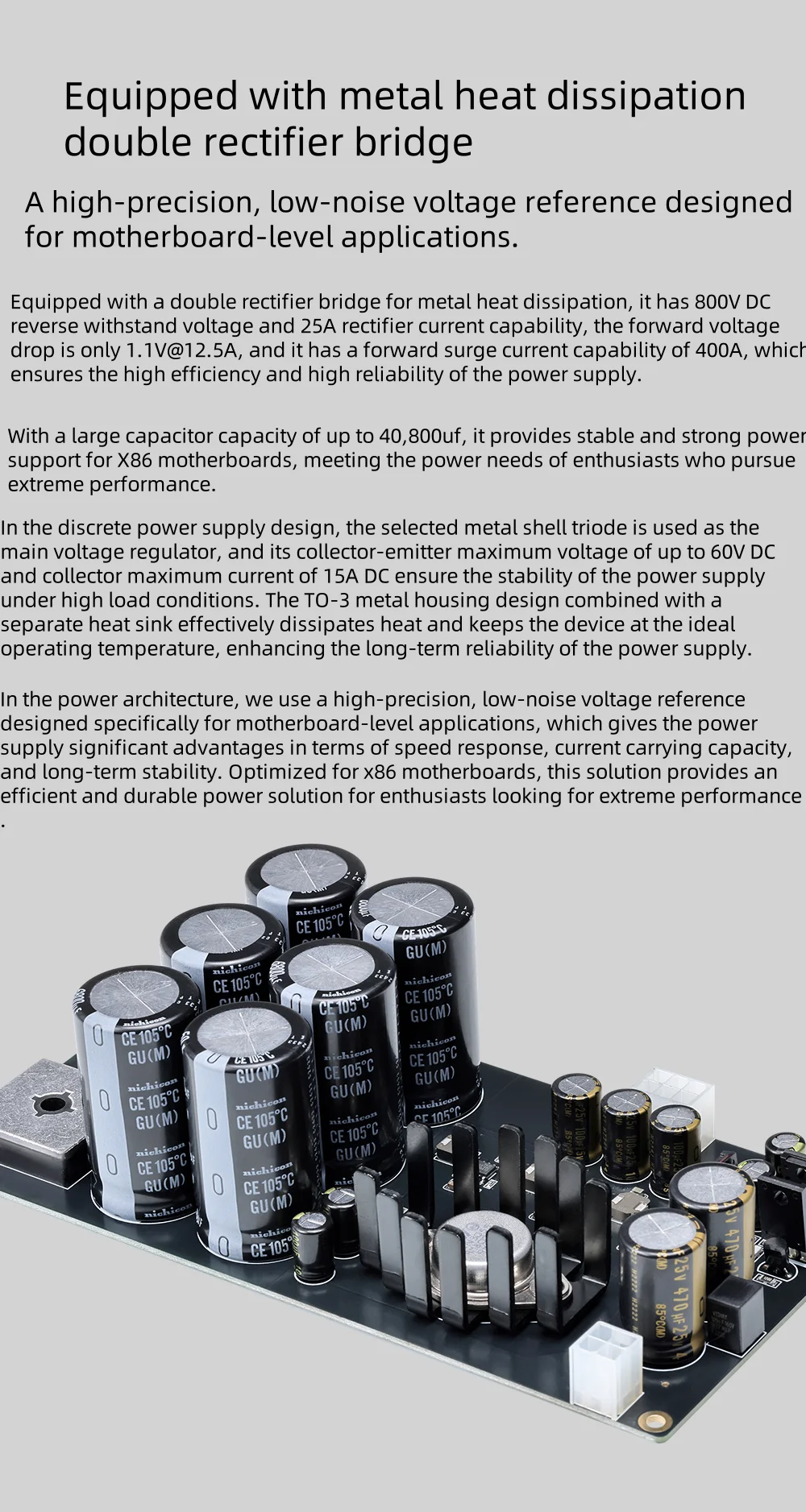

Power supply: 120VA linear power supply:
Service Support:
Cores: CelPlayer, Roon Core, UPnP Server.
It focuses on the memory playback technology of CelPlaver pure sound player;
Bridge: Roon Bridge, UPnP Render, HQPlayer NAA, AirPlay, Spotify and other services.

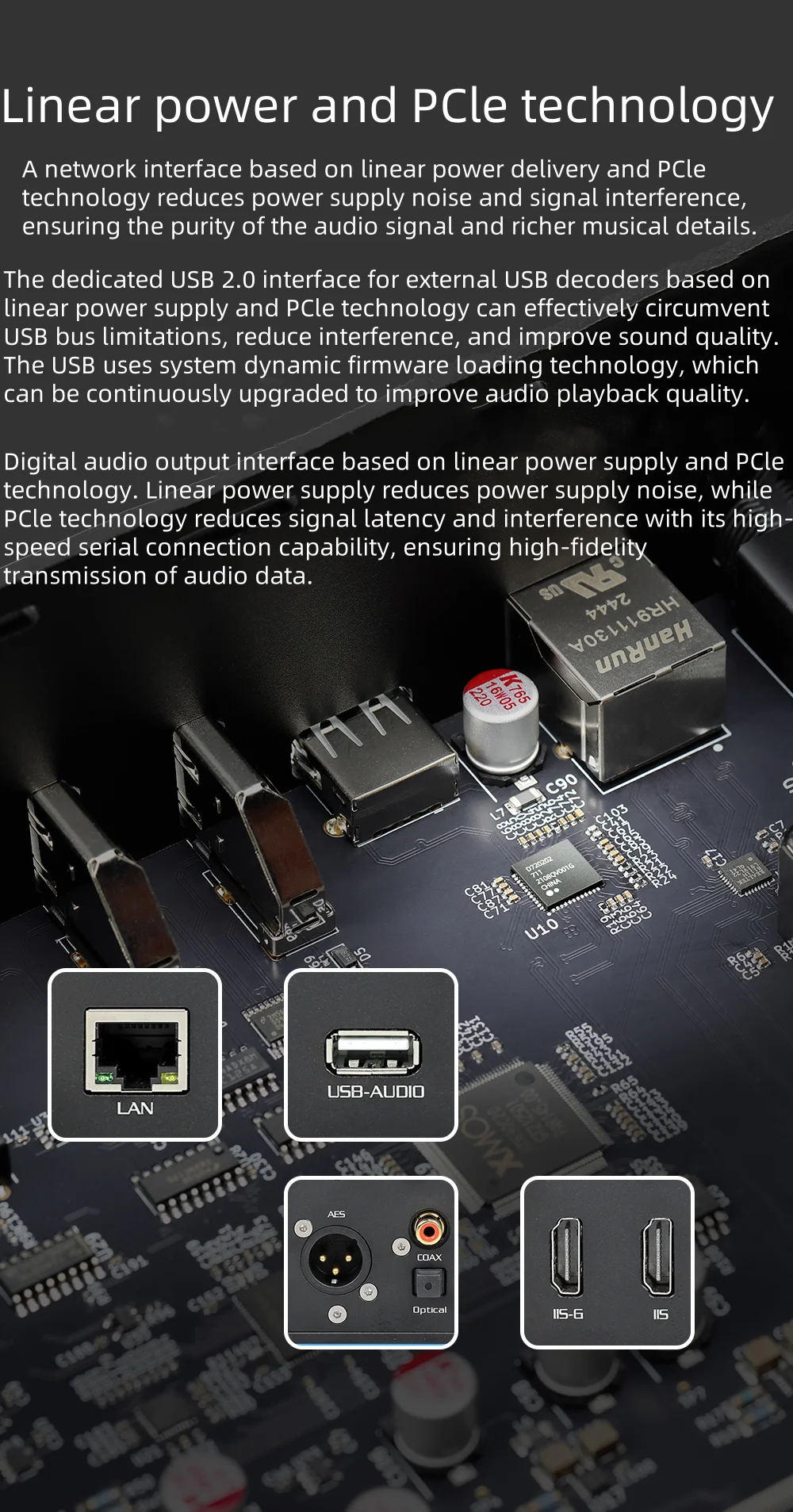

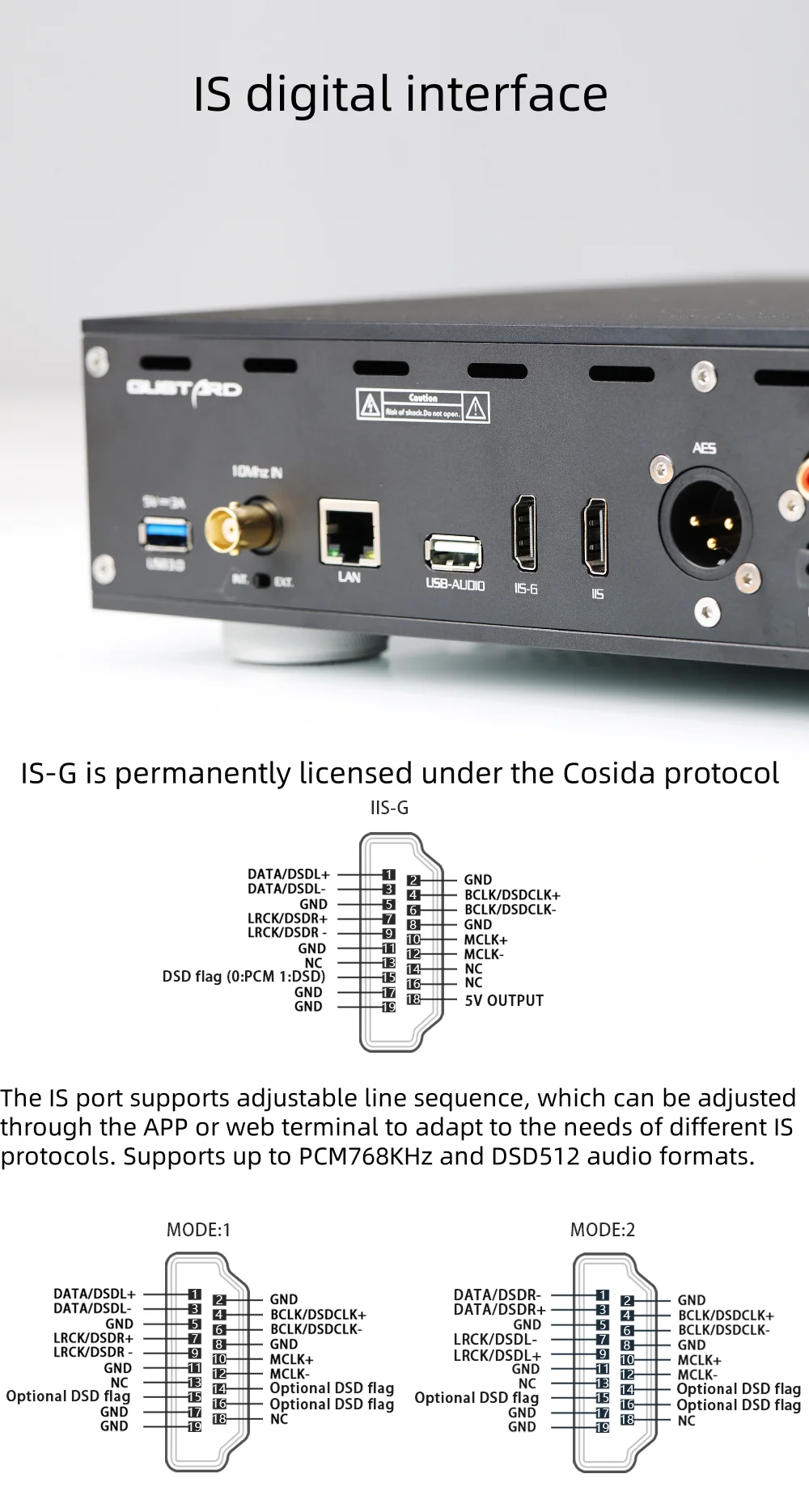

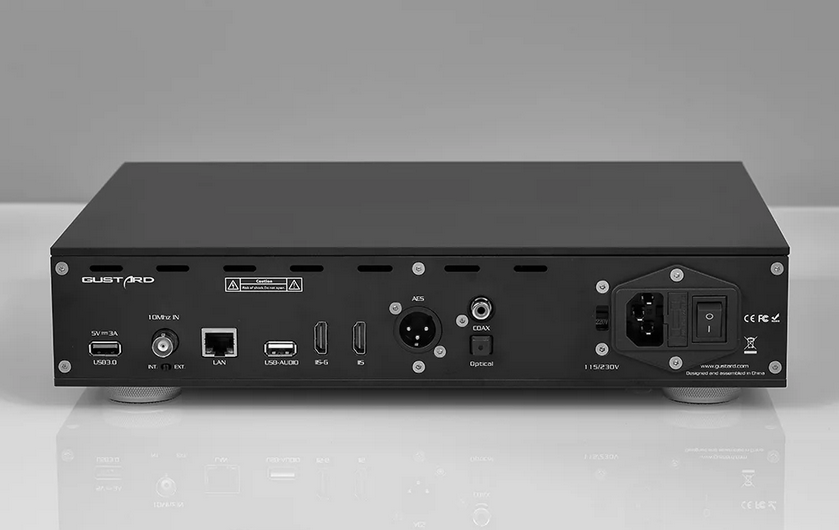

Input Interface:
U Wai Hom Beat Benzene Benzene Pyneous Pig Horn: USB3.0 3A
LAN speed: 100/1000Mbps

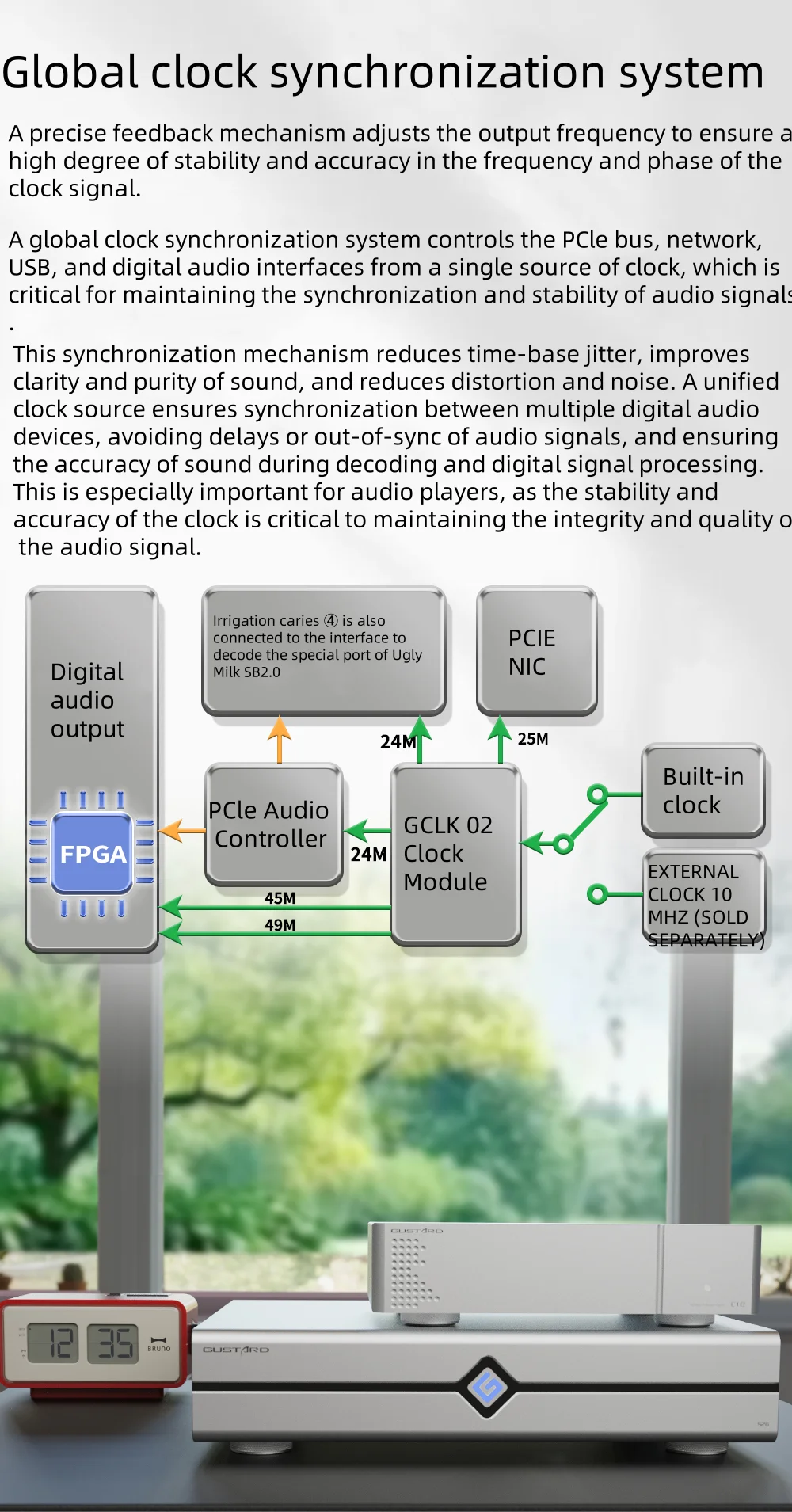

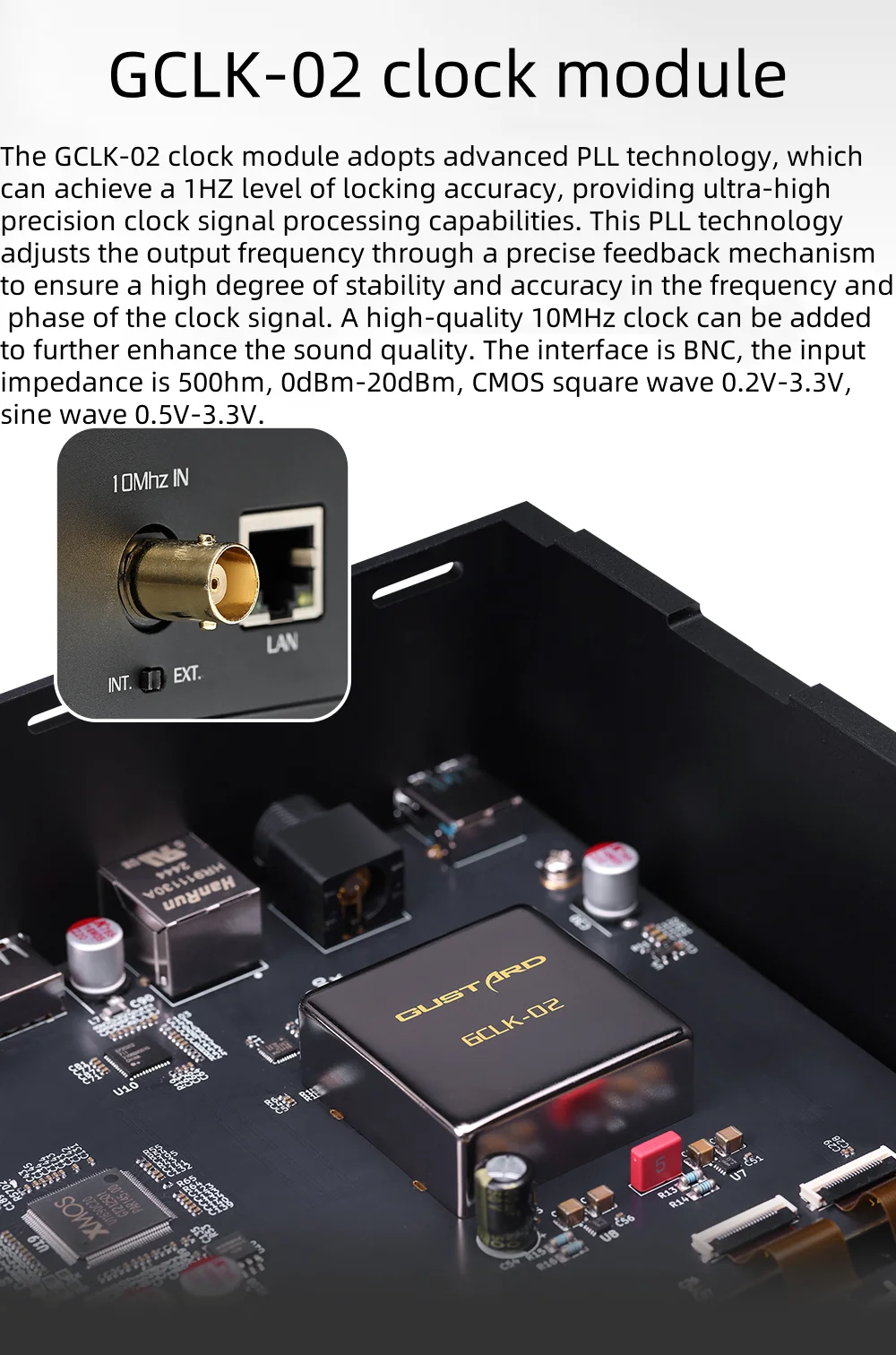

10M clock (BNC): input impedance 500hm, 0dBm-20dBm.CMOS square wave 0.2V-3.3V sine wave 0.5V-3.3V.
Other parameters:
AC power supply: AC115V/230V50/60HZ (manual switching);
Power consumption: 30-40W;
Machine net weight: 5.5KG;
Package weight: 7.3KG;

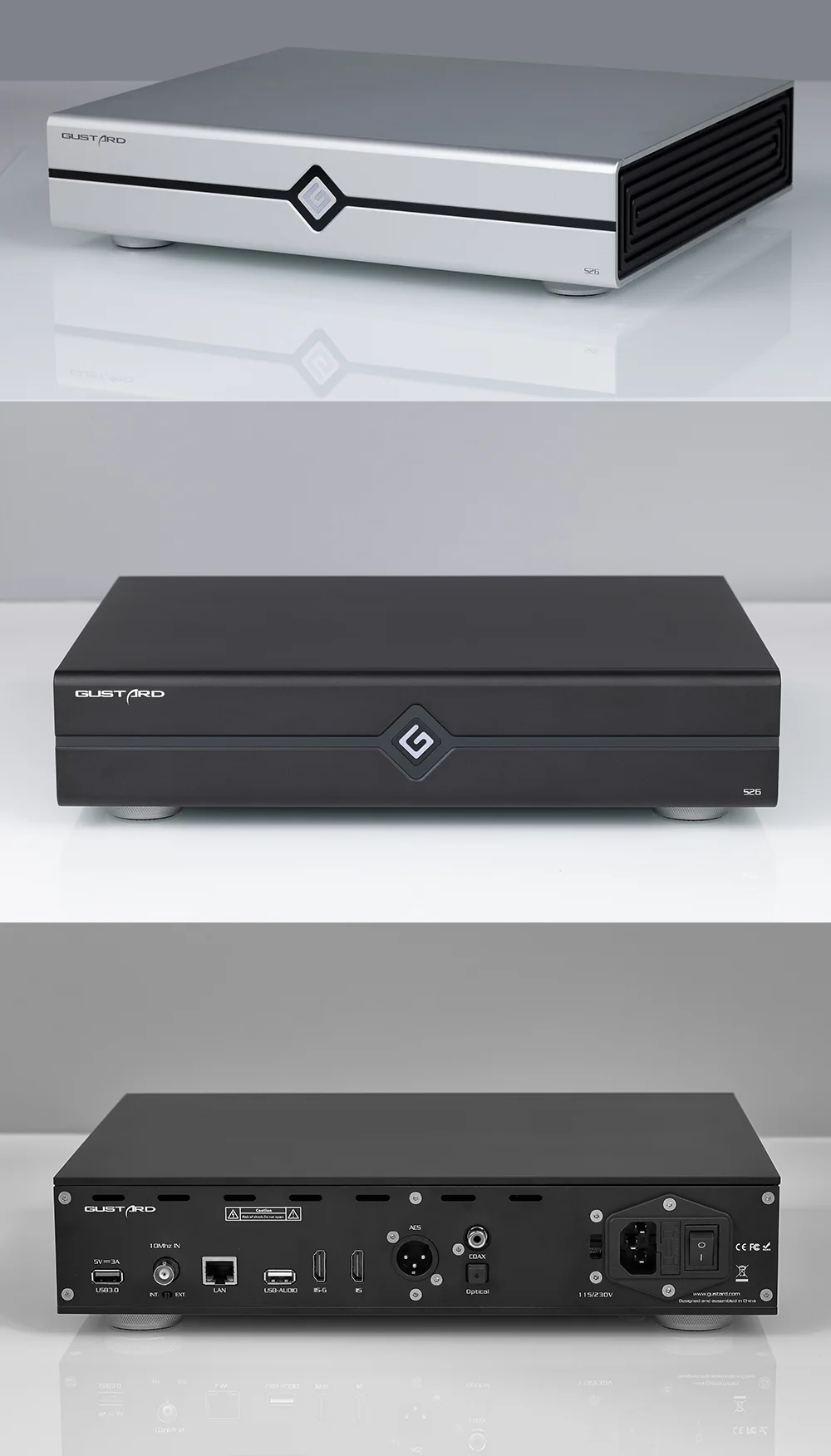

MACHINE SIZE: WIDTH 330 * DEPTH 260 * HEIGHT 65MM (excluding protruding parts);
PACKING SIZE: LENGTH 420 * WIDTH 360 * HEIGHT 175MM;
