Product Details:
Referring to the circuit design of Audio Technica HA5000, power amplifier function has been added Two stage differential circuit structure High analytical power, clear high notes, and almost no noise.
Audio transistors such as K170, A970, C2240, etc. have pure sound quality.

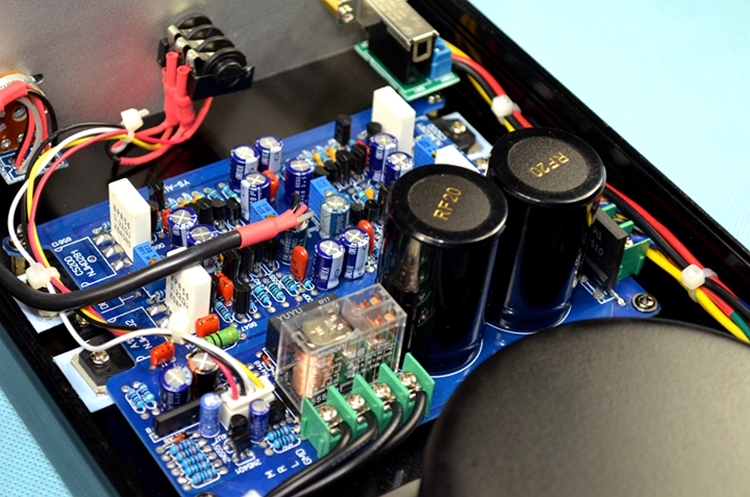

A filtering circuit is composed of a 25A rectifier bridge and 2 * 10000uf Nover filtering capacitors.
High quality 5-color ring high-precision resistor.

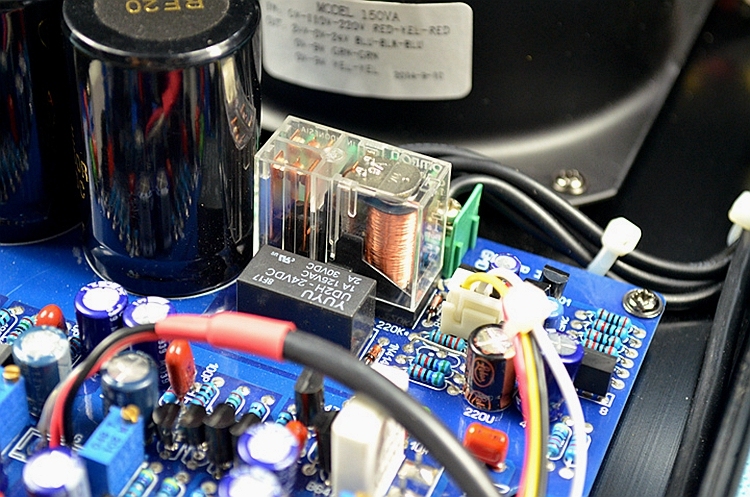

UPC1237 protection circuit, power on delay protection, no impact when turning on or off.

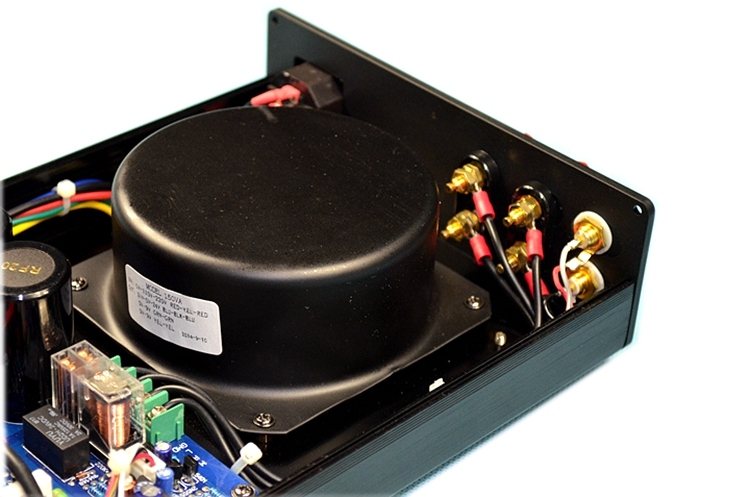

150W pure copper wire wound toroidal transformer
Japanese ALPS potentiometer with good left and right balance.
Parameters:
Input voltage: AC220V (/110V)
Output power: AB class 80W+80W
Input impedance: 50K
Output impedance: 4-8 ohms
Signal to noise ratio: 95DB
Frequency response: 18HZ-25KHZ

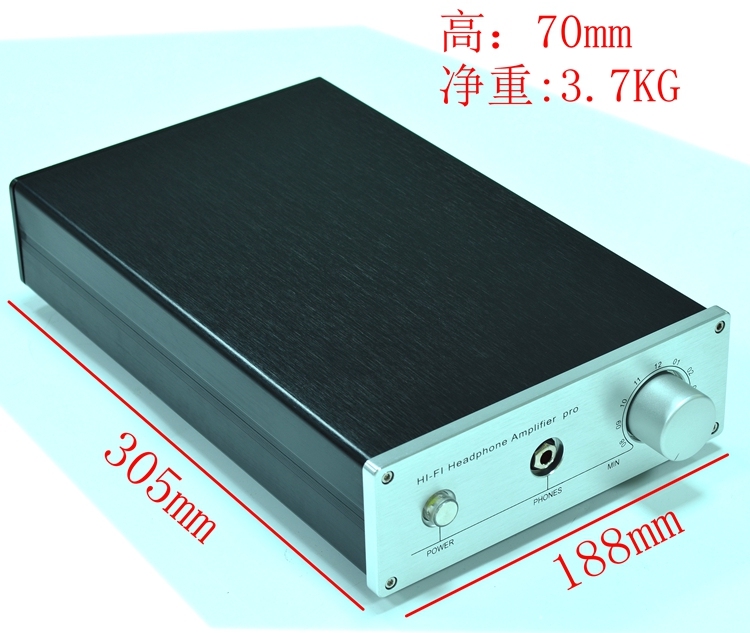

Weight: 3.7kg
Package list:
1 × HA2002 amplifier(For the safe transportation of the amplifier, a power cord is not provided by default）
