EAR834-C is compared with ordinary imitations or replicas of EAR834, and has the following differences (features);
◆ High voltage power supply:
Two-stage step-down voltage regulator filter, power low-pass filter cut-off FC=1.6Hz, providing a purer power supply (close to battery level);
The high-voltage power supply adjustment tube uses N-MOS, which has a certain odor and noise of rectification and voltage regulation of the bile;
With high-voltage power supply soft-start function, it reaches the design voltage value in about 3 seconds, no voltage shock will occur, and the electronic tube is protected;
◆ Filament Power:
DC filament power supply, with filament voltage soft start function, about 5 seconds to reach the design voltage 12.6V, protect the filament and prolong the life of the tube;
◆ Core amplifier circuit:
The input stages are connected in parallel, and the current parameters are newly set according to the needs of sound calibration;
The parallel input stage can enhance the sense of detail, and at the same time add an electronic tube to solve the problem of two-channel sharing

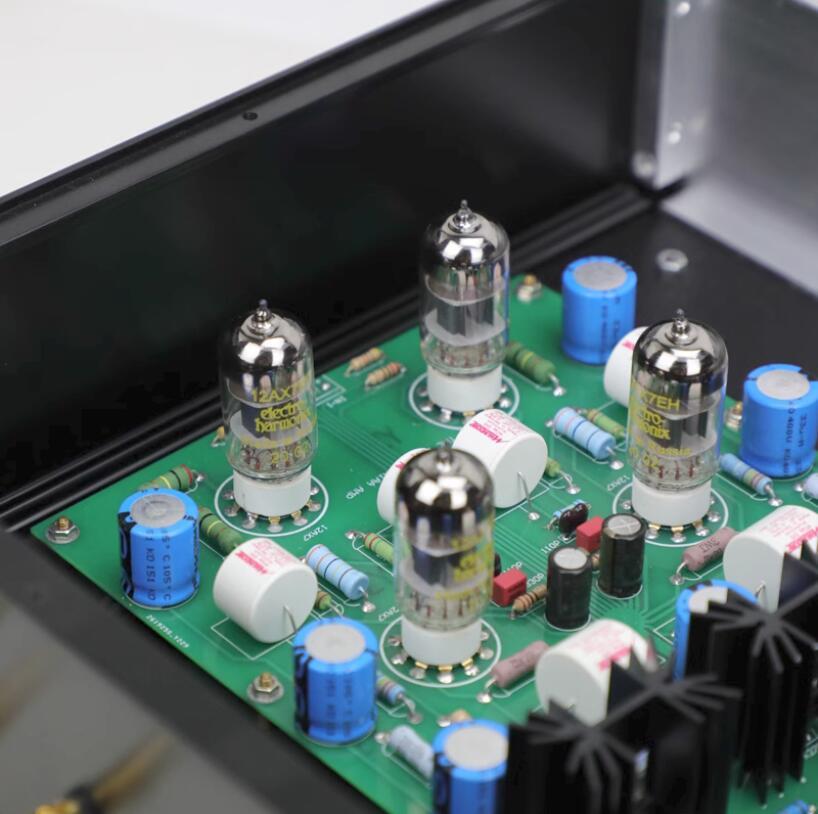

◆ Electronic tubes;
Independent tubes for left and right channels, avoid dual channel co-management, further improve separation and reduce crosstalk;
Mirror the filament pin position, replace the tube every six months or so, reduce the magnetization phenomenon, and further prolong the life of the tube;

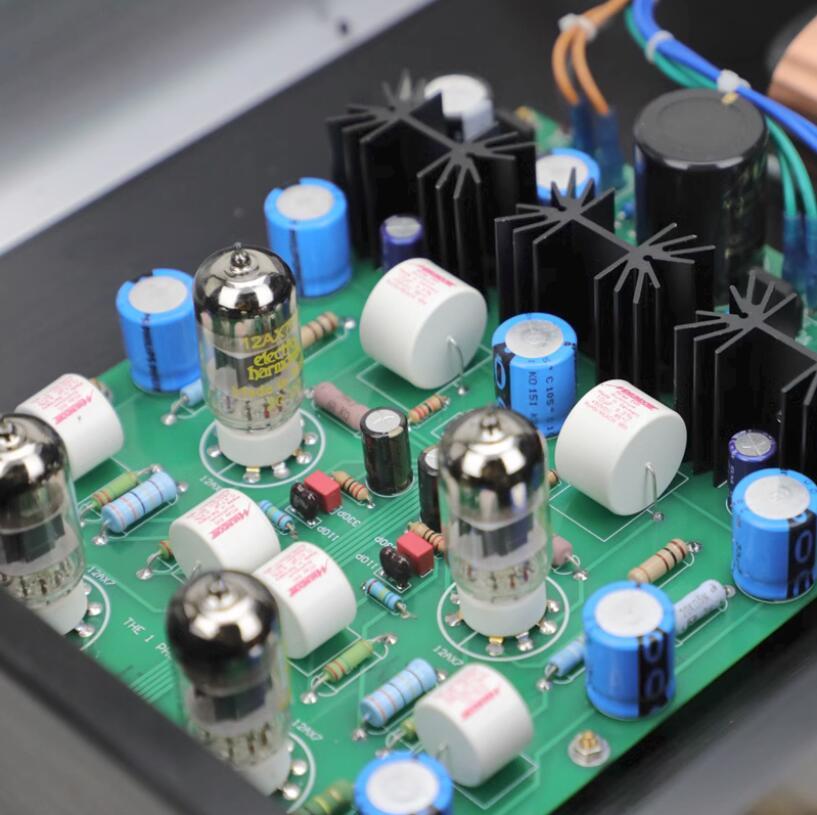

◆ Materials:
The entire line of coupling capacitors uses licensed German-Mondolfo MCAP-EVO series capacitors.
The main filter capacitor uses the licensed German-Mondolfo 450V-220uF high-voltage electrolytic capacitor.
High voltage decoupling uses BC hydrolyzed blue electrolytic capacitors. Class A PCB.
Input voltage: AC 115V or 230V (Optional)
Gain: 1KHz 48dB @ 1KHz
Input impedance: 47K
Distortion: 0.05% @ 1KHz
Tubes: Without tube or With 4 PCS 12AX7EH Tubes (Optional)
If choose" Without tube", Will not included this tubes, You need to have your own electronic tube, which can make it easier for buyers to match their favorite electronic tube).
