Product Details:

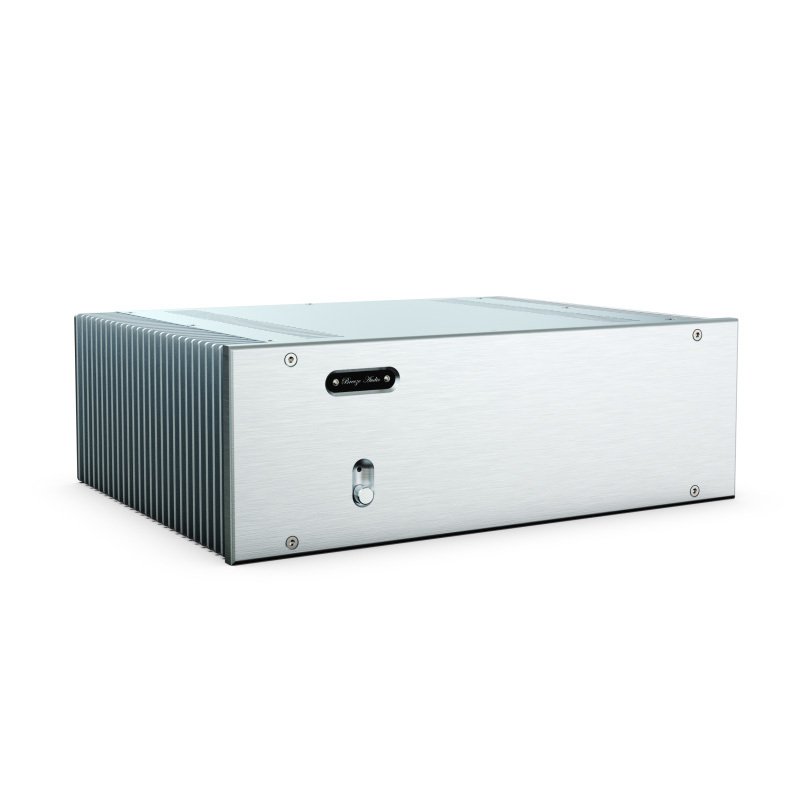

The world-famous PASS brand is well known in the audio industry. The sound is very good. Aleph 30 is one of them. A series is the most famous PASS amplifier, the sound is warm, transparent, soft and very comfortable.Aleph 30 The power is 30W+30W/4Ω.

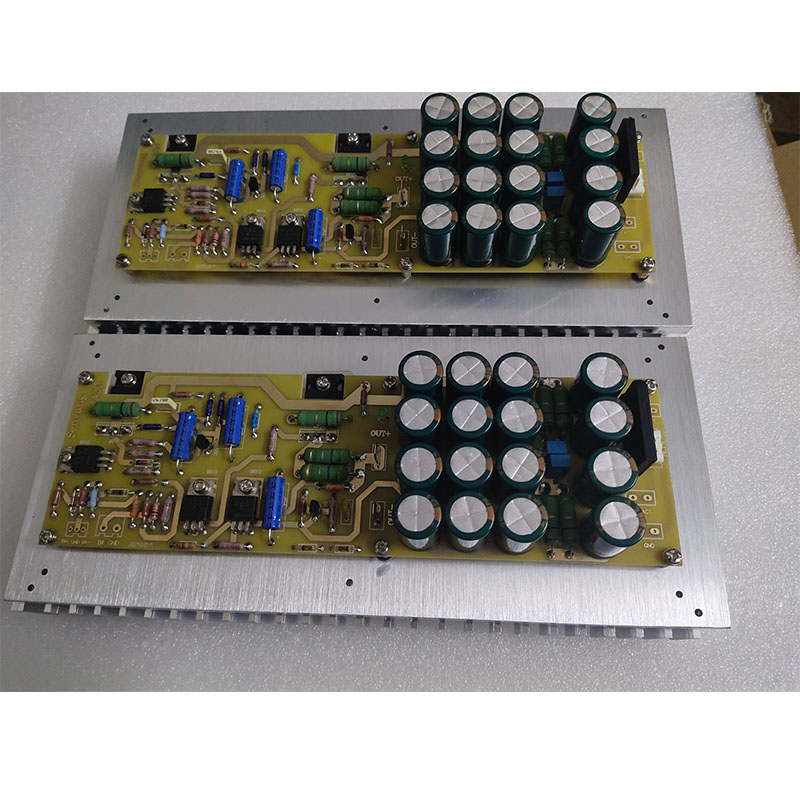

Use sinking gold PCB
Use All aluminum chassis for better heat dissipation.

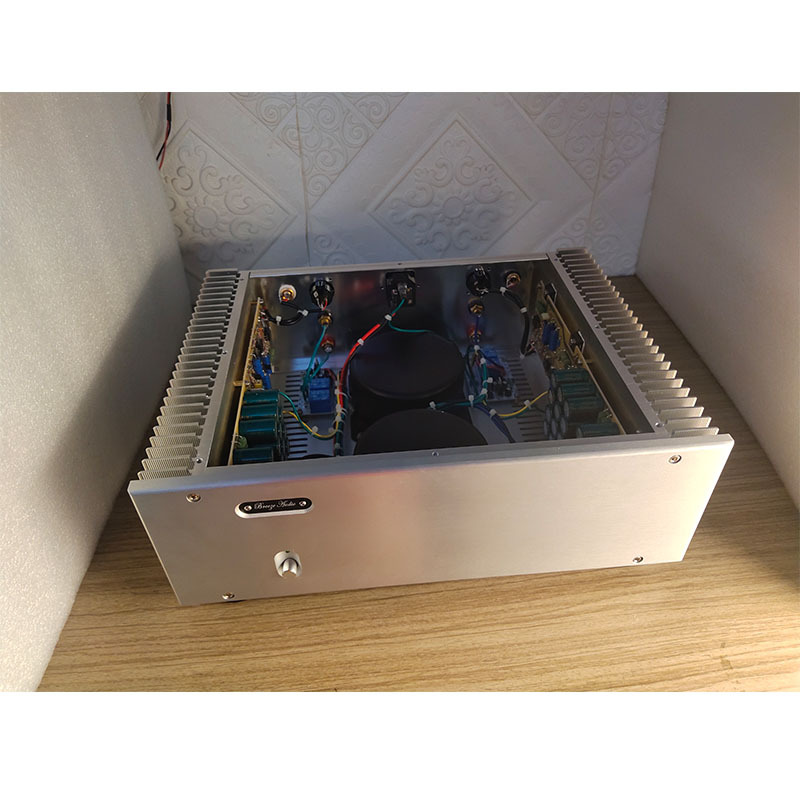

Two 220W specially tailored ring transformers with shielding are used
New imported FET and imported Philips BC axial audio capacitor are used.
Multi capacitor parallel matrix filter circuit
Independent horn protection circuit.
Specifications:
Number of channels: stereo dual channels
Pure Class A output power: 26W+26W/8 ohms; 30W+30W/4 Ohms
Signal to noise ratio: 108dB
Machine working temperature: 50~65 ℃

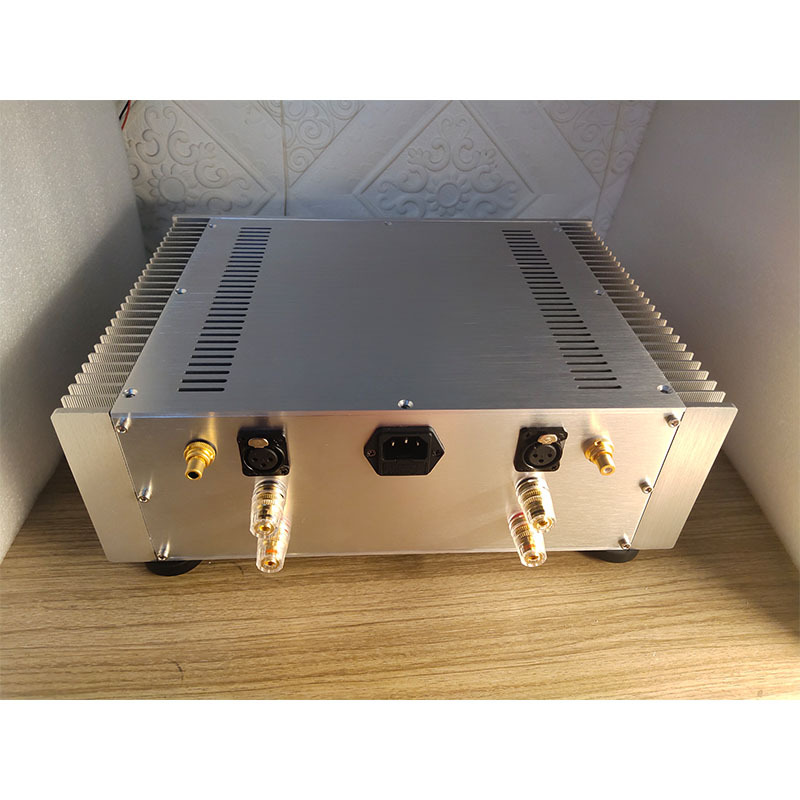

Input interface: RCA or XLR (XLR pin definition: 1GND, 2+, 3- )
Working voltage: AC110V or AC230V (optional)
Dimension (W * H * D): 360 * 120 * 275MM
Package list:
1 × Finished Power Amplifier
