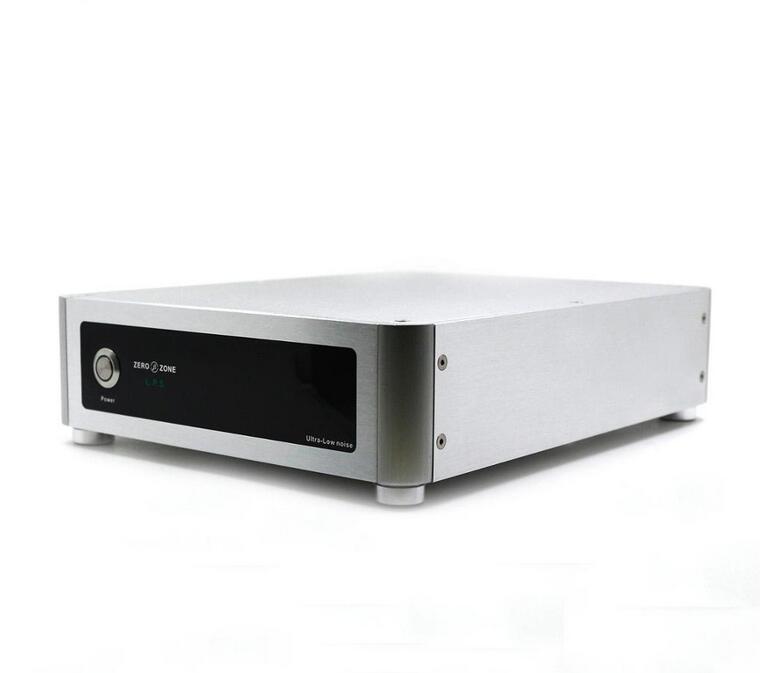

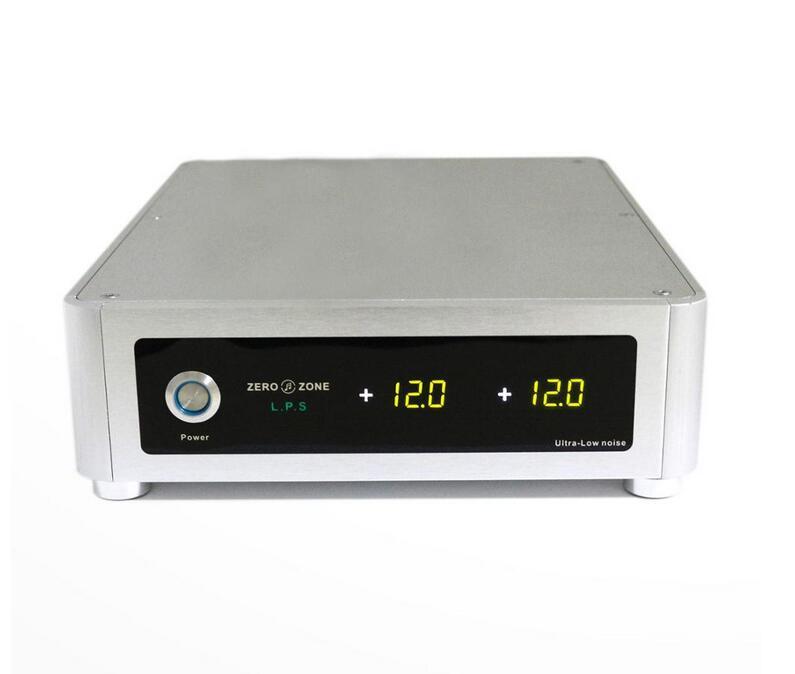

HIFI 130W Ultra Low Noise DC Linear Power Supply 2 Way LPS (65W+65W)
Product Details:
S130 is a high-performance DIY single-rail linear regulated power supply (PSU). low-noise, high-current, excellent line/load regulation, wide-bandwidth, and stability characteristics. S130 is ideal for DIY headphone amplifiers, preamplifiers, DACs, network media players, and other applications requiring a single-rail regulated PSU.
The circuit uses all discrete components (no integrated circuits), and features high-current MOSFETs as the output "pass" devices.

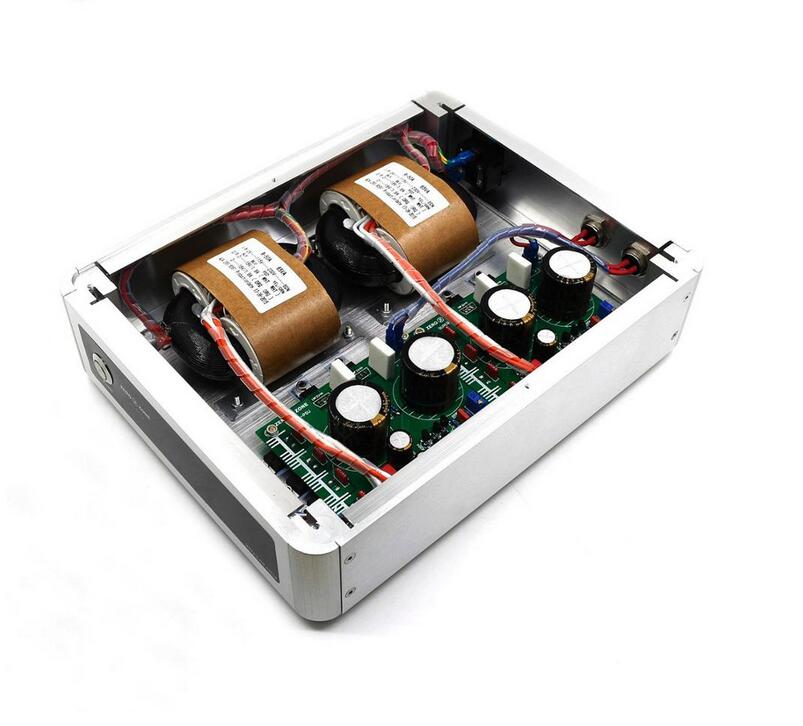

Main materials Full Aluminum chassis. 2pcs 65VA All-copper R-core transformer. main caps is original Nichicon kg Series.
Works voltage: AC115V or AC230V for choose.

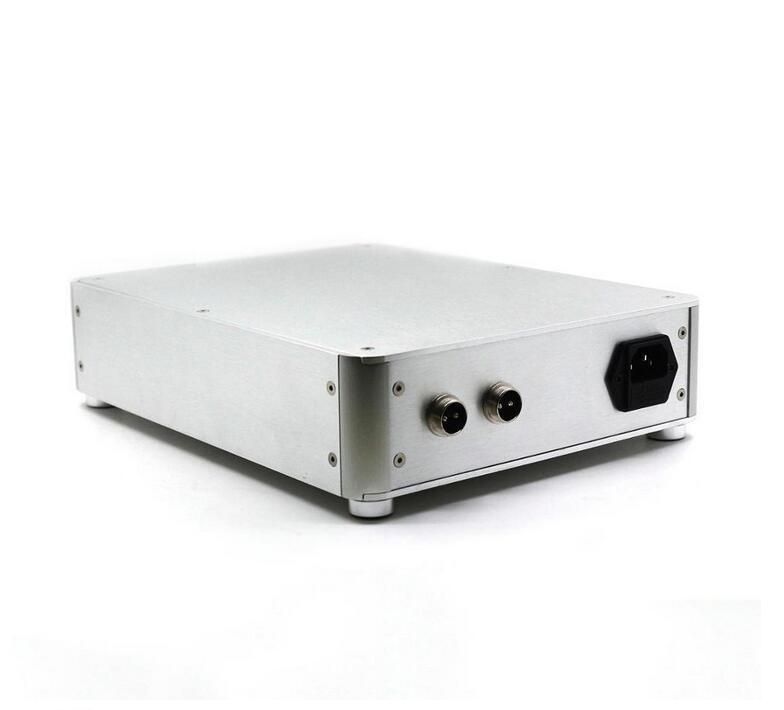

DC cable Polarity Internal + / outside -
Output DC cable plug type: default 5.5*2.1mm can provide other type DC plug
weight: about 4.5kg/set
External dimensions Size212 X 62 X 275mm(W*H*D)
Package include:
S130 2 Way Linear PSU X 1
1.2M Output DC cable X 2
(note: default is not include input AC cable)
you can choose following any two kinds voltage as the two output:
(1: 5V 4.3A 2: 9V 4A 3: 12V 3.5A 4: 15V 2.6A 5: 18V 2.1A 7:19V 2A 8:24V 1.6A)
can provide other output voltage custom-make
(Note: if the out put voltage above 22V, main caps will using NOVER 10000uf 50V)
