Introduction:

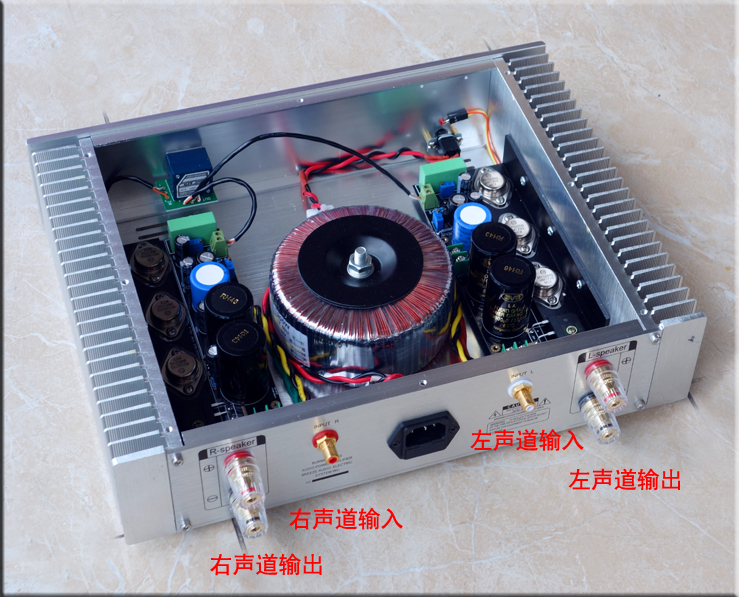

A6 is designed based on the JLH HOOD 1969 circuit, using a single-ended Class A output architecture as the circuit blueprint. The working method is linear, each output transistor amplifies the signal full wave, there is no Sitching Distortion at all, even if negative feedback is not used, its open loop distortion is still very low, so it is called the ideal sound amplifier circuit design.

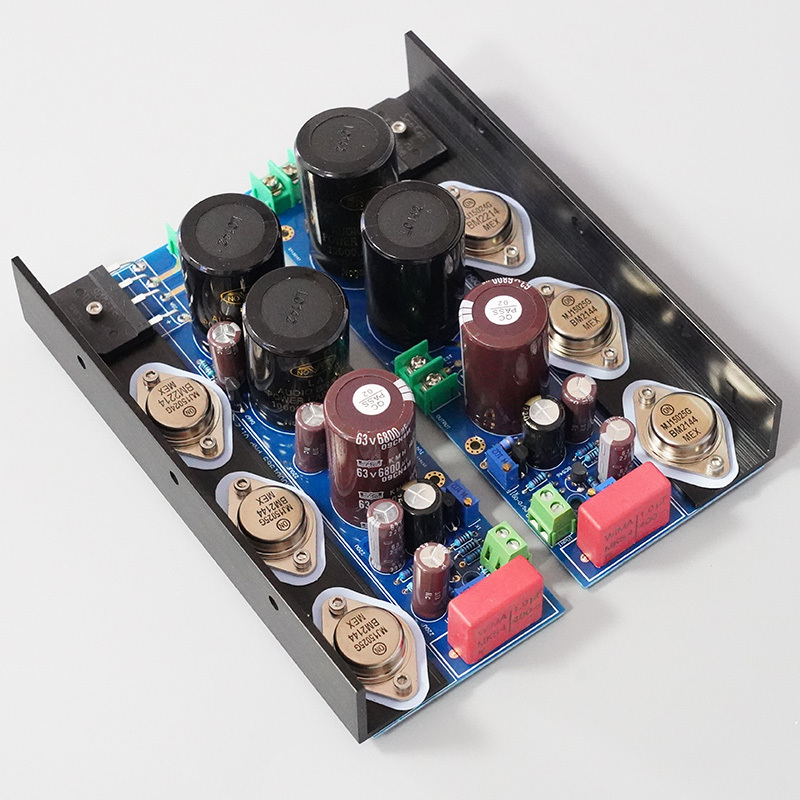

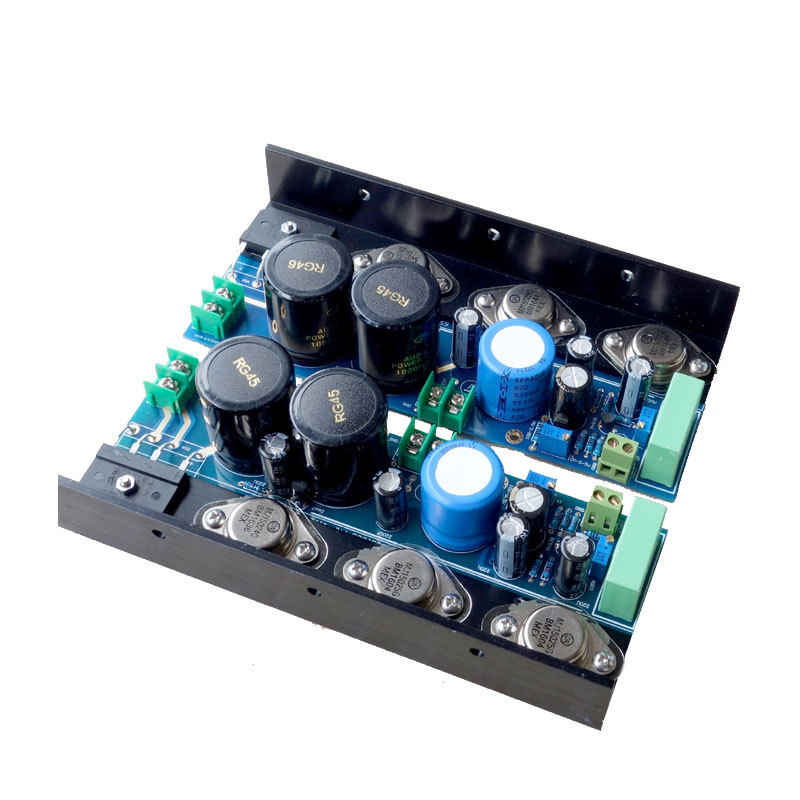

Using the gold-sealed transistor MJE15024 and MJE15025 as the output transistor, the sound quality is particularly good, especially when the signal is small, the whole sound is rich in details. Close to the sound of a tube amplifier, it can provide a very smooth sound quality with a round and warm tone, transparent and open treble, excellent mid-frequency performance, and full and flexible bass.

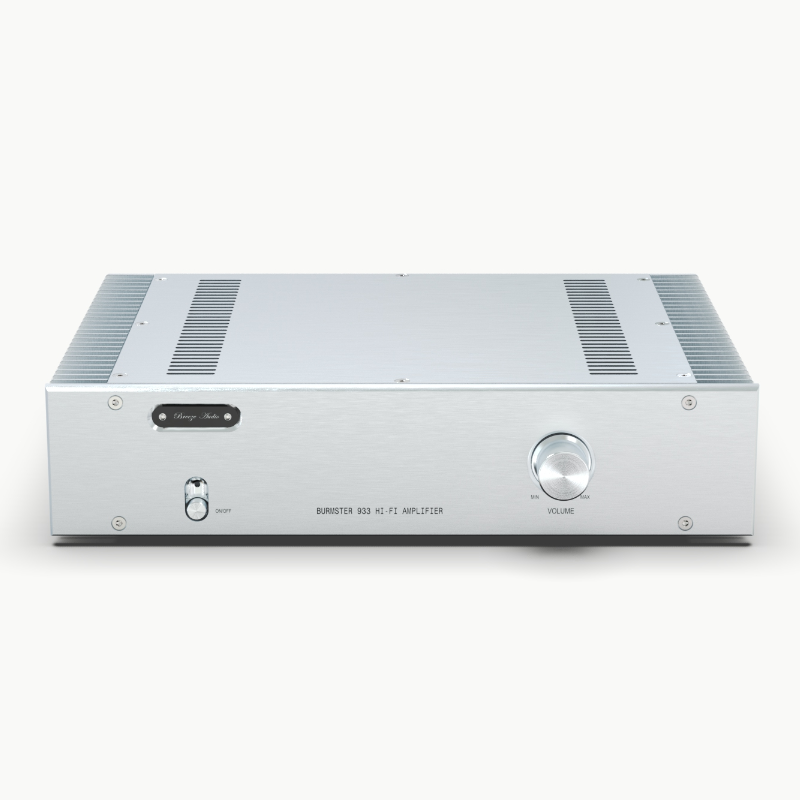

◆ All aluminum case + knob
◆ CMC 816 RCA+Gold-plated crystal terminal

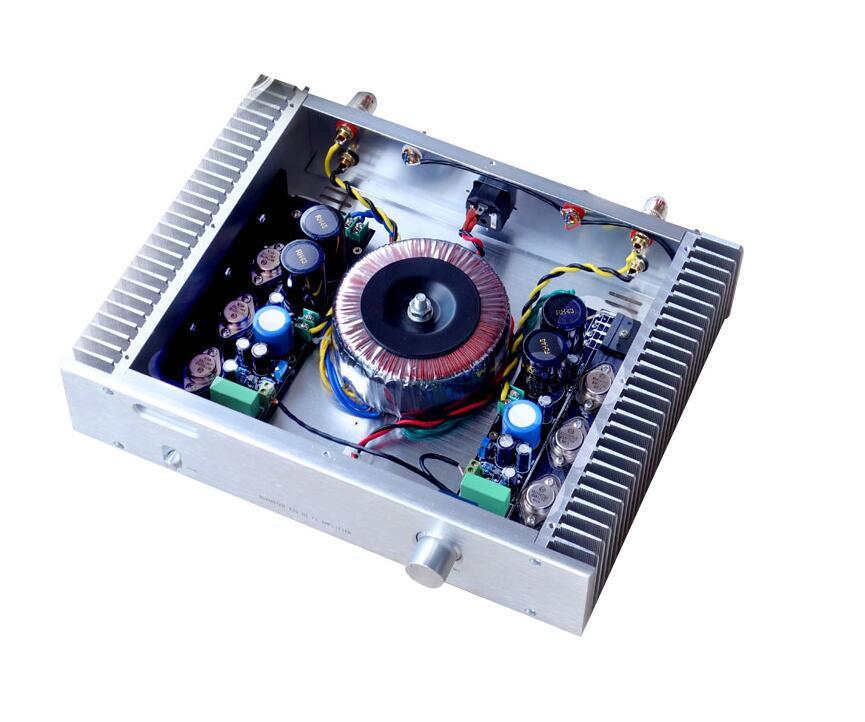

◆ 300W OFC pure copper transformer

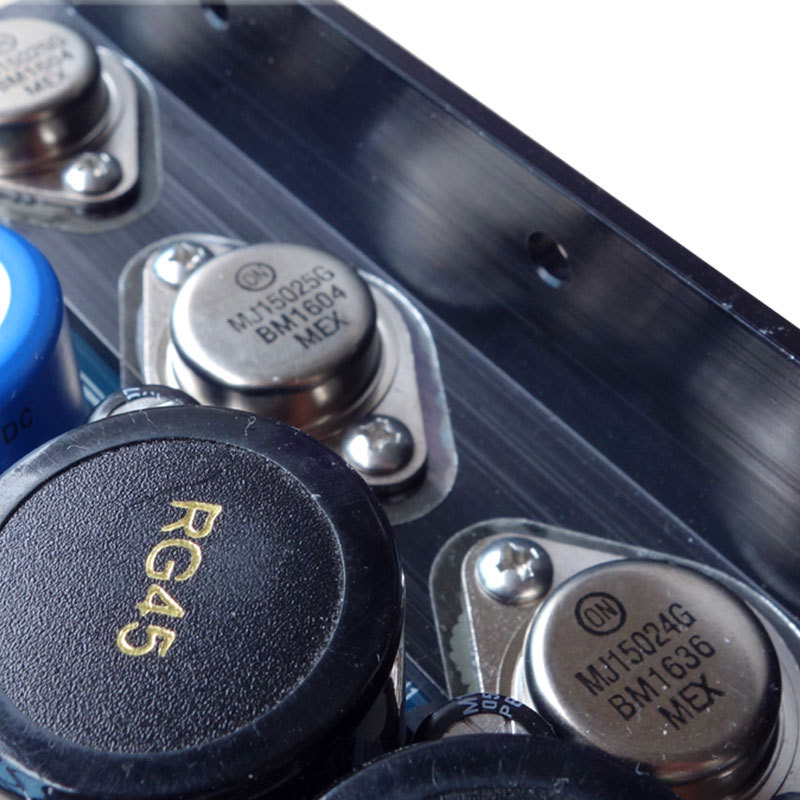

◆ ON MJE15024 MJE15025 gold-sealed triode output transistor.
◆ ALPS Type-27 volume potentiometer + NOVER main filter capacitor.
Parameter:
Input voltage: AC 115V or 230V (optional)
Output power: 25W+25W
Input sensitivity: 700mV
Input impedance: 47K
Output impedance: <5mR
Damping coefficient: >3000 8R
Gain: 30.5dB
Frequency response: -3dB 220KHz
THD: 0.002% 8R/10W/1KHz/22KHz bandwidth RMS
Noise floor: 85uV
Signal to noise ratio: 103dB
Weight: 9.5 KG
Size: 360mm*80mm*268mm (W*H*D)
Package includes:
A6 Class A power amplifier X 1
