parameter:
Weight: 22KG

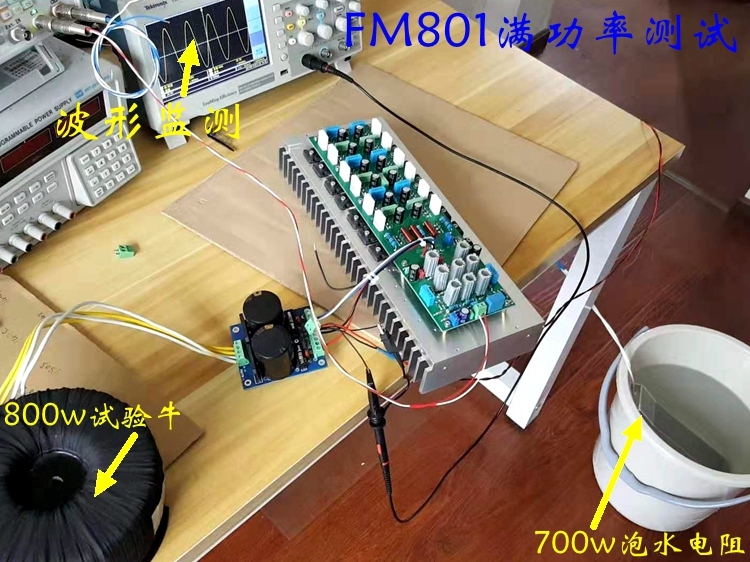

Output power: 250w/8 ohm, 500W/4 ohm (RMS power, long-term stable output at full power)
Static power consumption: 110w
Output midpoint: 1mV
Output noise: 0.2mV
Signal to noise ratio: 120DB
Input voltage:115V/230V
Color:silver/black
Size：450*140*370mm

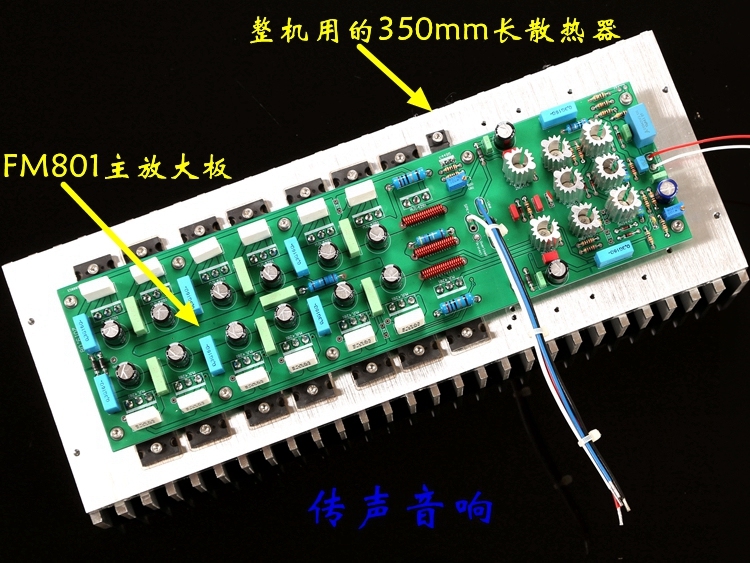

Circuit characteristics:
FM original parameter core circuit
The left and right channels are completely independent, and there is no electrical connection
Beyond the layout of the original amplifier, the amplifier is super stable without any noise

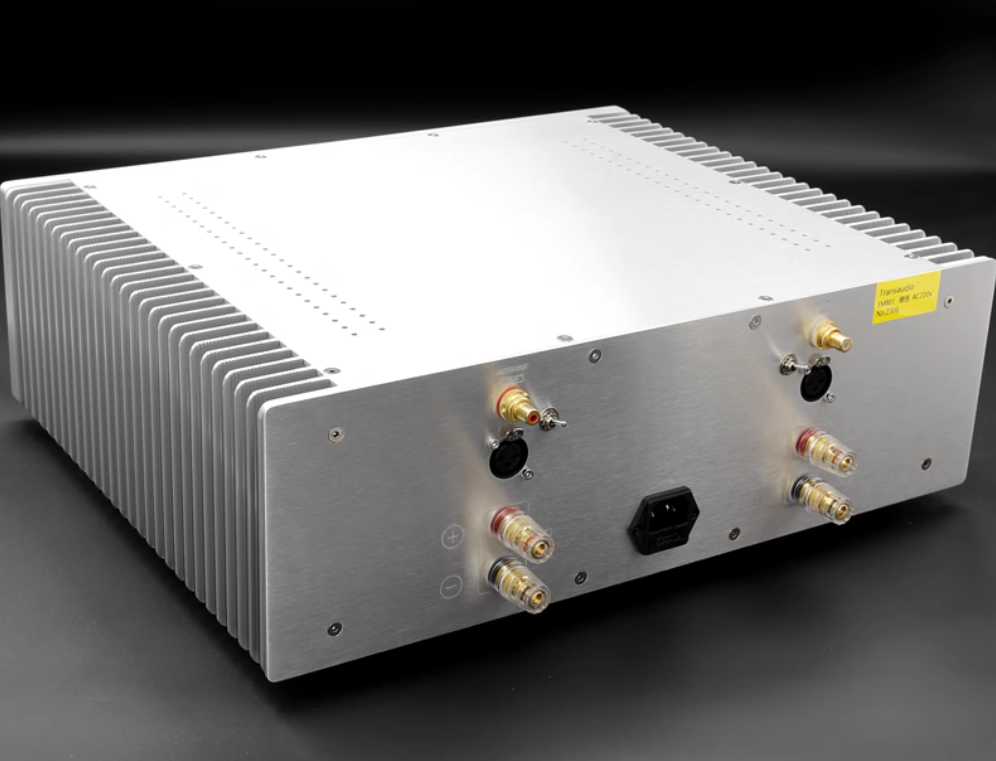

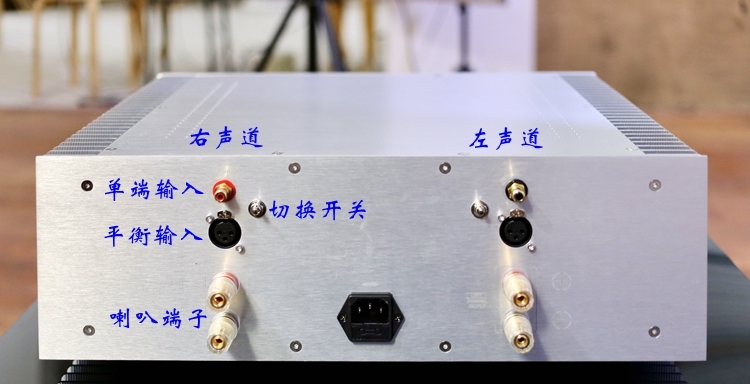

This amplifier has single-ended, balanced 2 inputs, can be connected to 2 Preamps, and switch by relay
Material :
16 new test pairs (<1%) gold-sealed transsistor 2N3440/5416 (produced in recent years)
A set of 28 pairs (<1%) of the brand-new Toshiba 5200 made in Japan (need to choose among thousands)

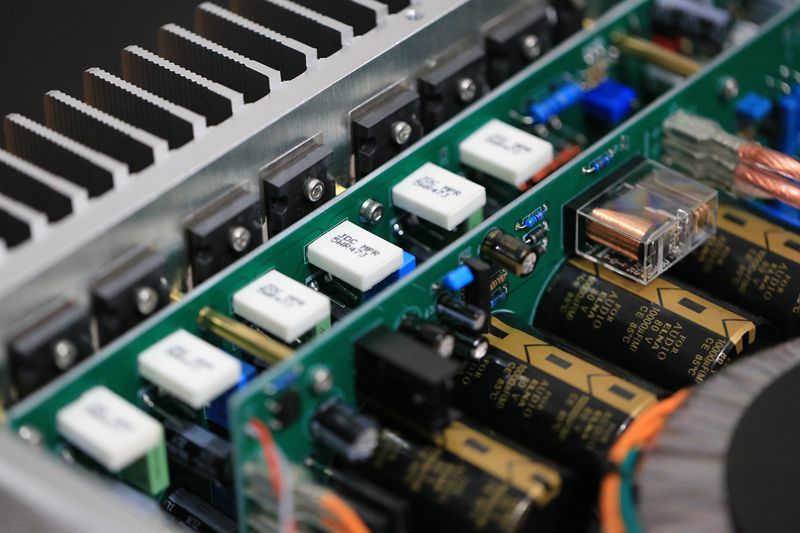

Each large transistor has a decoupling capacitor and a decoupling electrolytic capacitor in parallel
1200w high quality Nippon Steel transformer, independent winding for left and right channels
80000uF ELNA FOR AUDIO high quality capacitor
Start soft start and perfect speaker protection circuit

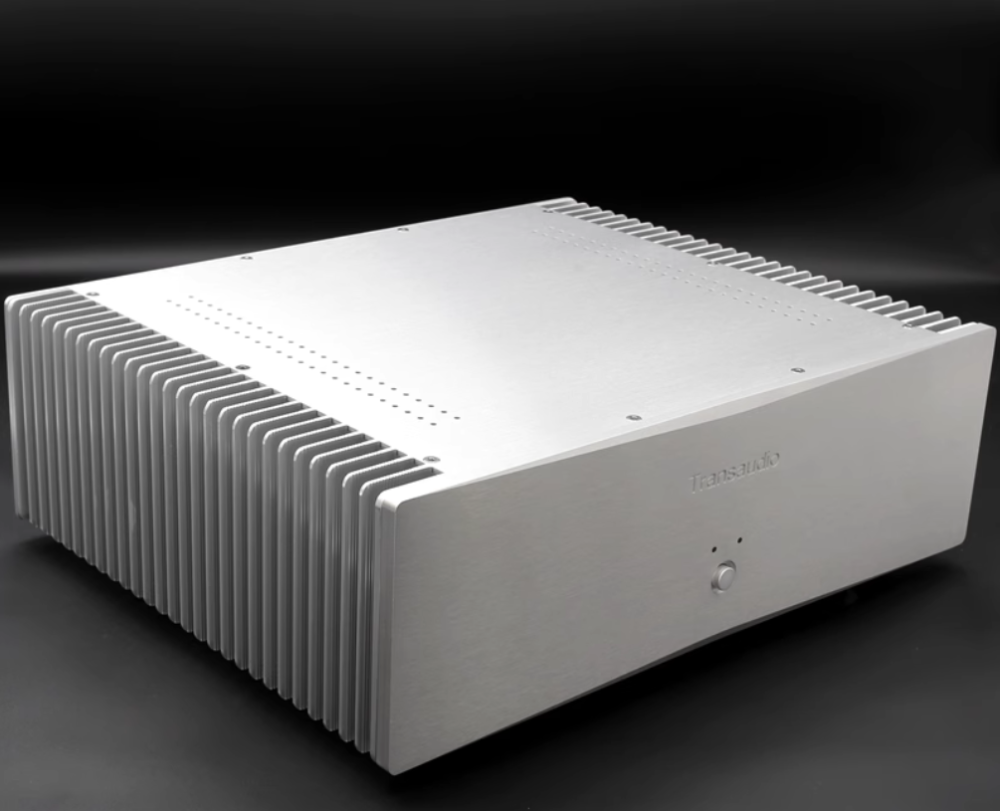

precision CNC machine tool processing all aluminum chassis.
