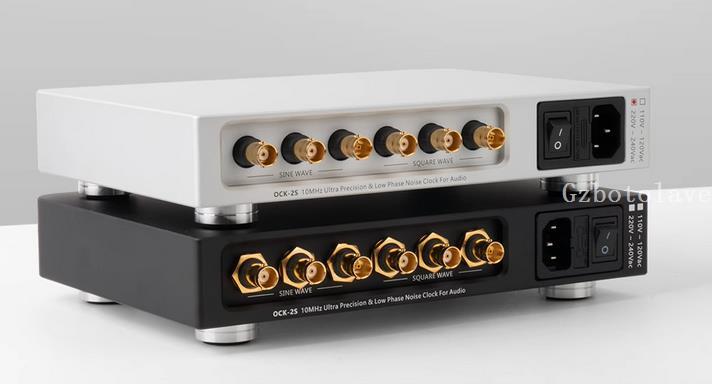

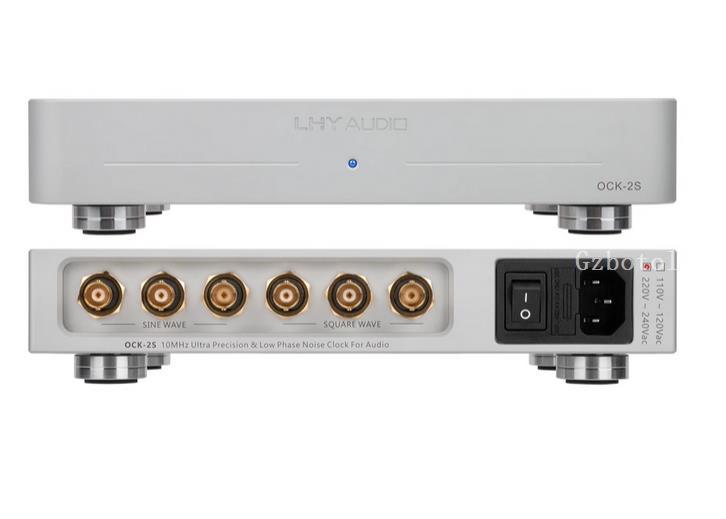

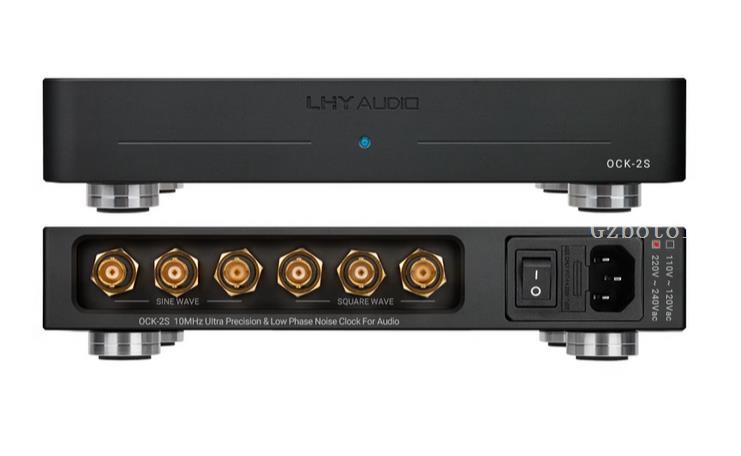

HIFI audio High-precision ultra-low phase 10MHz SC cut OCXO constant temperature clock crystal oscillator OCK-2S black silver

Describe

The upgrades compared to OCK-2 include:

-Upgrade to achieve a near end noise index of -110dBc 1Hz ESC

Cut OCXO constant temperature crystal oscillator;

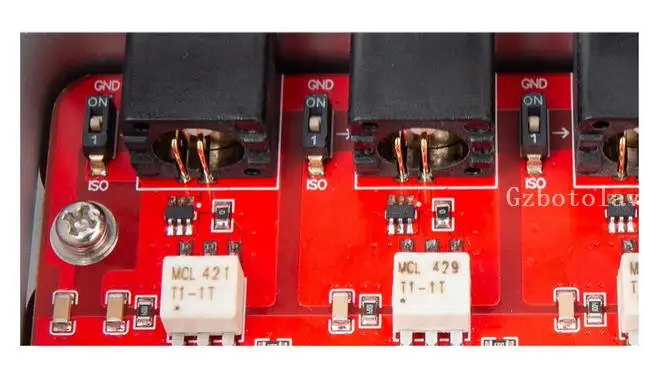

-Adding an isolation transformer to the square wave output circuit to achieve full output of 6 channels

Independent isolation;

-Optimize the OCXO crystal frequency modulation voltage reference circuit to increase the output frequency

More stable;

-Adopting BNC gold plating that fully corresponds to the impedance of the clock output circuit

Output terminal;

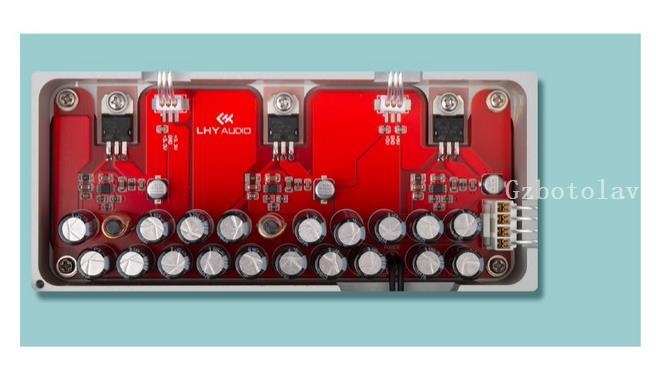

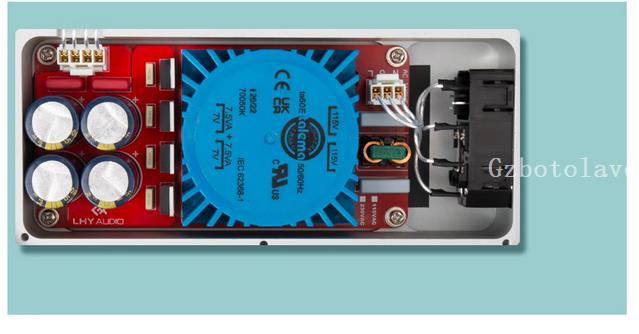

-Optimize signal and power wiring to further enhance the output signal

Purity;

package include：

OCK-2S host *1

AC  cable*1 （no any other cables ）

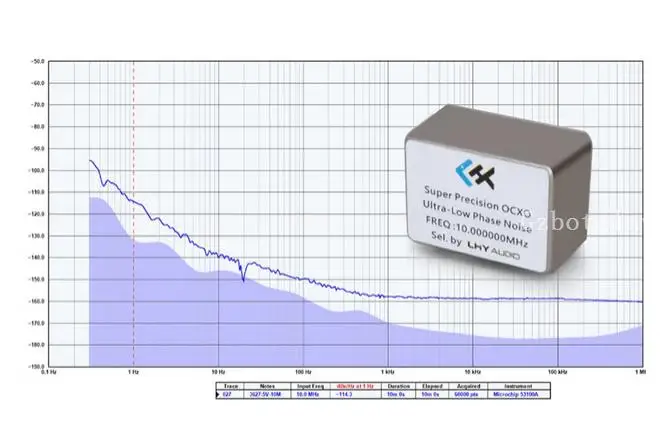

1. Use SCtOCXO with ultra-low phase noise customized by military crystal oscillator manufacturers;

2. Each OCXO crystal oscillator is rigorously tested and selected to ensure its proximal end

Phase noise -110dBc@1Hz (Typical value);

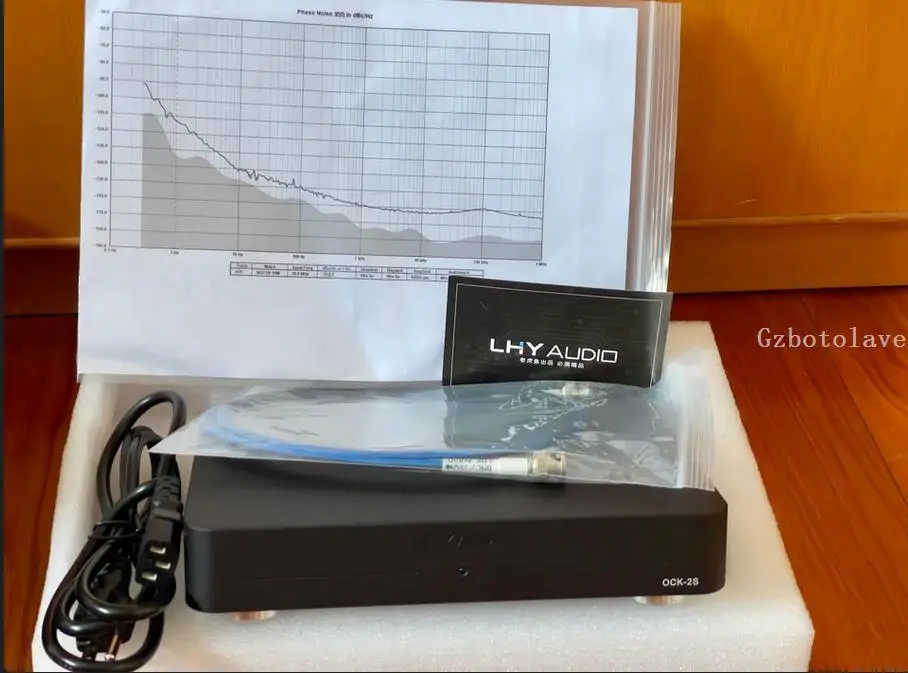

3. All shipments are accompanied by phase noise test images of their built-in OCXO crystal oscillator

Allen's variance plot;

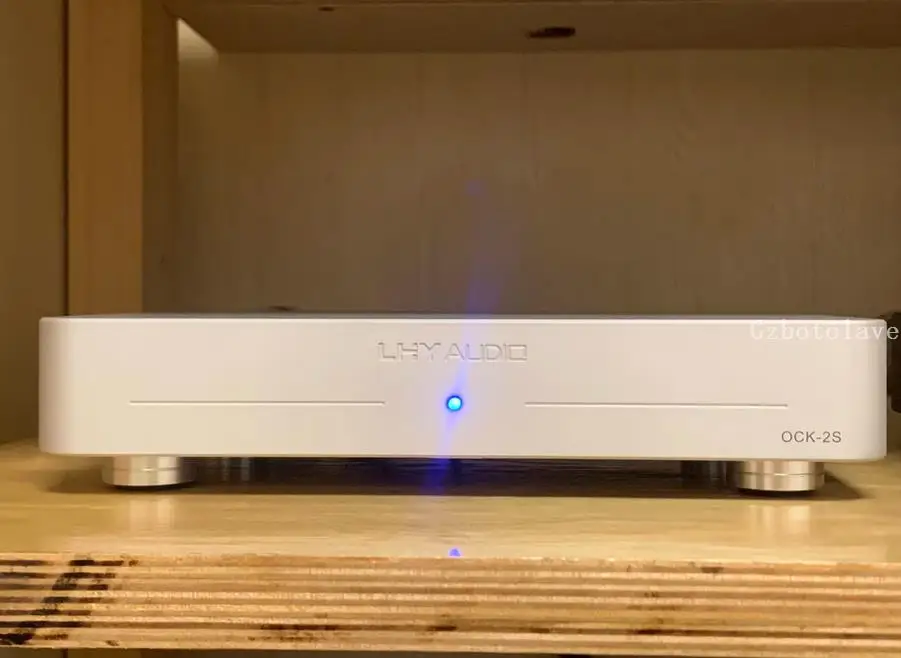

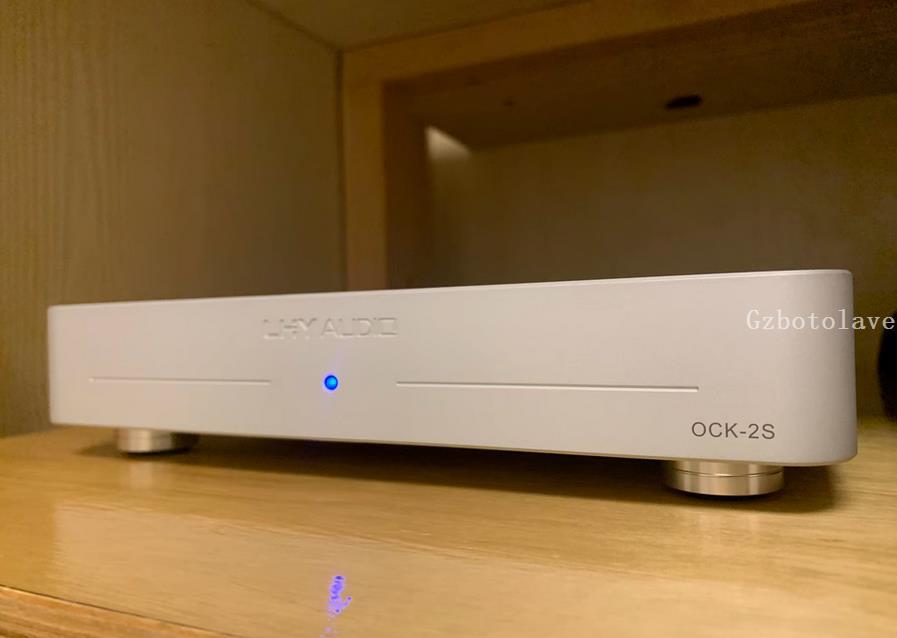

buyer photos shown just for Reference, thank you
