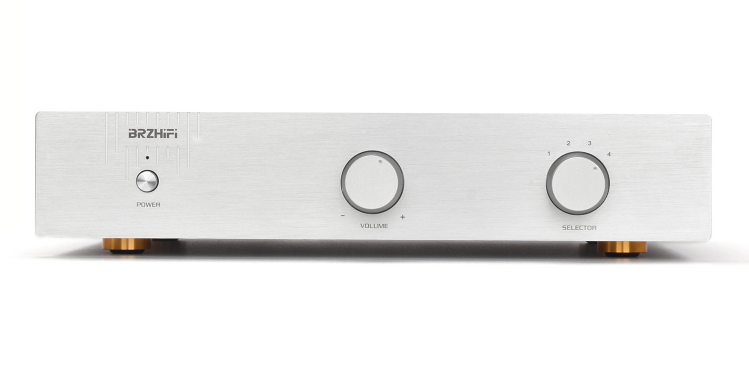

Hifi JC2 Full Symmetry FET Stereo Preamplifier Base On MARK LEVINSON JC-2 Preamp Circuit

Details：

This machine is referenced from the classic famous machine MARK LEVINSON JC-2

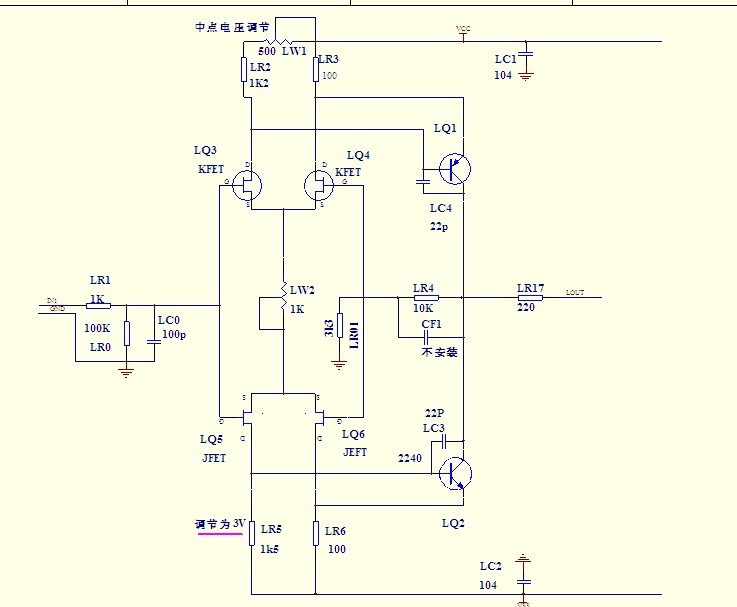

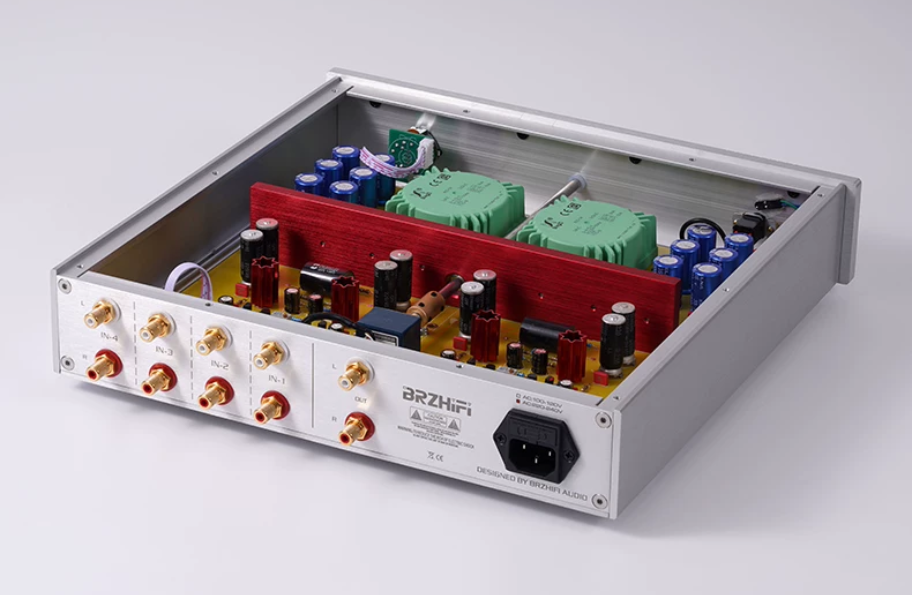

This machine circuit is full symmetrical field effect tube FET input

The voltage level reaches 20MA-25MA class A output

The field effect tube model is Toshiba K170BL / J74BL

The circuit of this machine adds a current output stage on the original basis, which can output a large current, and is suitable for any hifi amplifier.

Specific parameters:

Work voltage ：AC115V and AC230V optional

Frequency response: 20HZ-45KHZ

Input sensitivity: 200MV

Signal to noise ratio: 103DB

Dimensions: width 330X height 62X depth 308mm

Weight: 4.5KG

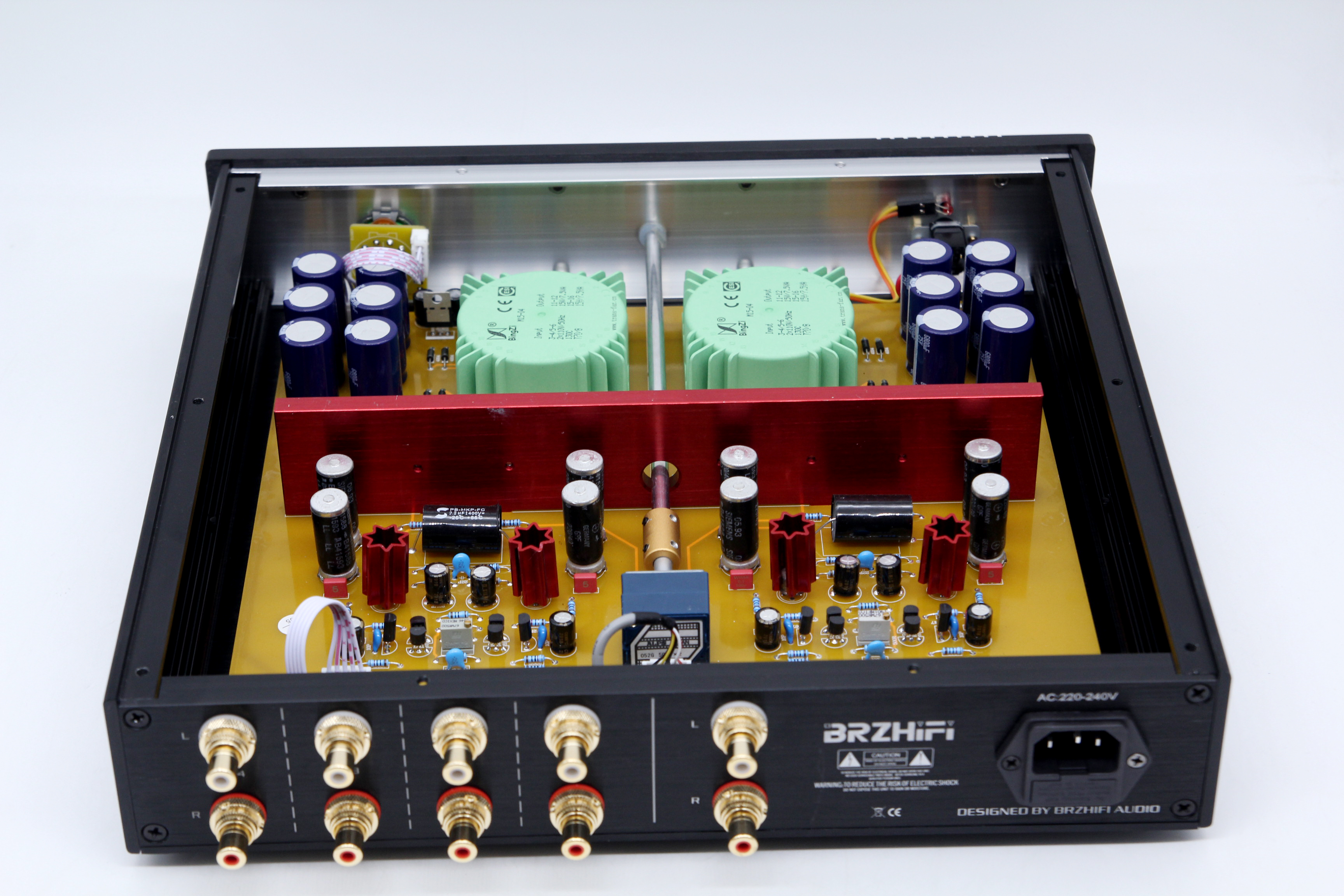

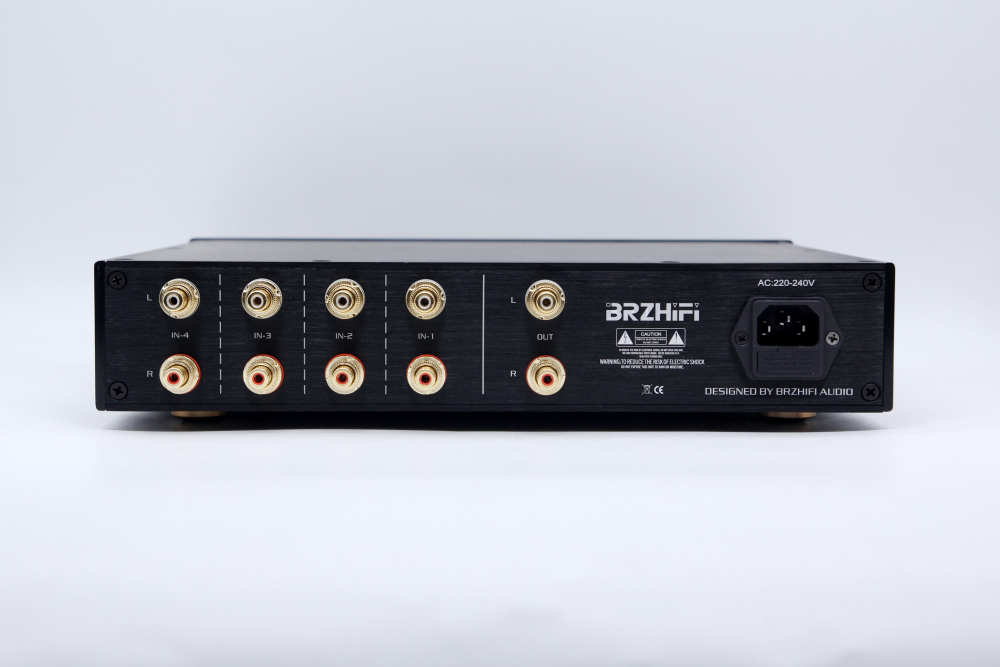

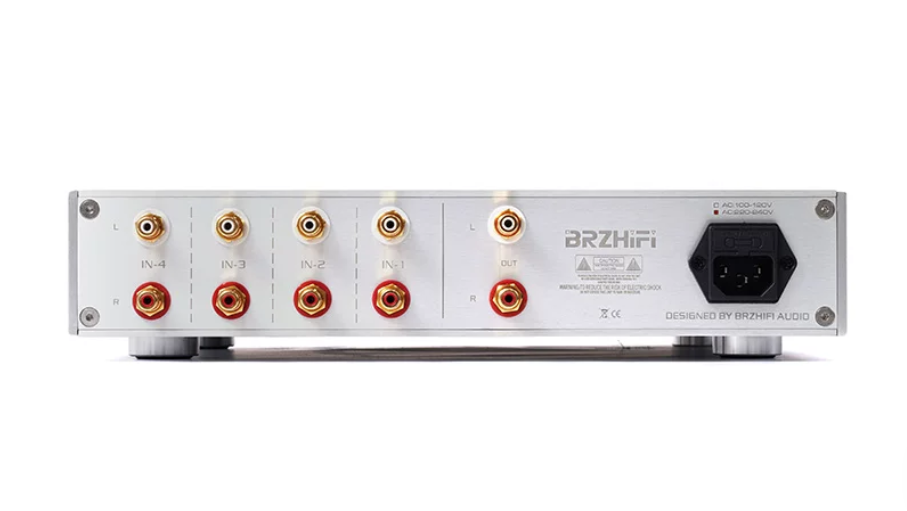

4 ways input ，1 way output

Package inlcuded：

Finished Hifi JC2 FET preamplifier x 1 （not included power cord）
