Introduction:

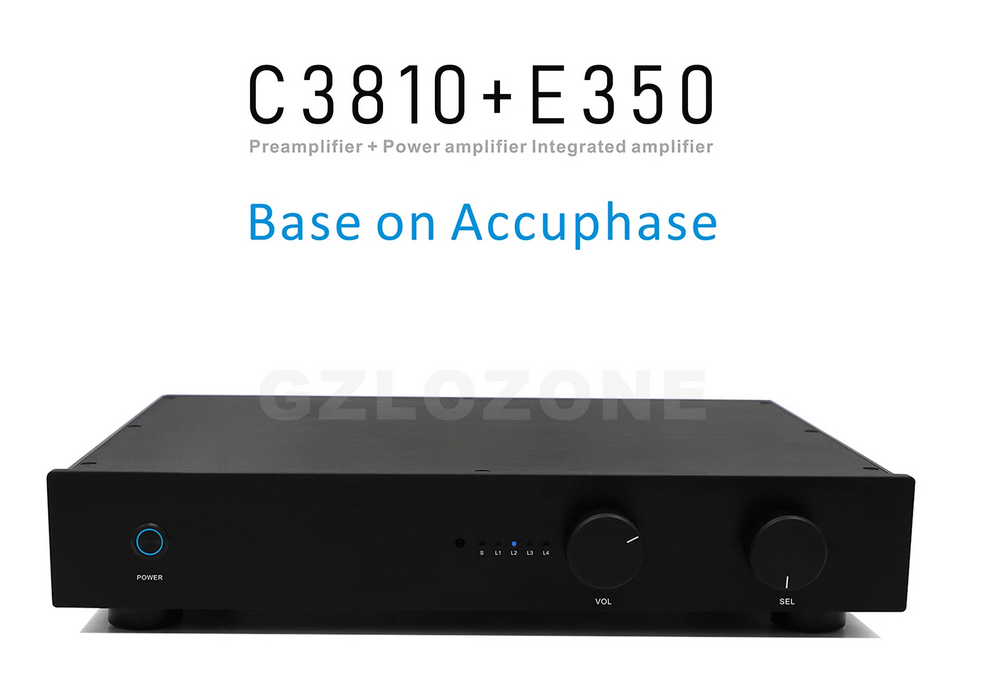

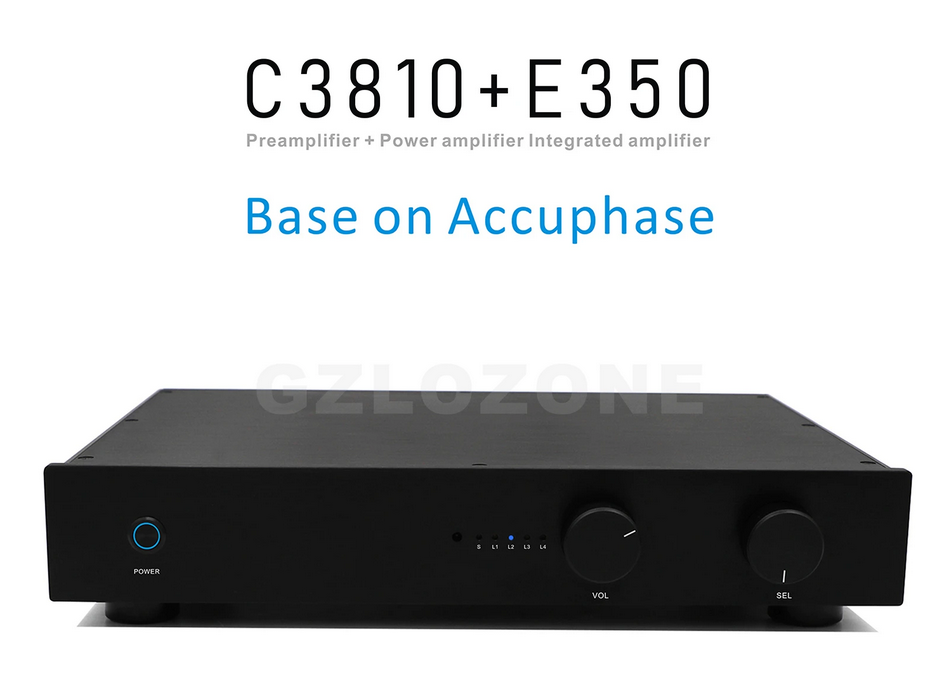

This is a Base on Acceleration circuit, C3810M (refer to the amplifier of the Acceleration C3850 core preamplifier circuit) Amplifier+E350 (refer to the Acceleration E350 power amplifier circuit) Power amplifier integrated amplifier. Its sound is very good. From the moment you say it, it will surprise you.

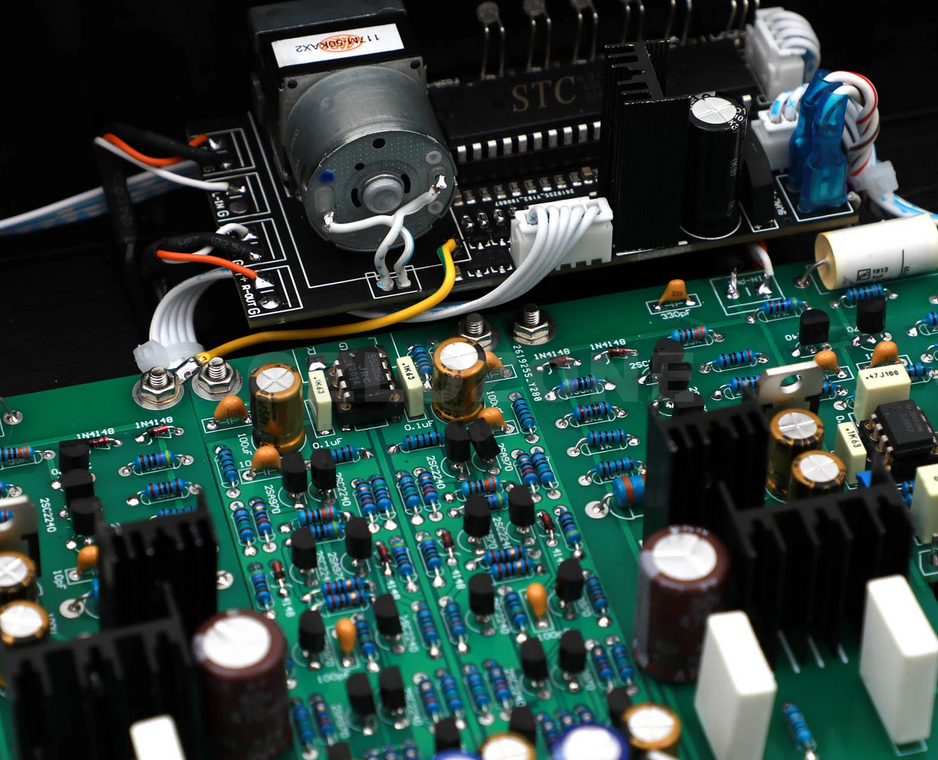

Preamplifier part:
◆ Use JRC5532D low noise and beautiful sound operational amplifier.
◆ Use NEC 2SA733/2SC945 small signal amplification tube.
◆ Refer to the amplification of the core preamplifier circuit of the Golden Throat C3850.

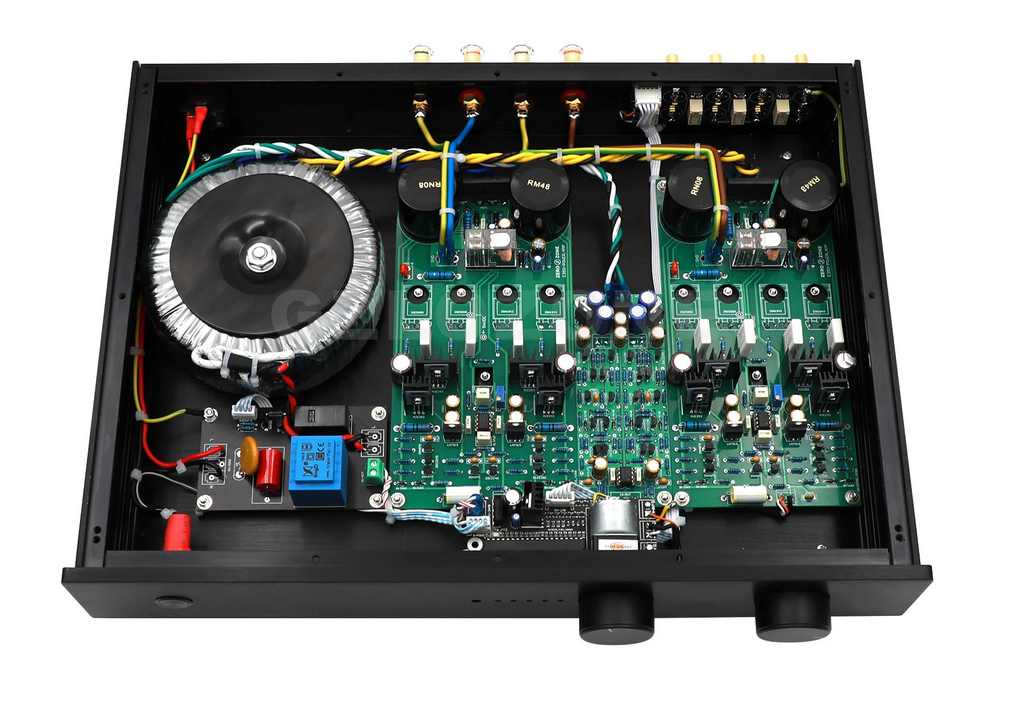

Power amplifier part:

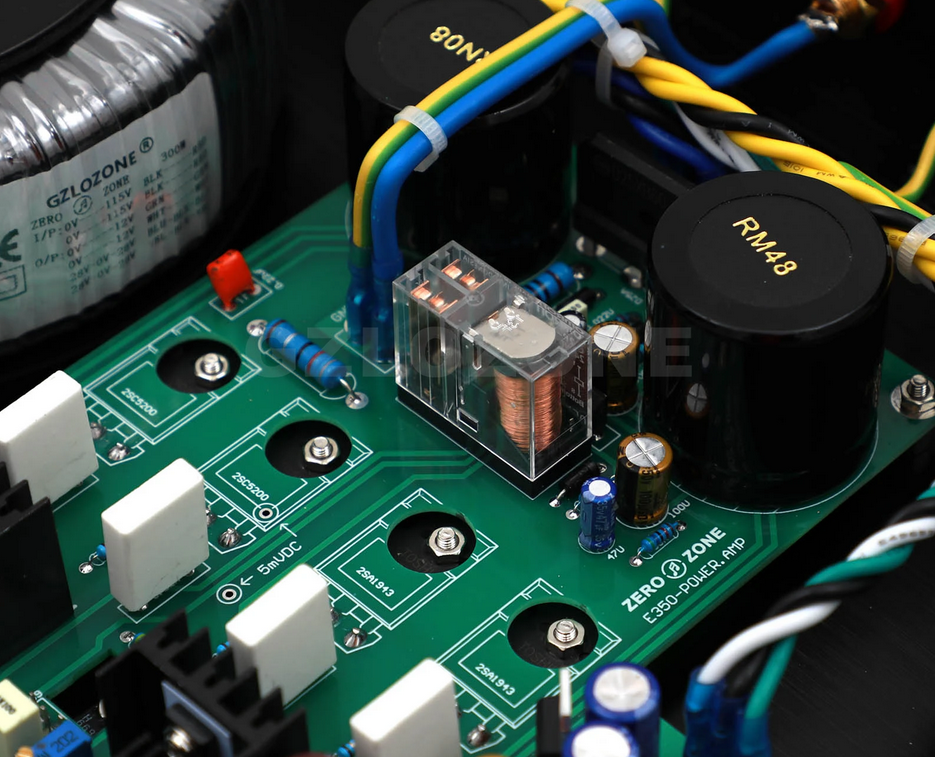

◆ Toshiba A1943A/C5200 power output tube is used, with two pairs of tubes per channel.
◆ Use NEC 2SA733/2SC945 small signal amplification tube.
◆ Each channel is powered independently, and each channel is equipped with an independent protection circuit.

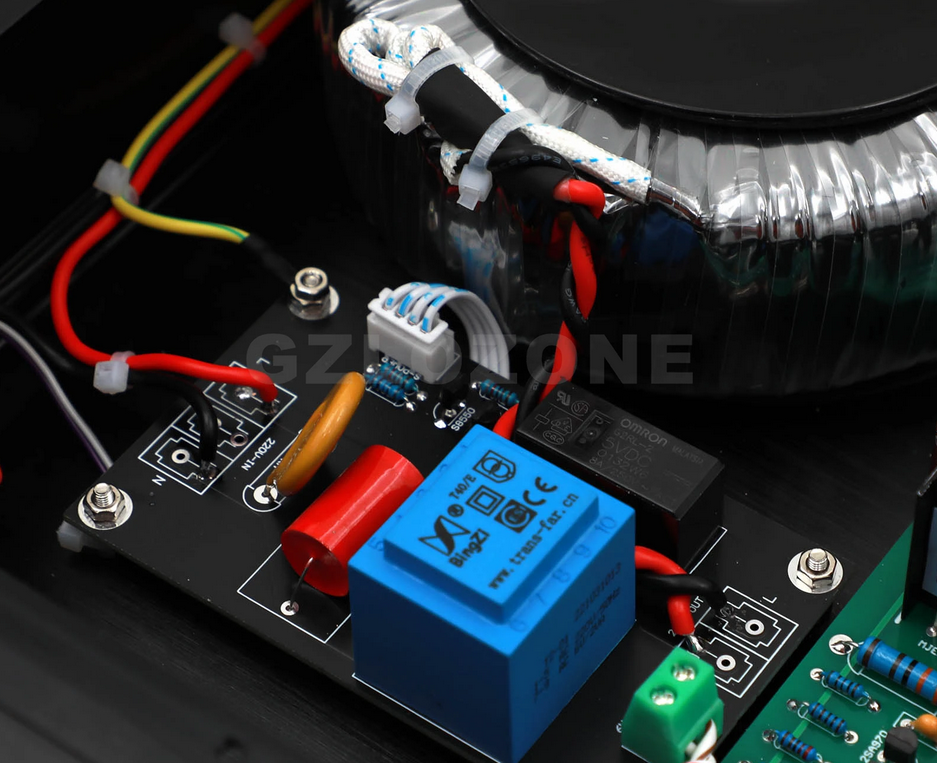

◆ Use 300W pure copper custom transformer.
◆ Output power per channel 75W 8 ohm.
Material:
Full aluminum chassis.
Full aluminum feet + Knob.

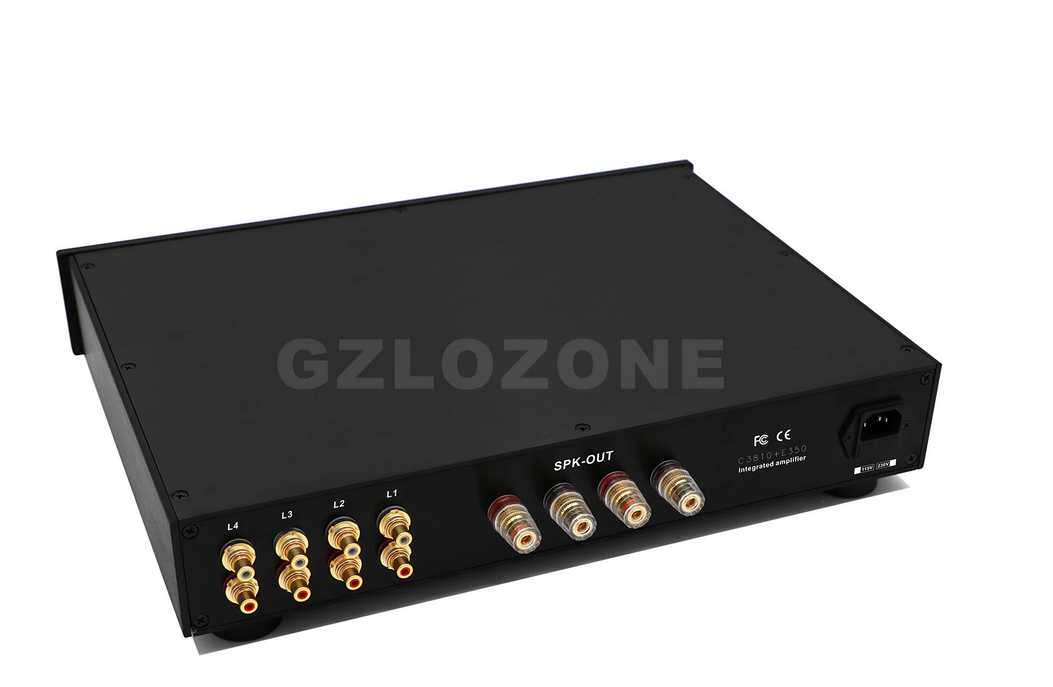

Tai Wan Gold-plated RCA+Speaker posts.
High current stainless steel switch.
The high-power signal line in the machine uses UK copper wire, and the mall signal line uses Japan's CANARE.
Overall sound:
The sound performance are very excellent , low frequency is surging and solid, the mid frequency is positive, and the high frequency band is a bit sweet; the box control ability is strong.
Input voltage: AC 115V or 230V (Optional)
Output power: 75W+75W (stereo)
Size: 430mm*70mm*308mm (W*H*D)
Weight: about 10KG
Package include:
C3810M+E350 Pramplifier+Power amplifier X1

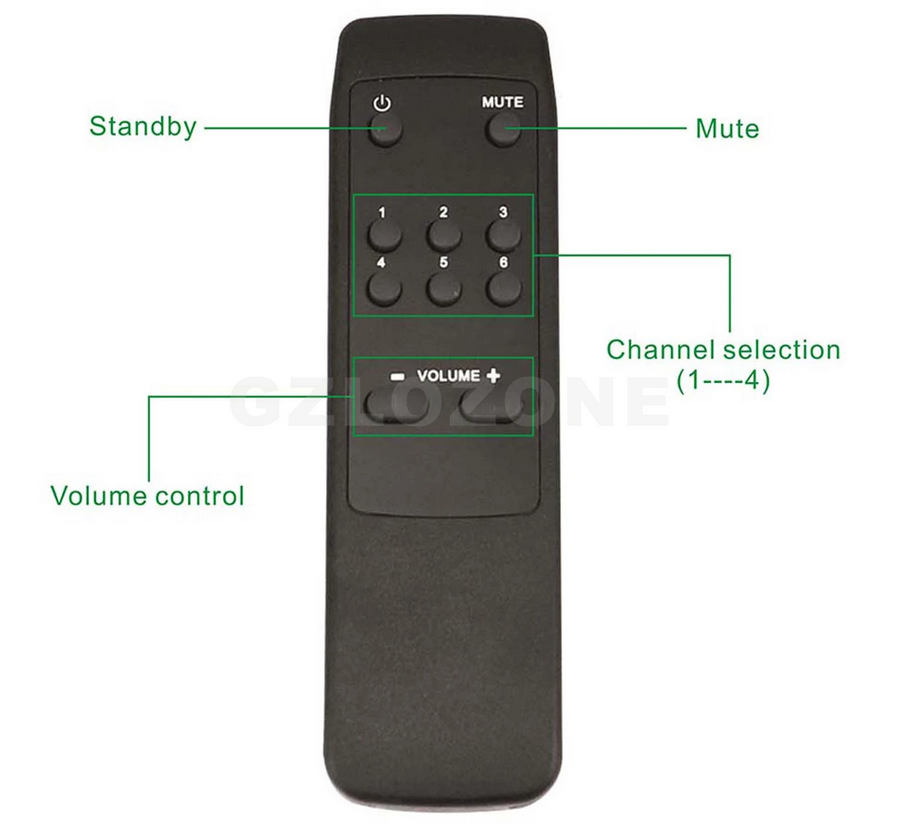

Remote control X1 (No battery)
If you need to upgrade to HIFI aluminum remote control, please add USD18
NOTE: We don't supply any cables.
