HOOD JLH 1969 Class A Power amp kit 2 channel amplifier 10W+10W

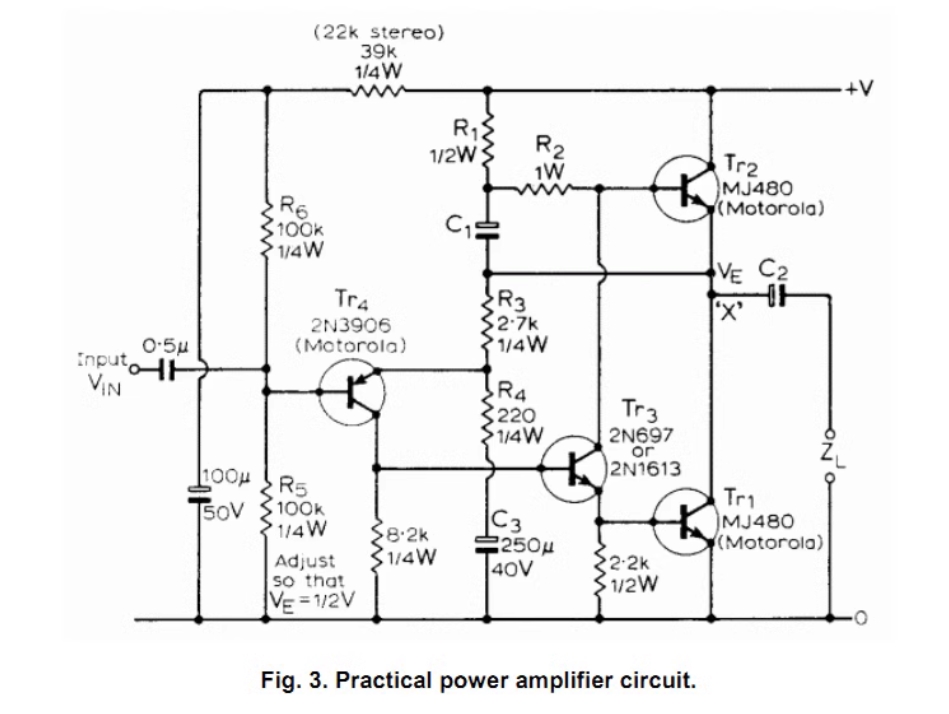

this kit is according to HOOD JLH 1969 standard circuit cloning produce, no change.

The standards officials voltage and current .The power rating 10 w 8 the load.

The power supply voltage DC 24 V

Static current 1.25 A.

OutPut power:10W+10W

the power Transistor USES the import original KEC 2 SD1047C.

Parameters :

VCD = 140 V

IC = 12 A

PD = 100 W

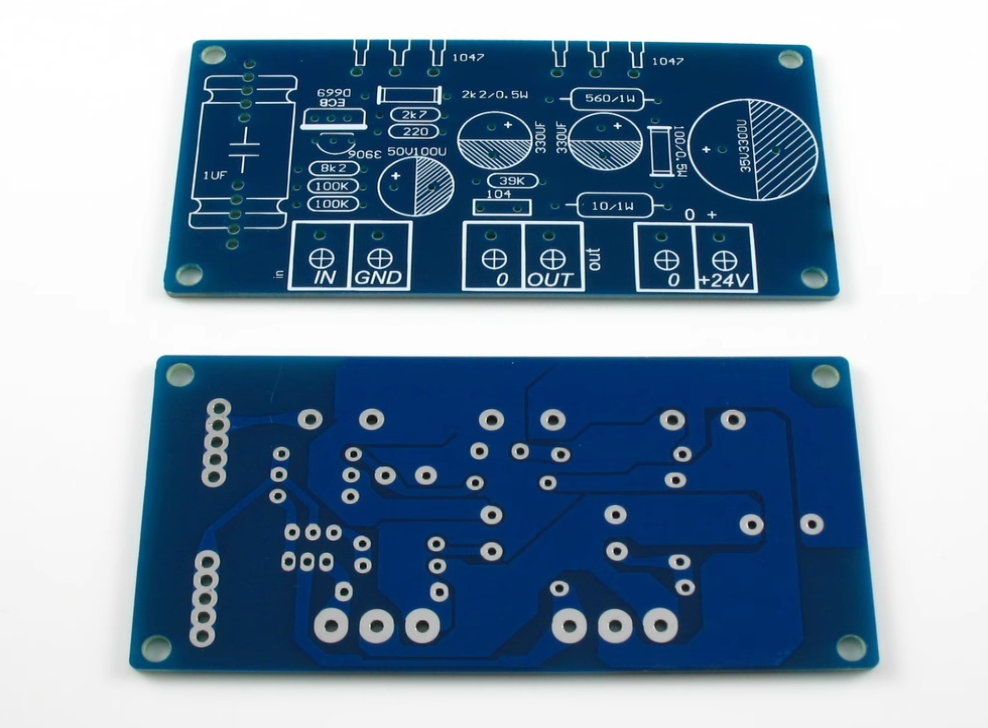

PCB size for 90 MM * 45 MM

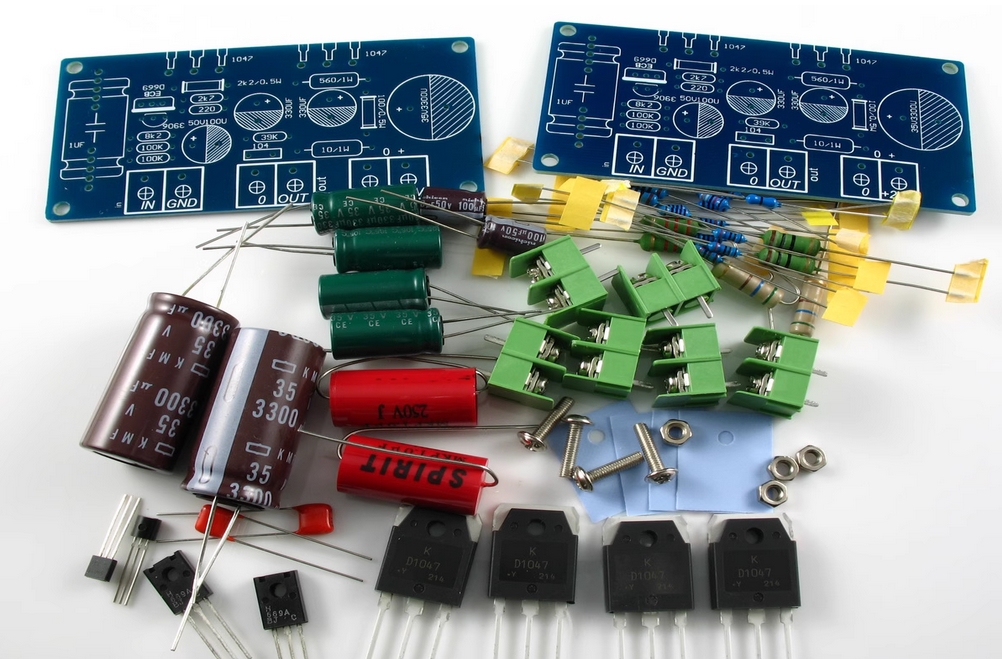

Package include: SteroHOOD JLH Power amp kit  X 1  ( include 2 channel boards)

note,this is a kit,need to solder by yourself.
