Motor LC57H276 Information

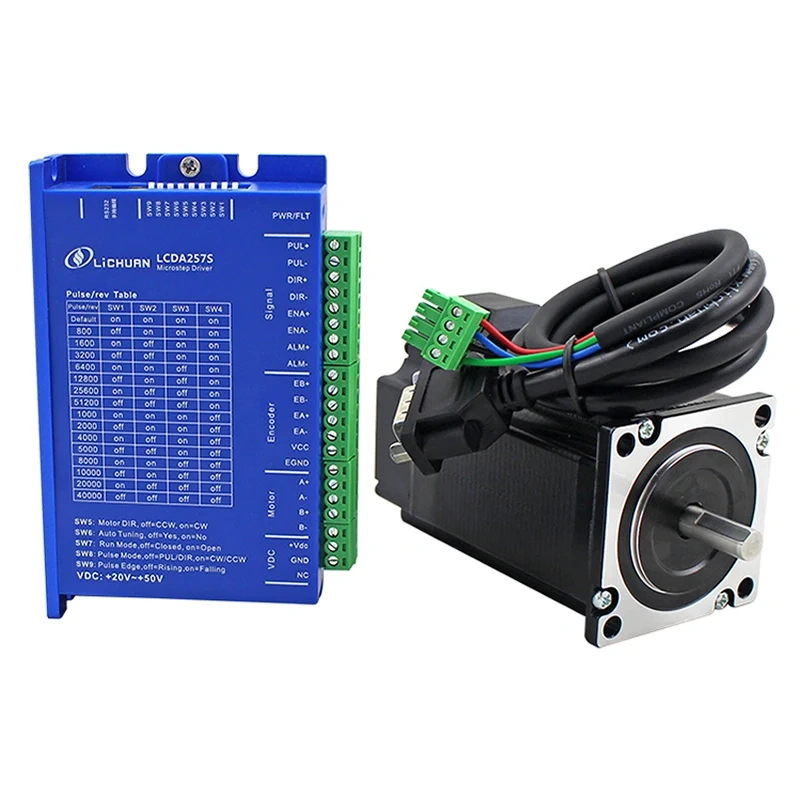

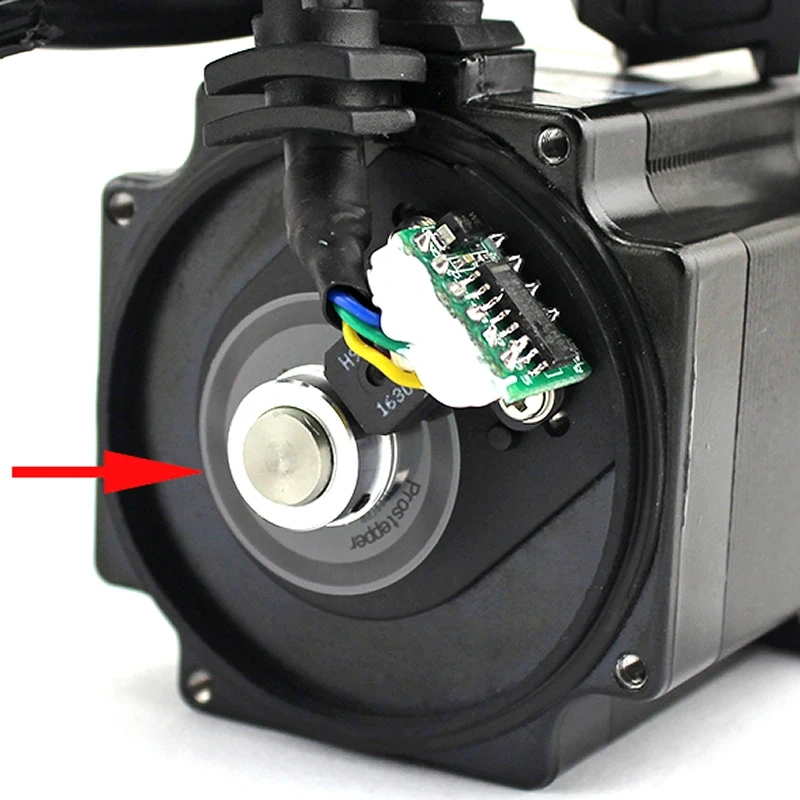

Our LC-H2 series 2 phase closed loop stepper motors,they are are designed to match with 2 phase easy servo drivers including the LCDA257S,LCDA86H and LCDA808H. They are available from NEMA23 to NEMA34 (57,60mm and 86mm) with holding torque from 2Nm to 12Nm. LC57H276 is NEMA23 2Nm closed loop stepper motors.1000-line optical incremental encoders,the matched drive is LCDA257S,They all have encoder feedback, high speed, high precision.
2 Phase Nema23 Closed-loop Stepper Motor Specifications
|
Motor model |
Step/angle |
Length |
Holding torque |
Current |
Rotor inertia |
Encoder line |
Lead wire |
Weight |
|
° |
mm |
N.M |
A |
g.cm2 |
PPR |
NO. |
Kg |
|
|
LC57H276 |
1.8 |
76+22 |
2 |
3.0 |
480 |
1000 |
4 |
1.2 |
|
LC57H2100 |
1.8 |
100+22 |
3 |
4.0 |
720 |
1000 |
4 |
1.7 |
2 Phase Nema23 Closed-loop Stepper Motor Size and Wiring Method

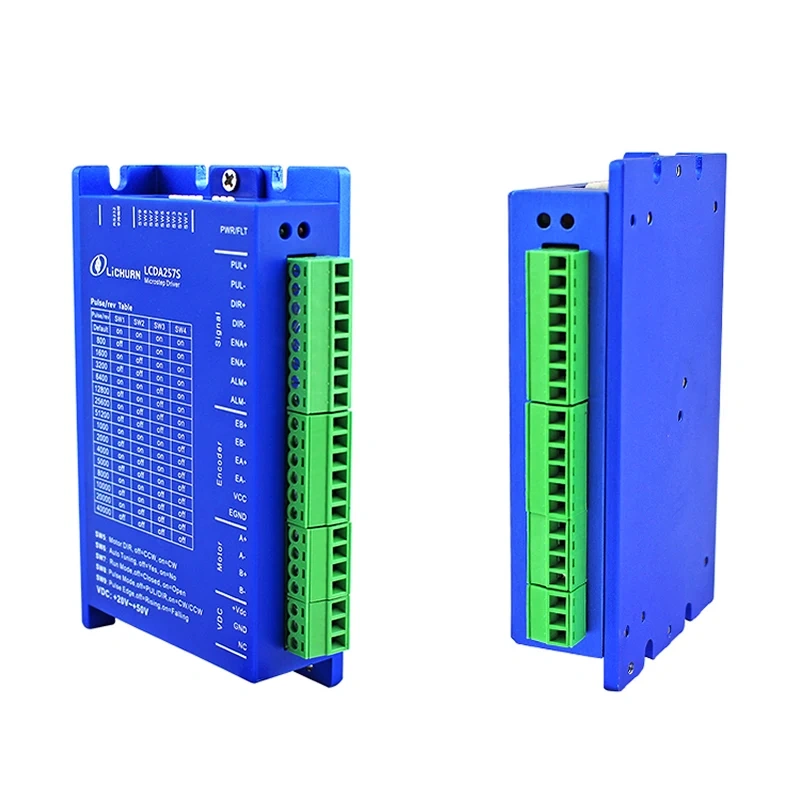

High-performance 2-phase hybrid stepper motor driver The LCDA257S is a powerful 2-phase closed-loop stepper motor driver designed for precision control in industrial and automation applications. It ensures smooth operation and high accuracy in motion systems.
Strong holding torque for reliable performance With a holding torque of 2nm, this driver delivers strong stability and resistance to external disturbances. Ideal for demanding tasks requiring consistent power and precise positioning.
Compatible with NEMA23 and LC57H276 motors Specifically designed for NEMA23 and LC57H276 stepper motors, this kit ensures seamless integration and optimal performance. Perfect for users upgrading or building high-torque motion systems.
Compact and lightweight packaging The package measures 15 x 15 x 15 cm and weighs only 2.500 kg, making it easy to store and transport. Its compact design supports efficient logistics and space-saving storage.
Single-piece per pack for straightforward use Sold as 1 piece per pack, this kit is ideal for direct replacement or integration into existing setups. Simple to order and use, with no extra components needed for basic installation
.
Manufactured in Mainland China with CCC certification Produced in Mainland China, the LCDA257S meets safety and quality standards with CCC certification. A trusted choice for users seeking reliable and compliant industrial components.
