Product Details:
This PASS A3 is sweet and mellow, with a great music flavor, transparency, and good low-frequency elasticity.
30A Schottky rectifier transistor
Each channel has 12 capacitors with a frequency of 120000uf. The filtering effect is good.
Selected raw materials, precise matching of transistors

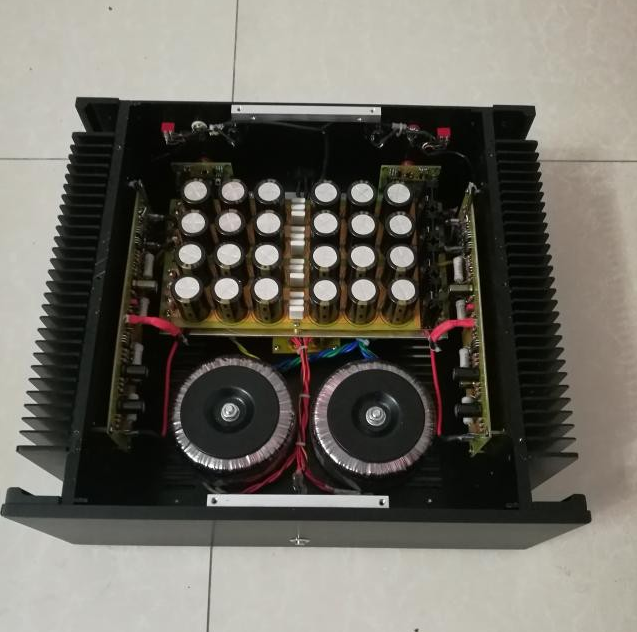

Two transformers independently supply power to the left and right channels

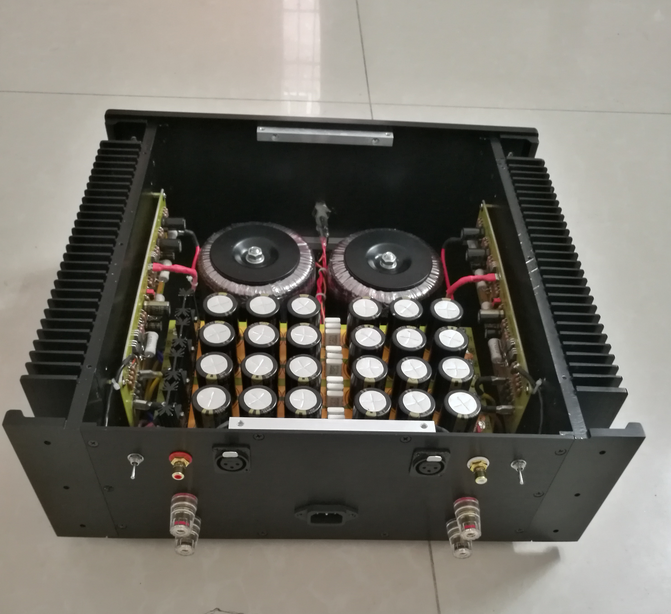

Equipped with XLR input and RCA input Can be freely switched.

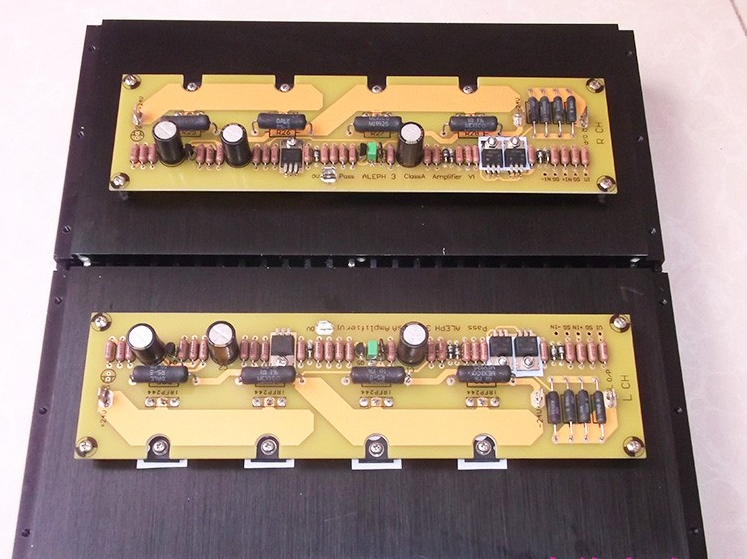

The left and right channels are independent of each other and do not interfere with each other.
Reasonable layout, simple connection lines, stable and reliable
Parameters::
Size：430*150*391mm
Weight: about 22KG
Channel: 2 channels
Power: 30watts @ 8ohms; 60watts @ 4 ohms
Distortion rate @ 1 KHz: 1% at rated output; 0.003% @ 5 watts into 8 ohms
Input impedance: 10kohm balanced, 18kohm single ended
Output noise:<300uV unweighted 20-20kHz
Dynamic range: 140dB
Gain: 20dB
Package list:
1 × Finished PASS A3 amplifier
