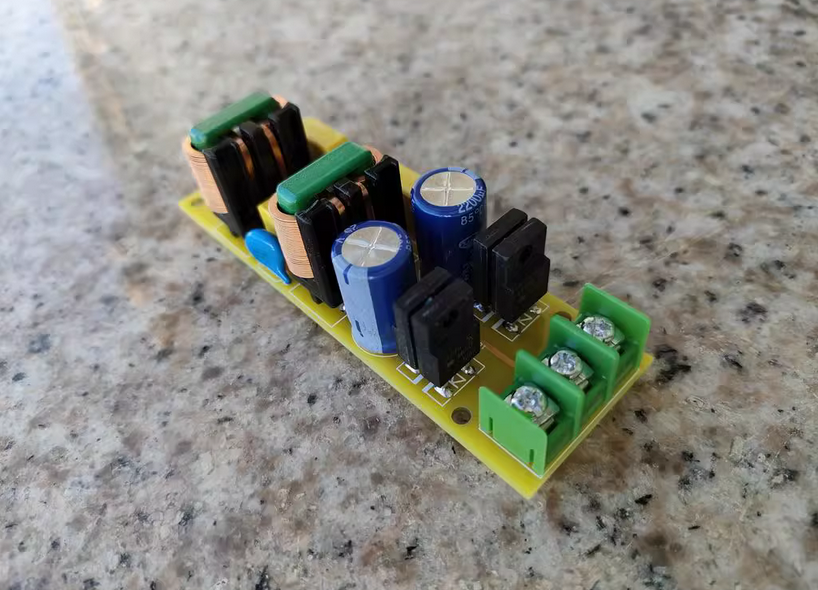

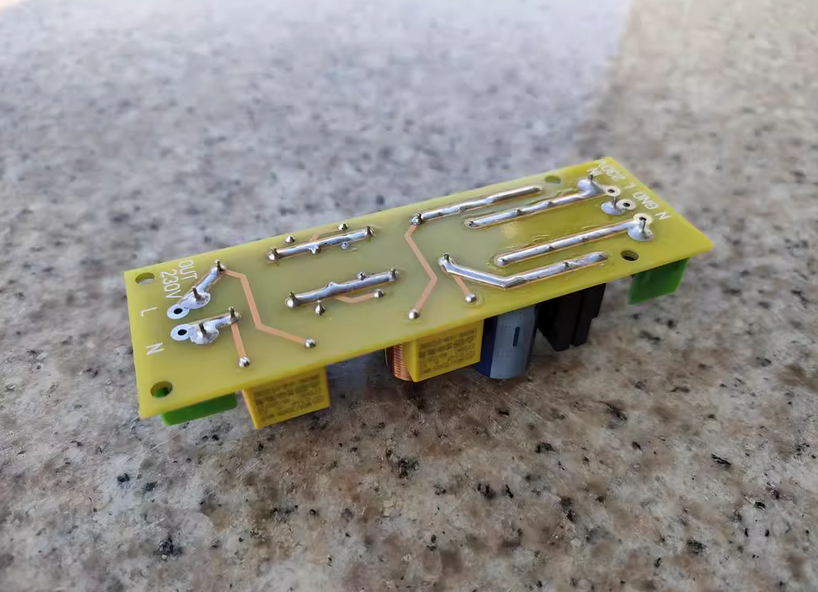

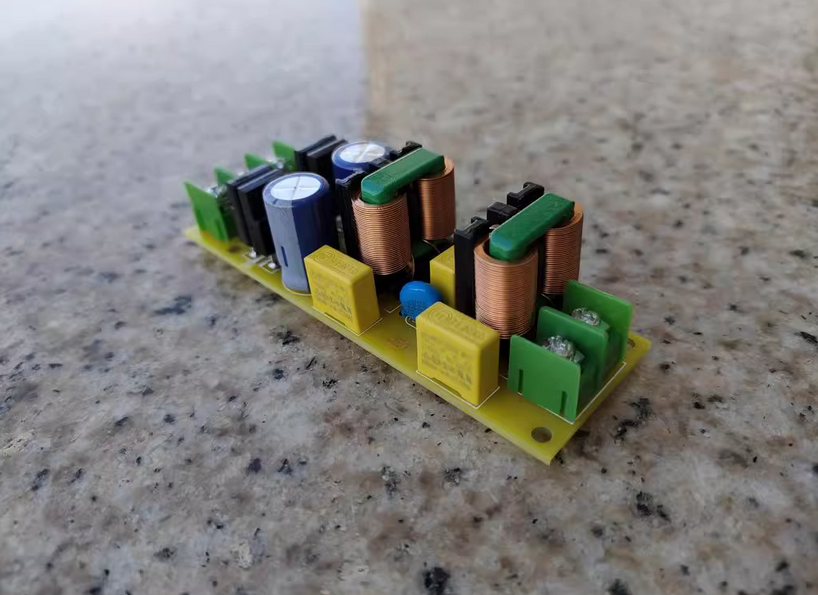

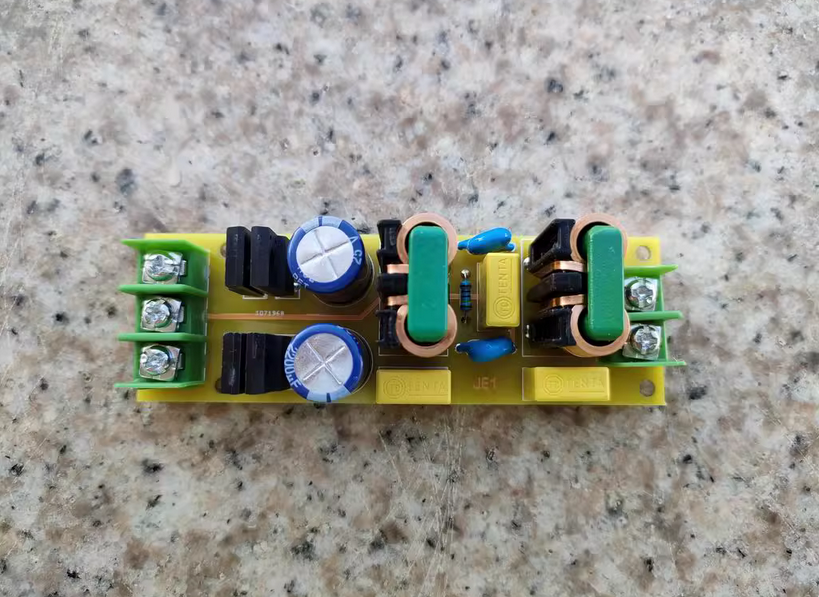

JE1 Third level EMI filter board power purification module

Product Details:

1. The first stage filtering of DC can eliminate the interference of DC components in AC power caused by variable frequency air conditioners, refrigerators, air energy, switch power supplies, etc. on the power grid..

2.Two stage composite EMI filtering can filter out high-frequency noise interference in the power grid.

3. Adopting ON MURF1060 fast diode.

4. PCB wiring should be neat, as straight and short as possible, and thick tin should be laid in areas with high current.

5. X capacitor 0.1U, Y capacitor 3300P, common mode inductor flat wire 8M8A (small volume, high current).

Parameters:

Package list:

1 × JE1 EMI filter board
