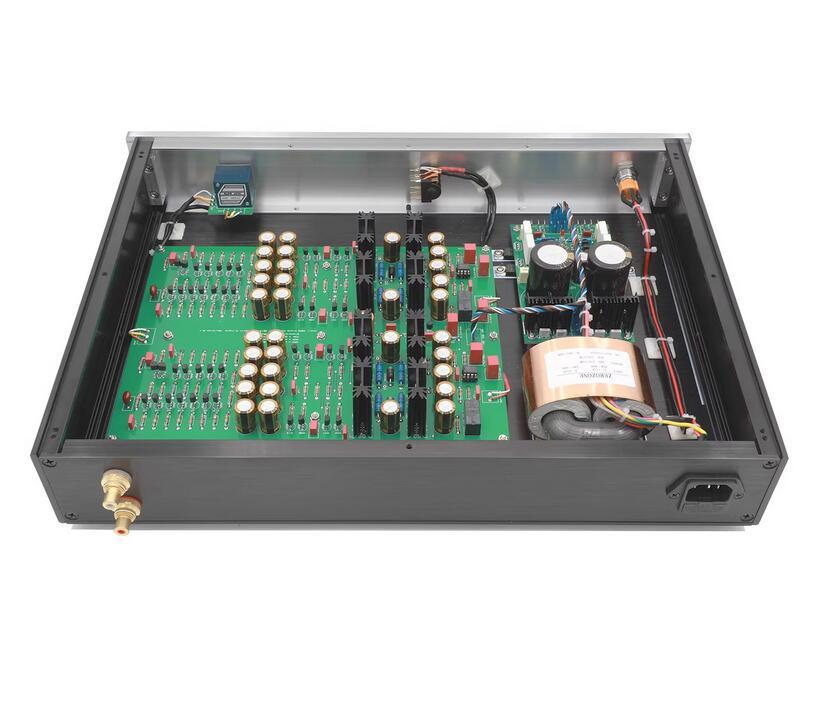

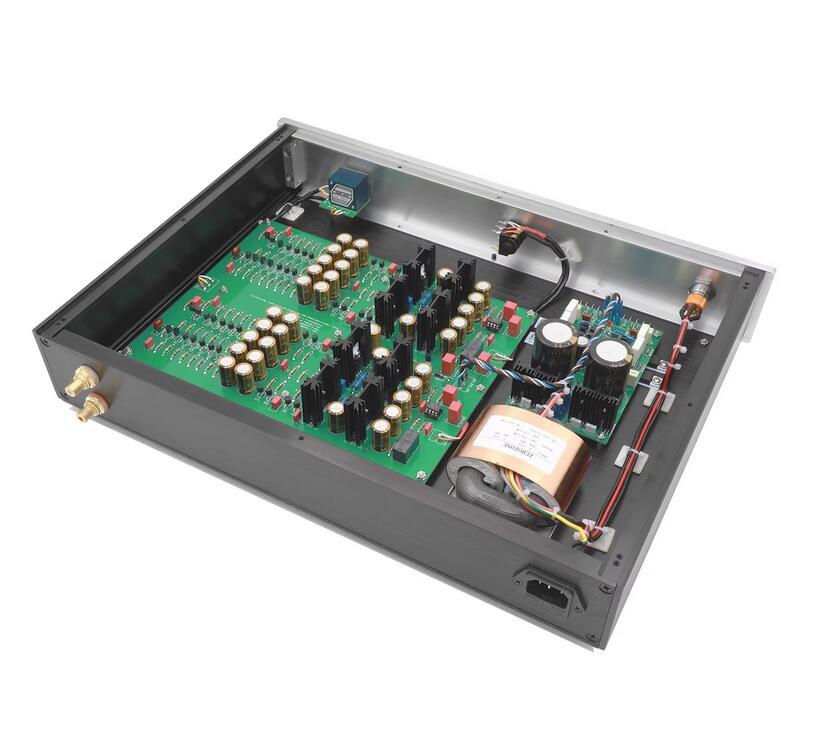

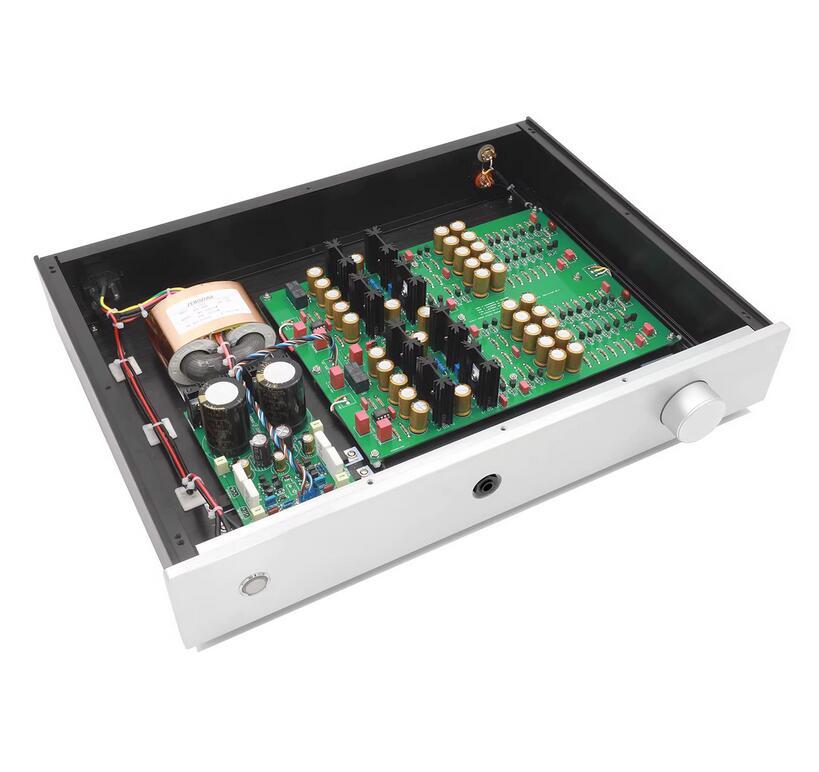

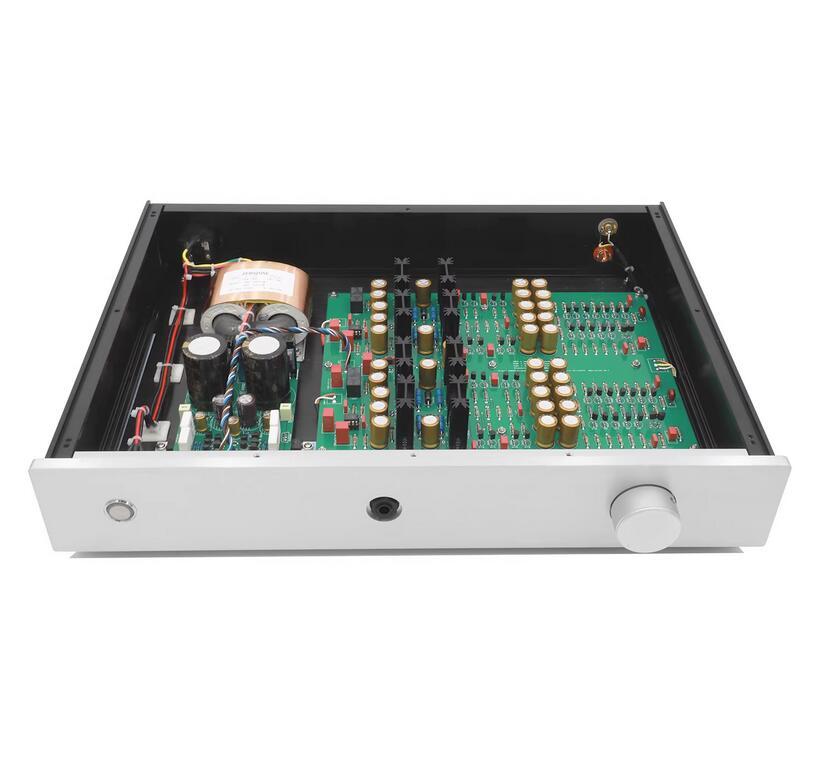

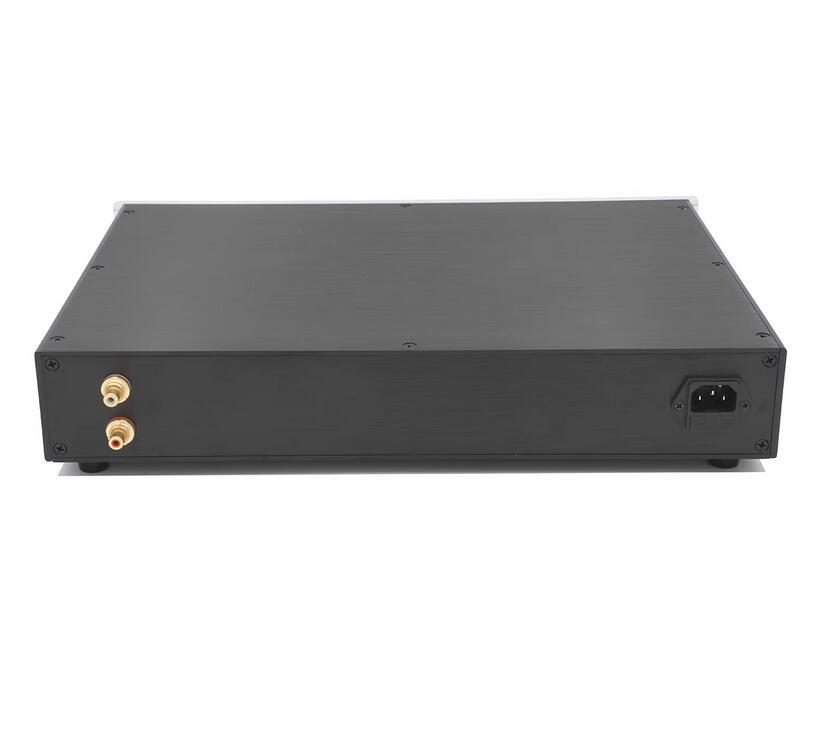

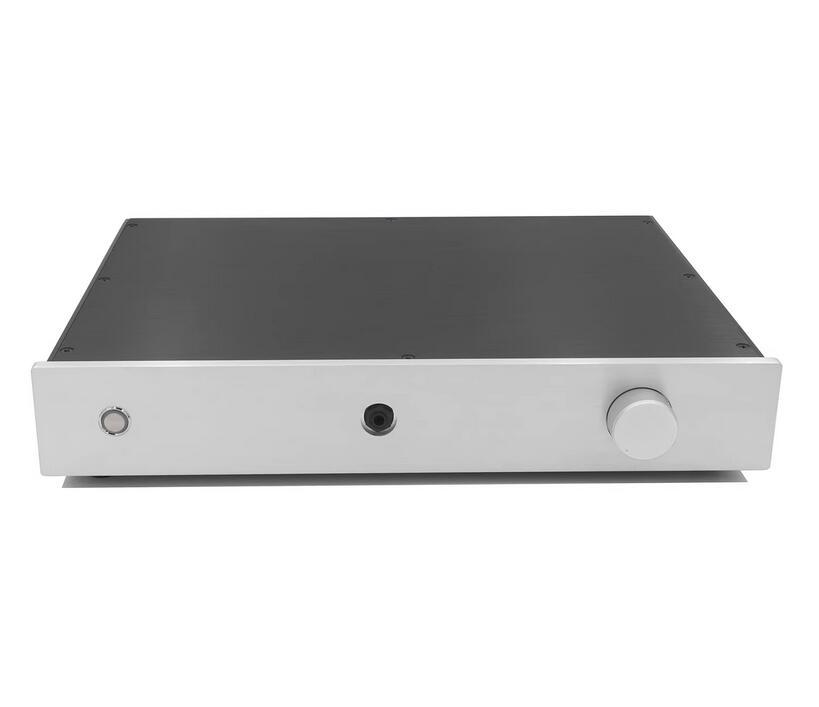

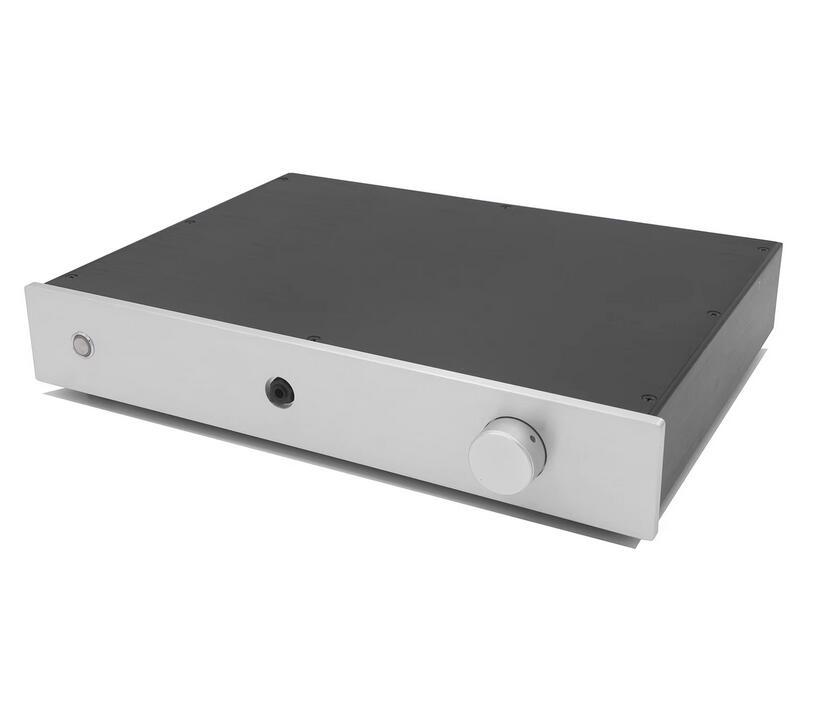

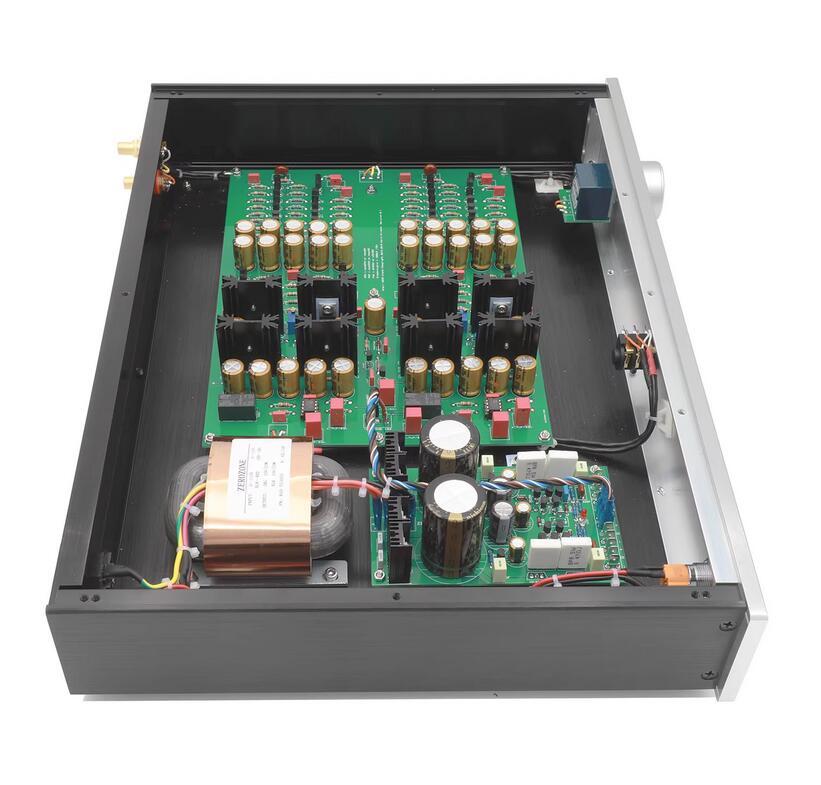

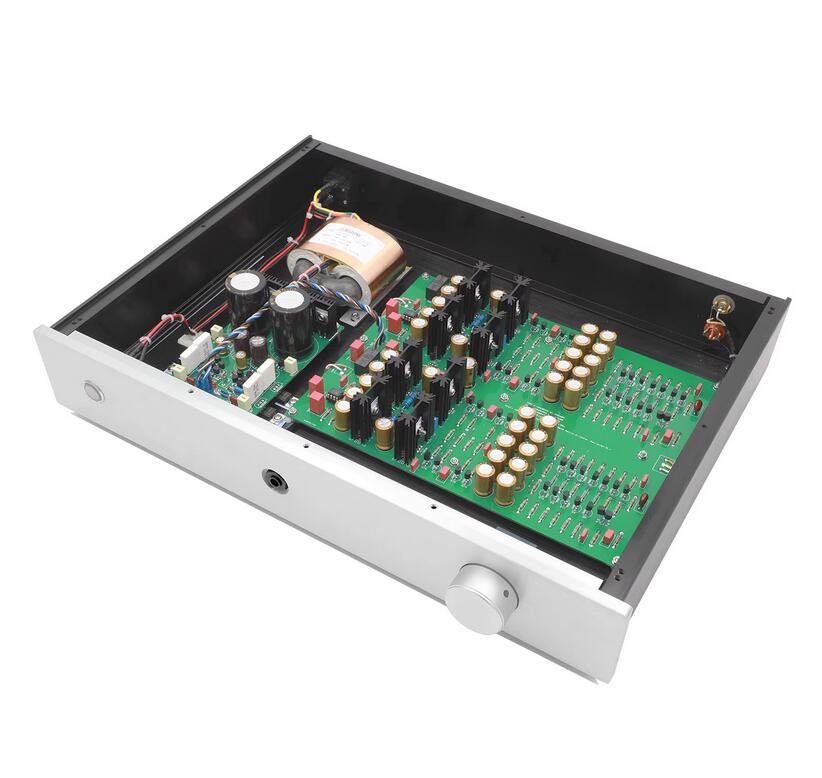

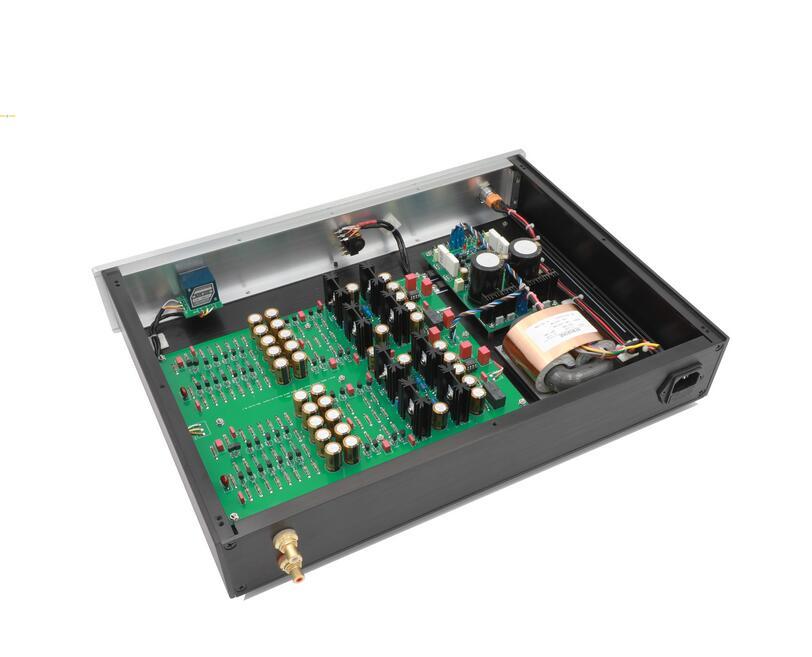

Kevin Gilmore Classic Circuit KSA5 Headphone Amplifier With Sigama22 Power Supply
This version of the amplifier PCB file was designed by the great design guru Dr. Kevin Gilmore.
It is the closest to the original KSA5 sound. Its effect and influence are not comparable to the core board or the increase or decrease version.
Features of accessories: mainly 718 military-standard resistors, equipped with Taiwan-made output power resistors. The capacitor part uses German Weimar capacitors. Nichicon capacitors as capacitor theme. Make the sound more delicate. More detailed sound.
The triode is used with 1% precision pairing. Fully symmetrical design. The input transistor adopts ON Semiconductor and Toshiba K246. Regardless of the cost, HIFI level material selection.
Power Servo:
Using the famous American power circuit. Sigama22 power supply. uV level ripple power supply. reject other distractions. Let the KSA5 show off its strengths. Let the high and low frequencies of the music be better extended.
Size: 430 X 70 X 300mm (excluding protrusions)
input voltage: AC220V/ AC110V
