product description:
KP182/4 series electronic load can be widely used in LED lighting, power supply, charger, battery and other industries to test and age products. Its current mode can be used to simulate a resistive load to discharge the battery and carry it to the power supply; its voltage mode can be used to simulate a capacitive load to the charger, and can simulate the constant voltage characteristics of the LED to the LED driver. It is easy to use, easy to adjust, and has perfect protection function. Its performance and function are unmatched by traditional sliding wire resistors. It can greatly improve production efficiency and reduce cost in the phase industry.
The KP182/4 series features special features and benefits:
● It has four basic load modes: CC, CV, CW and CR.
● Input positive and negative reverse connection protection and alarm;

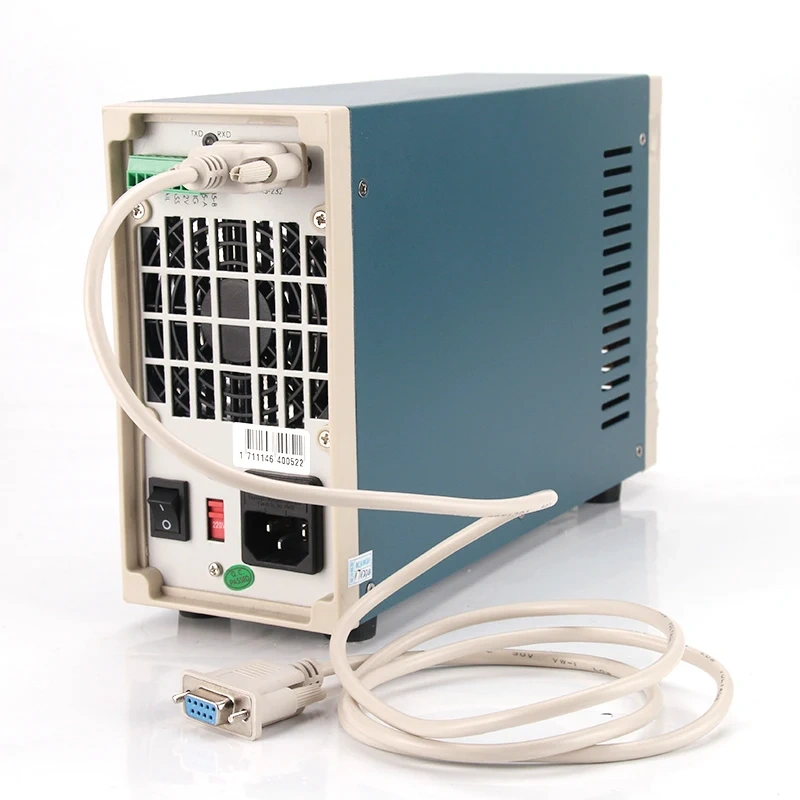

● Optimized heat dissipation structure to achieve high power density;
●Digital control method with high precision and good stability;
● With over voltage, over current, over power, over temperature protection;
● Voltage remote measurement function;
●Automatic test function with external I/O trigger signal, PASS, FAIL indication signal (KP184 only);
● 10KHz dynamic test function;
● battery capacity test function;
● Battery internal resistance test function;
●Overcurrent protection point/protection time test function;
●Fan PWM temperature control;
●Power supply 110VAC/220VAC switching use (KP184 only);
● RS485, 232 communication interface, MODBUS protocol (KP184 only);
●Multiple load online synchronization operation function (KP184 only);
● Powerful and user-friendly PC software support (KP184 only);
-

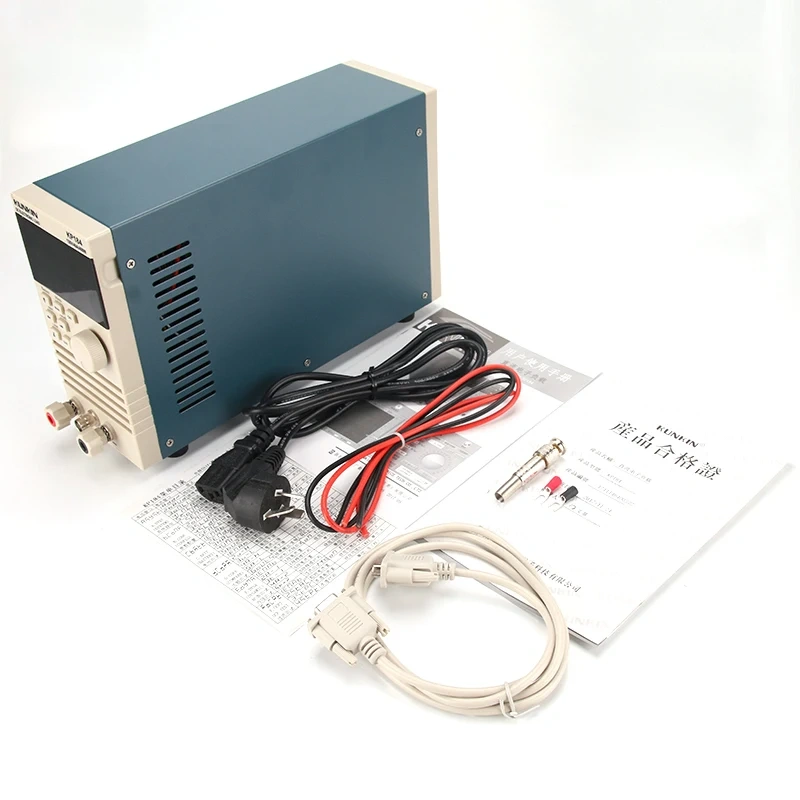

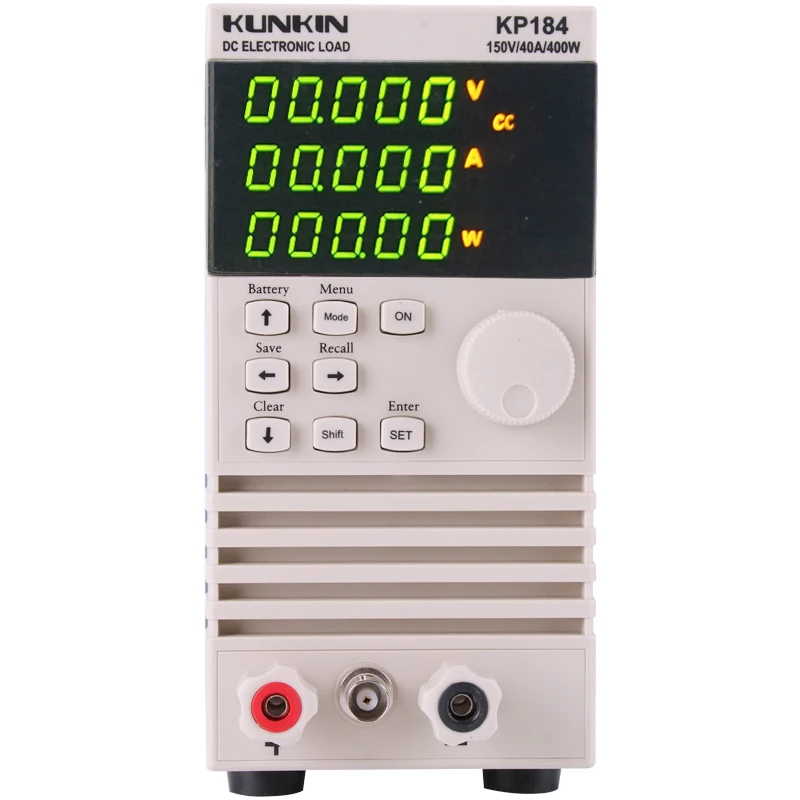

High-precision electronic load meter for battery testing The KUNKIN KP182/KP184 electronic load meter delivers accurate power testing with a capacity of 200W/400W, ideal for battery capacity and aging analysis in commercial manufacturing environments.
-
Robust construction for long-term use Made from aluminium-copper alloy, this instrument ensures durability and efficient heat dissipation, making it suitable for continuous operation during extended power testing sessions.
-
Compact and lightweight design With a package size of 15 x 15 x 15 cm and a weight of 4.8 kg, the device is easy to transport and store, offering convenient handling for industrial and lab-based applications.
-
Universal compatibility with power tools Designed as a Power Tool Part, this load meter supports various battery systems and is widely used in commercial manufacturing for reliable performance evaluation.
-
Single-piece standard packaging Each pack includes 1 piece of the electronic load meter, ensuring straightforward ordering and immediate use without additional components or assembly required.
Non-customized, ready-to-use solution As a non-customized product, the KUNKIN KP182/KP184 offers a plug-and-play testing solution, perfect for users who need a reliable, off-the-shelf instrument for battery assessment.
- Available in two model variants Choose between KP182 and KP184 models, both designed for high-performance battery testing with consistent accuracy and stable output under demanding conditions.
