Product Details:
PassA30 pure A amplifier is a warm sound amplifier The sound is warm and delicate, while low-frequency diving The control and damping are also very perfect. With a power of 30W, it performs well with different audio systems Due to the more reasonable circuit design and extremely low noise, it is only possible to hear a little bit by sticking your ear to the speaker at night when it is still.

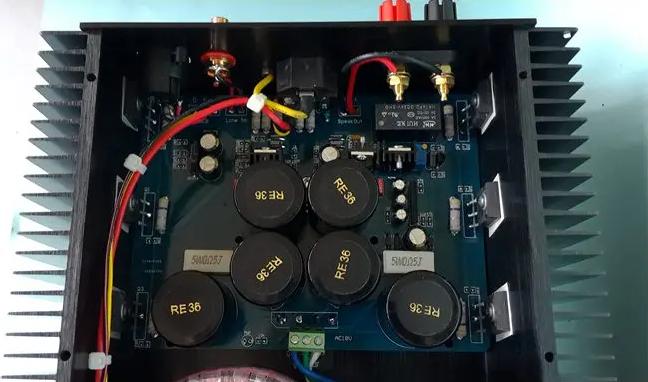

1:) Basically faithful to the classic PassA30 circuit Stable performance.

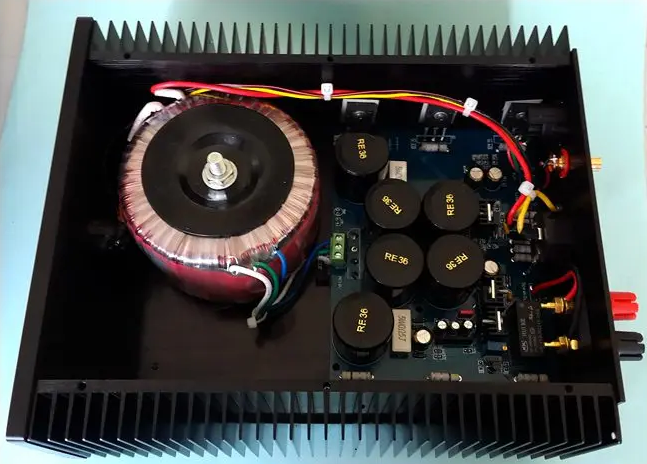

2:) 200W high-quality toroidal transformer power supply.

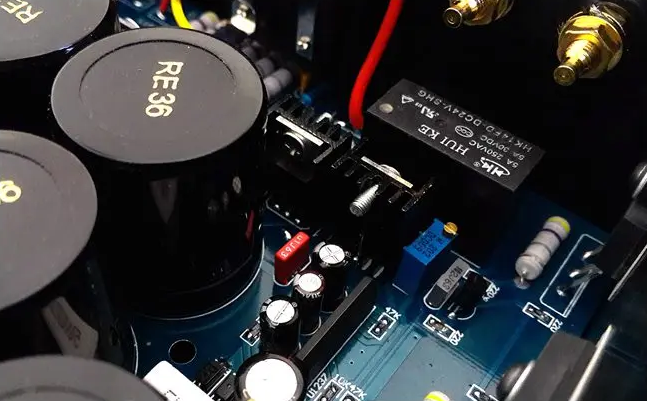

3:) CRC filtering is composed of 6 Nover 10000uf capacitors, with a total filtering capacity of 60000uf.
4:) Joining the upc1237 horn protection system, there is absolutely no impact sound when turning on or off the device.
5:) Equipped with midpoint DC protection, effectively protecting your audio equipment.
6:) Three pairs of paired high-power field-effect transistors are connected in parallel for current expansion output, ensuring driving force.
7:) Single channel design The left and right channels are completely separated.
8:) This amplifier is designed for mono sound. If you need stereo sound, please purchase 2 of them.
Specifications:
Maximum undistorted output power: 30W 1KHz undistorted continuous power.
Distortion: 1KHz sine wave 30W output<0.01%;
Input sensitivity:< 2Vrms.
Amplifier voltage gain: 11 times.
Input voltage: AC220V /110V
Maximum power consumption:< 110W
Volume: 280 * 212 * 90mm
Weight: about 6.8Kg
Package List:
1 × Finished Pass A30 amplifier
For transportation safety, no power intput cable is provided.
