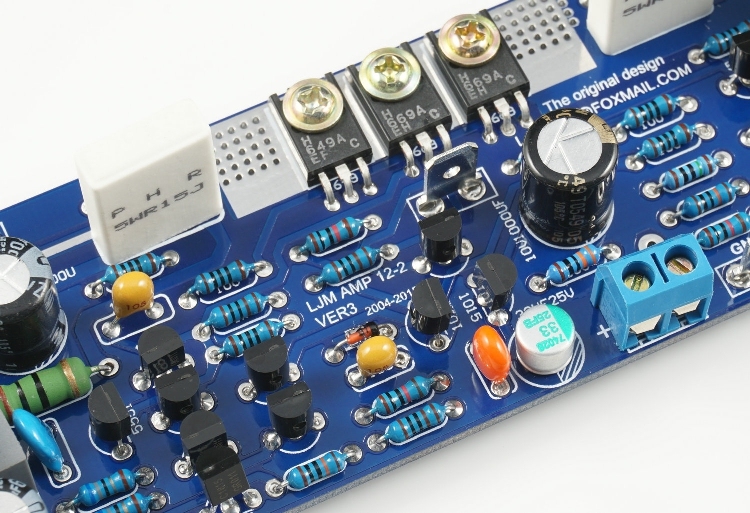

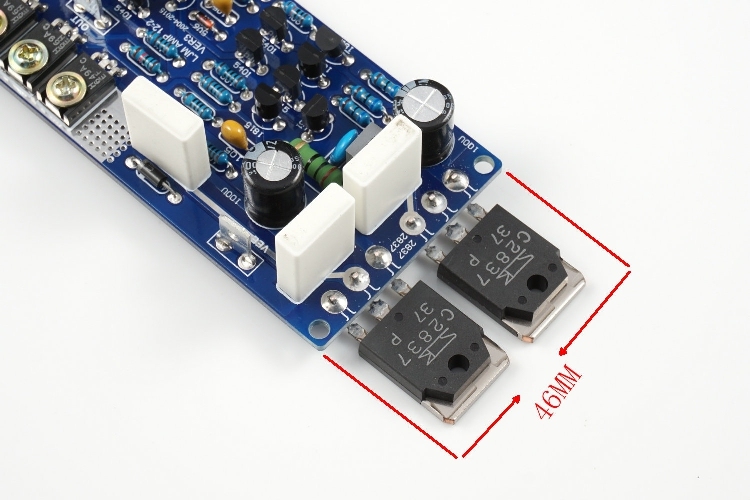

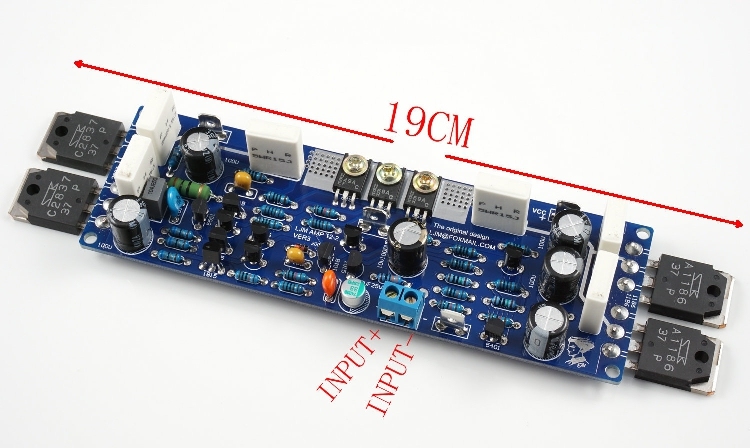

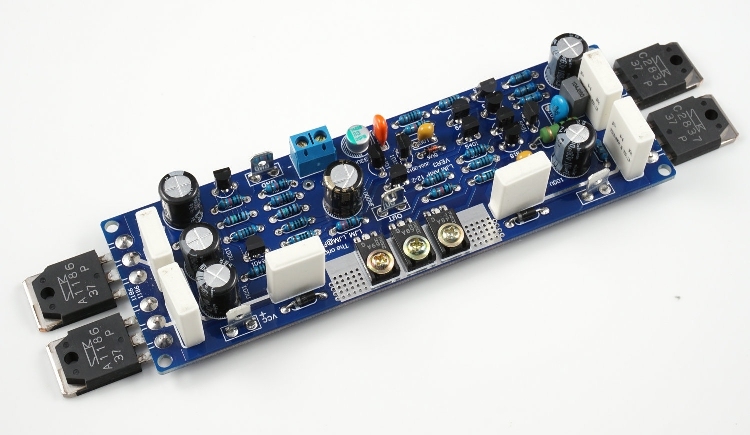

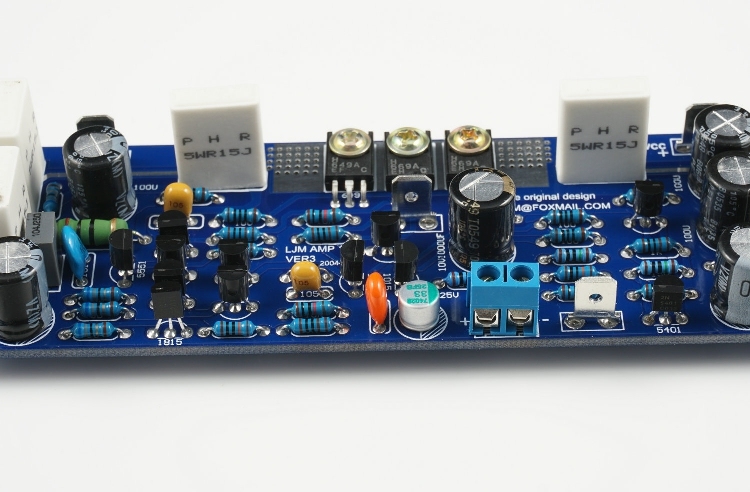

L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board

SKU:
L12-2 Ultra-low Distortion Amplifier Kit / Amplifier board
Limited Offer!
0.0 (0 Reviews)
3 Sold
$25.00 $23.50
-6%
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • voltage:
    amplifier kit
    finished board
Quantity:
-
+
Add to Favorites (1)
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
1/1
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • L12-2 Stereo Ultra-low Distortion 120W+120W Audio Power Amplifier Kit / Amplifier board
  • Description
Product details:


L12-2 Stable and reliable, with first-class performance，It is more suitable for professional users who have very high requirements for details. Its voice is a bit cold and hard.


Parameters:

Input voltage range: DC +/- Dual Voltage +/- 12V - +/- 55V
Power: 120W / 8R +/- 50V voltage
             200W / 4R +/- 50V voltage
THD: <0.0005% 1KHz 10W
SR: 35V/US
Damping factor: > 200, 8ohm load
Input Sensitivity: 1.6V Output 120W 8R
Frequency range: 15Hz - 50KHz (-3DB)
Quiescent Current: 80mA
Voltage magnification: 31 times

PCB Size: 144mm*45mm





NOTE: We have DIY kit or Finished board (Optional)


◆ DIY kit ---- All parts need you to solder and test it.
◆ Finished board ---- All parts have been welded and tested OK.

List：

L12-2 Amplifier Kit / Amplifier board(Optional)
