Bundle 1
Bundle 1 does not have USB input function.
Bundle 2

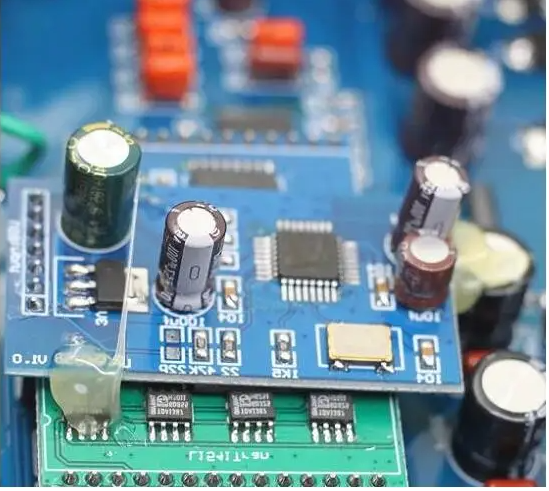

Using PCM2706 USB subcard.
PCM2706 USB is stable and mature.
Not using HOST power supply method, the power supply is stabilized to improve stability.
An active crystal oscillator provides a stable clock.
SPDIF output level waveform shaping.
Support frequency: 44.1K, 48K
Bit width: 16 bits.
Bundle 3

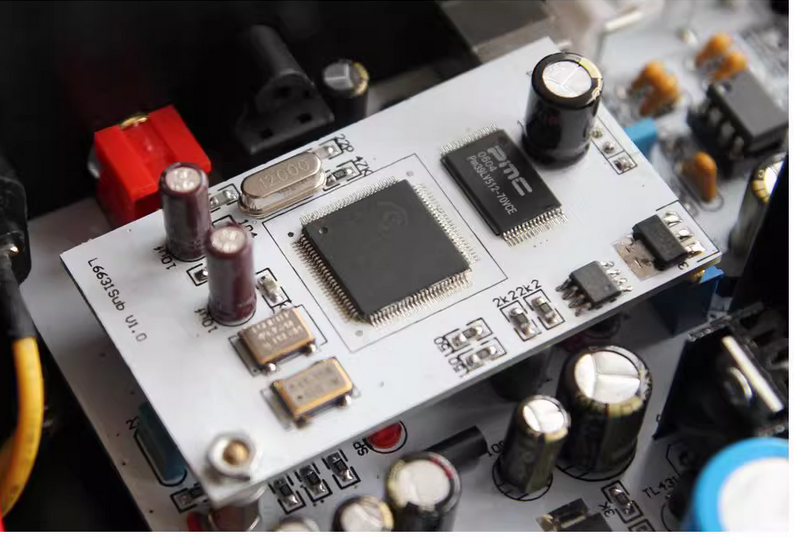

Using CM6631 24Bit 192K USB asynchronous subcard.
Product Details:

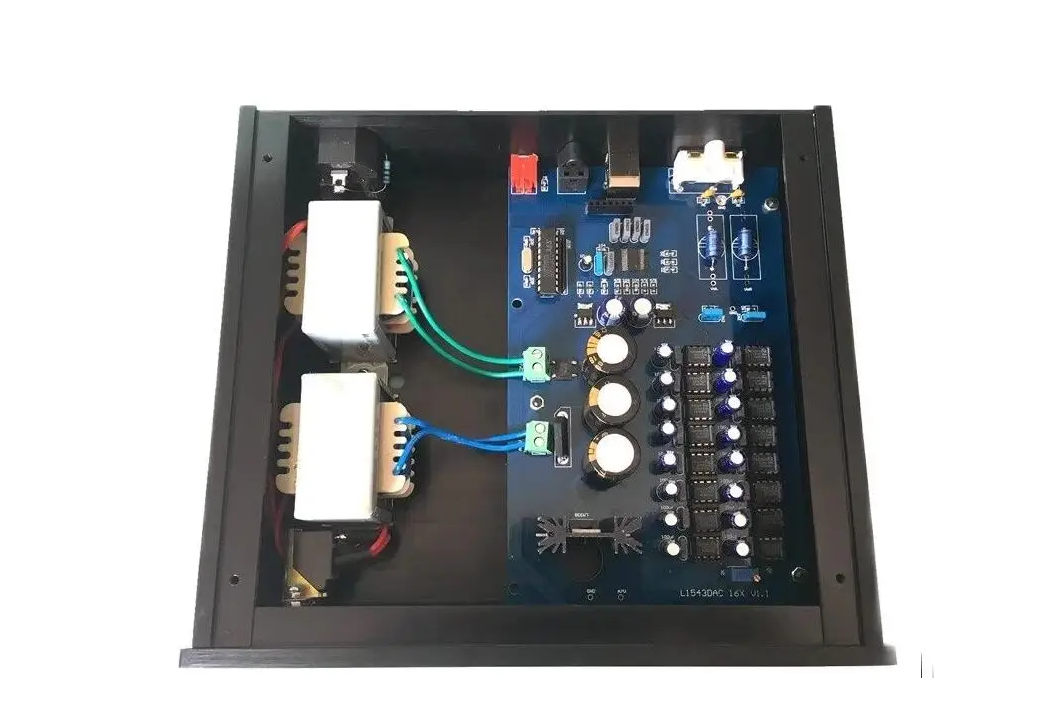

① Use two transformers to supply power. Digital part and analog part of the independent power supply, the sound more clean.
② Using 16PCS TDA1543 decoder chip Parallel connection.
③ Using PCM2706 or CM6631 USB subcard. (Bundle 1 does not have USB)

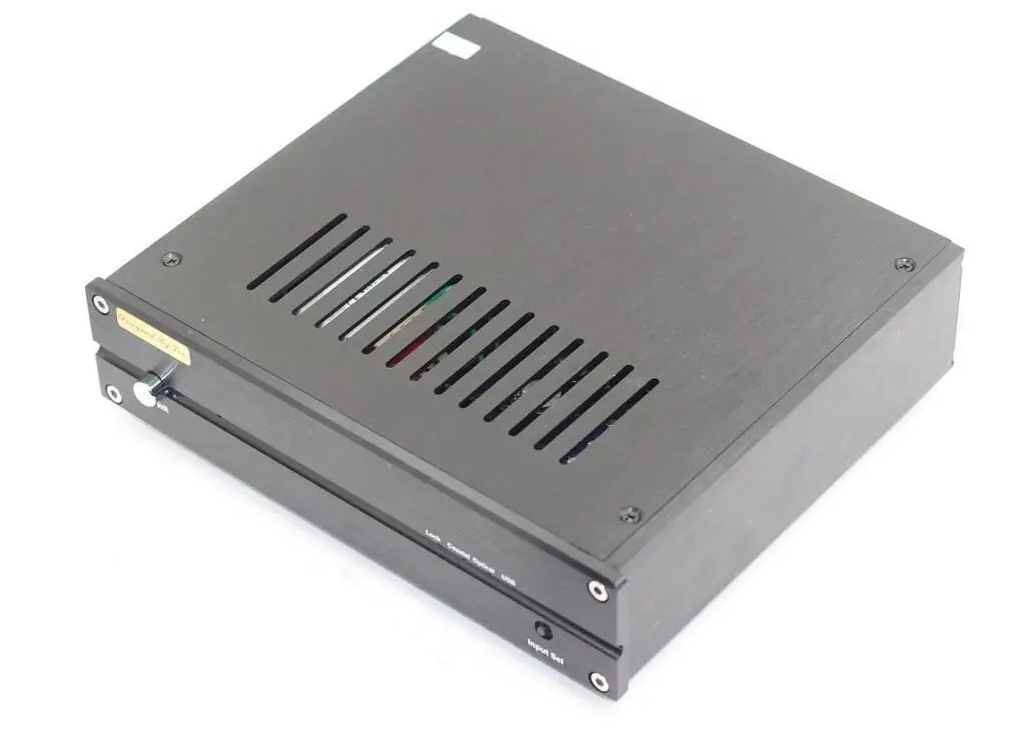

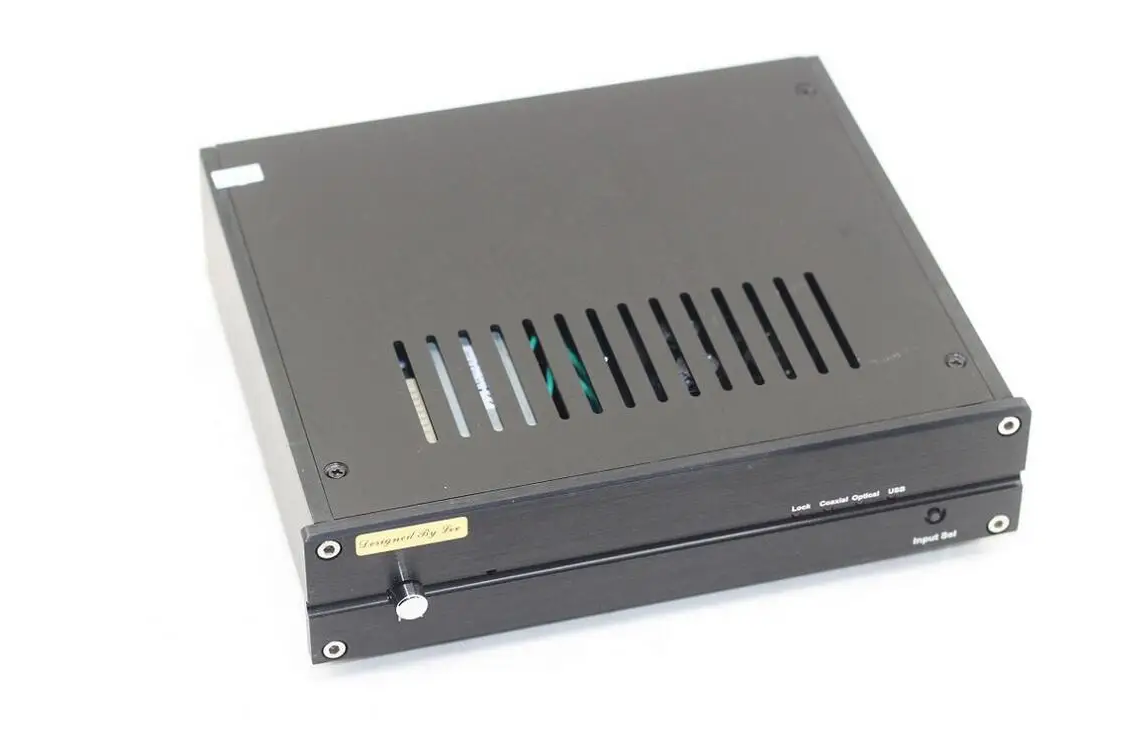

④ Using aluminum chassis.
⑤ Active crystal provides a stable clock.
⑥ SPDIF output level waveform shaping.
Specifications:

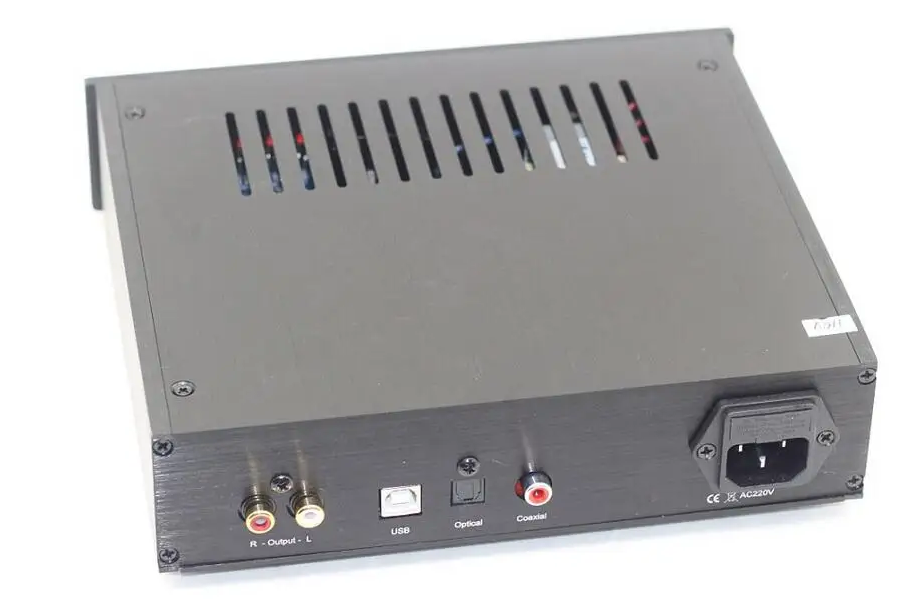

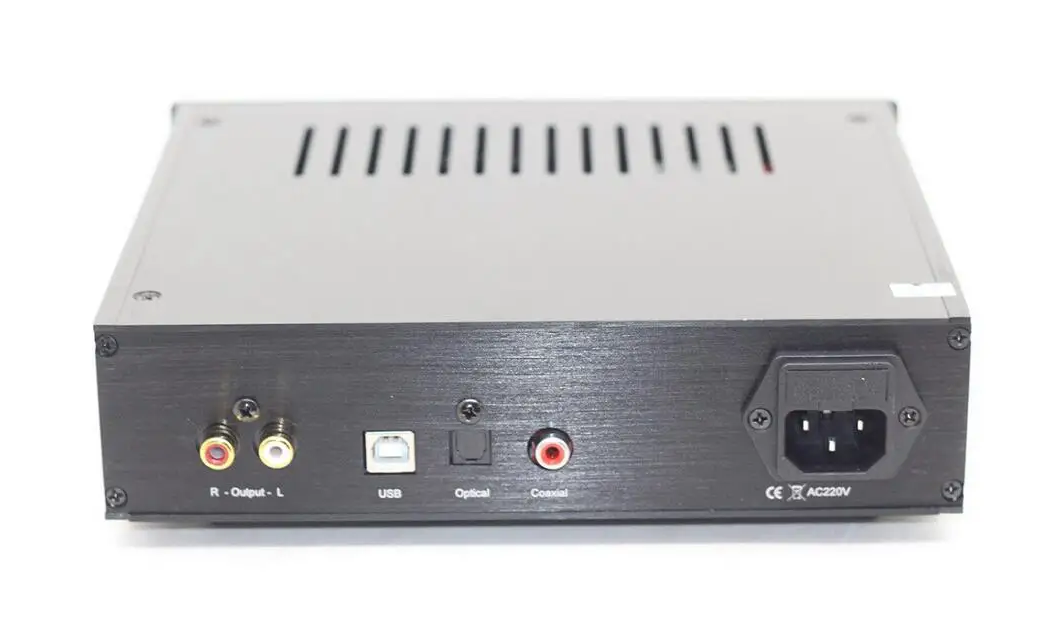

Digital input: coaxial, fiber, USB
Analog output: RCA analog output.
Digital input bit rate: 44.1K -96K.
Analog output level: 3.2Vrms.
Power supply: AC110V or AC220V. (Optional)
PCM2706 USB support frequency: 44.1K, 48K, Bit width: 16bit.
CM6631 USB support frequency: 192K, Bit width: 24bit.
Volume: Width 220MM * High 52MM * Deep 191MM
Weight: 2.8KG
Package list:
1 × Finished TDA1543 USB Decoder
