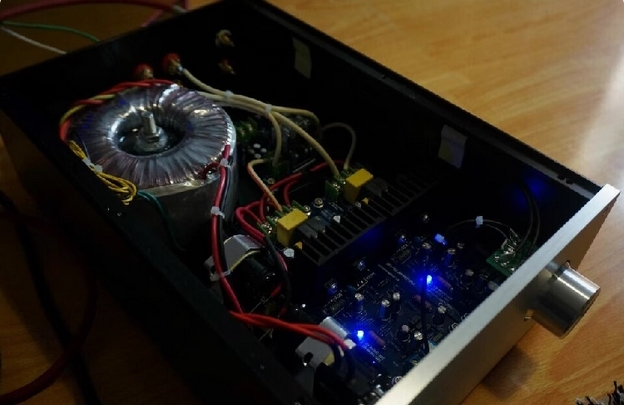

L15D class D 150W*2 stereo HIFI DIY digital amplifier with Protection circuit

Product Details:

1:) 150W * 2 high-power output.

2:) Based on the original design of IRAUDAMP7 IR company.

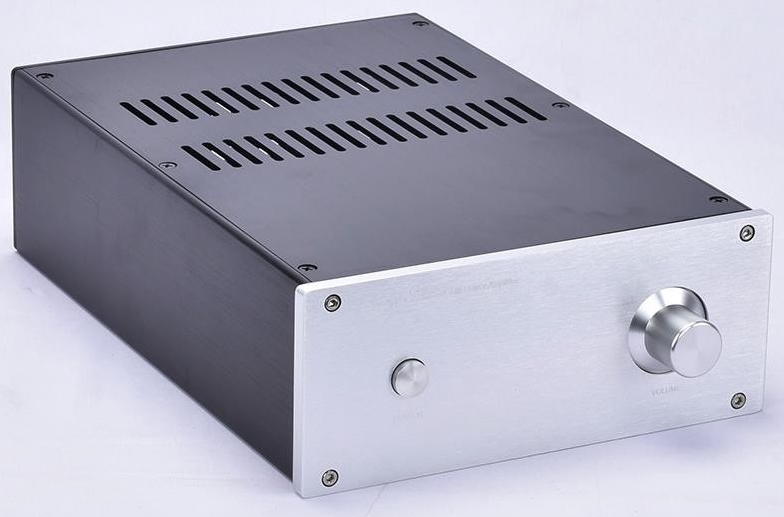

3:) Adopting the IRS2092S main chip IRFI4019 Field Effect Transistor.

4:) Comes with DC output cut-off protection. Short circuit output protection. Overload protection..

5:) All aluminum alloy chassis.

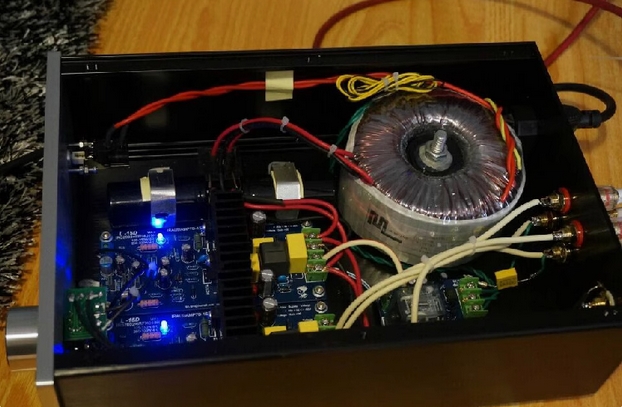

6:) Customized high-quality Toroidal pure copper transformer.


Specifications:

 Input voltage: AC115V/230V

Output power: 150W+1500W 8Ω

Output impedance: 4-16Ω

Size: 220 * 310 * 90mm

Weight: about 5.2kg

Distortion: 0.0.5%

Size: 220*90*311mm


Package list:

1 × Finished 15D amplifier
