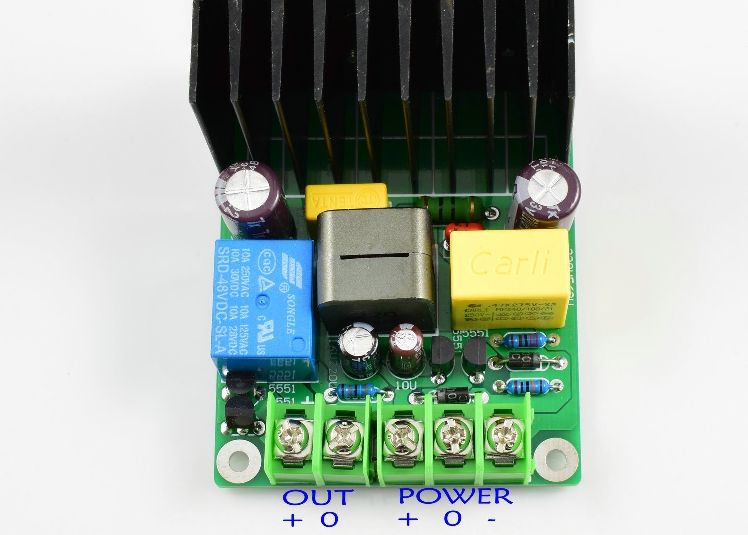

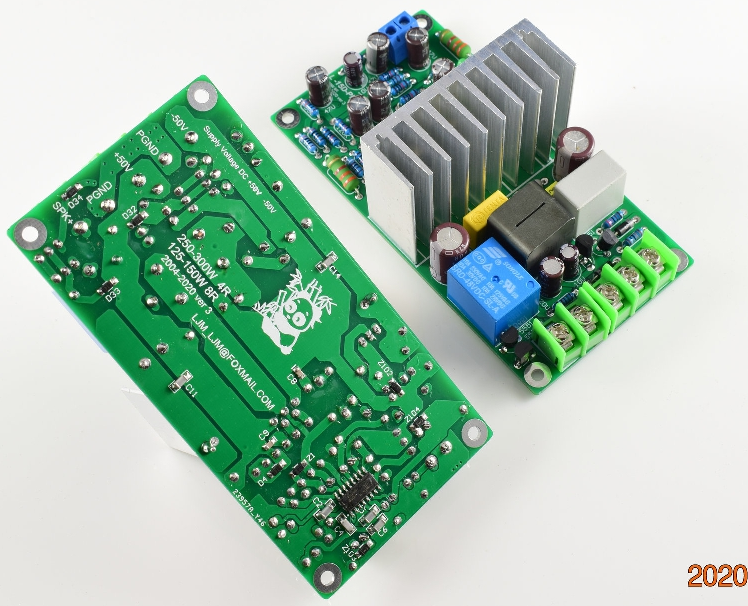

1 pair L15D-PRO Class D Dual Channel IRS2092 IRFB4019 Power Amplifier Board DIY kit

Product details:

L15D-PRO refers to the original design of IRAUDAMP7 IR company The main chip adopts the original imported IRS2092S. And IR company's digital audio dedicated MOSFET field-effect transistor IRFI4019. Very minimal distortion.

Product parameters

Input voltage DC:+-35V to+-50V
Power: 150W 8R THD<0.05%
300W 4R       THD<0.06%

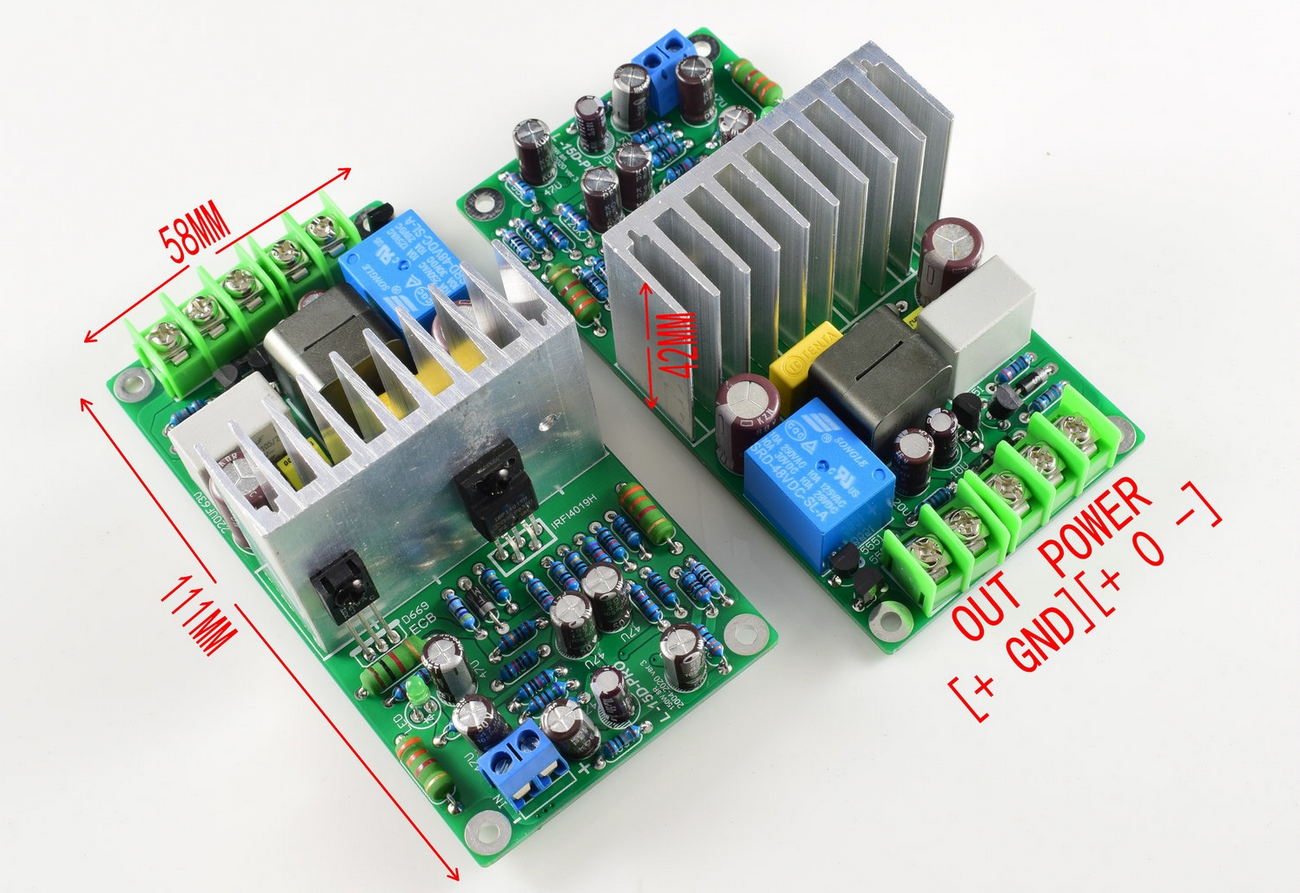

147 * 60 mm in length and width.

Packing list

2 × L15D-PRO Amplifier

NOTE: This is a mono Finished board, We have welded and tested OK. If you create a stereo, you need to purchase 2 pieces.
