L1794A5 PCM1794USB Bluetooth LA5 Pure Class A High Current Decoding and Headphone Amplifier All-in-one Machine

headphone amplifier parameters:
Headphone impedance: 16-600 ohms
Distortion:<0.01% @ 1kHz Vppm=20V RL=300
ohm
Output noise level: 92dB
Output impedance: 1KHZ sine wave equivalent without loss of true power
Rate: 300mW/600 ohms, 1200mW/32 ohms.
Comprehensive parameters:
Power consumption: less than 30W.
Input sensitivity and impedance: 100mV/5oK
Random accessories: power cord
Volume (length, width, height excluding protruding parts) and weight:
230*190*45mm、 About 3KG

Decoding parameters
Input interface: Bluetooth, USB square port
Input format: PCM44.1-96K
Bluetooth support format: LDAC.APTX
APTX HD,AACSBCo

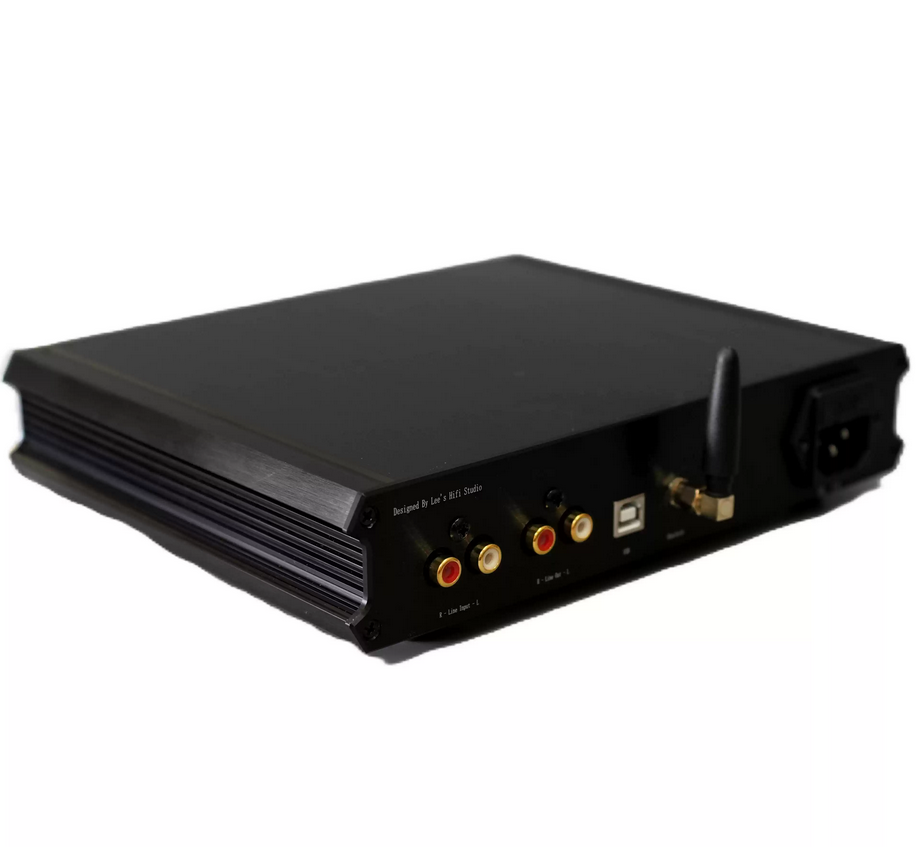

Line output: RCA Lotus stereo socket
Line output level: 2.8Vppm
THD+N:-129dB

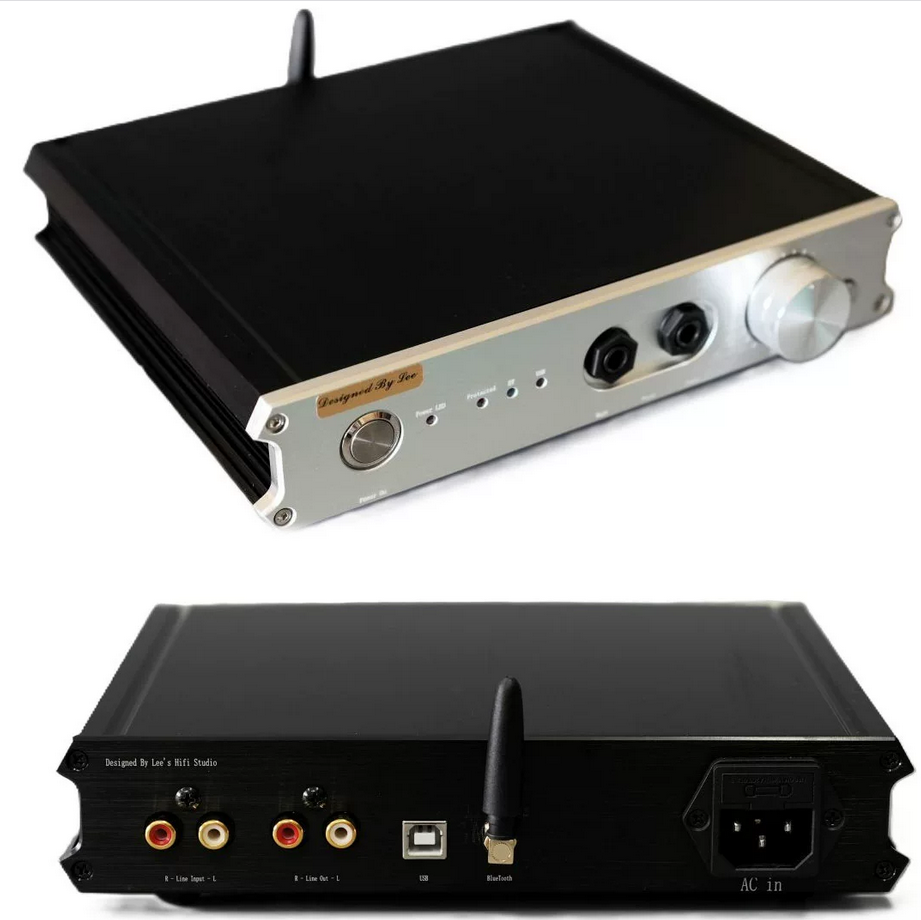

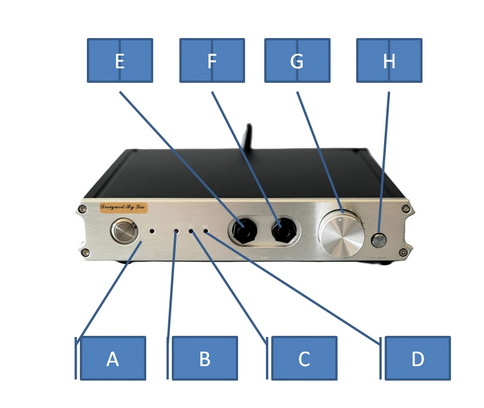

Introduction to Front Panel Functions
A: Power switch and power indicator light
B: Protection circuit connected indicator light, power on
Delay internal self-test completion, click a few seconds later
bright
C: Bluetooth indicator light, flashing when not connected
Always on when connected
D: USB playback indicator light
E: High power 6.5mm headphone output socket
F: Standard power 6.5 headphone output socket
G: Earphone output volume adjustment knob
H: Input the selection switch and press to switch
Switch to pure headphone amplifier mode, which can be connected later
Proposed input device.
