LA5se MOS-FET HIFI mini Pure Class A headphone amplifier

Name: LA5se MOS-FET HIFI mini Pure Class A headphone amplifier
Brand: BRZ-hifi-audio
SKU: LA5se
Price: 86 USD
Availability: InStock

LA5se MOS-FET Pure Class A headphone amplifier

5.0 (0 Reviews)

3 Sold

$86.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (6)

1/1

Description

Product Details:

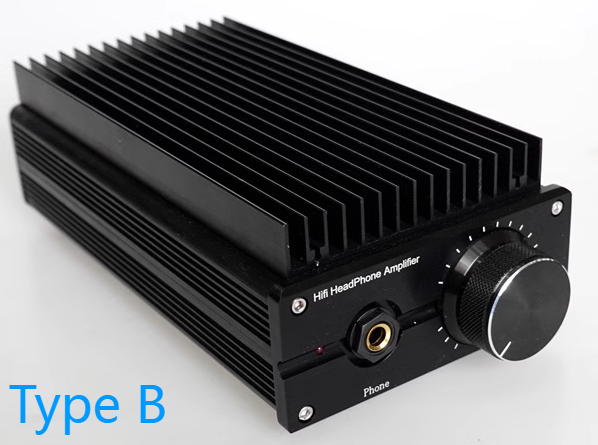

Type B has added a large exposed heat sink for enhanced heat dissipation The heat dissipation effect is better.

Specifications:

Output power (1KHZ sine wave equivalent undistorted power): 300mW/600 ohms, 1200mW/32 ohms.
Signal to Noise Ratio:>> 102dB.
Output impedance: 47 ohms.
Voltage amplification gain: 19 times in high gain mode.
Maximum output voltage swing: greater than plus or minus 13V (equivalent to 26V).

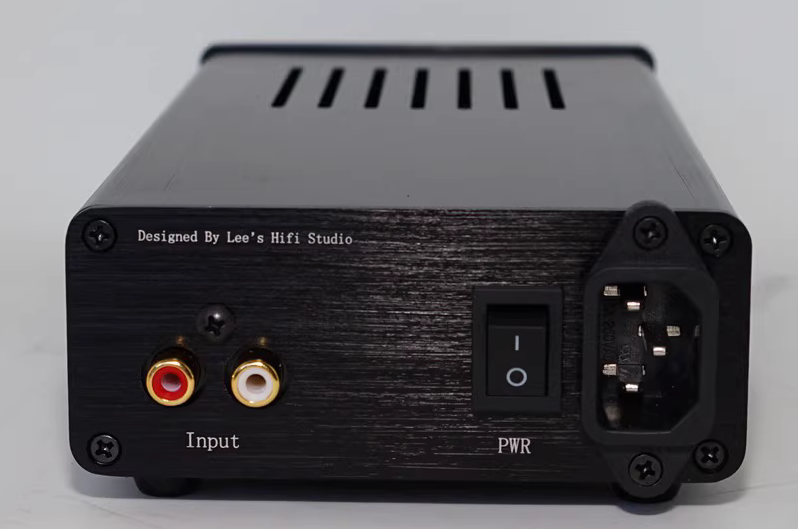

Input interface: RCA
Output interface: 6.35 headphone output.
Average power consumption: AC220V<15W。
Size: 118 * 52 * 210mm
Weight: 2.2 kilograms.

Package List:

1 × Finished headphone amplifier

For transportation safety, no power intput cable is provided.
