Description

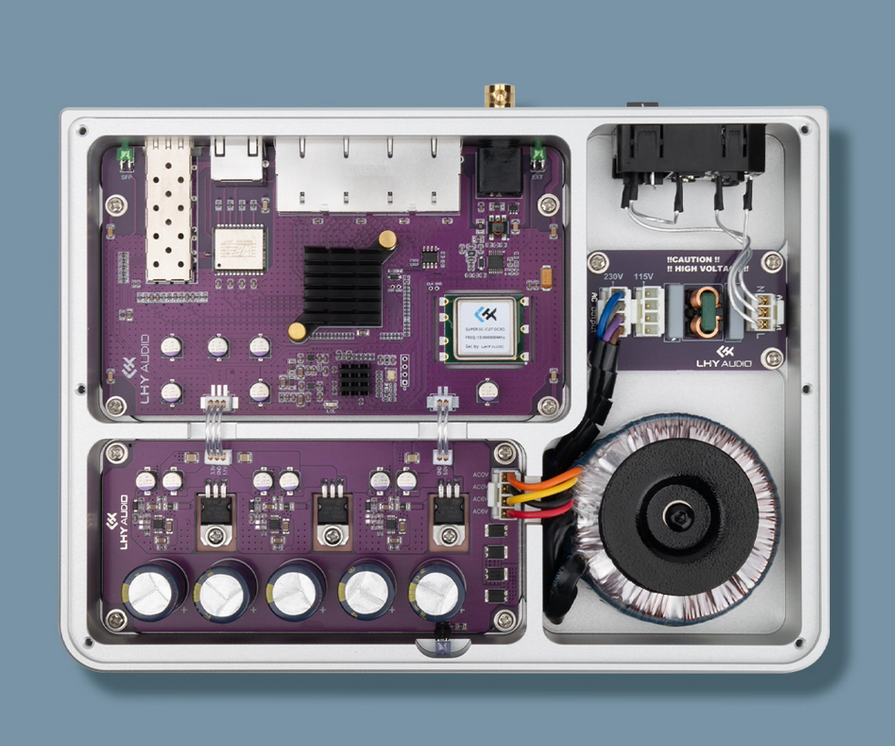

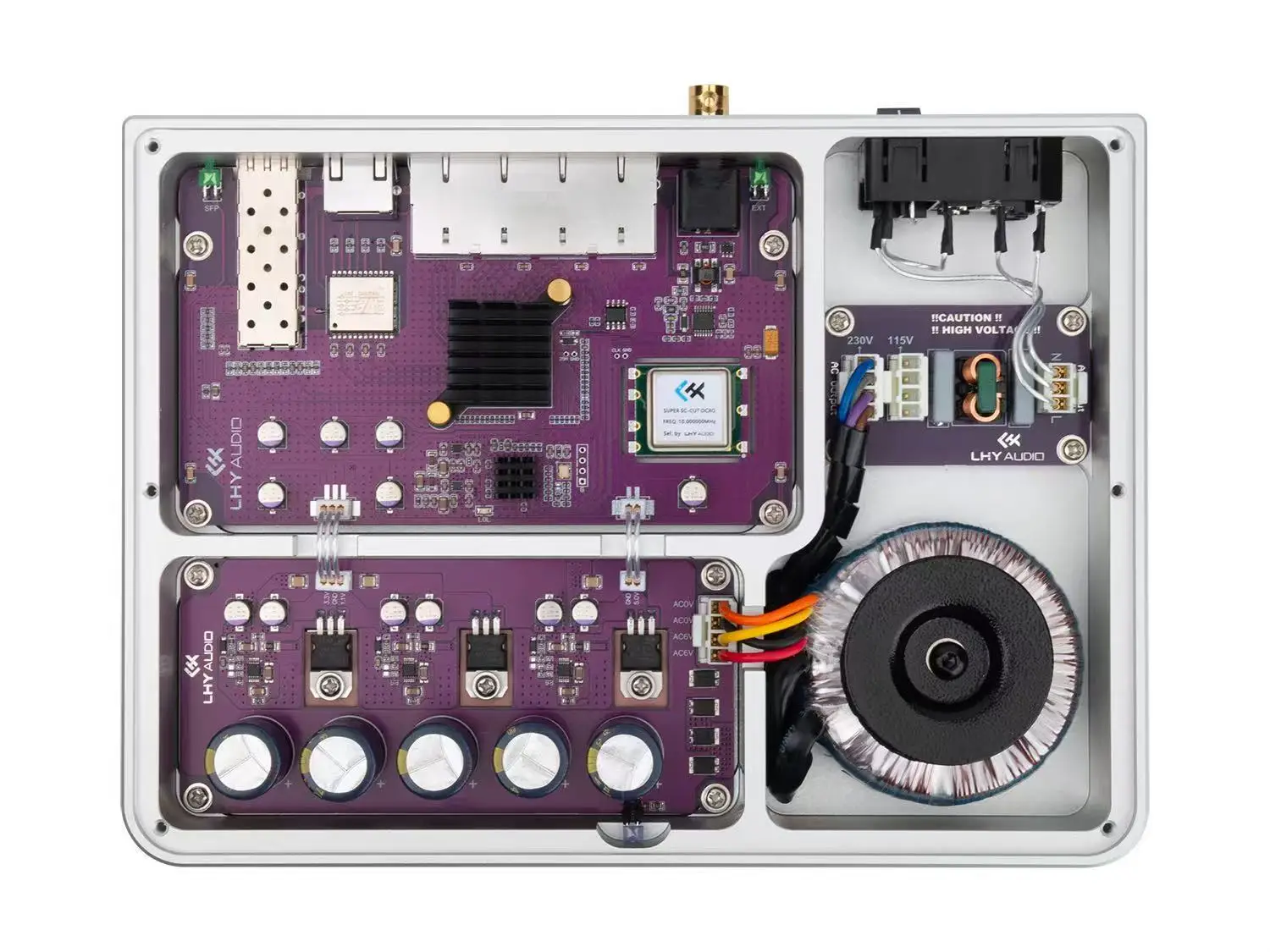

1: uV level pure linear power supply.

AS6 adopts three independent LT3042+PNP architecture uV level regulated power supplies to supply power to the constant temperature crystal oscillator and the motherboard respectively.

2: The ISOLATD network port independently uses imported network transformers.

All RJ45 ports of AS6 are designed with isolation, and an independent network transformer is used for ISOLATD ports to enhance the isolation effect and provide a purer network connection for digital audio equipment.

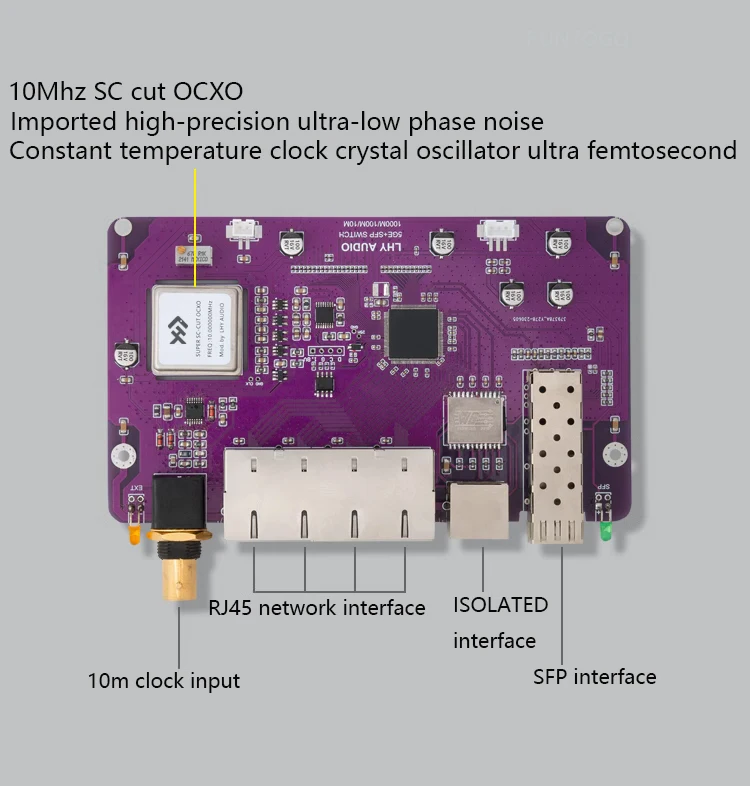

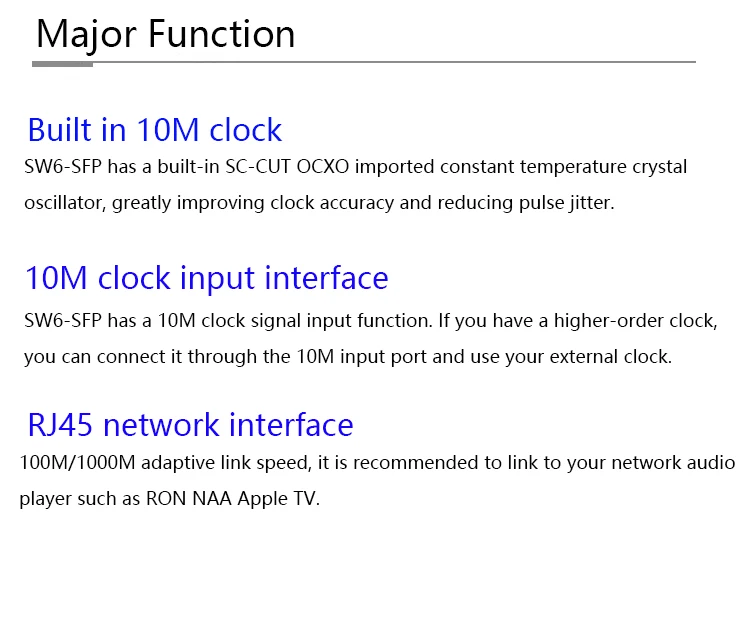

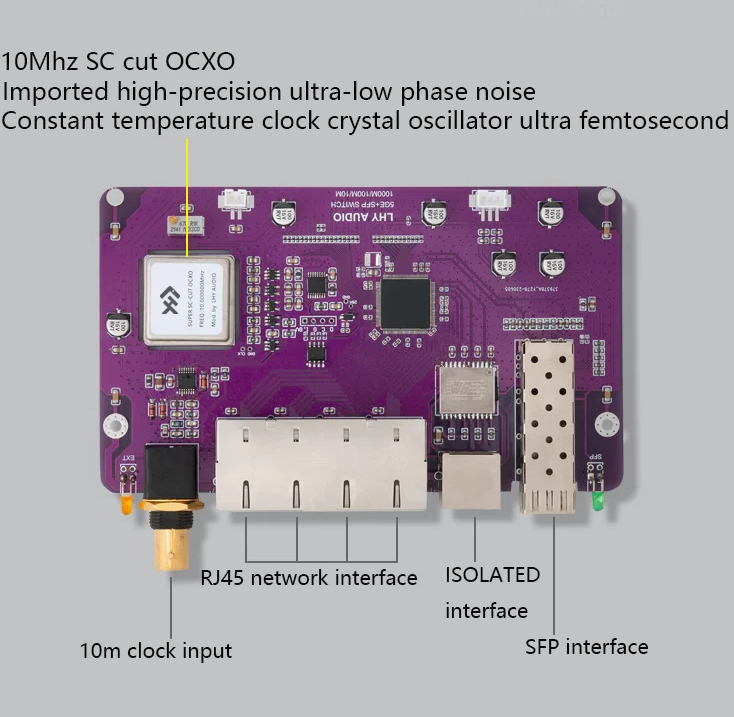

3: AS6 is equipped with an imported low phase noise high-precision 0CXO constant temperature crystal oscillator.

Provide precise working clock frequency for the switch controller, and if you already have a higher-level reference clock, you can connect it to the external clock BNC input port of AS6 to improve its performance.

4: EMI AC filtering/high-speed rectification filtering/large capacity multi-stage filtering lineup.

The built-in EMI AC filter in AS6 can effectively suppress and eliminate AC interference components; Multiple large capacity filtering capacitors in the DC power supply provide sufficient energy to the motherboard, fearless of any complex changes in music data.

Specifications

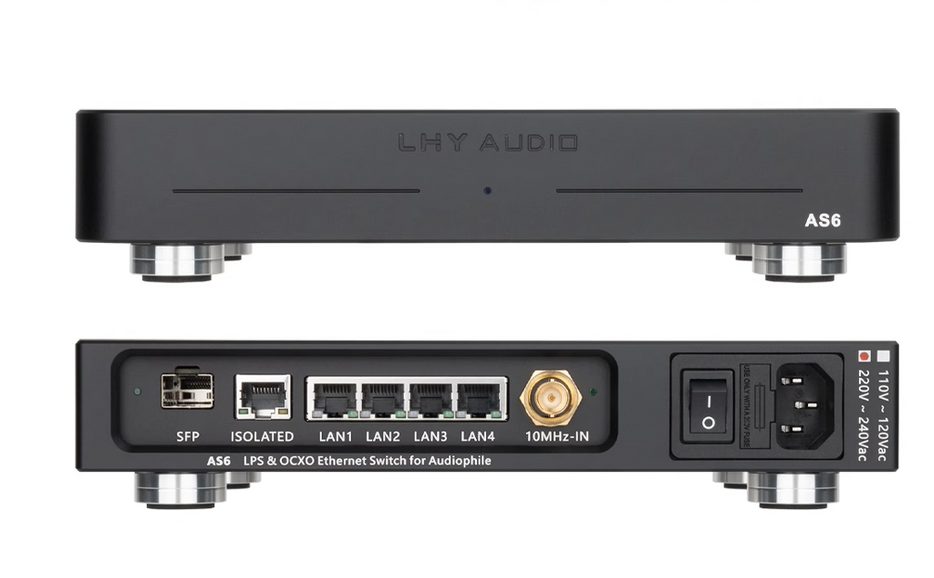

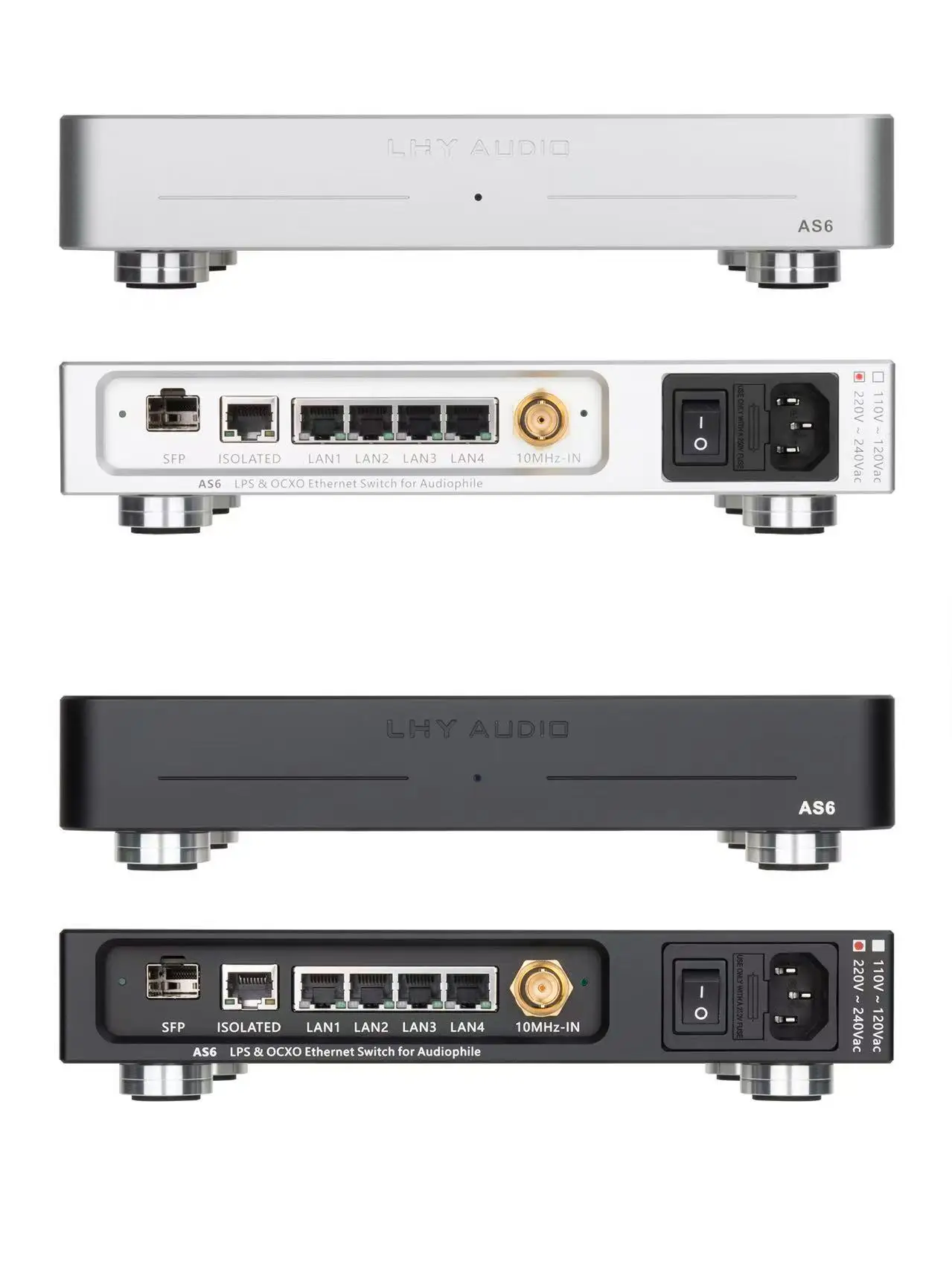

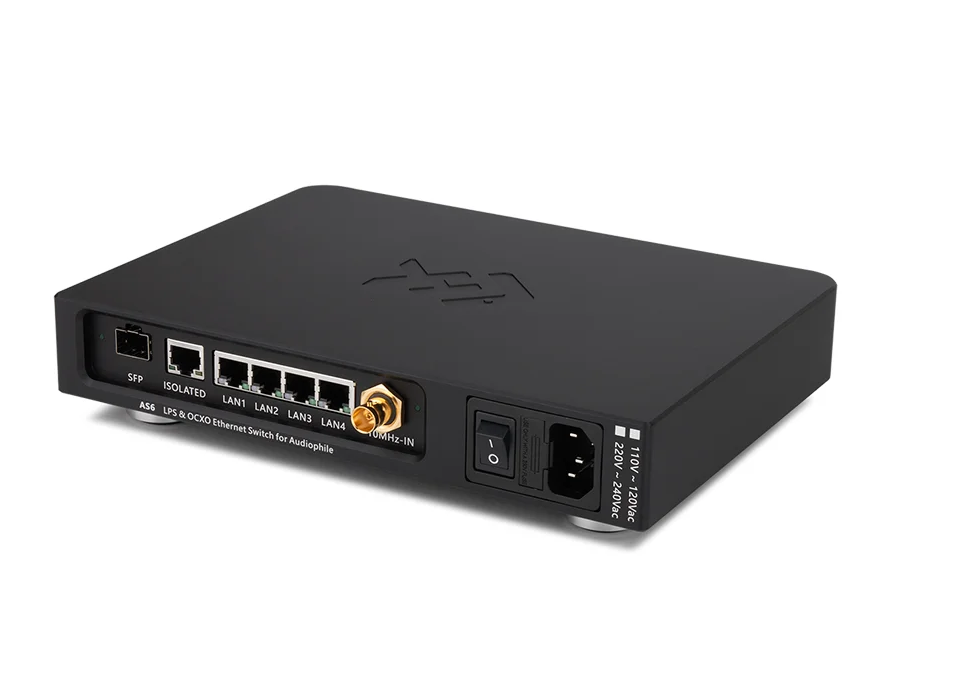

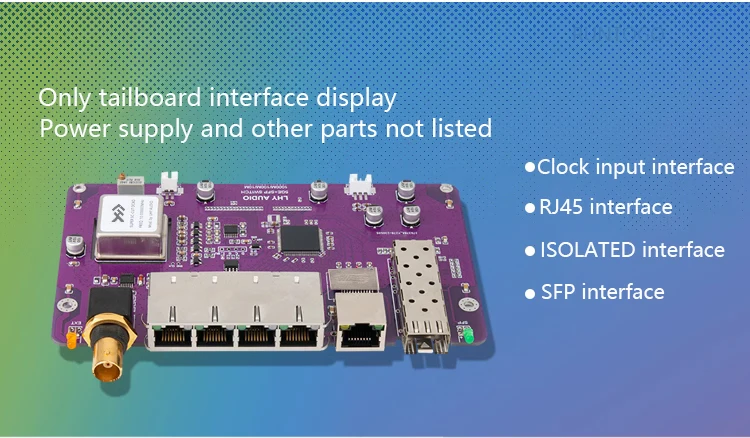

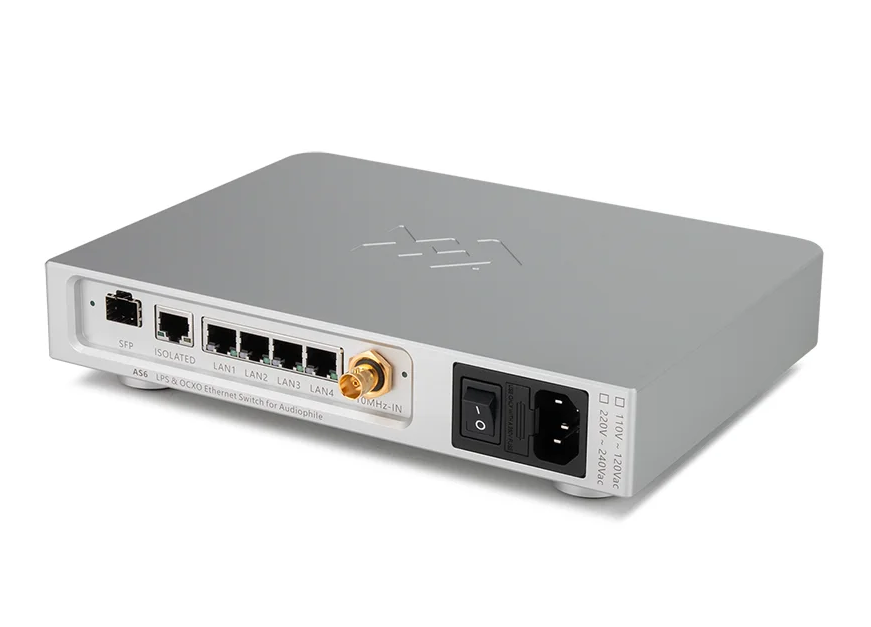

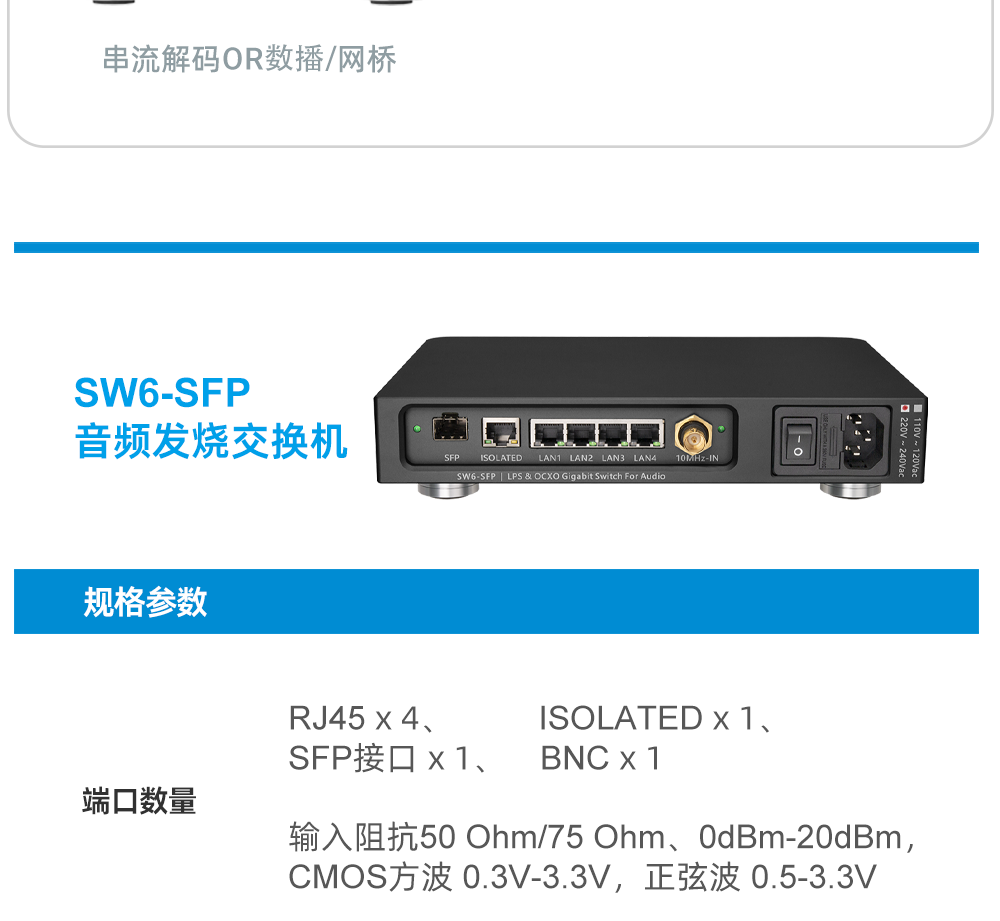

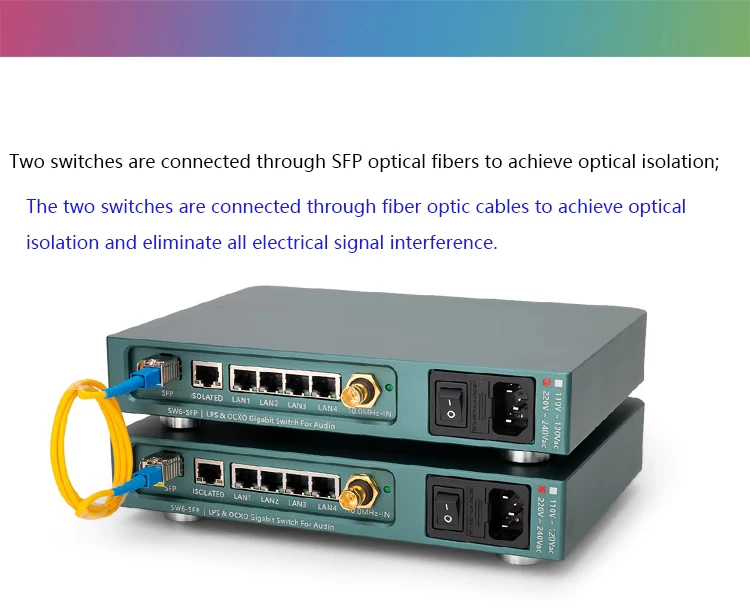

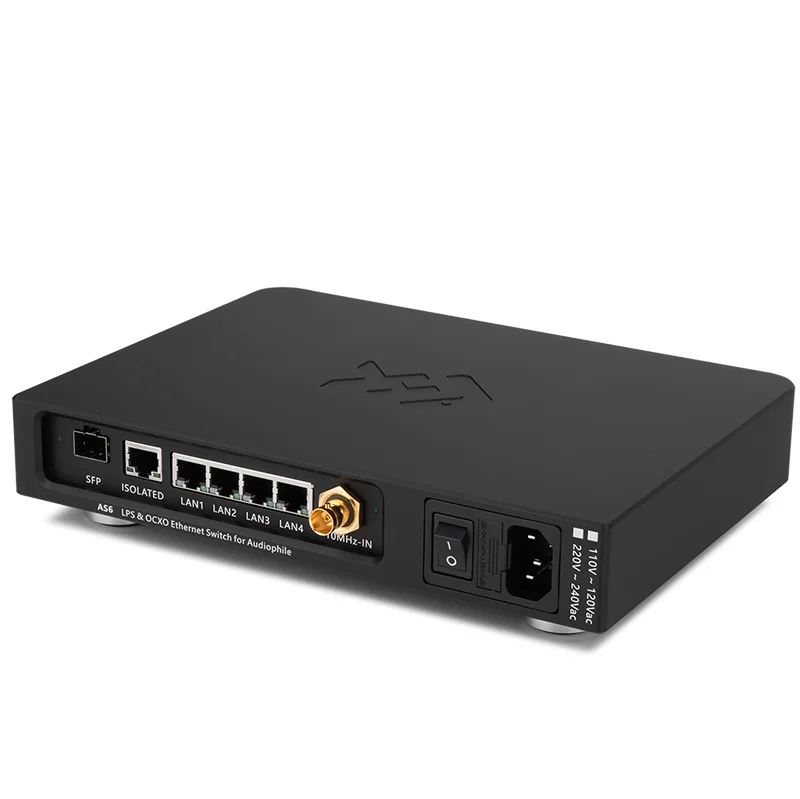

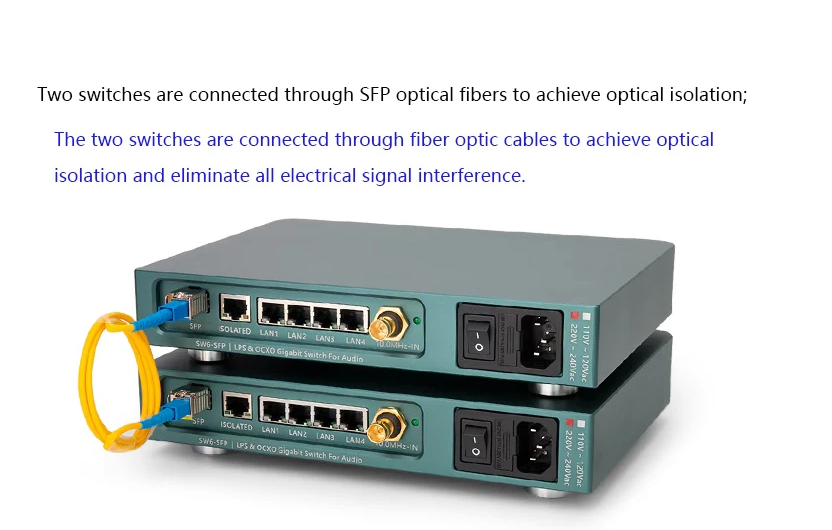

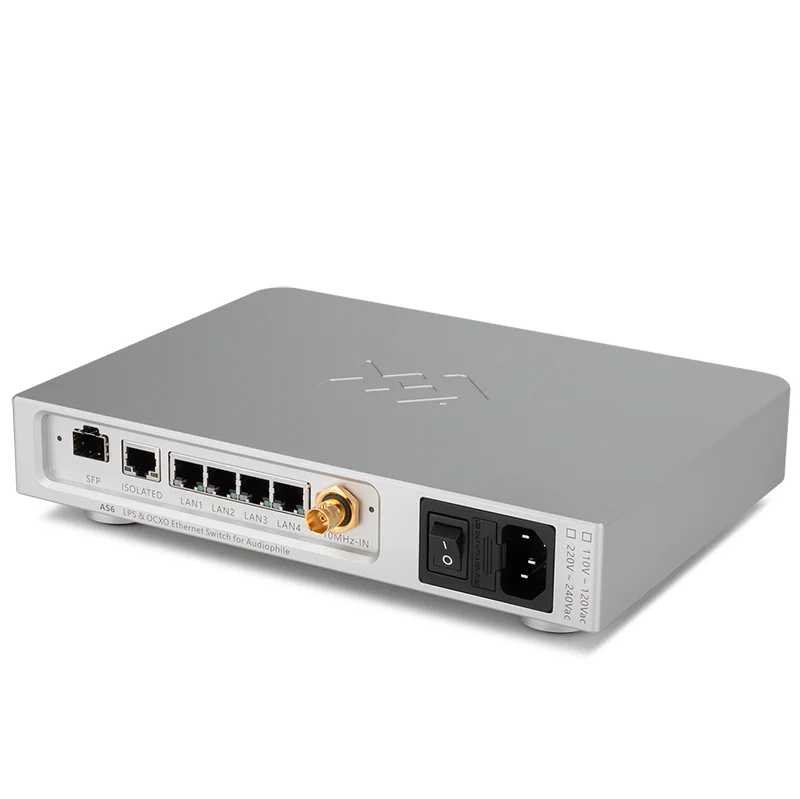

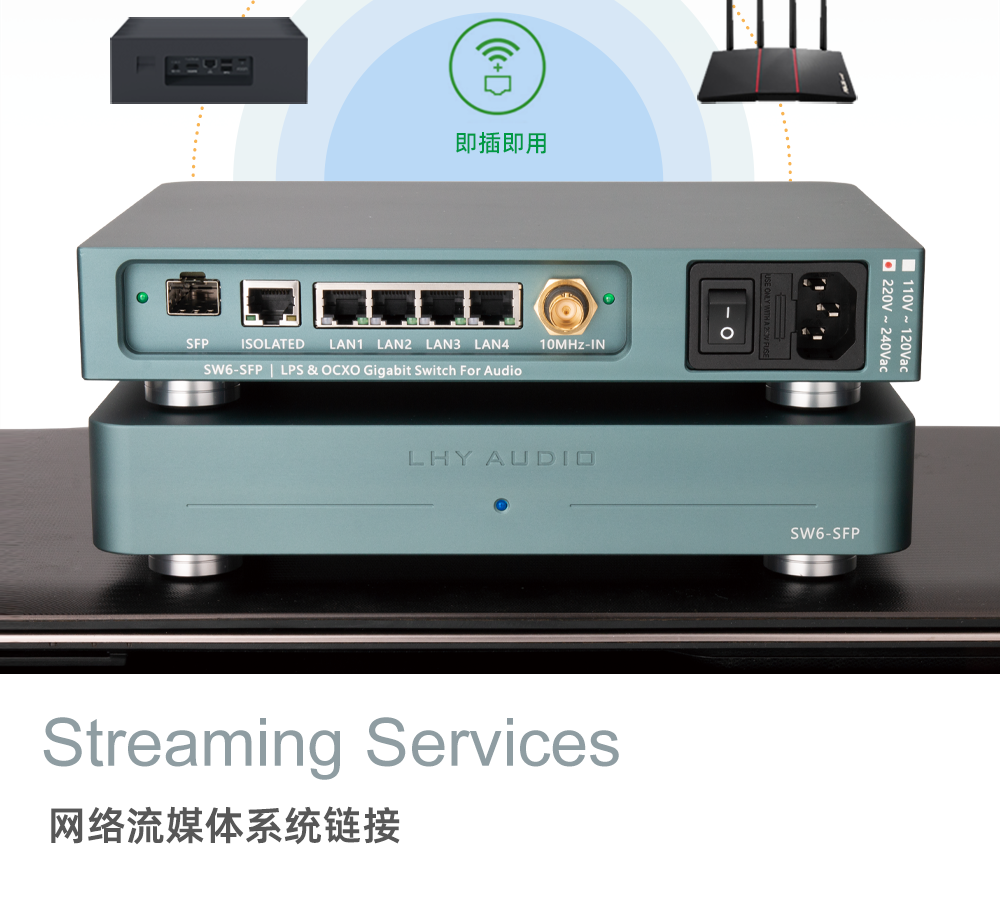

Number of ports: RJ45 x4, ISOLATD x1, SFP interface x1, BNC x1

Input impedance 50 Ohm, 0dBm-20dBm CMOS square wave 0.3V-3.3V, sine wave 0.5-3.3V

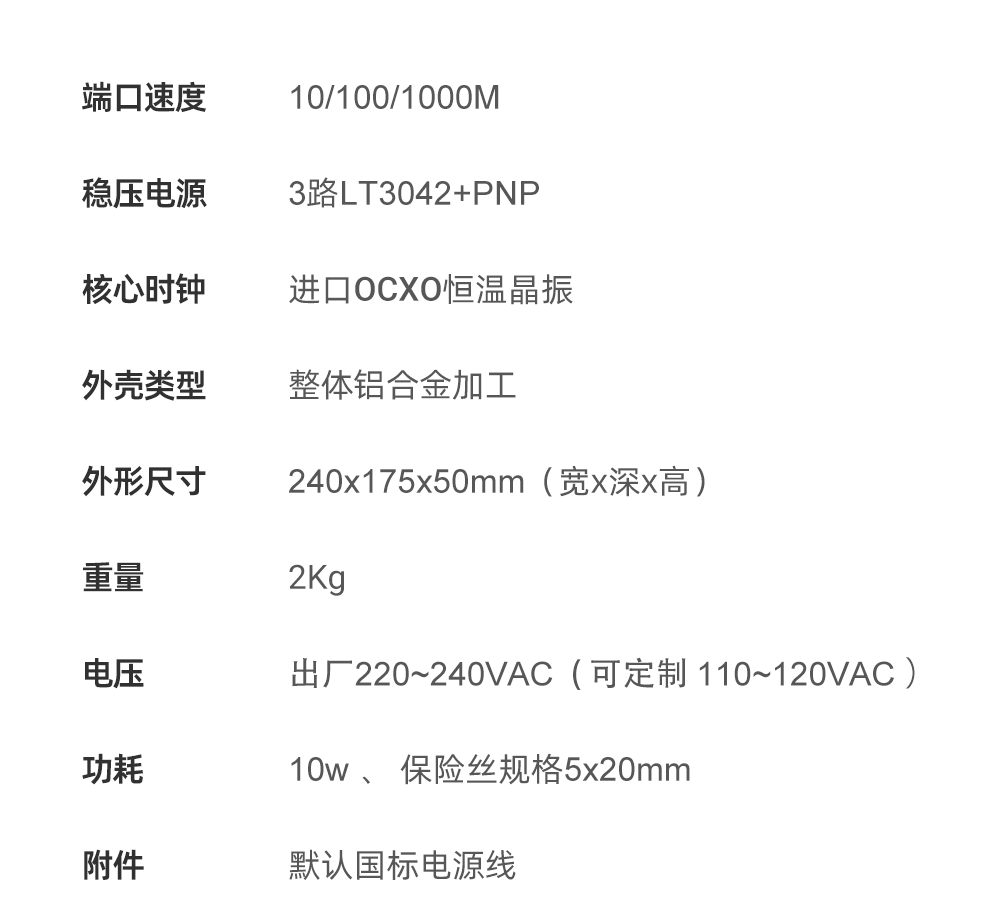

Port speed: 10/100/1000M

Stabilized power supply: 3-channel LT3042+PNP

Core clock: OCXO constant temperature crystal oscillator

Shell type: integral aluminum alloy processing

Dimensions: 240x175x50mm (width x depth x height)

Weight: 2Kg

Voltage: 220~240VAC (customizable 110~120VAC)

Power consumption: 10W, fuse specification 5x20mm
