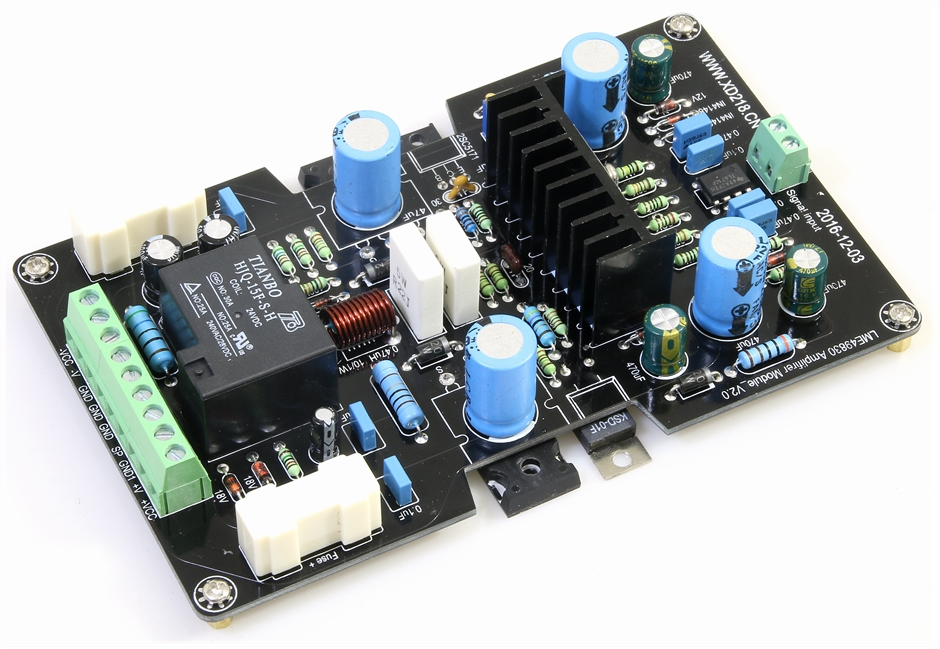

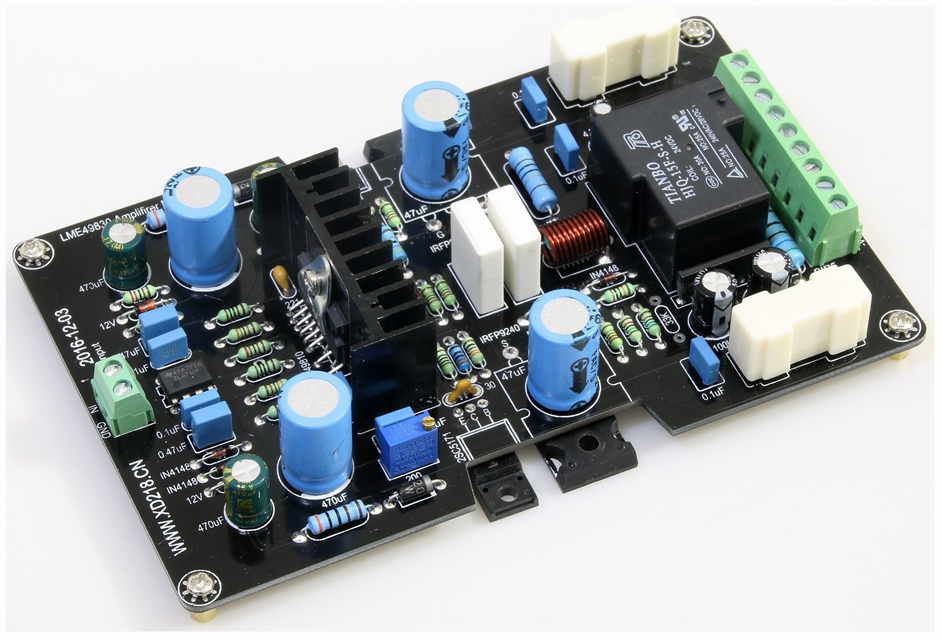

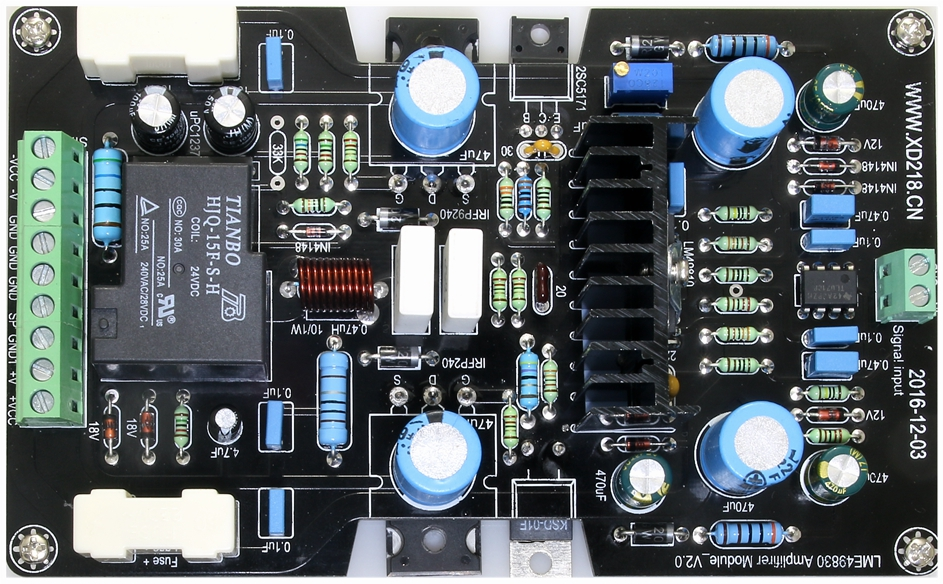

LME49830+IRFP240/IRFP9240 100W ClassAB Mono FET Power Amplifier Board

Product Details:

• Work status: Class AB (can be adjusted to Class A as needed)
• Output power: 100W * (4 Ω)<* V=± 60v>
• Working voltage: ± 55V
• Input impedance: 33K
• Output impedance: 4-8 ohms
• Product size: 152 x 93.5 mm

The current output adopts a pair of IRFP240/IRFP9240 field-effect transistors.
Adopting UPC1237 midpoint voltage protection and horn delay protection circuit.
DC servo circuit ensures that the midpoint output is less than 5MV.
The amplifier board is designed for mono channel.
Voltage amplification and current amplification can be powered separately

Package list:

1 × LME49830 amplifier board
