Product Details:
Referring to the excellent circuit structure of Naim Nap140 and making improvements, it has high output power, high efficiency, and low heat generation Standard British voice Stay calm and composed. The improved 140 has significant improvements in dynamics, parsing, signal-to-noise ratio, and other aspects.
The NAP140 circuit is very mature, stable in operation, with ultra-low power consumption, excellent thrust and control, and a smooth and soft sound like a Class A amplifier
1:) Joining the upc1237 horn protection system, there is absolutely no impact sound when turning on or off the device.
2:) Equipped with midpoint DC protection, effectively protecting your audio equipment.

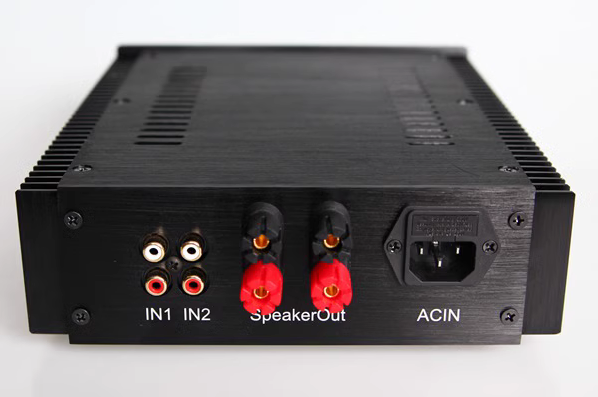

3:) Switch between two input channels.
4:) Strictly pair transistors to ensure midpoint drift is less than 5mV.

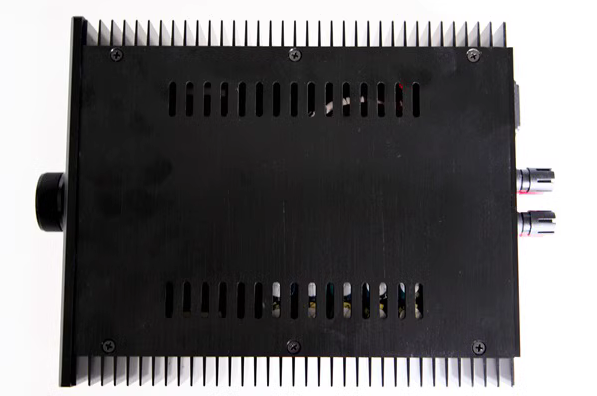

5:) The all aluminum chassis comes with an exposed heat sink, which effectively and quickly dissipates heat.
6:) Customized 200W oxygen free copper wire wound toroidal transformer.
7:) High quality components such as ALPS potentiometers and 56000uf filter capacitors are selected to ensure sound quality.
Specifications:
Maximum undistorted output power (1KHz sine wave equivalent power): 80W * 2 (measured at 8 ohms)
Input sensitivity:< 1Vrms.
Amplifier voltage gain: 28 times.
Supply voltage: AC220V/110V ，
Average power consumption:< 160W (at maximum output)
Signal to Noise Ratio:> 92dB
Volume: 280 * 212 * 60mm
Weight: 4.8Kg
Type: Class B
Package List:
1 × Finished Nap140se amplifier
For transportation safety, no power intput cable is provided.
