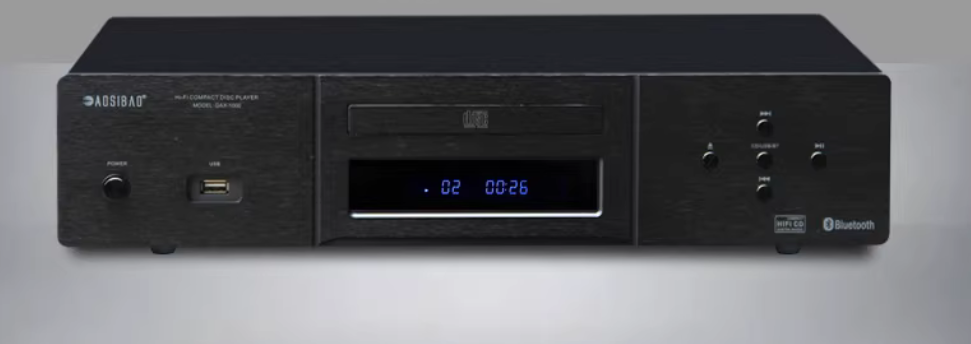

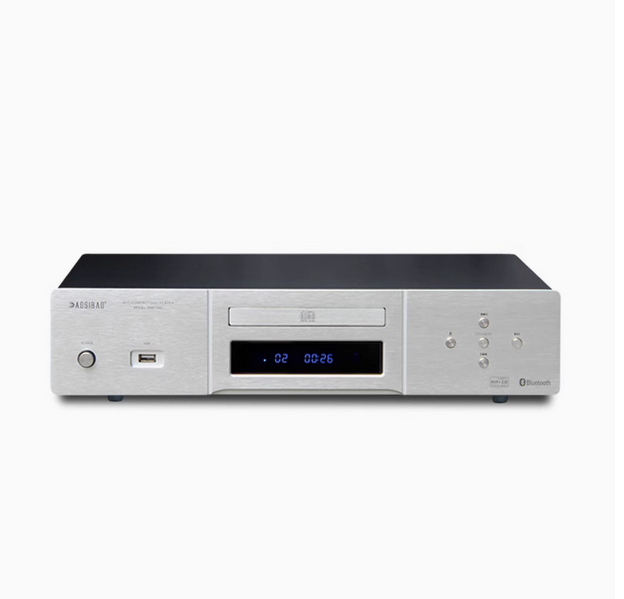

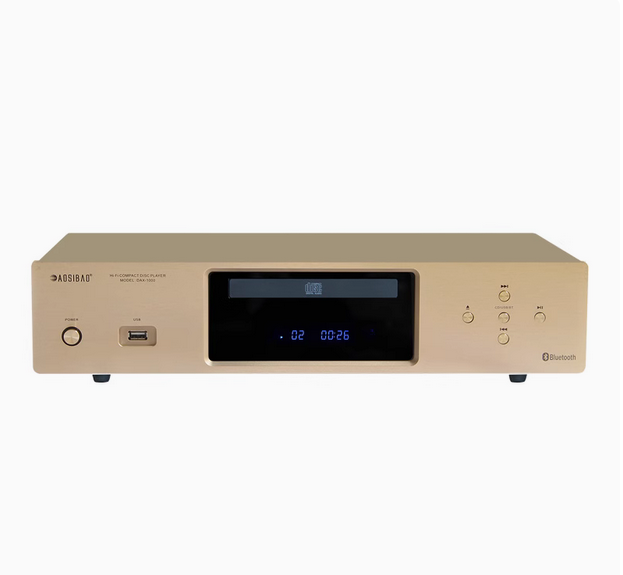

Lossless HIFI CD Player Bluetooth 5.0 OPA1612 Operational Amplifier DTS CD Music Player 24bit 192KHz Decoding XLR Outputs
product description

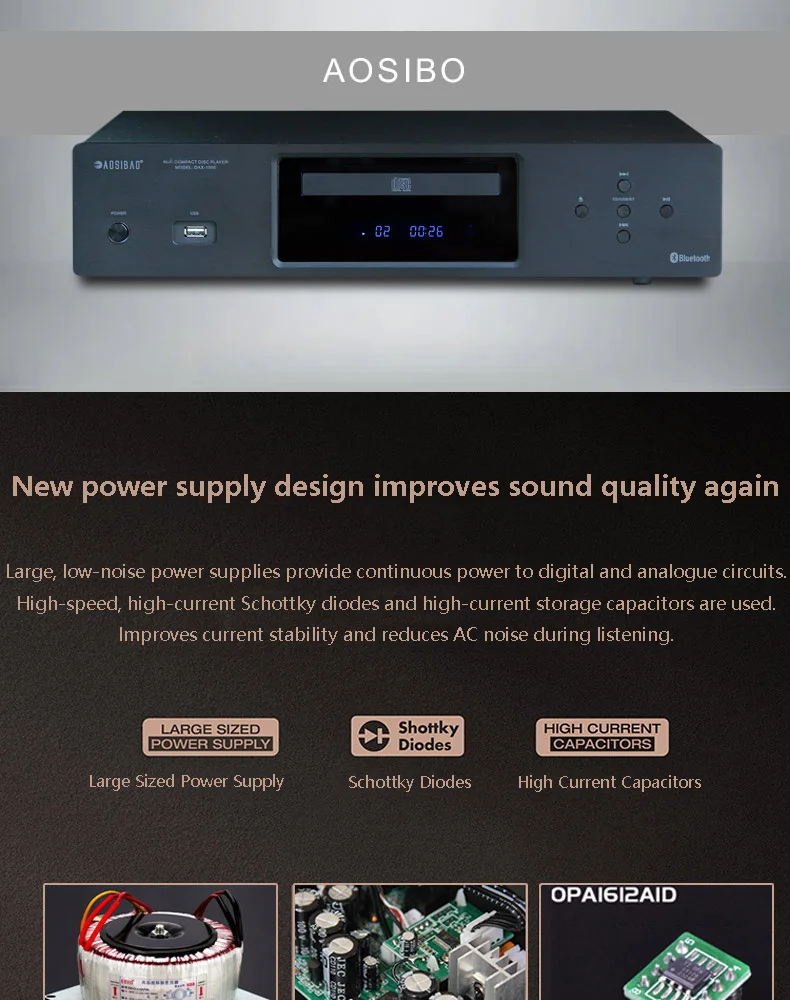

1: Large-size low noise power supply for digital and analogue circuits continuous power supply, using high-speed, high-current Schottky diodes, high-current storage capacitors. Allow the listening process to improve current stability and reduce AC noise.

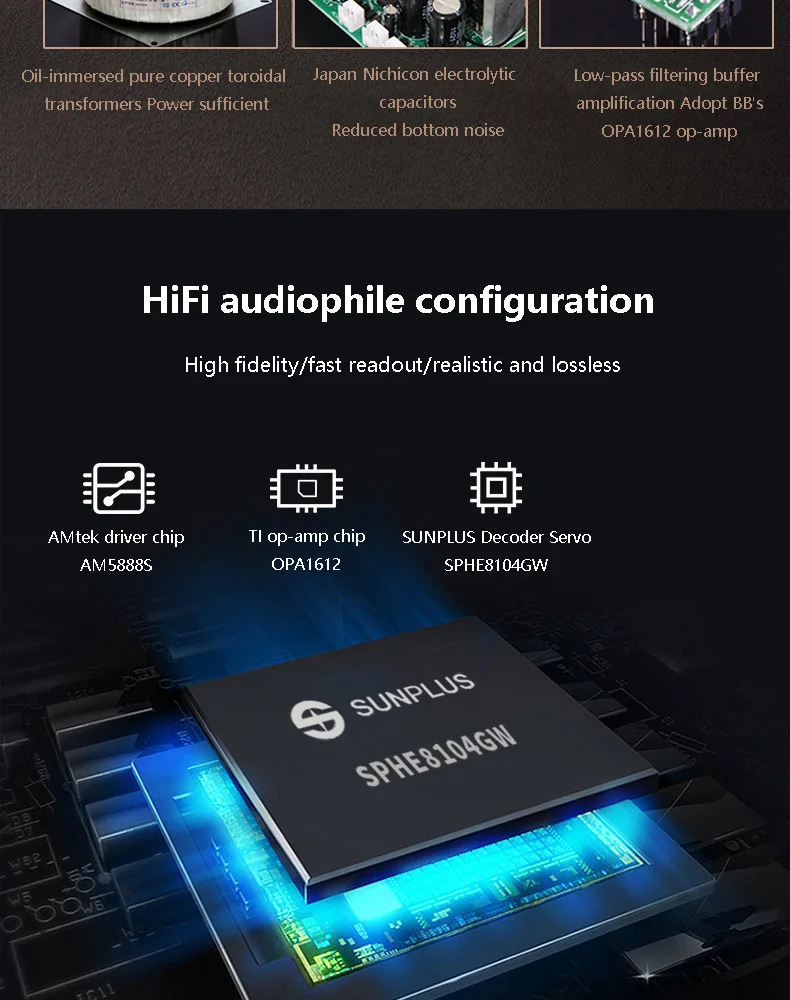

2: audio chip using Taiwan SD7402 24bit/192Khz D / A digital-analogue audio processing, op-amp selection has a "beautiful sound king" known as the U.S. OPA1612AP (operational amplifiers), excellent output drive capability and a fairly high level of small-signal and power supply with a warm tone, high fidelity reduction.

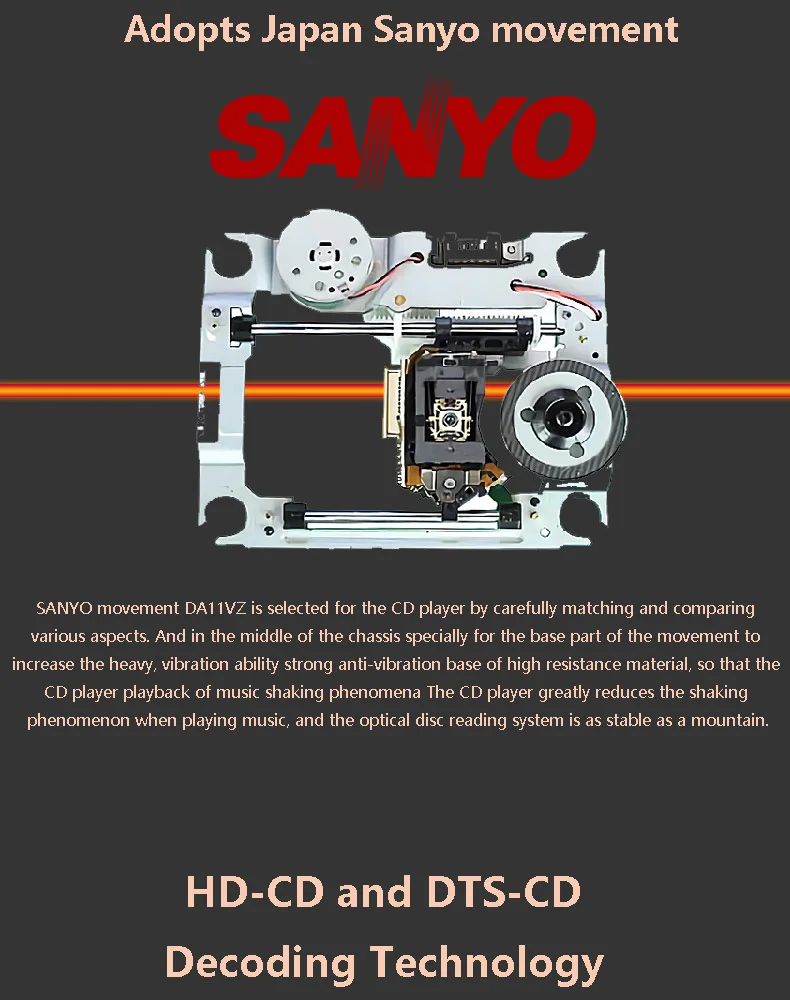

3: carefully selected multi-faceted matching than the special selection of the DA11VZ Sanyo movement, and in the middle of the chassis specifically for the movement based on part of the increase in the thick, strong seismic capacity of the anti-vibration base of high-nylon resistive materials, so that the CD machine to play music when the phenomenon of jittery shaking is greatly reduced, the optical head reads the disc system is stable as a mountain.

4: In addition to CD two-channel, can also decode HD-CD and DTS-CD discs. HD-CD is the abbreviation of high-resolution compatibility of digital technology, the signals accommodated more than ordinary CD, the sound quality is more clear is a new recording technology, belongs to a lossless decoding.

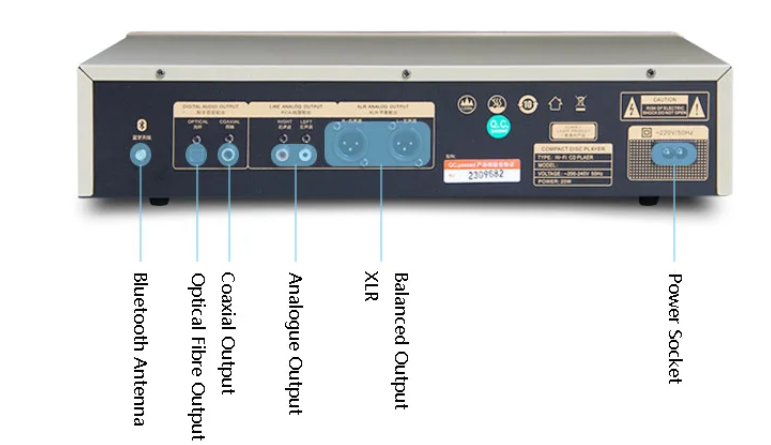

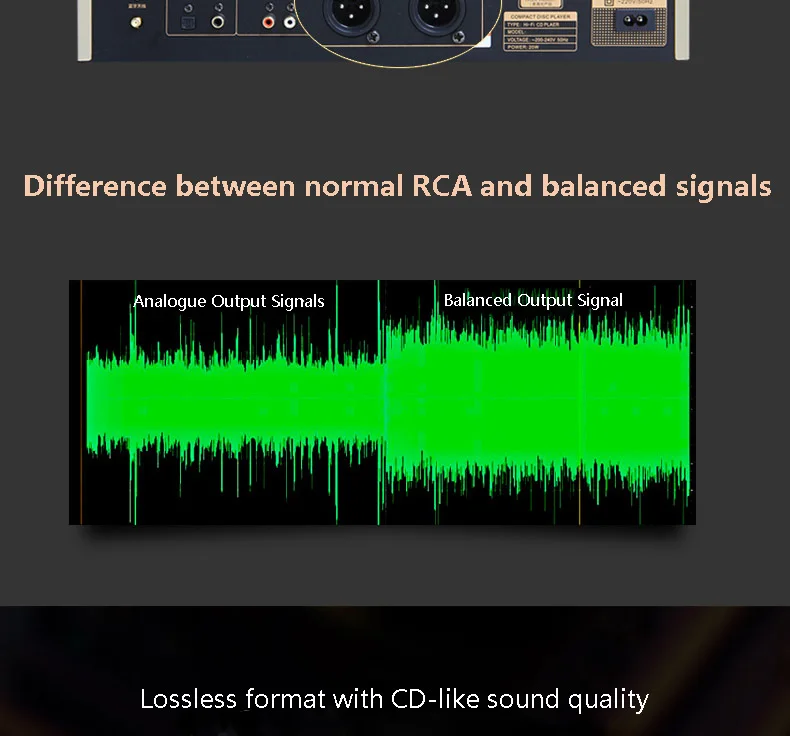

5: Fully balanced audio line, truly noiseless pure music balanced output. Low noise, strong anti-interference ability. Transmission performance is more stable, in the system performance of the music background is cleaner, has been the wind vane of high-end and Hi-Fi machine.

6: CD player USB support 16Bit APE, WAV, FLAC and other lossless format music; also supports MP3, WMA common audio. Ordinary MP3 audio belongs to the lossy compression, a song capacity of about 3M or so. Lossless format is 10 times larger than MP3 format, more than 30M per song, the sampling rate reaches 16bit/44.1KHz, the sound quality can be comparable to CD discs. With the massive lossless music resource download, you can enjoy high quality music without discs.

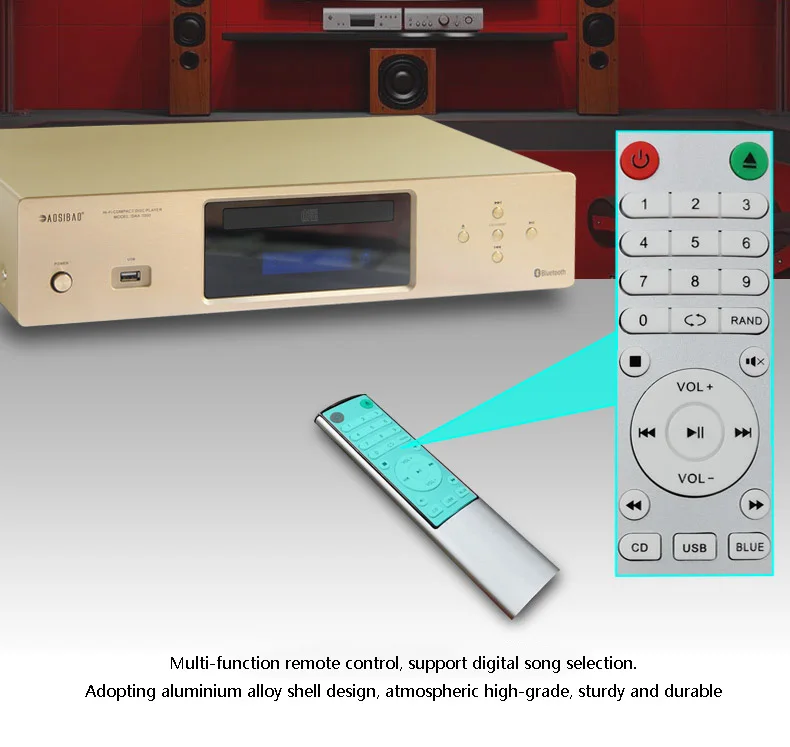

7: Multi-function remote control, support digital song selection, with aluminium alloy shell design, atmospheric high-grade, durable.

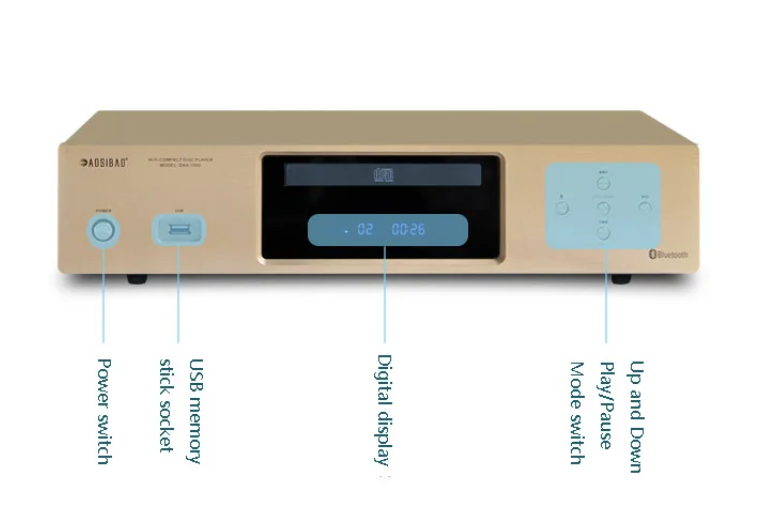

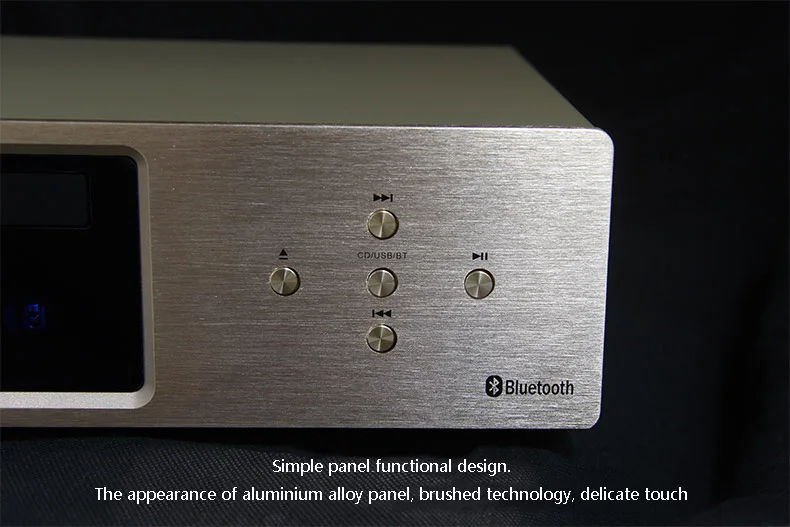

8: Simple panel functional design, the appearance of the aluminium alloy panel, brushed process, delicate touch.
Product Parameter
Sound channel: two channels, stereo
Disc: CD, CD-R, CD-RW, CD-DA, HDCD
Decoding: USB interface: APE,FLAC,WAV,MP3

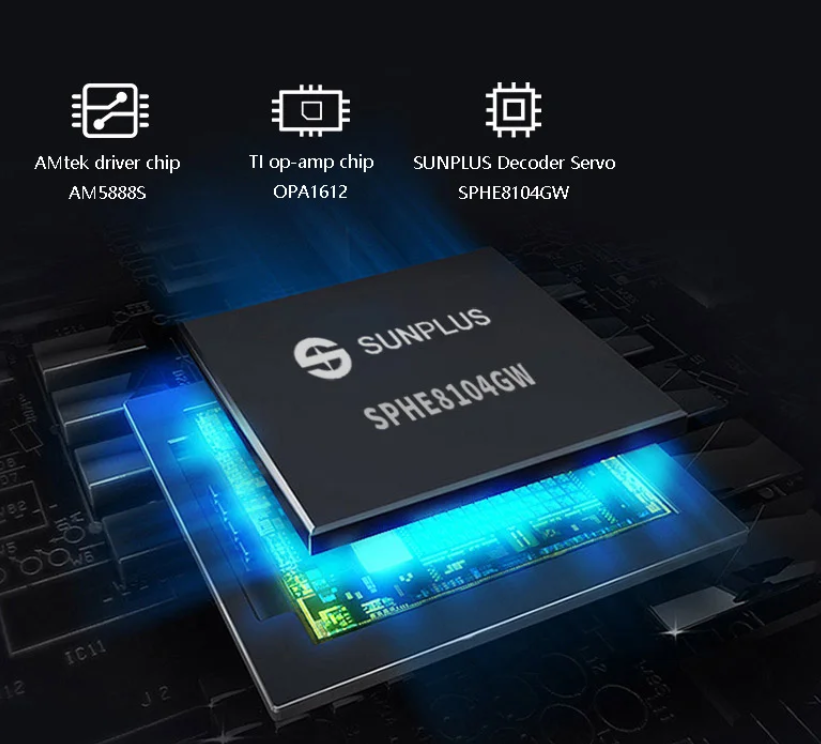

Chip: SPHE8104GW servo decoding chip
Dynamic: 86dB
Signal-to-noise ratio: >100dB(1KHz)
Separation: 72dB
Distortion:0.0033%
Frequency Response Range: 20Hz~20KHz
Analogue output amplitude: 2.2V(RMS)
Analogue Output Distortion: 0.033%
Analogue output dynamic range: 86DB
Analogue output signal-to-noise ratio: 83DB
Analogue output separation: 72DB
Analogue output frequency response range: 20Hz-20KHz
SPDIF output amplitude: 1.5VPP
Bluetooth: V5.0

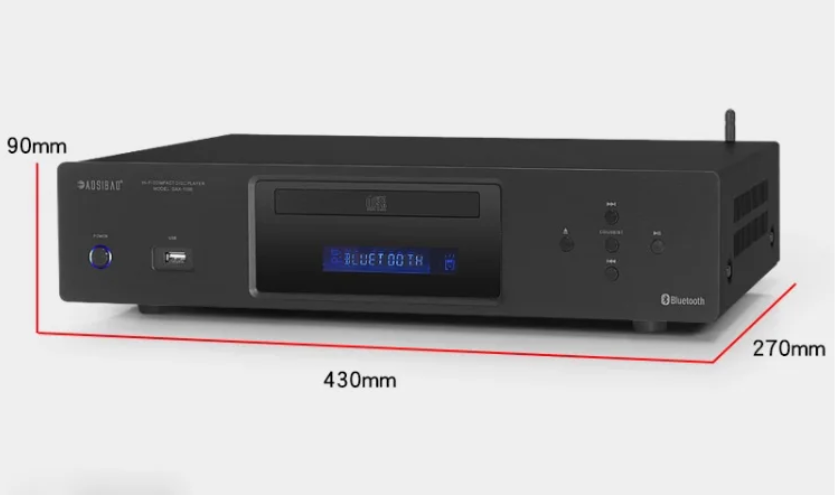

Dimensions:H90xW430xD265mm
Weight:5Kg
